THE URBAN S41 WINDOWED INTERIOR

















urban s41 window 24t

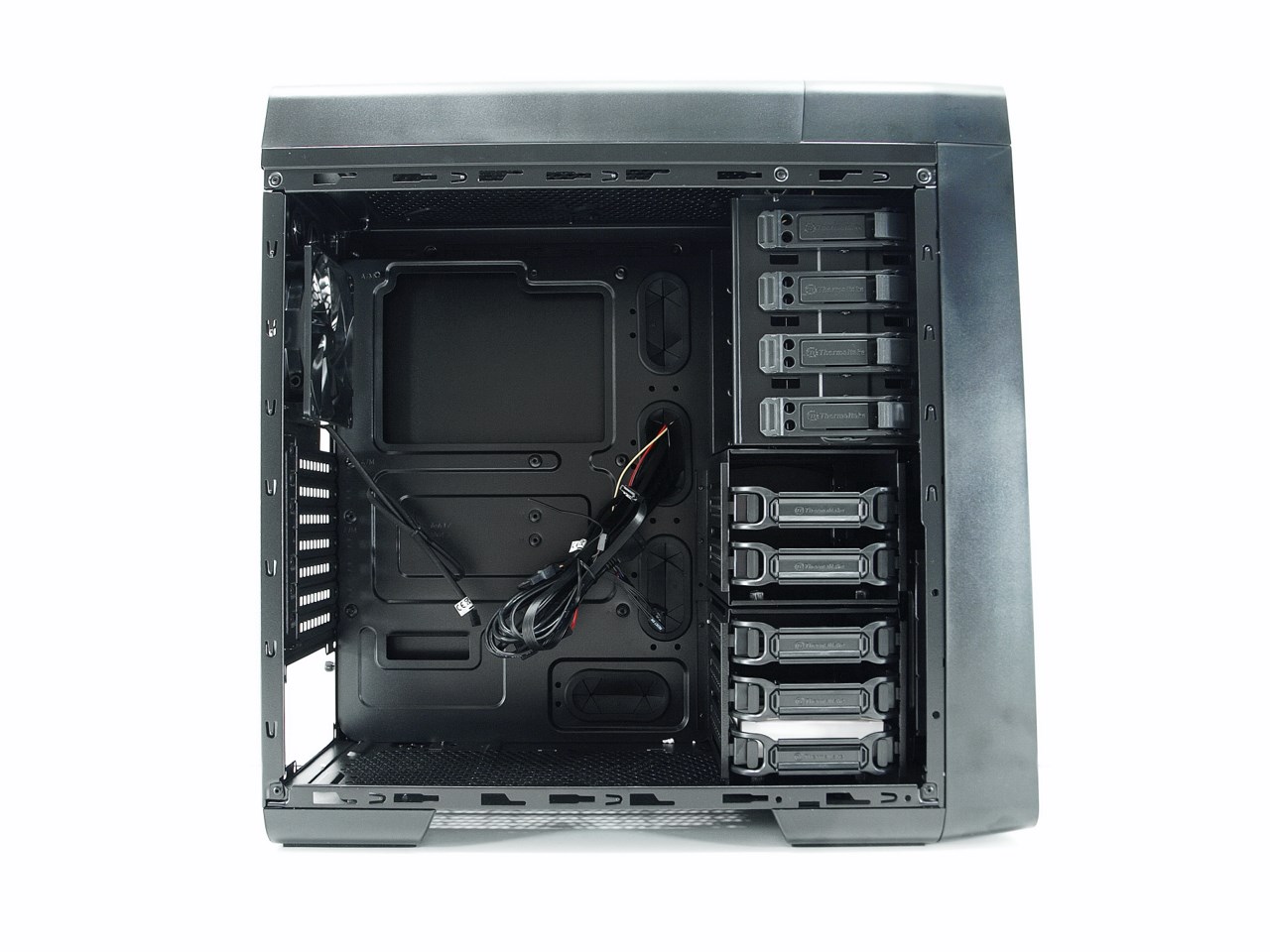

The interior also has the same black paint as the rest of the tower and looks quite spacious at least at first glance.





urban s41 window 25t

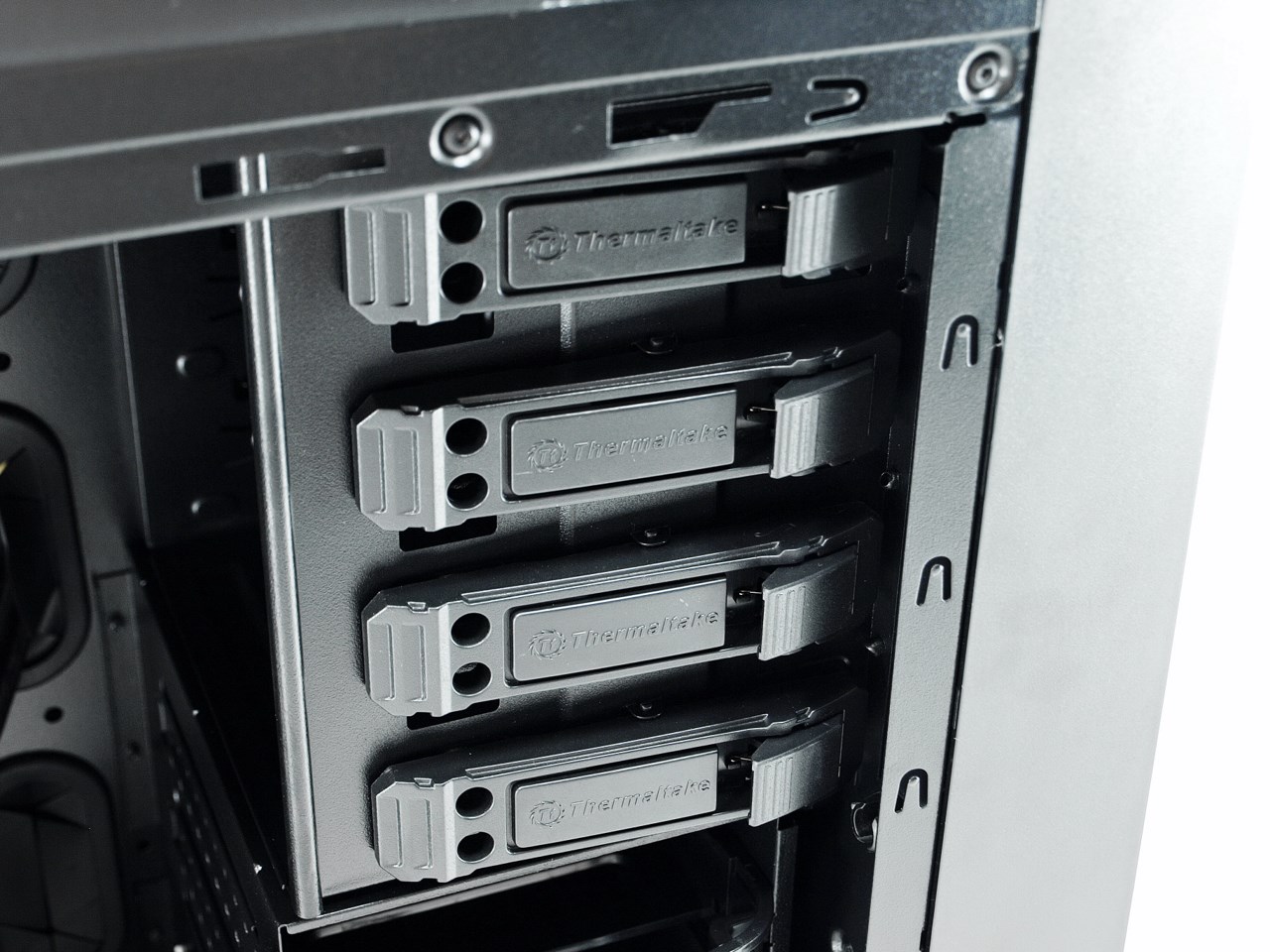

All 4 optical drive bays feature tool-less locking mechanisms.





urban s41 window 26t

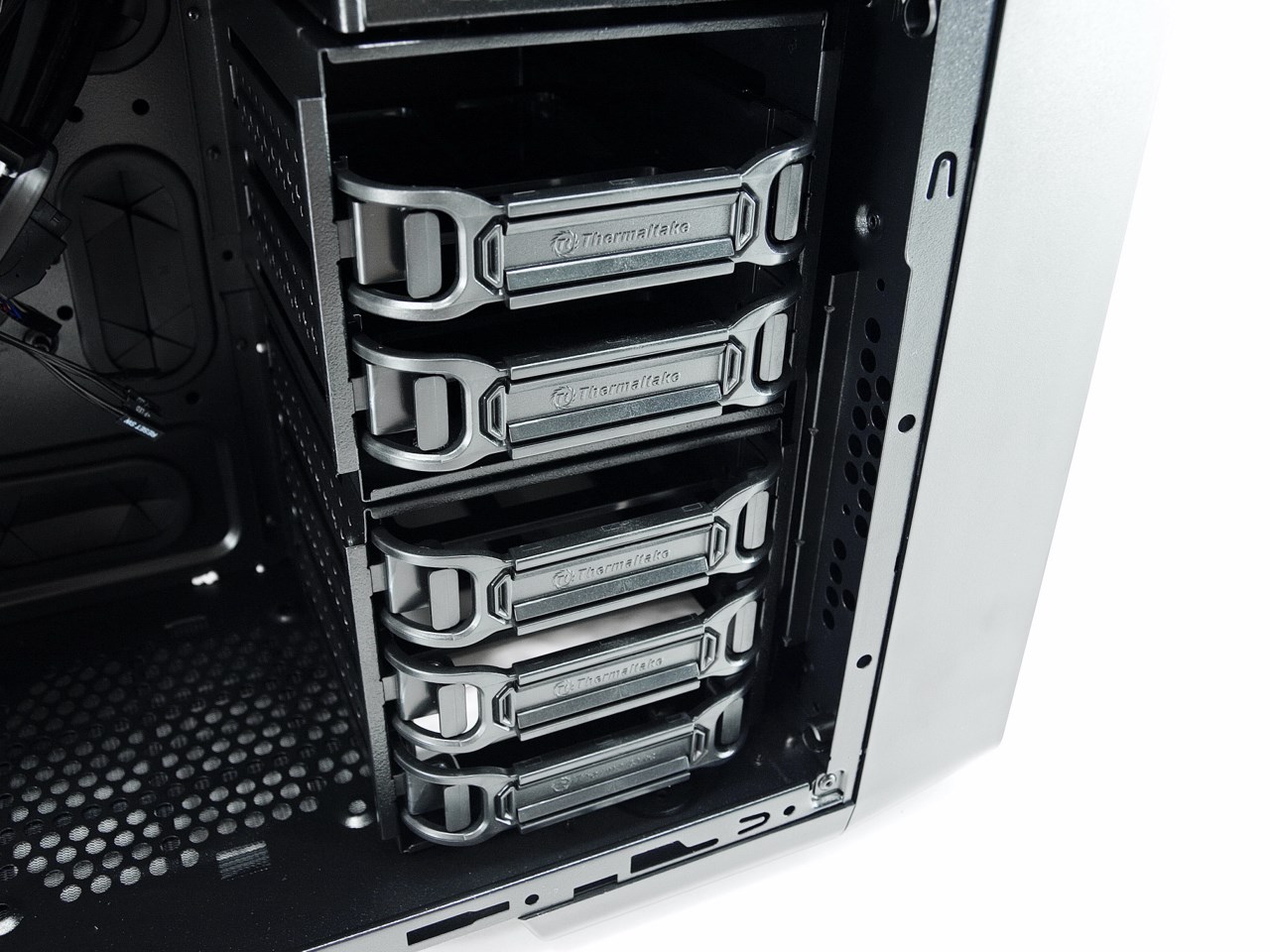

Right beneath them we see two drive cages capable of holding up to 5 HDDs.





urban s41 window 27t

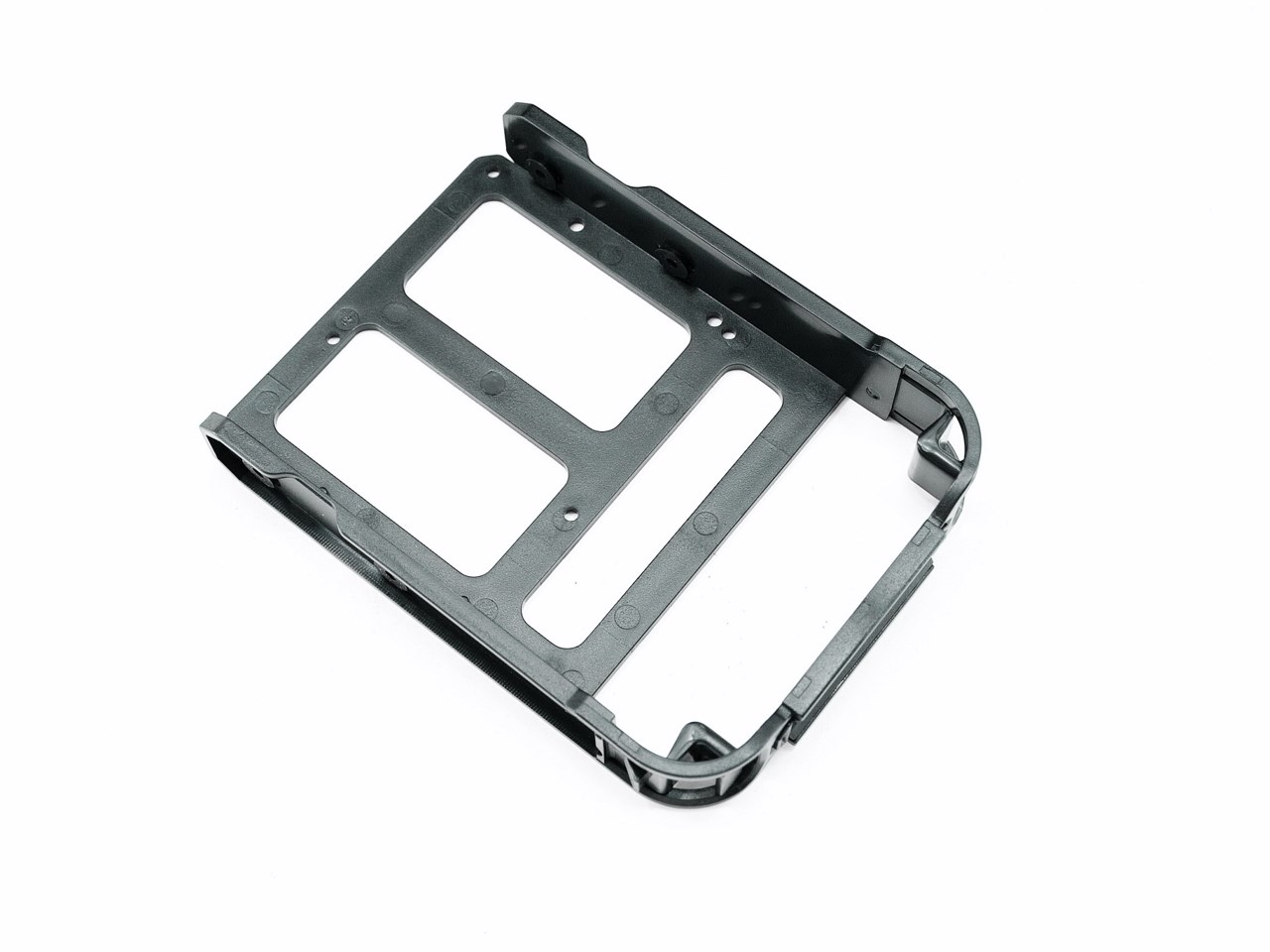

The drive trays are quite sturdy and can hold both 2.5" and 3.5" drives.





urban s41 window 28turban s41 window 29t

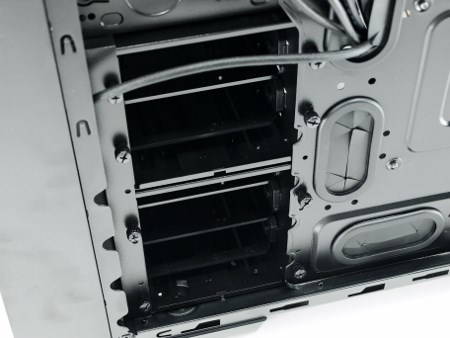

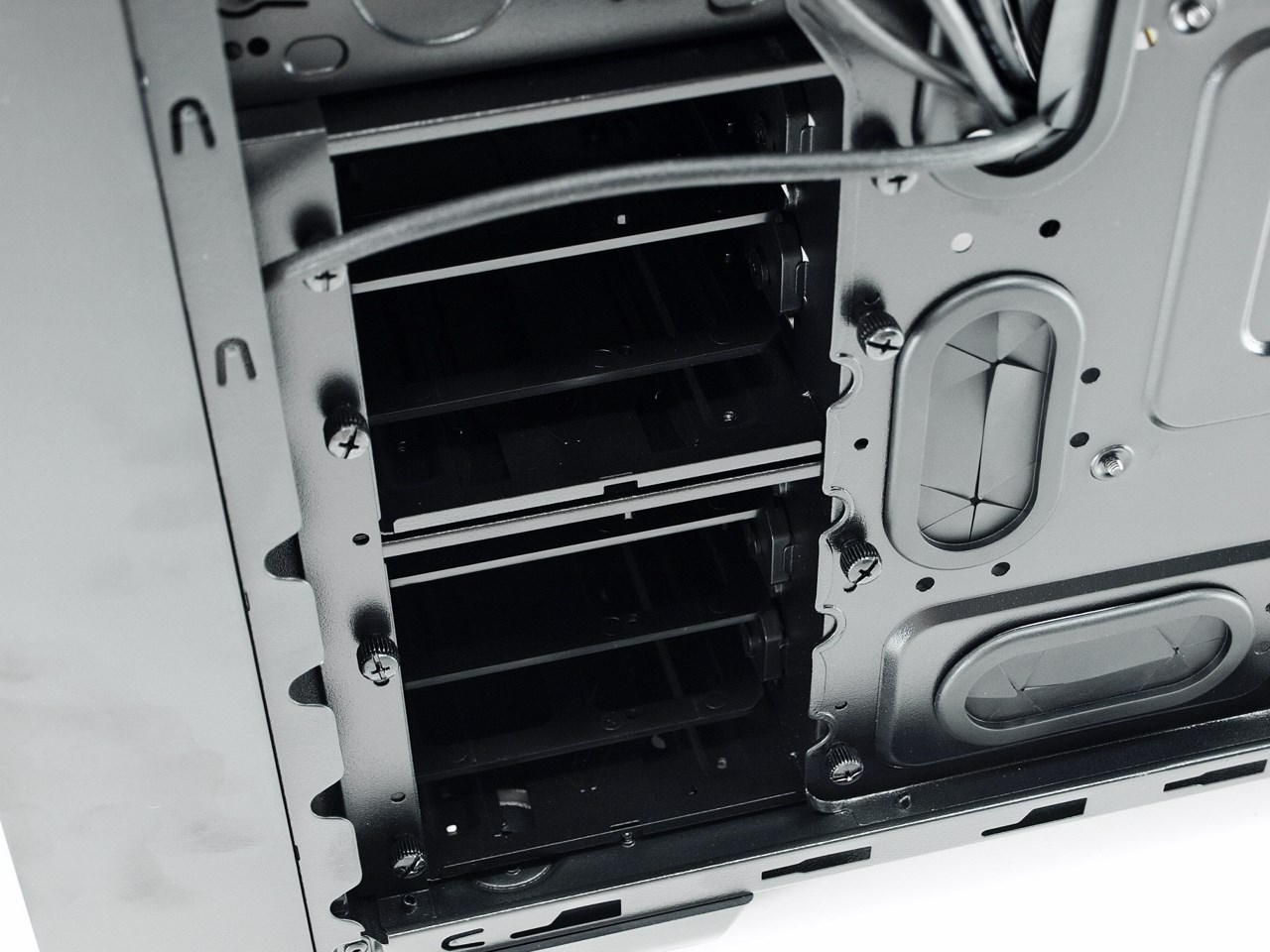

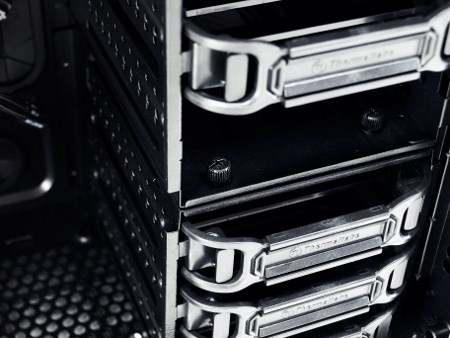

You can take the drive cages out from the tower by removing the 2 thumbscrews (each) found at their bottom and the 4 thumbscrews (each) found at the rear.





urban s41 window 30t

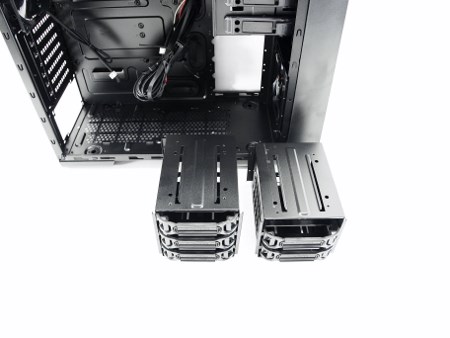

That way if you want to mount two very long mGPU graphics cards you can just use the two spot drive cage (shorter).





urban s41 window 31t

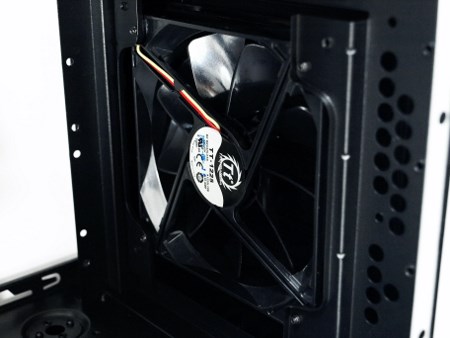

The 120mm intake fan mounted at the front belongs to the Turbo family of fans manufactured by Thermaltake and can reach speed up to 1000RPM with just 16dBA of noise.





urban s41 window 32t

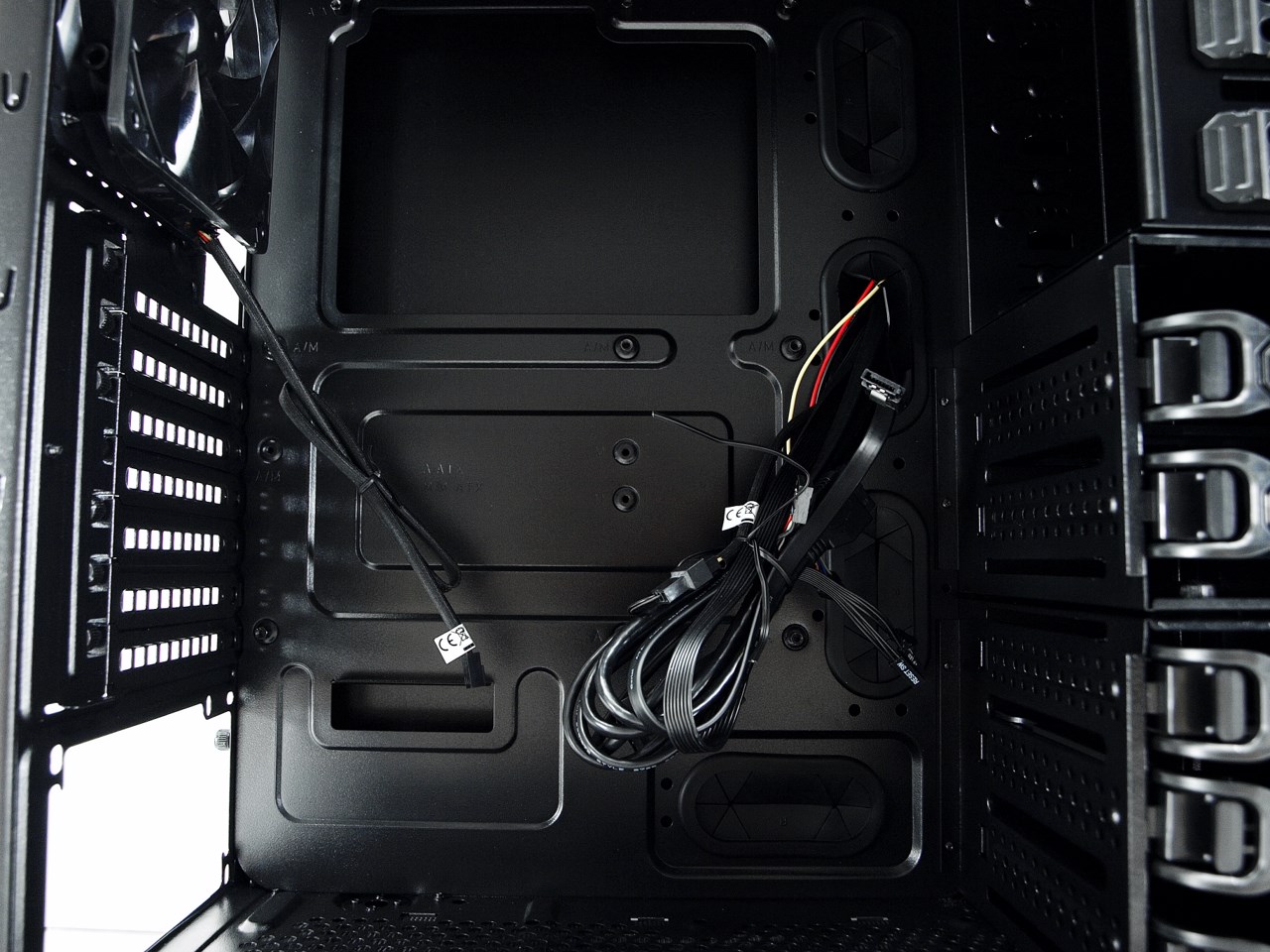

As you can see the mainboard tray has 4 large rubber grommets used for cable management and a very large opening beneath the CPU area for the swapping of backplates.





urban s41 window 33t

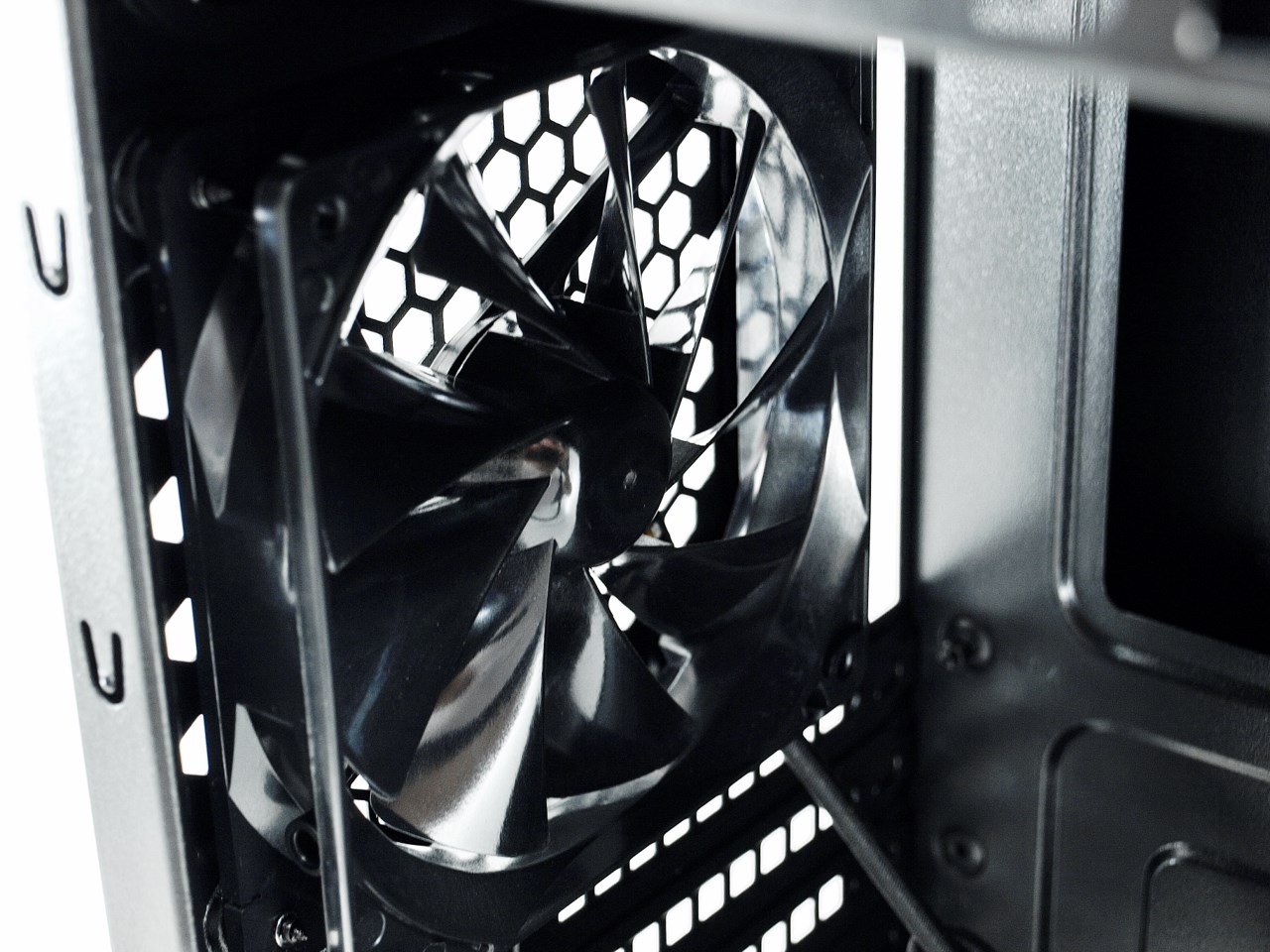

The rear 120mm exhaust fan is identical to the front intake fan.





urban s41 window 34t

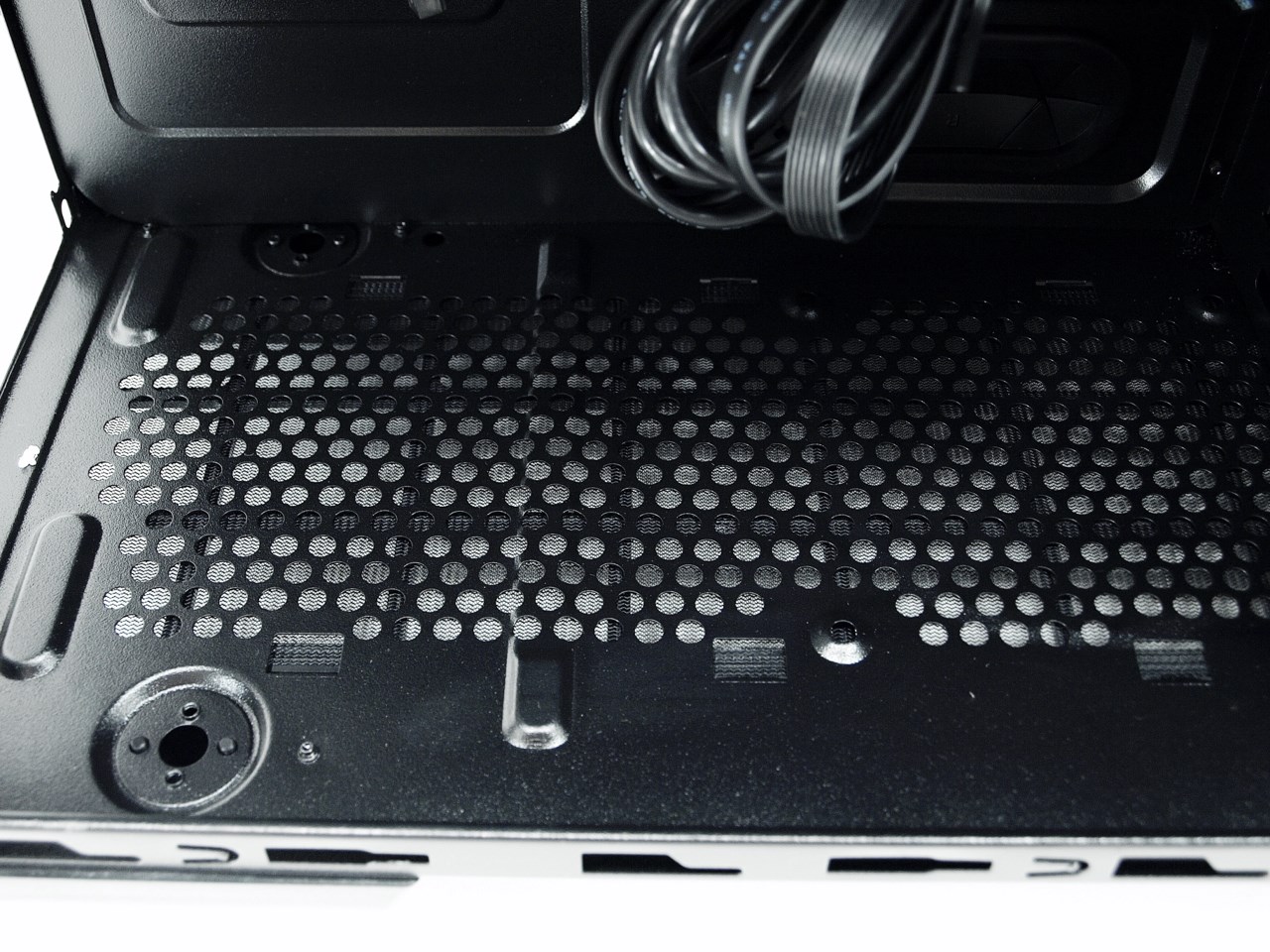

There's room at the bottom of the tower to install yet another 120mm intake fan.





urban s41 window 35t

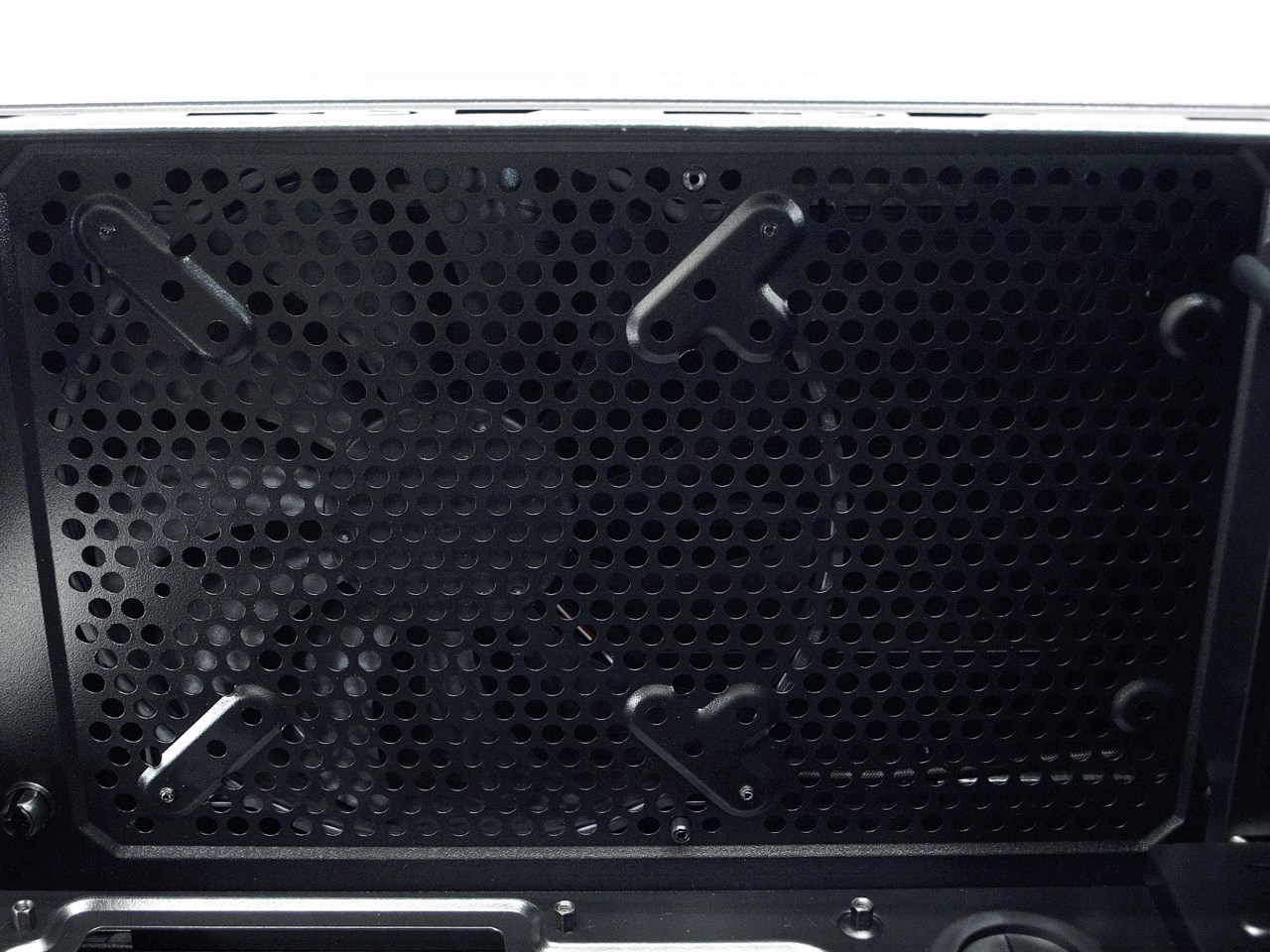

Leaving out the 200mm exhaust fan placed at the top you can mount an 240mm radiator beneath it.





urban s41 window 36t

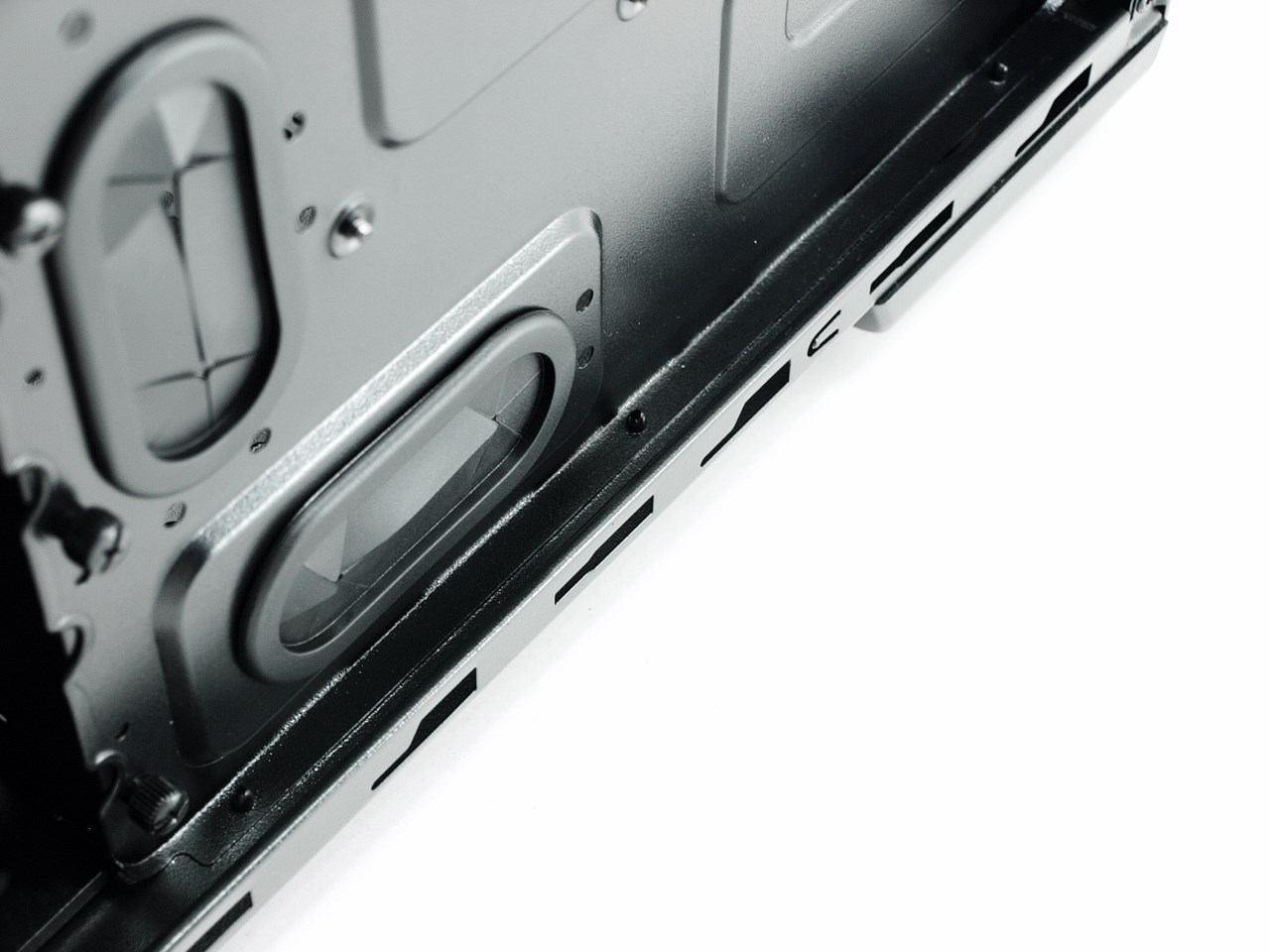

For people who care a lot about cable management the good news is that behind the mainboard tray there's quite a bit of room to route cables.
