THE CORE V1 EXTERIOR

















thermaltake core v1 07t

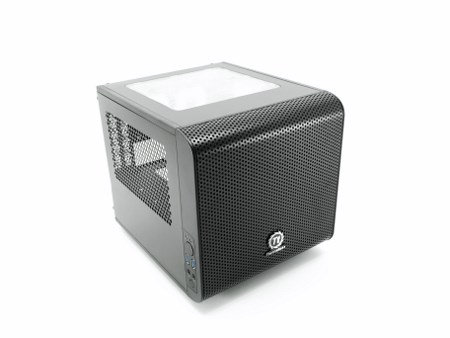

The Core V1 measures 316mm in length, 276mm in height and 260mm in width and is primarily made out of SPCC steel (the fascia is made out of plastic).





thermaltake core v1 08t

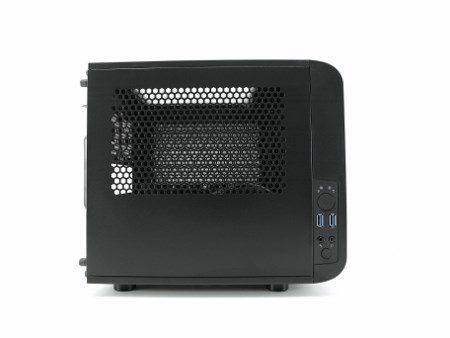

Both side panels are perforated (on this side panel you can mount up to two 3.5/2.5" drives by using the mounts in the bundle).





thermaltake core v1 09t

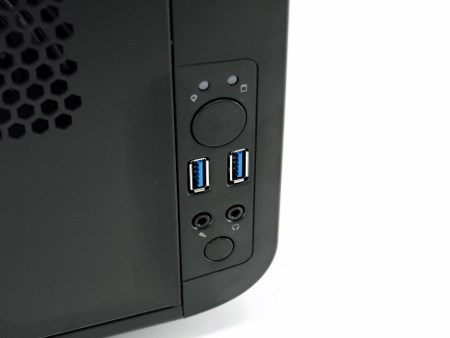

On the right side we also find the I/O which consists out of two USB 3.0 ports, reset and power on/off buttons, power and HDD activity LEDs and the typical microphone and headset ports.





thermaltake core v1 10t

A large plastic window is placed on the top panel which you can swap with any of the other 3 panels.





thermaltake core v1 11t

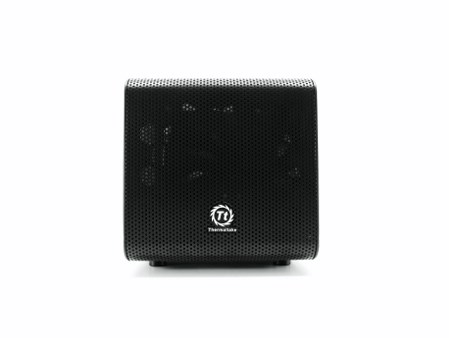

The fascia is perforated so that air can pass through easier.





thermaltake core v1 12t

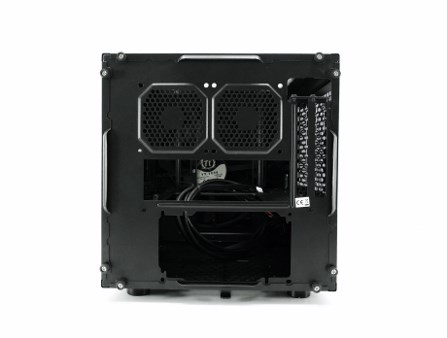

At the rear we find room for two 80mm exhaust fans, two PCI expansion slots and the PSU area.





thermaltake core v1 13t

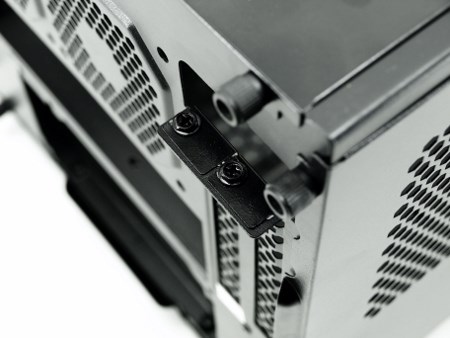

Both PCI expansion slots are secured via normal screws from the exterior.





thermaltake core v1 14t

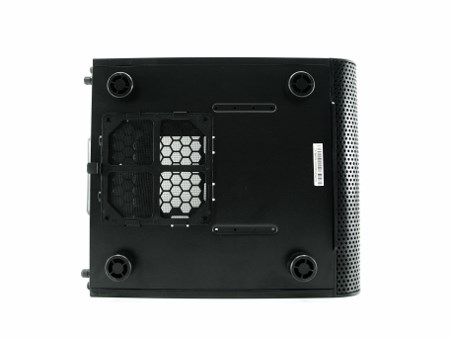

A removable air filter is placed at the base panel right beneath the PSU area.
