THE P380 EXTERIOR

















antec p380 07t

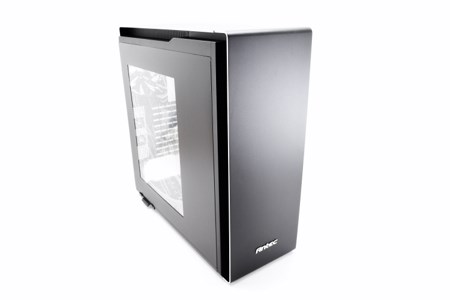

The P380 is really one of the most elegant full towers (555mm tall, 223.6mm wide and 557mm deep) to have reached our lab in years and that's largely because of the front/top aluminum bezel.





antec p380 08t

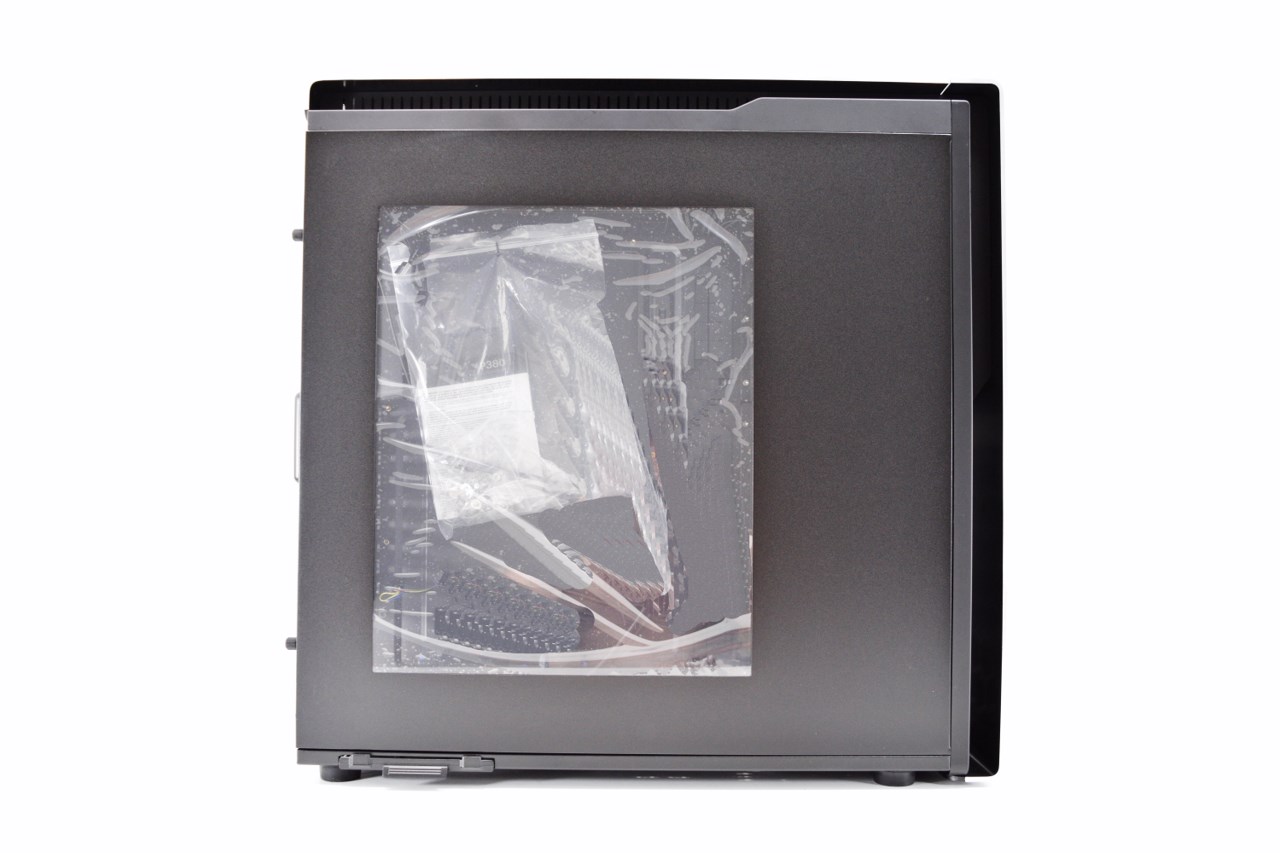

A large clear side window takes most of the left side panel.





antec p380 09t

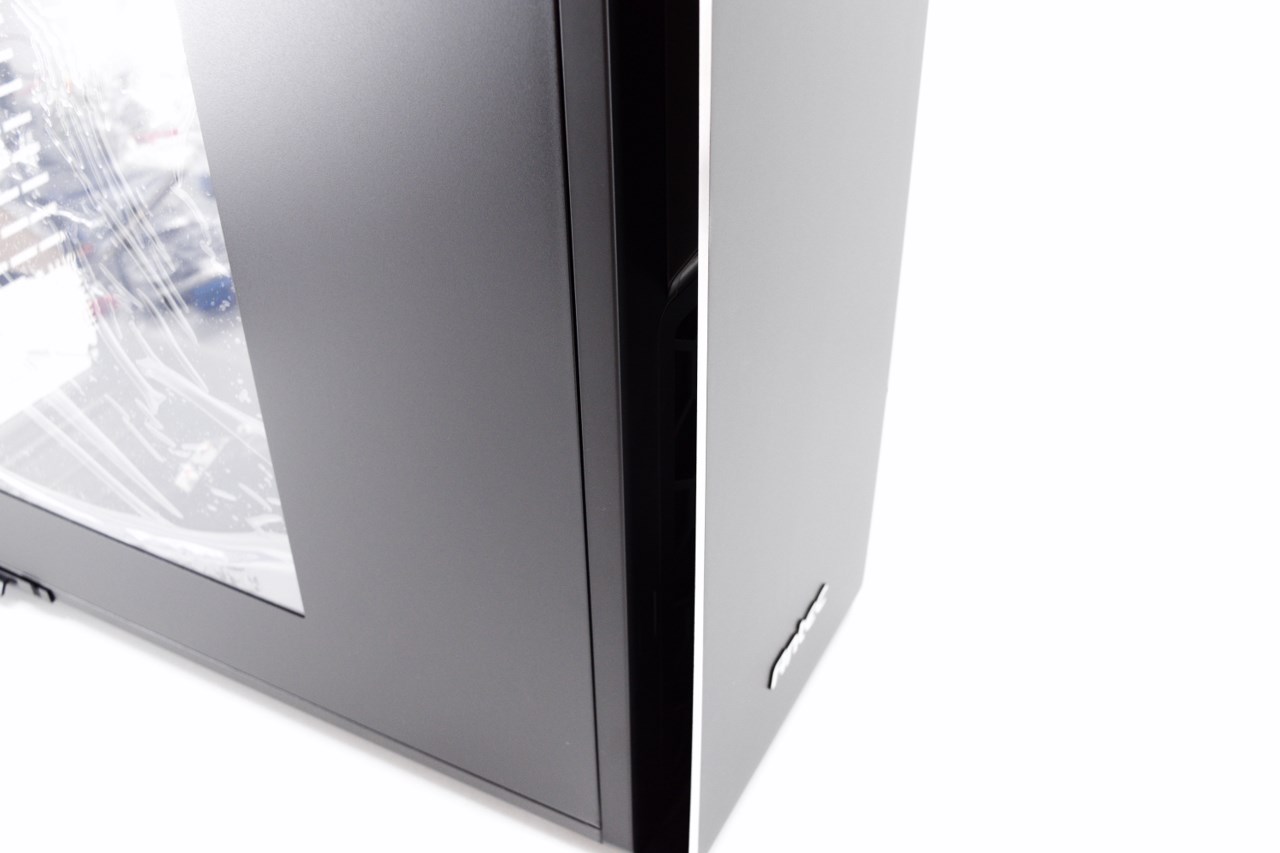

The front fascia leaves room on both sides to allow air to reach the fan area.





antec p380 10t

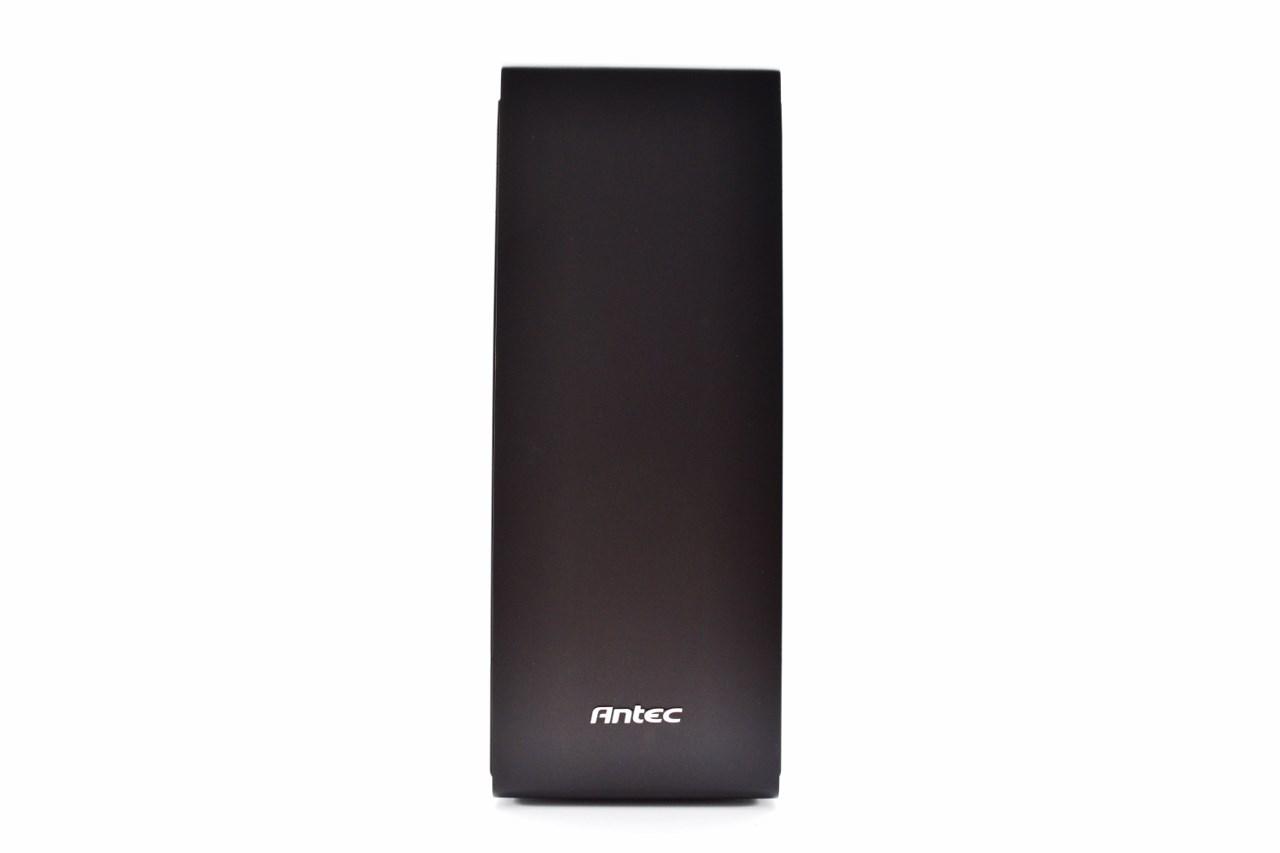

Since Antec skipped on the 5.25" optical drive bays entirely the fascia looks very simple but yet quite elegant.





antec p380 11tantec p380 12t

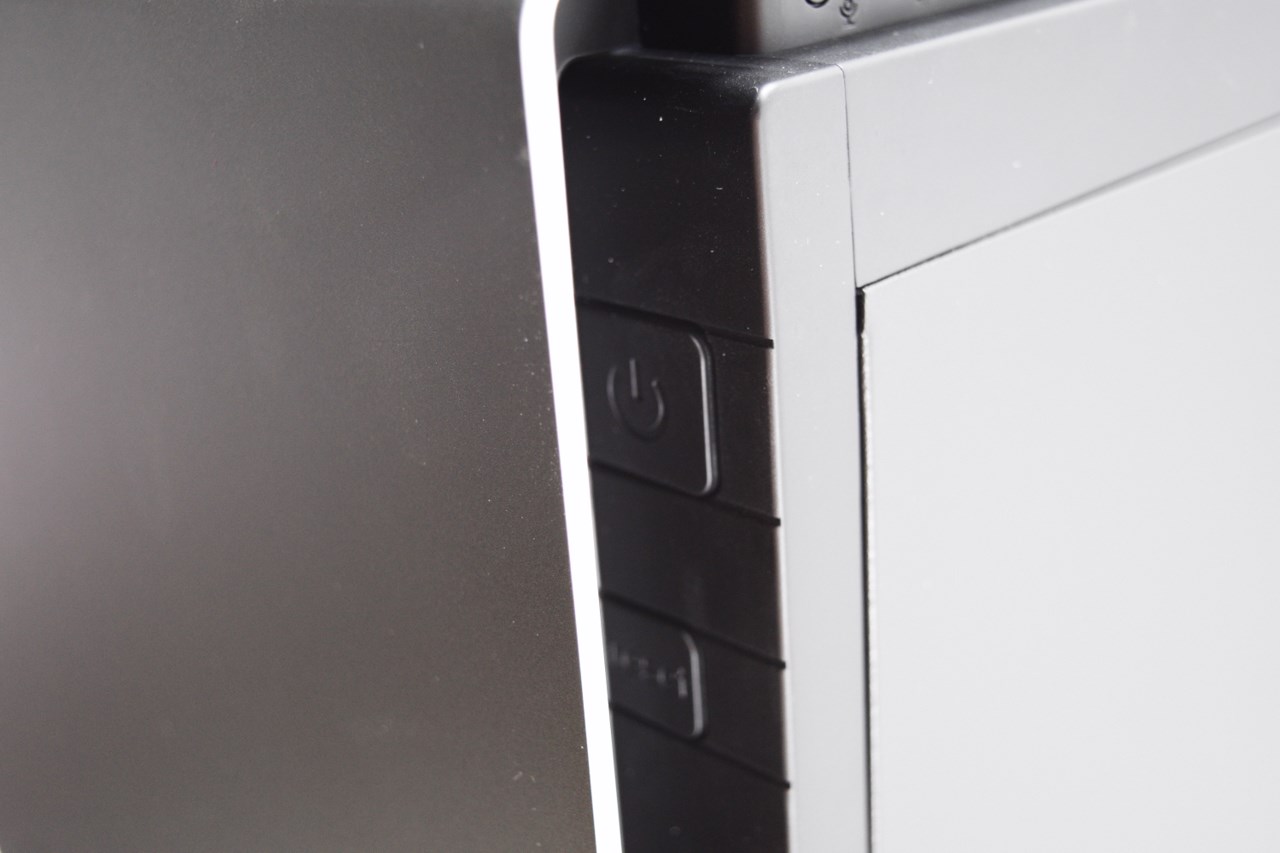

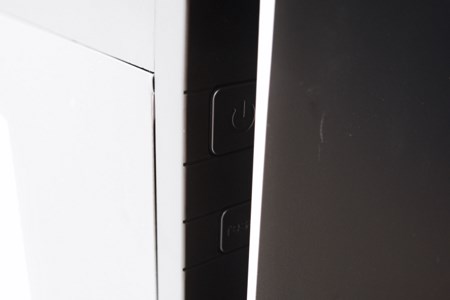

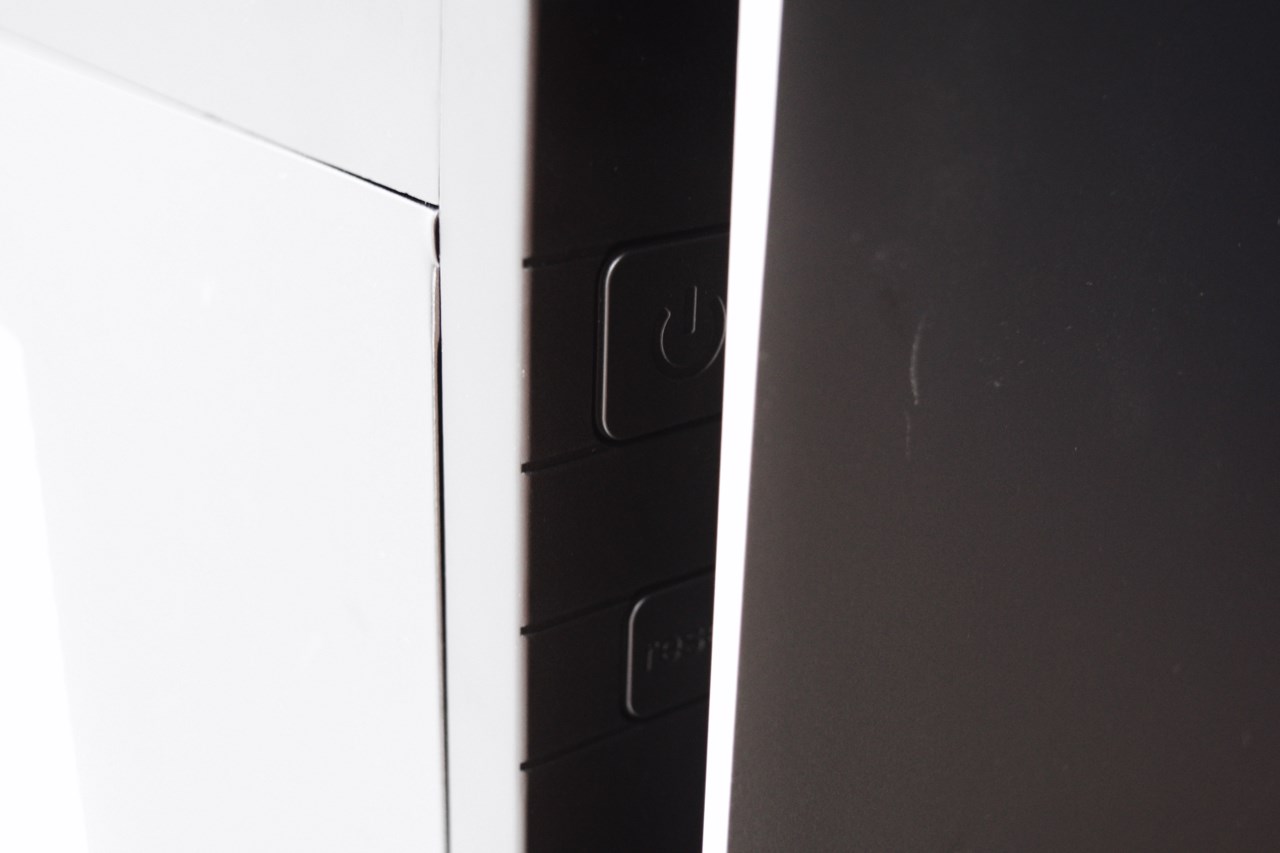

This may come as a surprise to all of you who've yet to check the P380 out but Antec has actually placed power and reset buttons on the interior of both sides of the fascia so it doesn't matter where you place it.





antec p380 13t

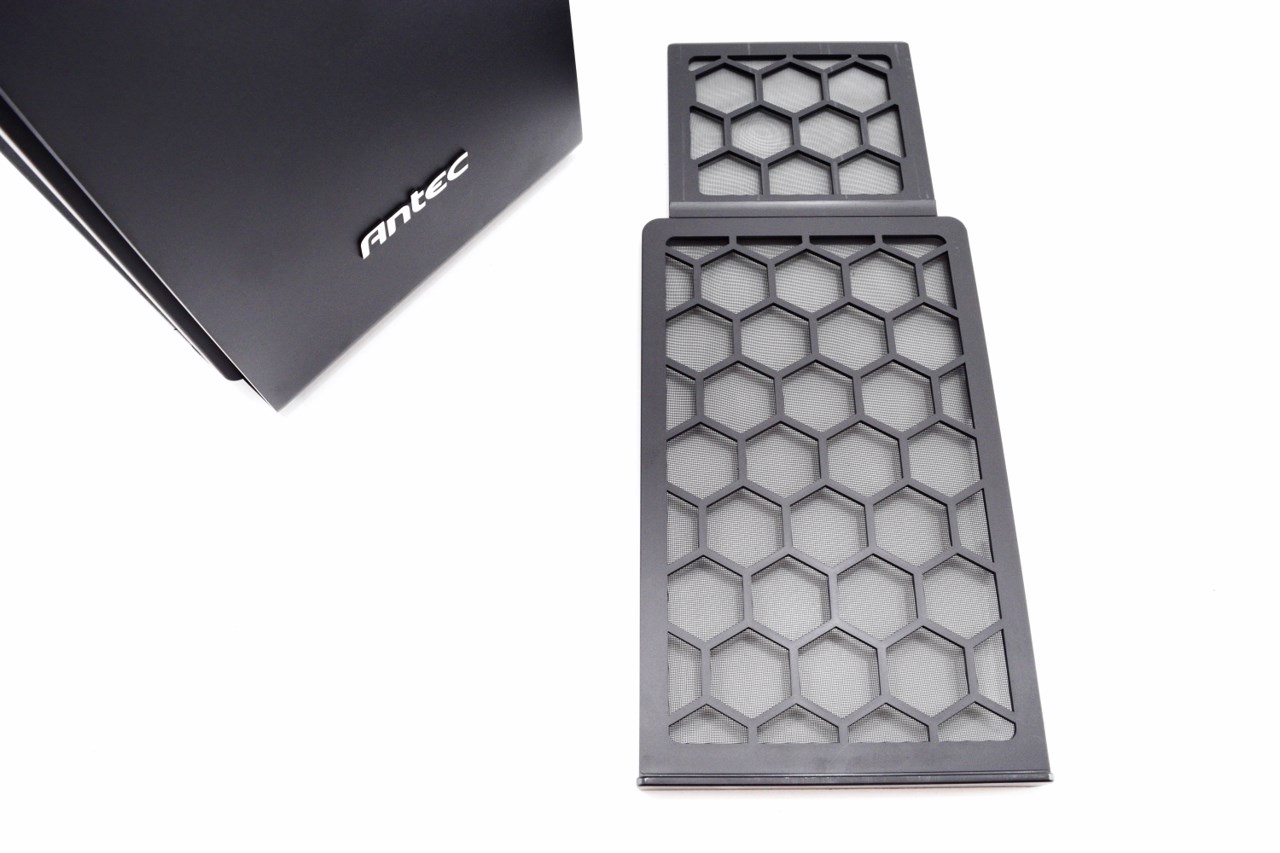

A very long air-filter is placed between the case and the fascia but unfortunately you can remove it only by pulling downwards (great for people who will put it on their desk, bad however for those who will choose the floor).





antec p380 14tantec p380 15t

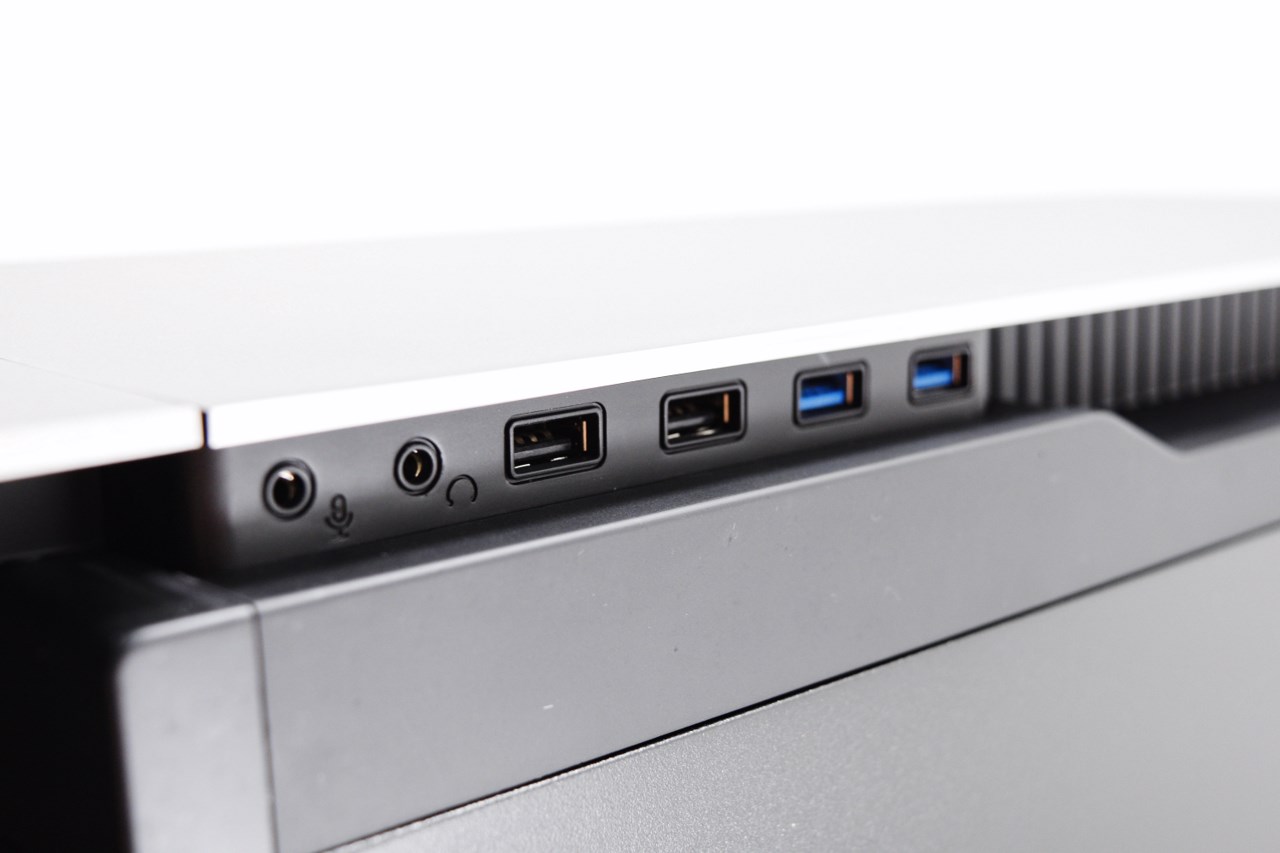

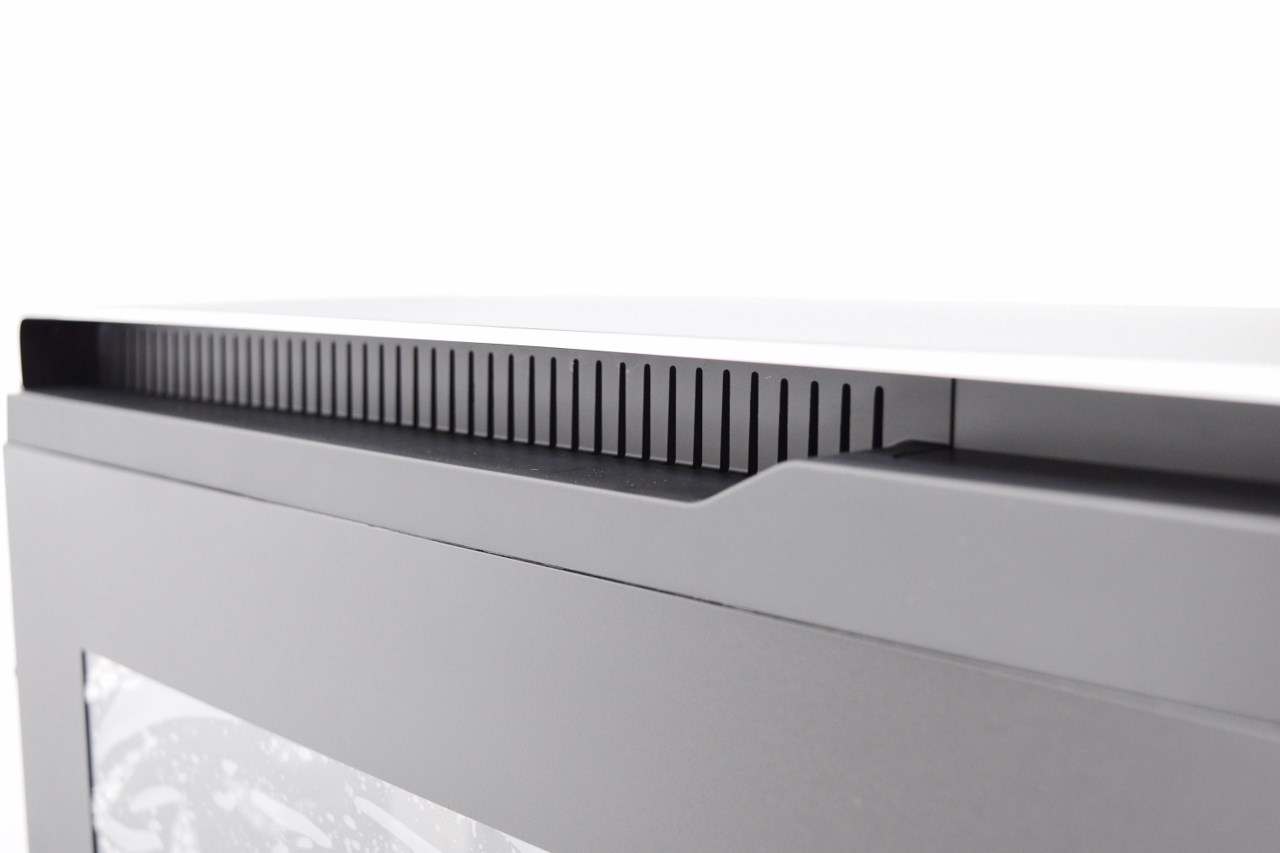

The top is also perforated on the sides and on the right side we find the I/O which includes two USB 3.0 ports, two USB 2.0 ports and the usual microphone and headphones ports (unfortunately no activity LEDs are present).





antec p380 16t

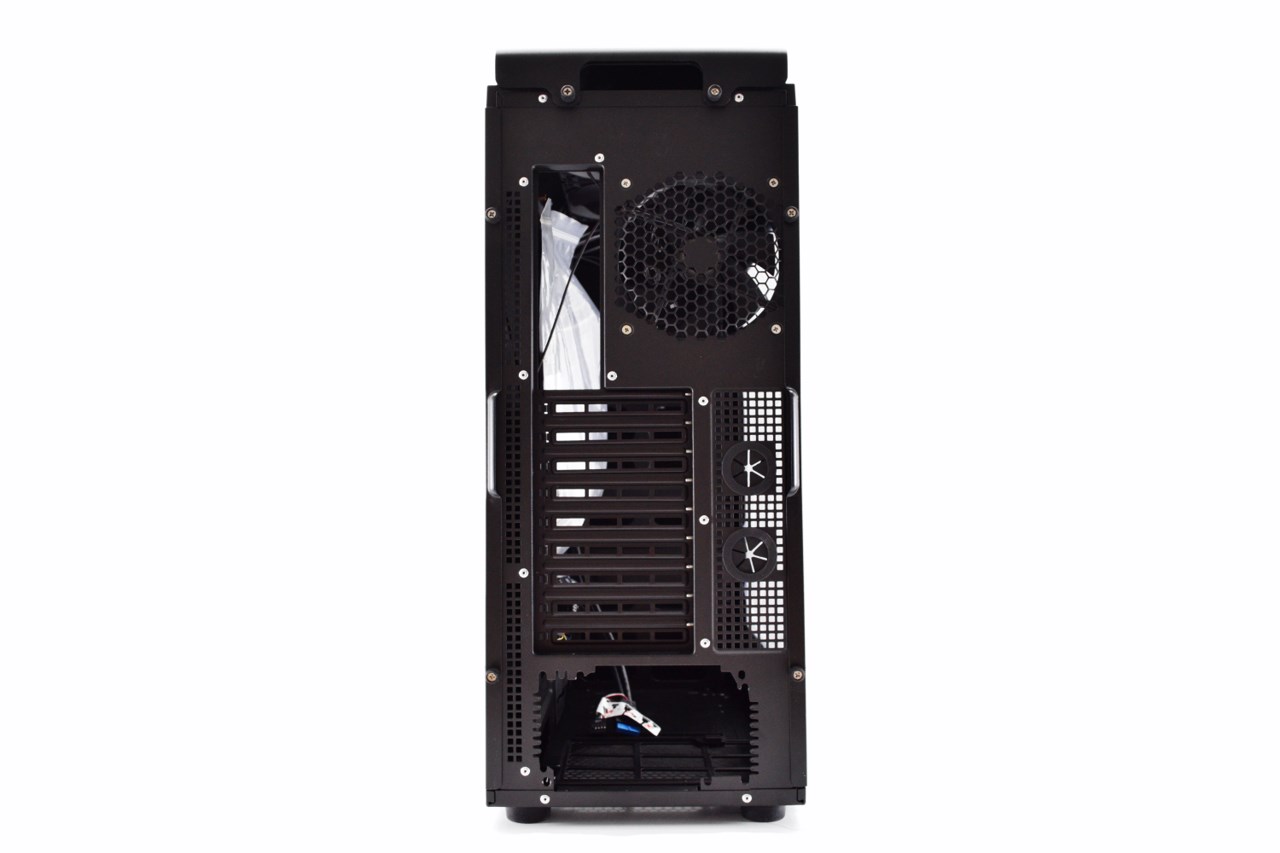

As expected the rear is painted with the same matte black color as the rest of the frame.





antec p380 17t

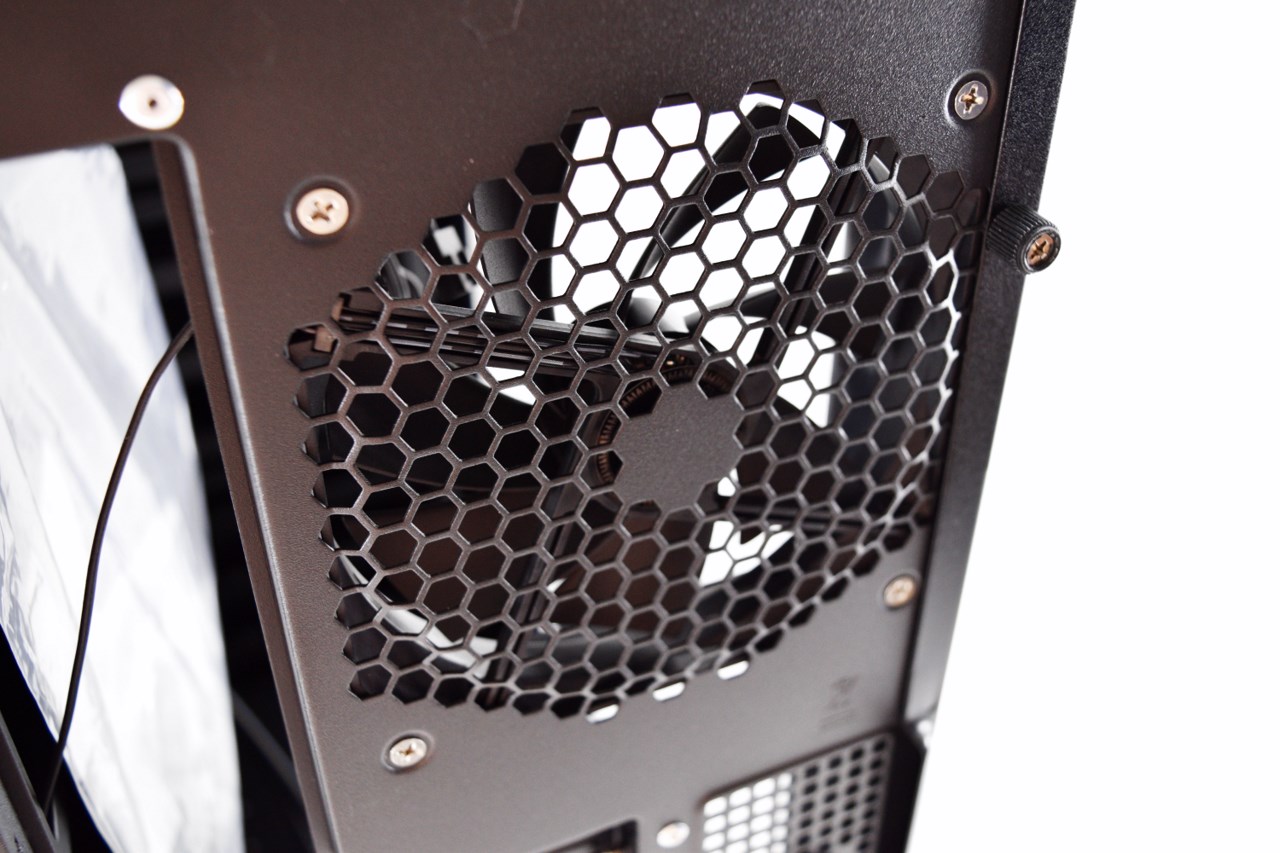

Unfortunately unlike most towers the rear 120mm exhaust fan can't be replaced with a larger 140mm one.





antec p380 18t

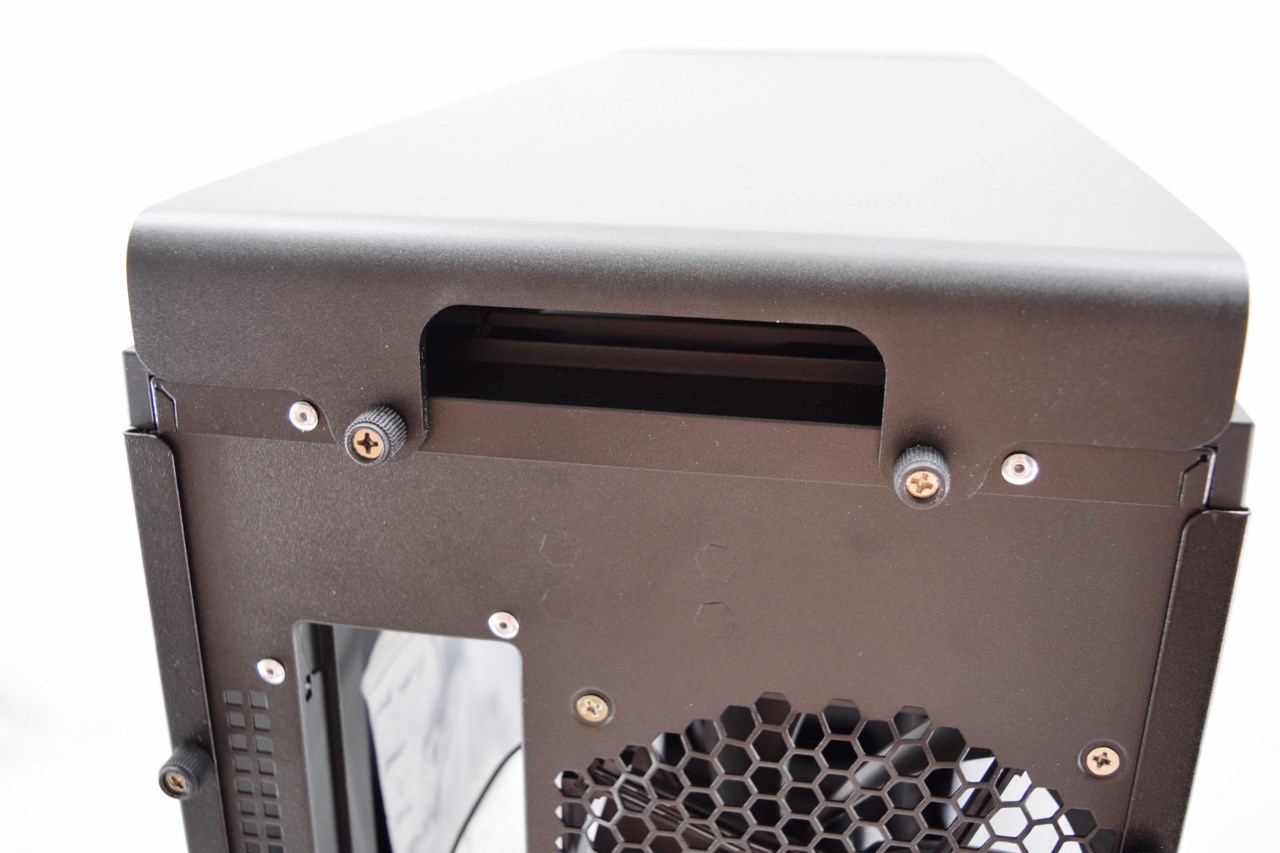

You can gain access to the top fans by removing the two thumbscrews holding the top cover.





antec p380 19t

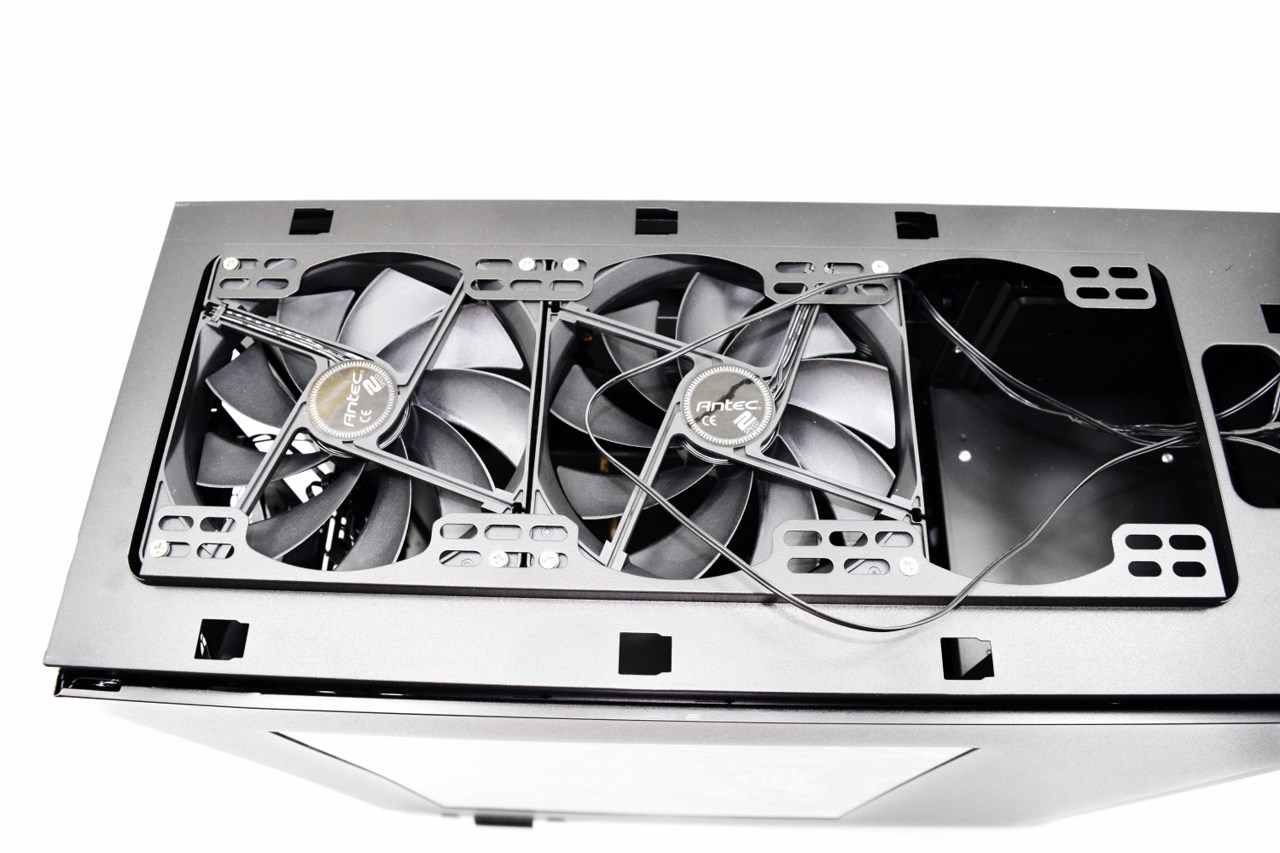

You can replace the two 140mm fans pre-installed at the top with three 120mm ones or a 240/360mm radiator (a 280mm radiator should fit too).





antec p380 20t

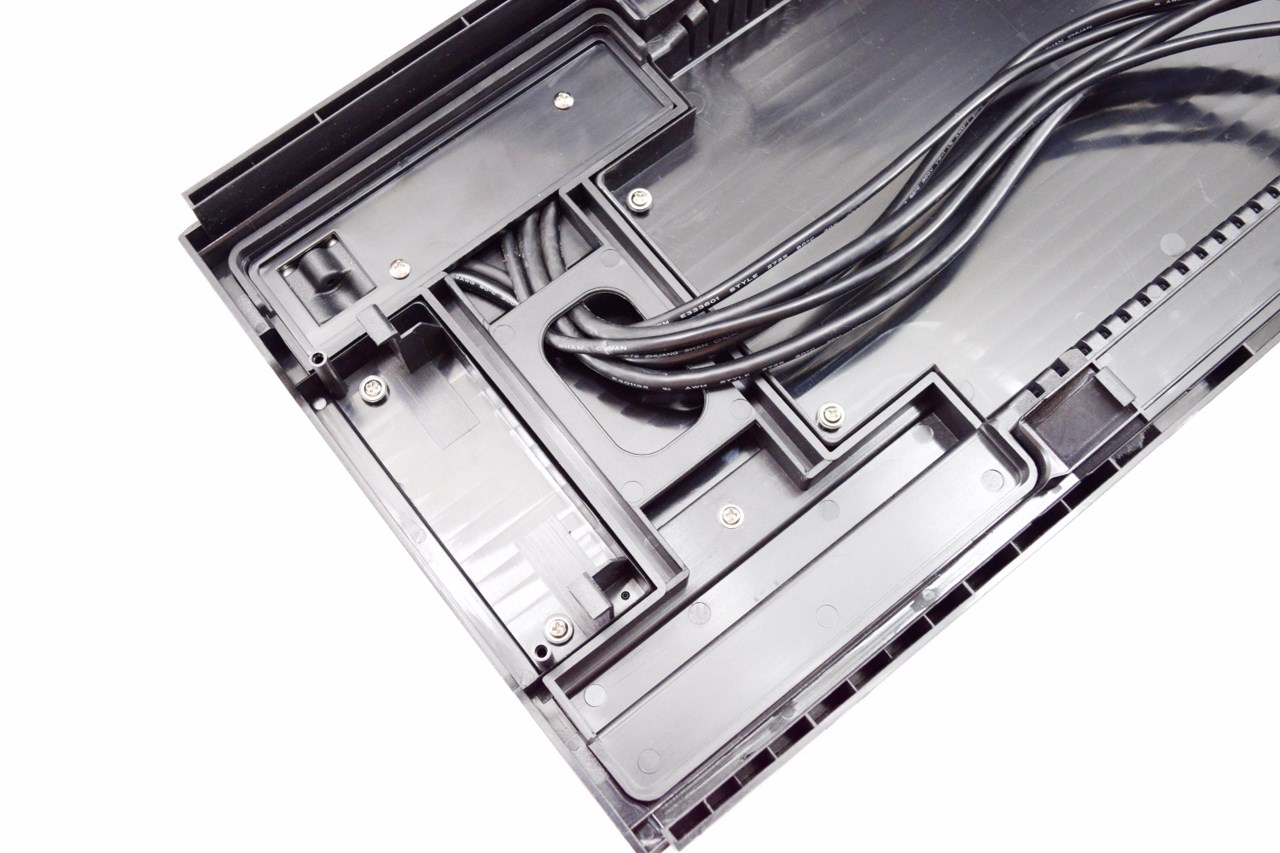

There's also the option to move the top I/O to the other side if you decide to place the tower on your right.





antec p380 21t

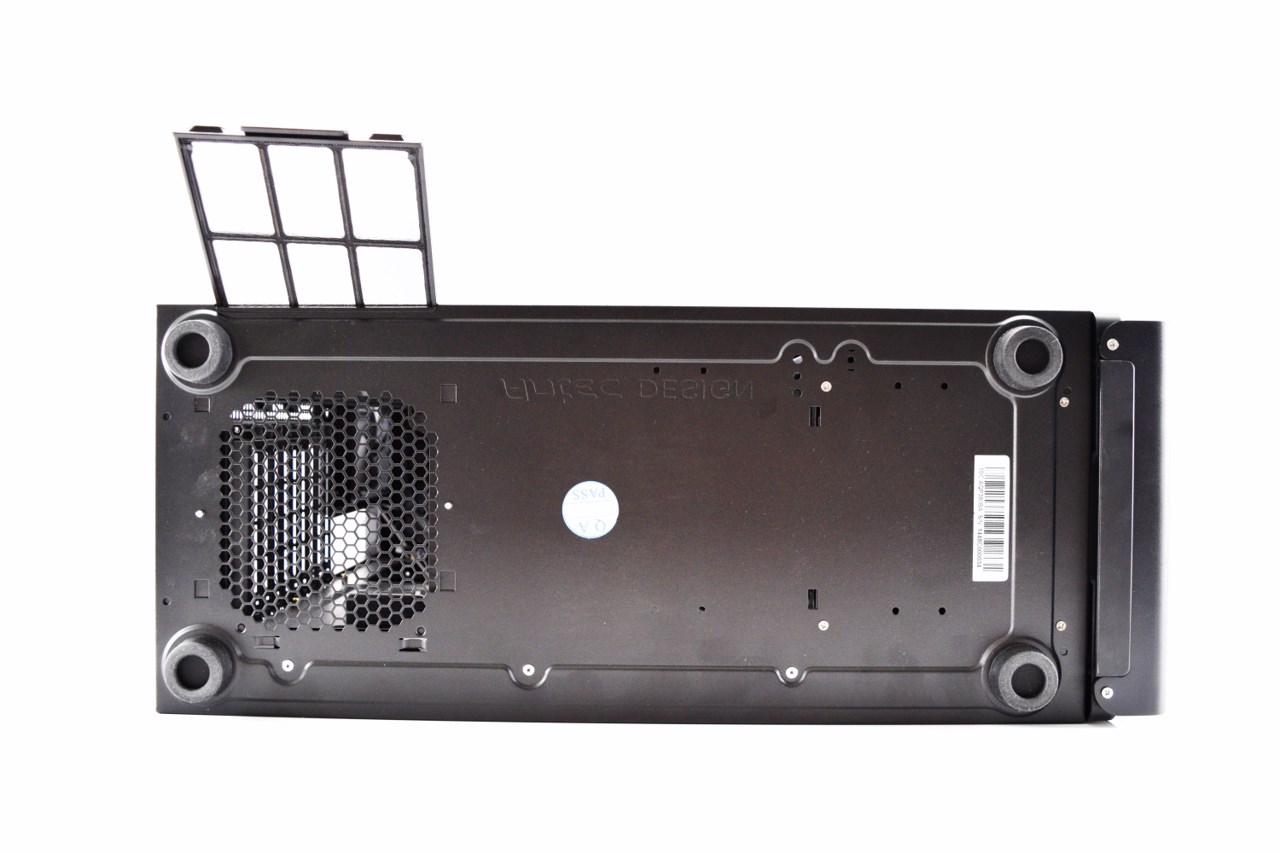

At the bottom we see that the tower sits on 4 high feet and that it has a removable air-filter right beneath the PSU area.
