BUILDING THE SYSTEM















As always the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

phobya wacoolt black owl 29t

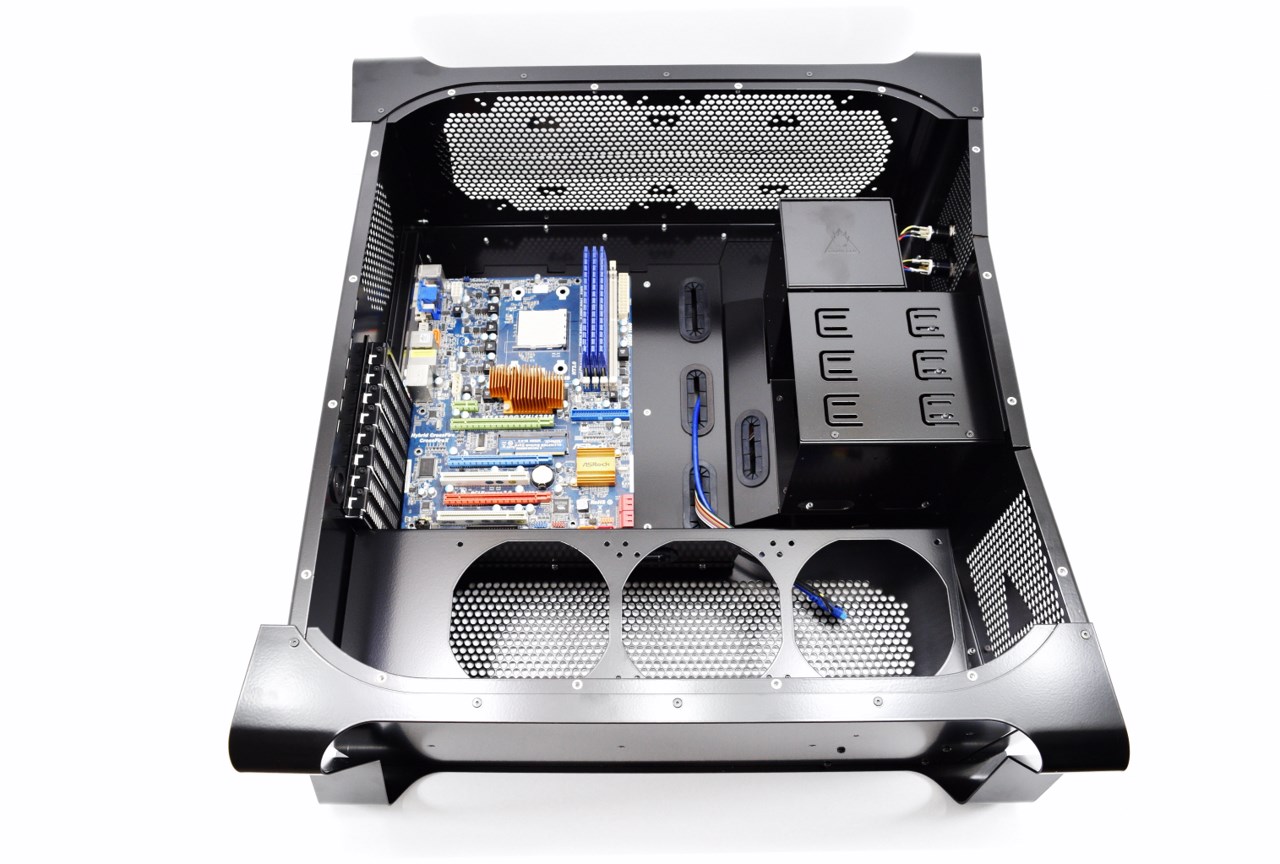

As expected from a large tower our ATX mainboard takes just a small portion of its tray.





phobya wacoolt black owl 30t

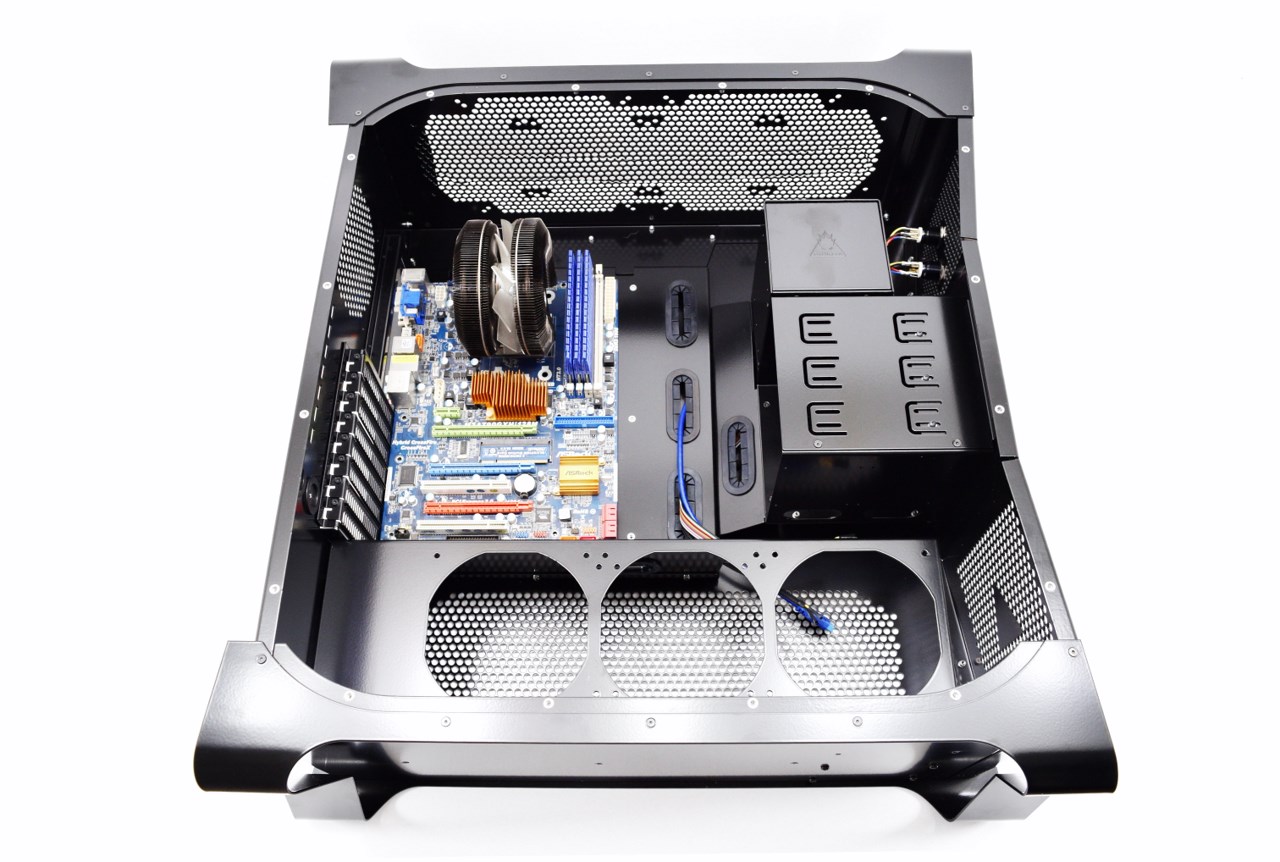

Although the Black Owl is a watercooling oriented tower you can still mount CPU coolers up to roughly 200mm tall.





phobya wacoolt black owl 31t

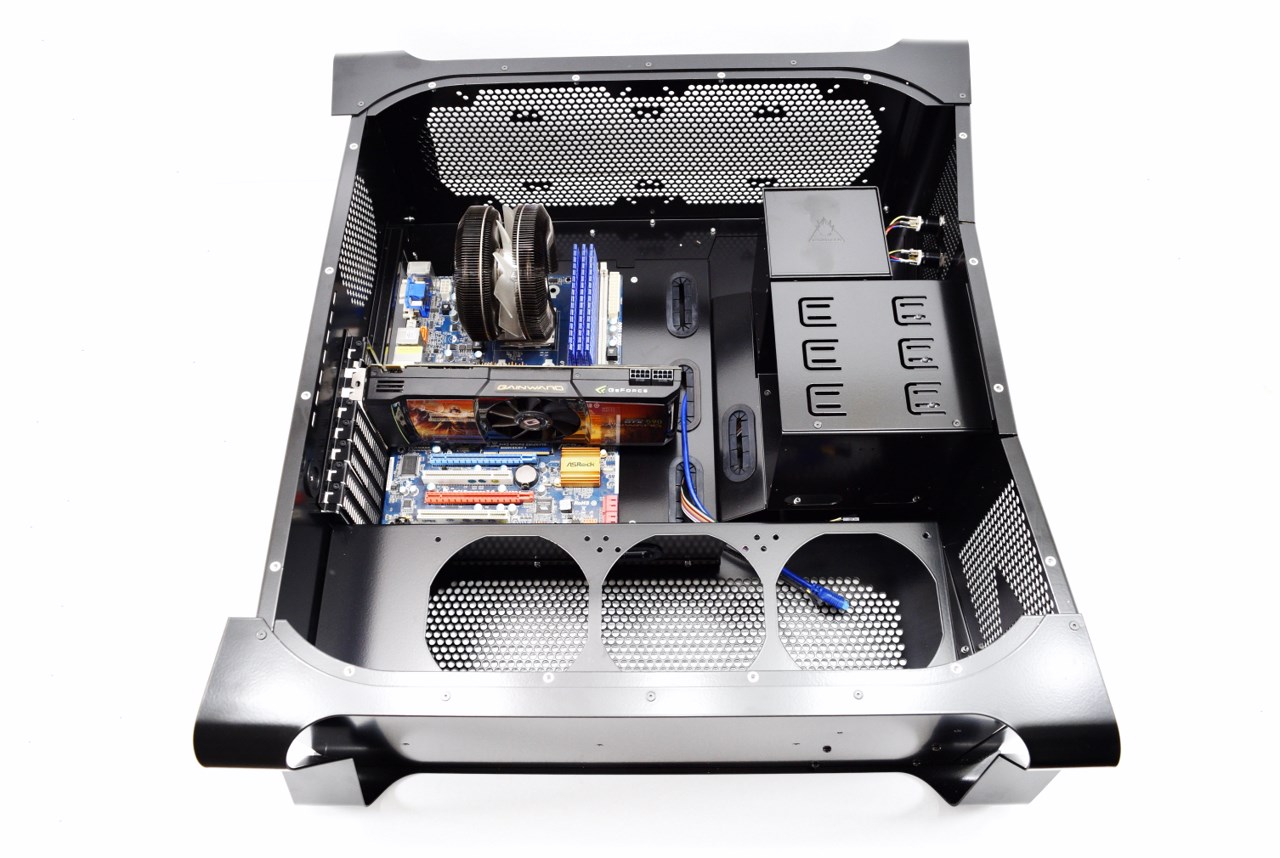

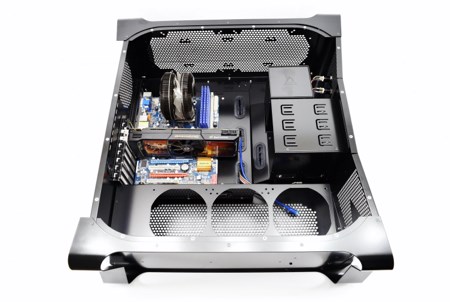

Since you can mount graphics cards up to 360mm long (we used a GTX 590) the Black Owl is ideal for a gaming system.





phobya wacoolt black owl 32t

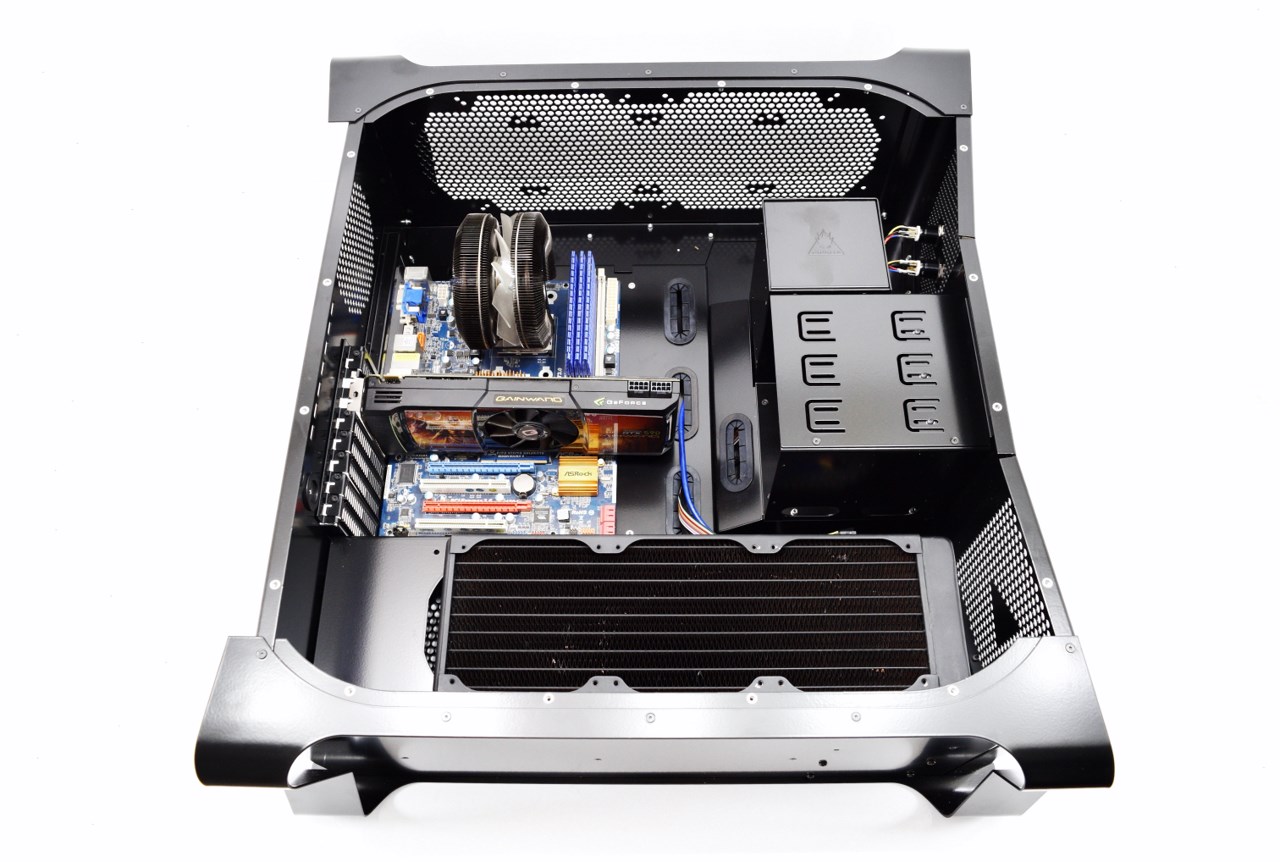

Here you can see how small a 360mm radiator looks when placed on the base of the tower.





phobya wacoolt black owl 33t

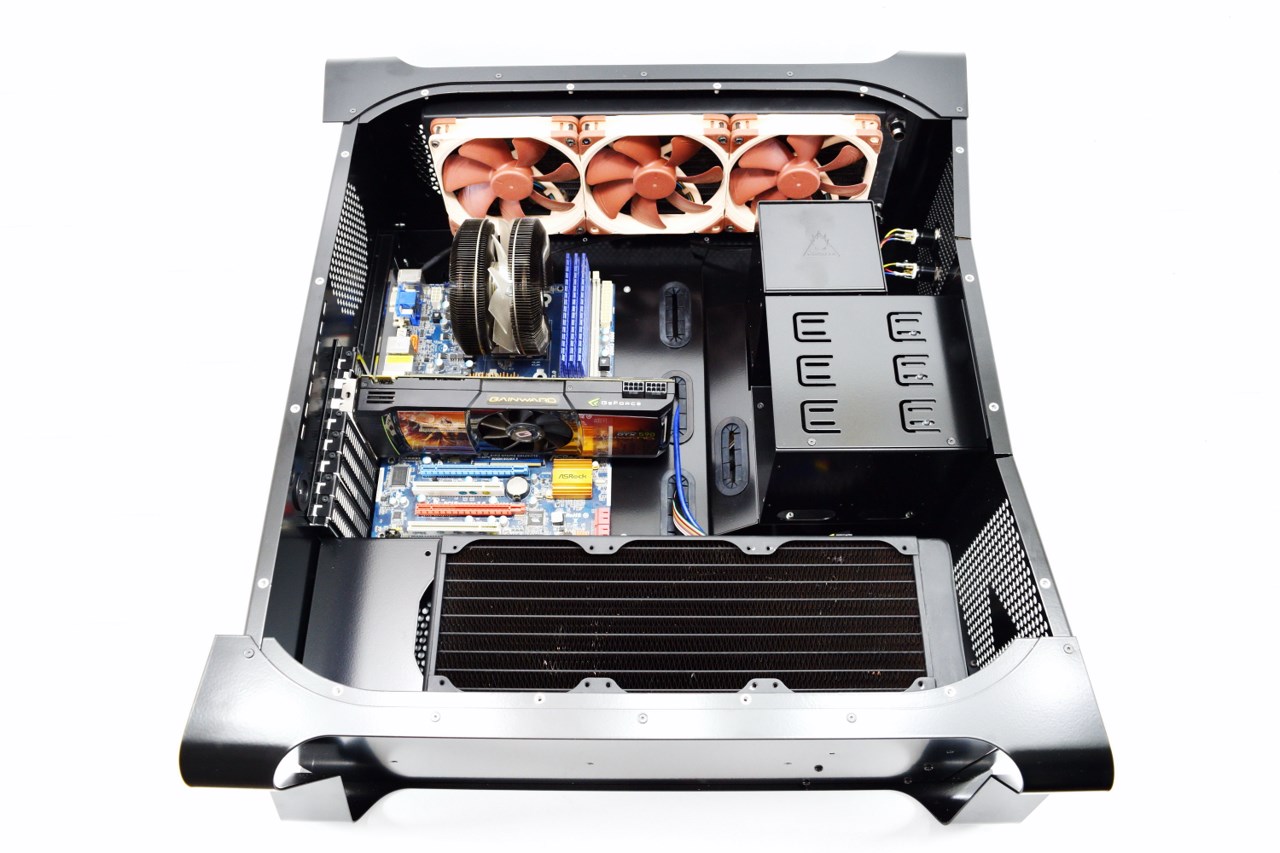

Of course you can also add more at the top up to 480mm in length (we used a 420mm long one).





phobya wacoolt black owl 34t

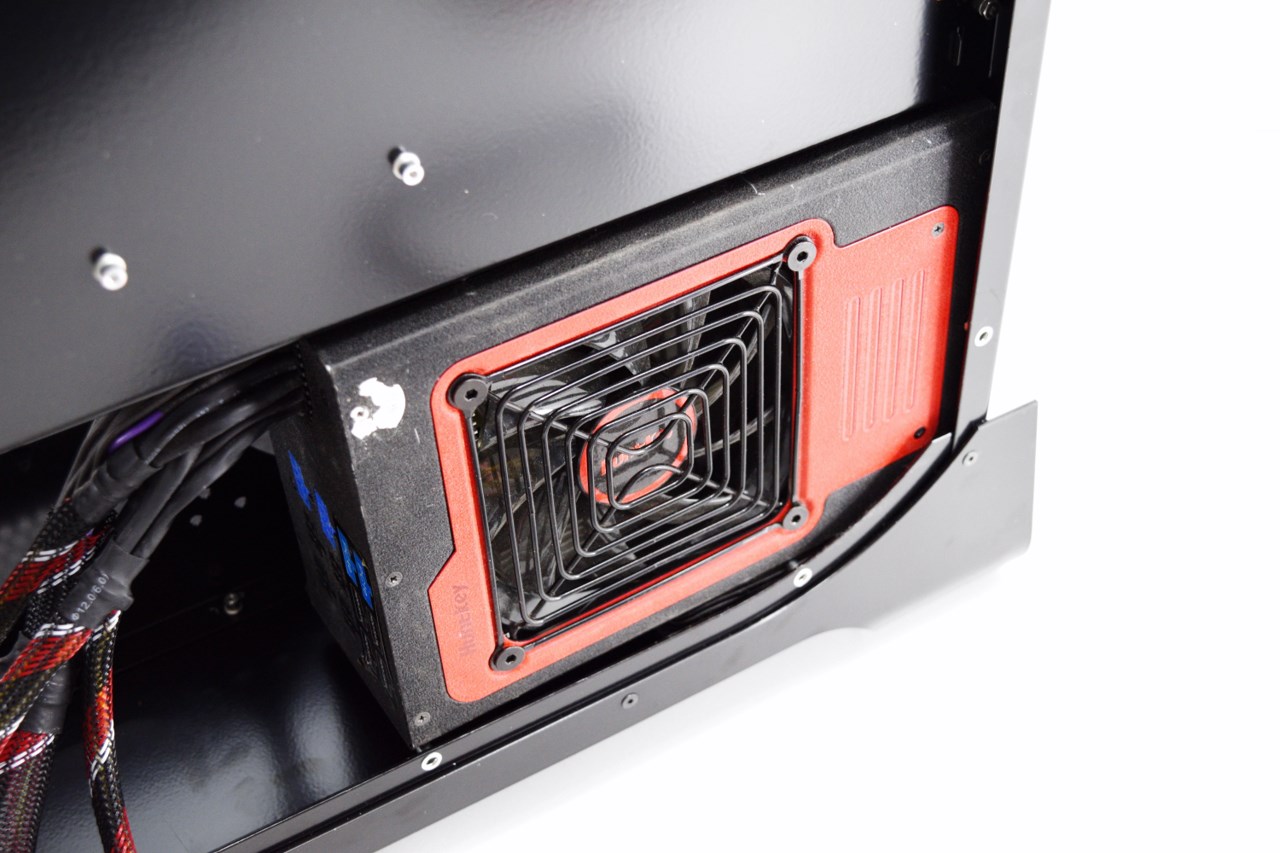

The Black Owl also has room for even the longest PSUs out there but to mount one you have to remove the right side panel.
