BUILDING THE SYSTEM

As always the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

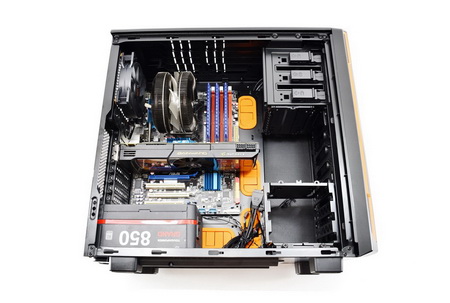

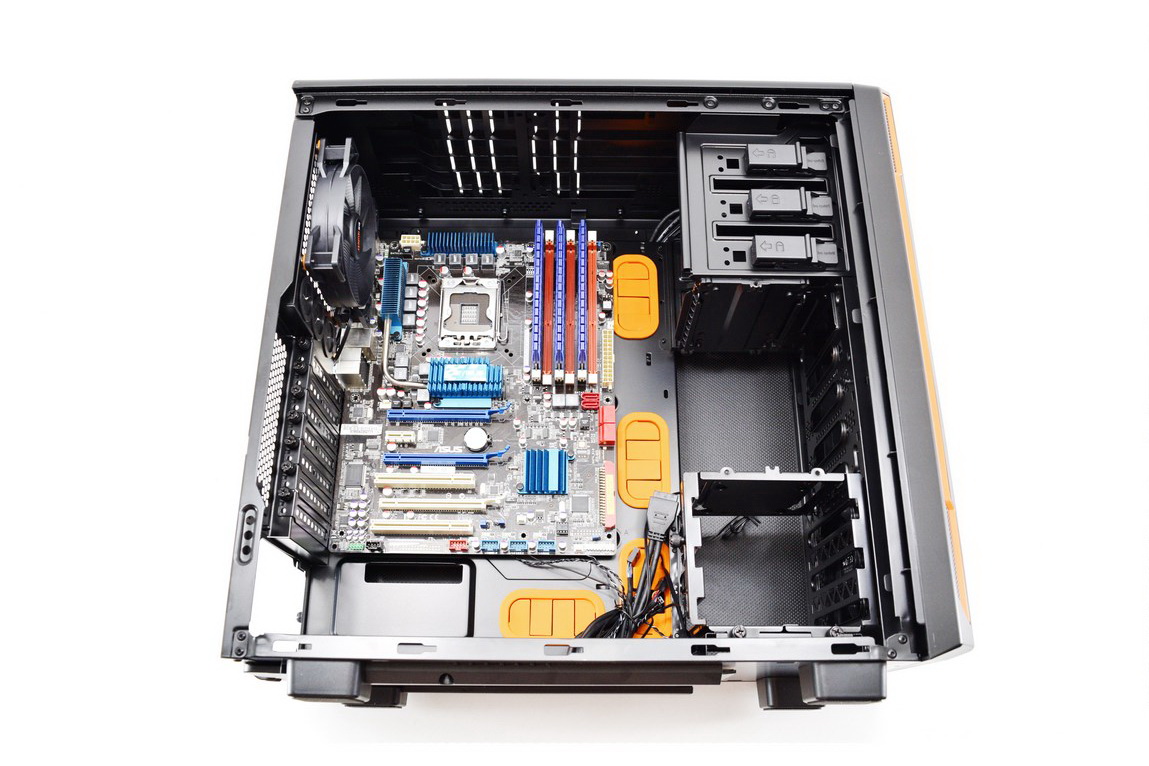

Using a standard ATX mainboard will leave a good amount of space around it.

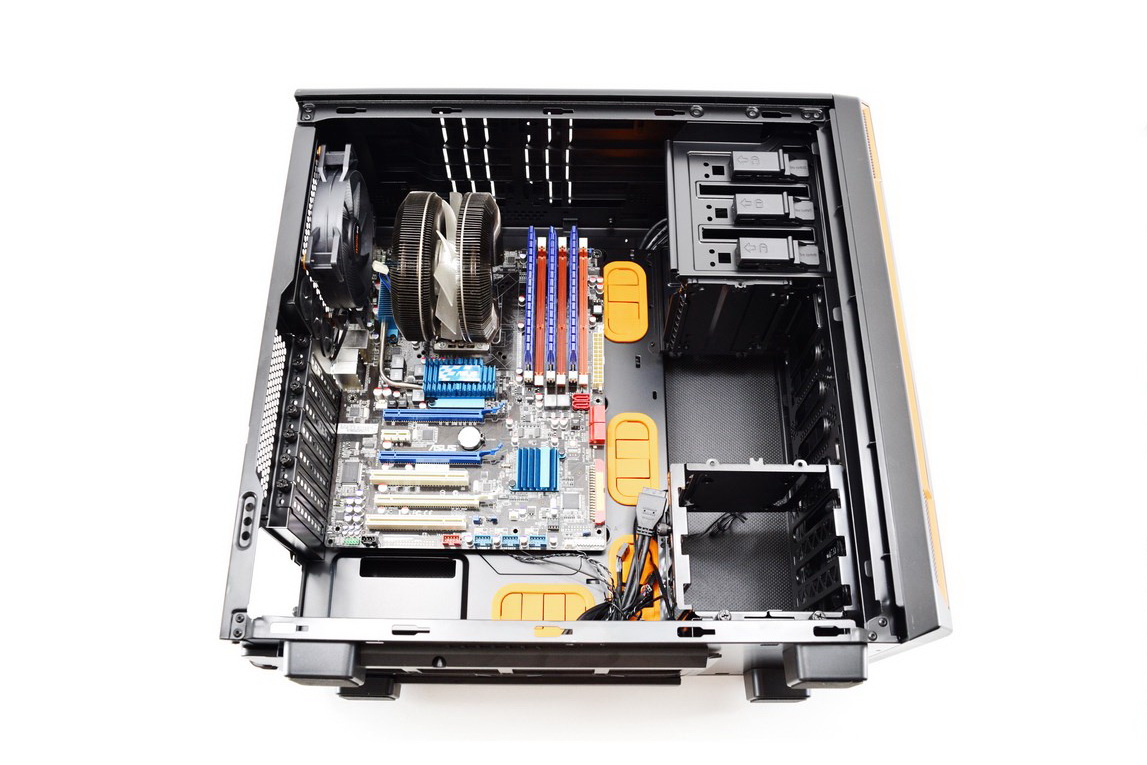

Since you can install CPU coolers up to 167mm in height you shouldn't have a problem with even the largest ones in the market today.

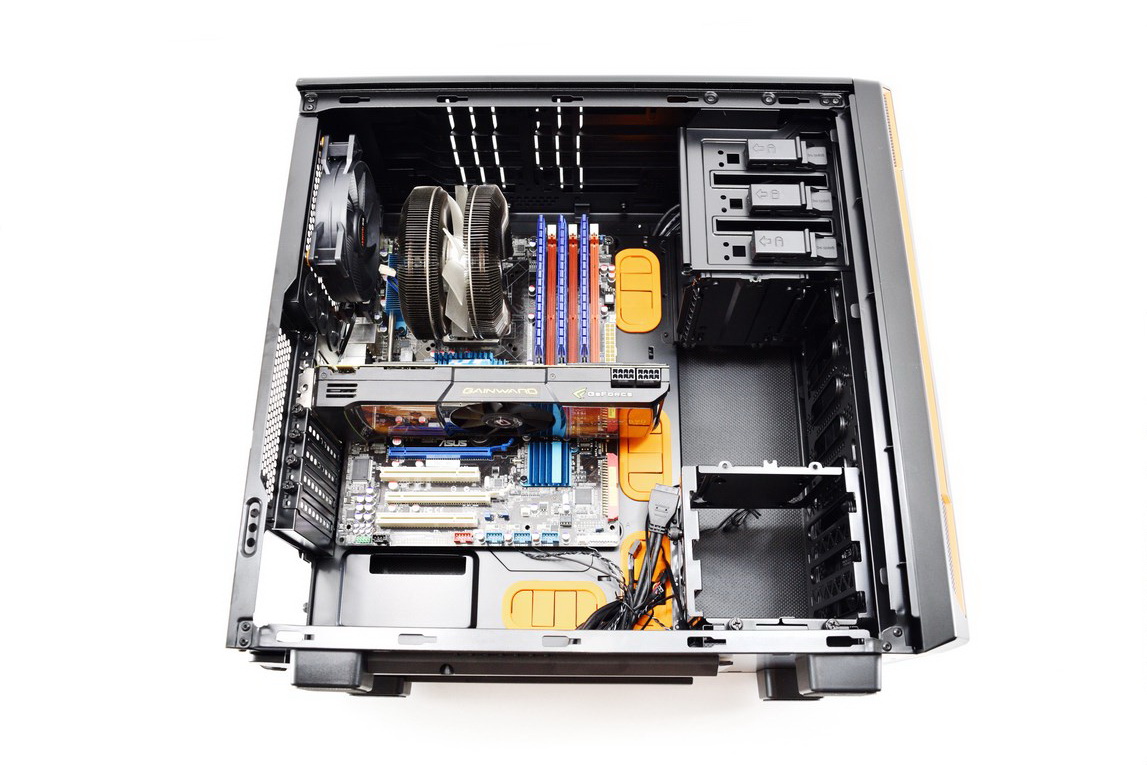

By "ditching" the center drive cage be quiet! has made it possible for people to use graphics cards up to 413mm long (not that it's needed however since even the GTX 590 would fit even with a cage next to it).

If you use a standard sized PSU at the bottom of the Silent Base 600 then you will be able to use both rubber grommets and install a 120/140mm fan.
