THE 303 INTERIOR

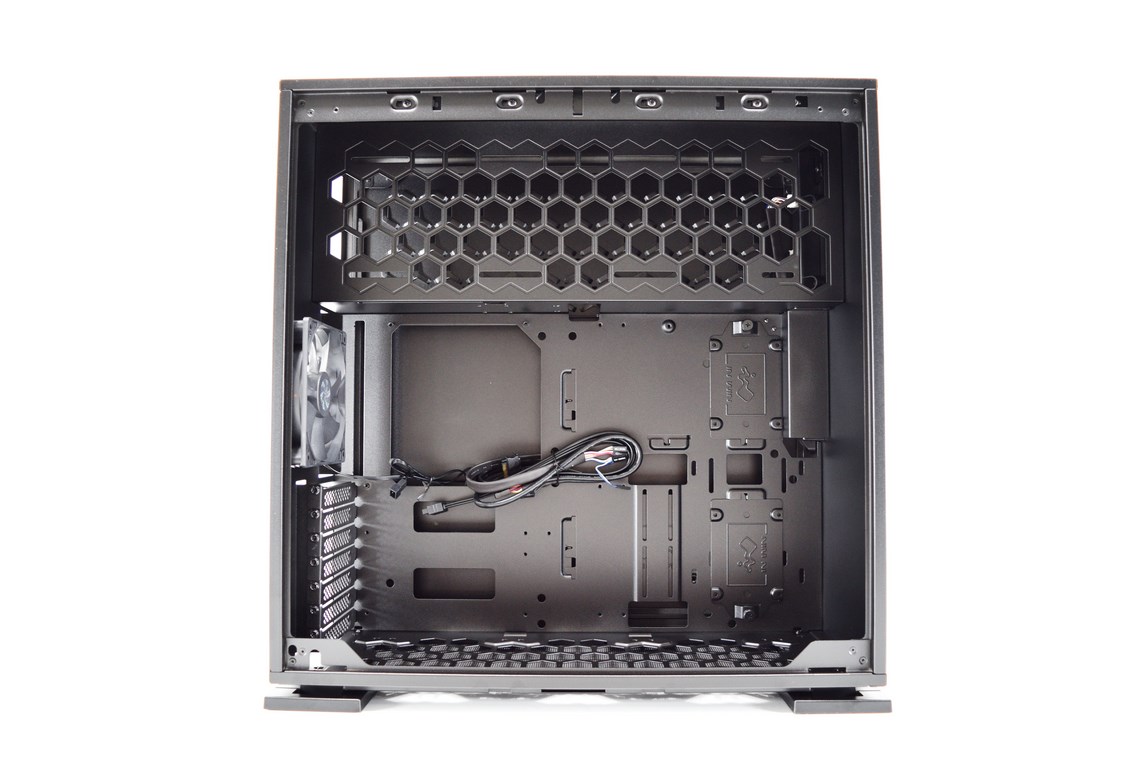

in win 303 black 17t Thanks to the lack of front drive cages the interior of the 303 is actually quite spacious (the vertical area near the center is for the graphics card holder while the one on the far right is for tube reservoirs).

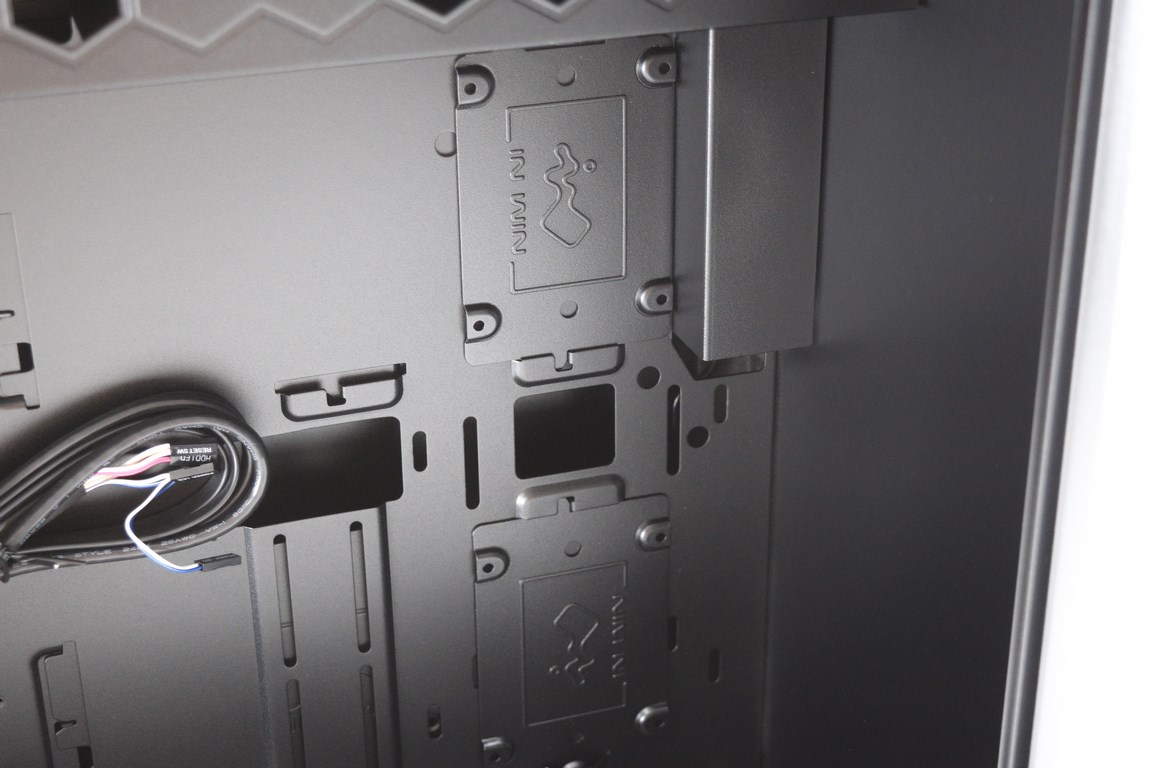

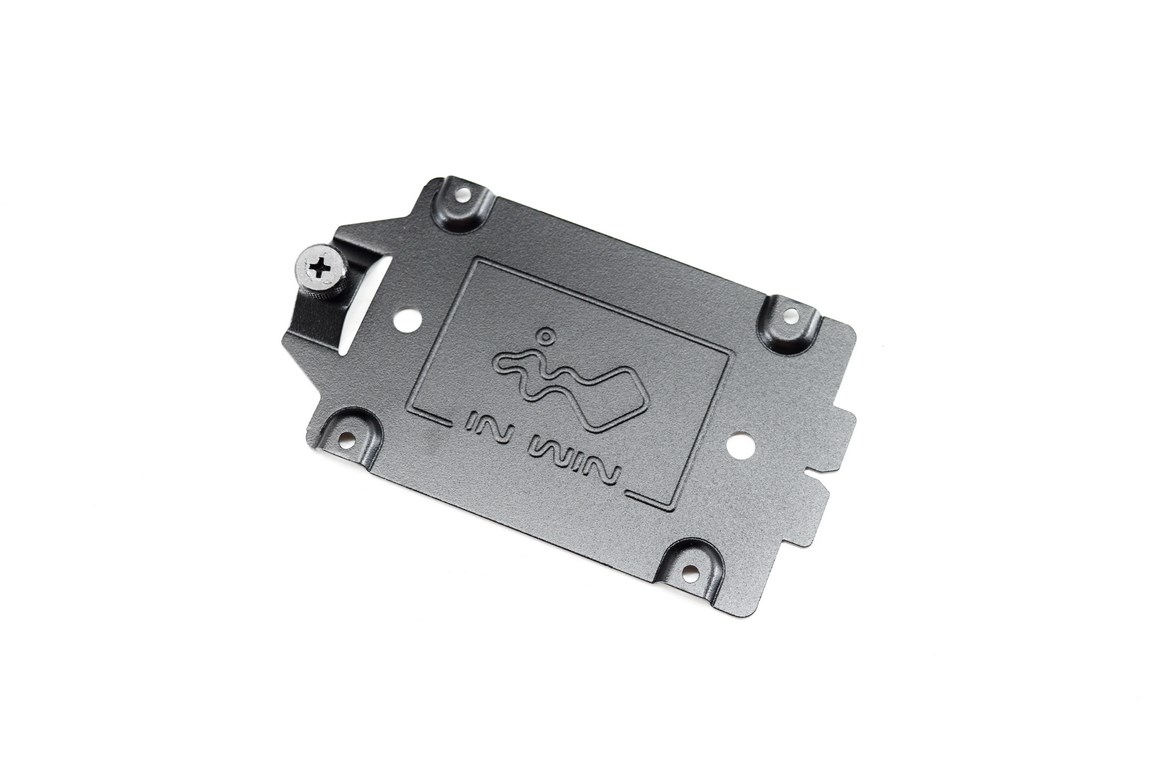

in win 303 black 18tin win 303 black 19tTo make up for that IN WIN has placed two vertical 2.5" trays made out of aluminum and held in place via thumbscrews.





in win 303 black 20t

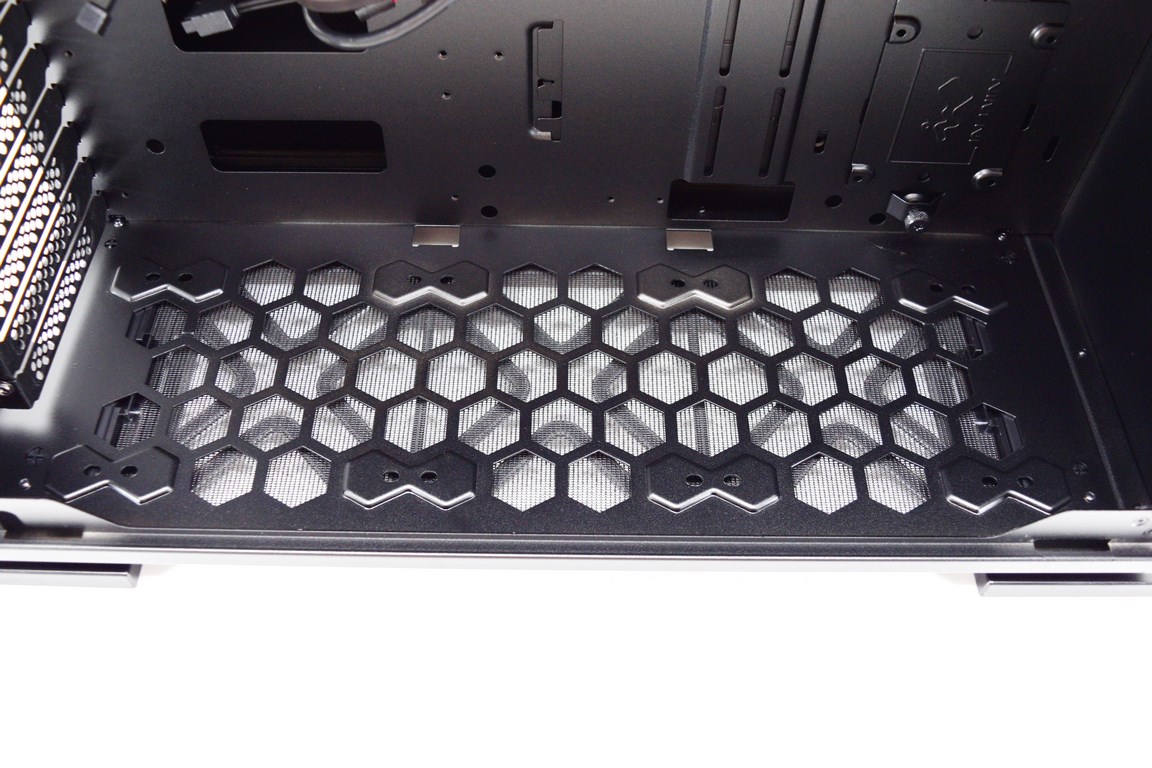

IN WIN hasn't placed any front fan mounts either and instead they've placed three 120mm ones at the base of the 303 (if you don't install an E-ATX/ATX mainboard you can place a 360mm radiator with fans there).





in win 303 black 21t

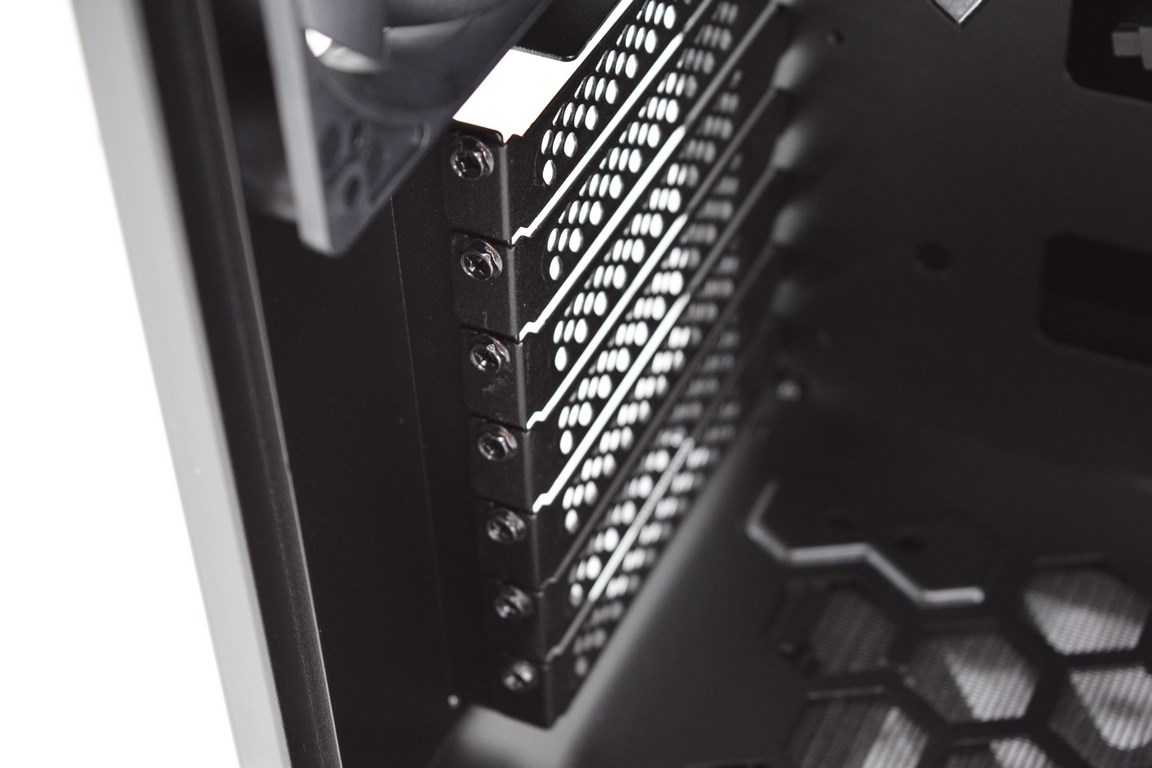

The expansion slots are held in place with regular screws (that surprised us since IN WIN markets the 303 as a tool-less design tower).





in win 303 black 22t

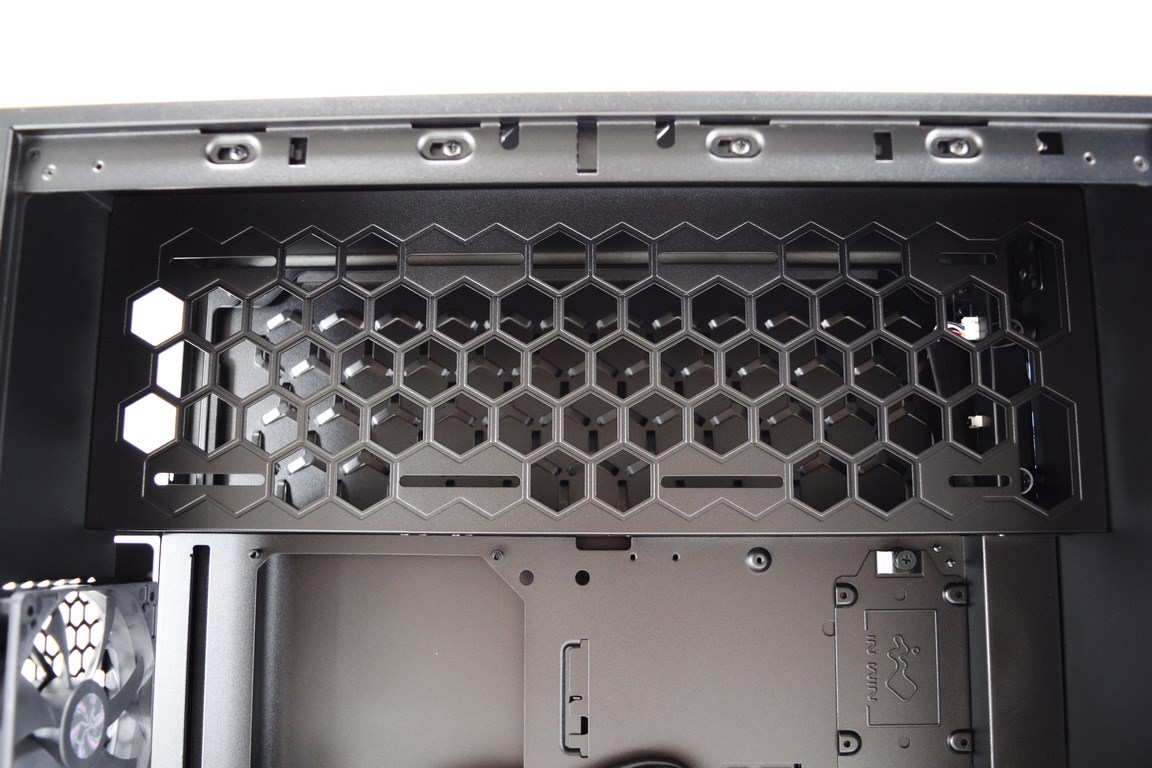

In front of this hexagonal mesh you can install yet another 360mm radiator (or three 120mm fans) which will use the air coming from the base (and in turn will send it out the perforated area on the right side panel).





in win 303 black 23t

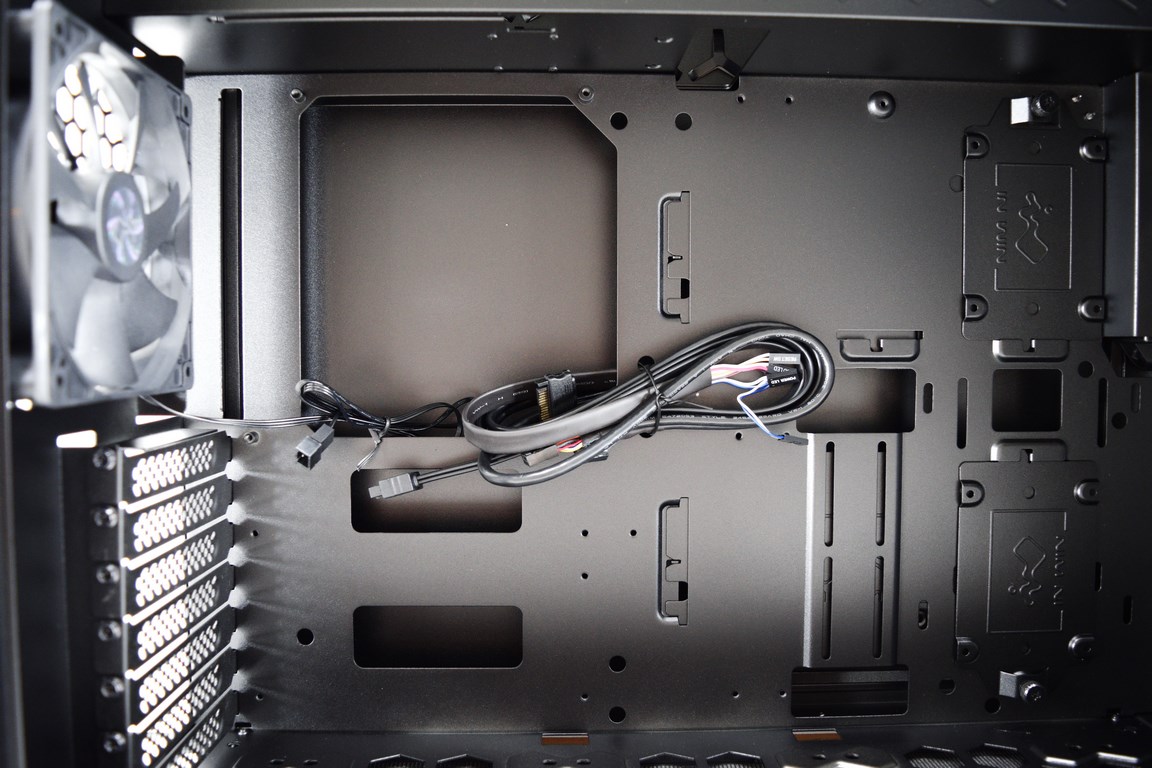

The mainboard tray has a total of 5 holes which can be used for cable management (unfortunately none is rubber dressed).





in win 303 black 24t

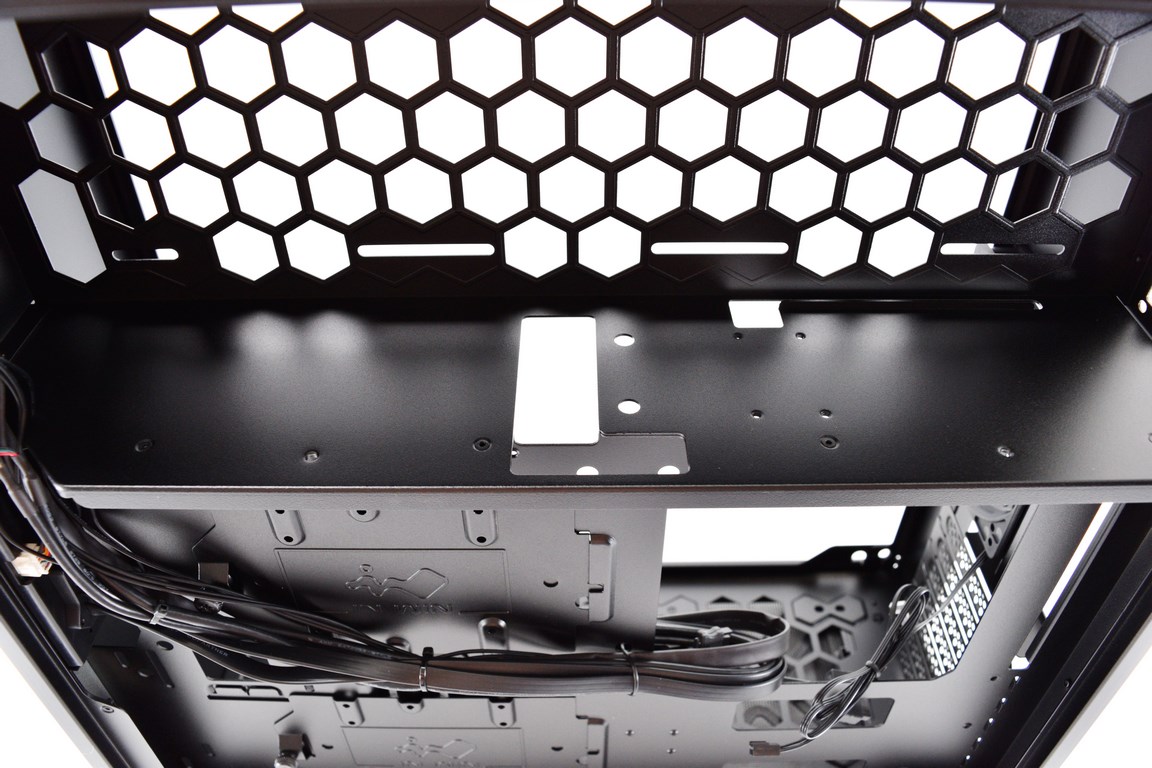

On the other side of the hexagonal mesh you can install a power supply unit up to 200mm in length.

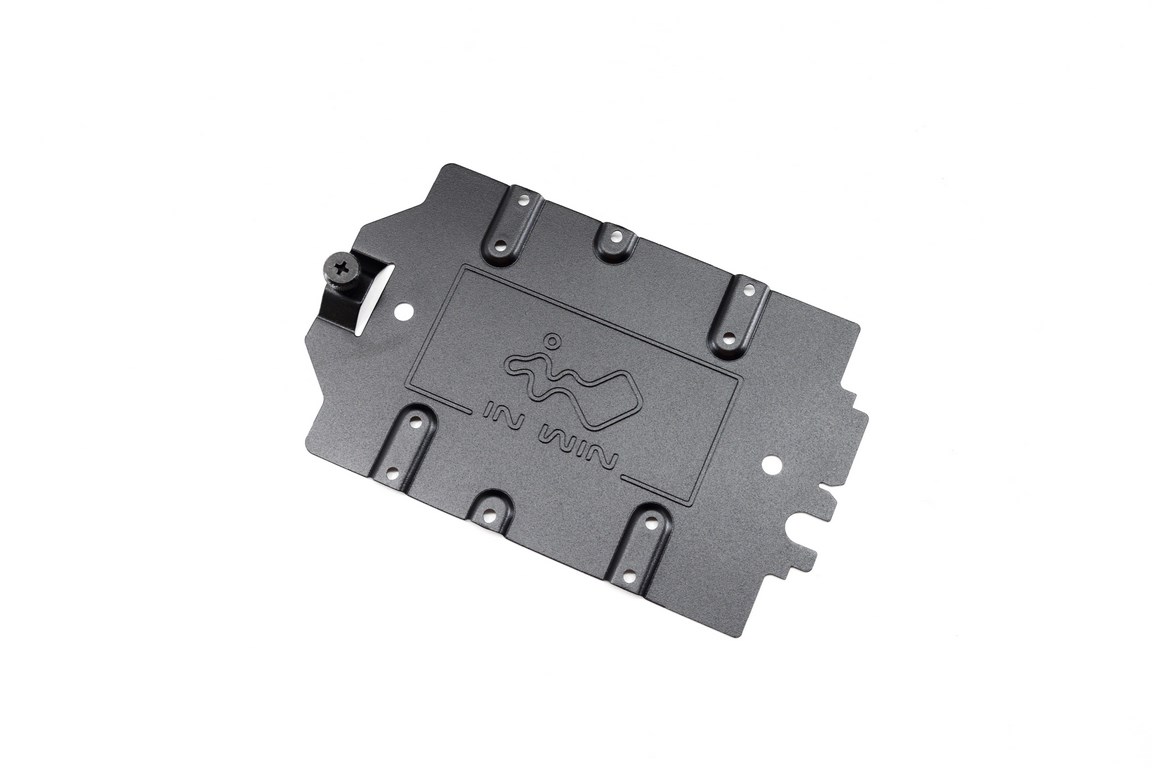

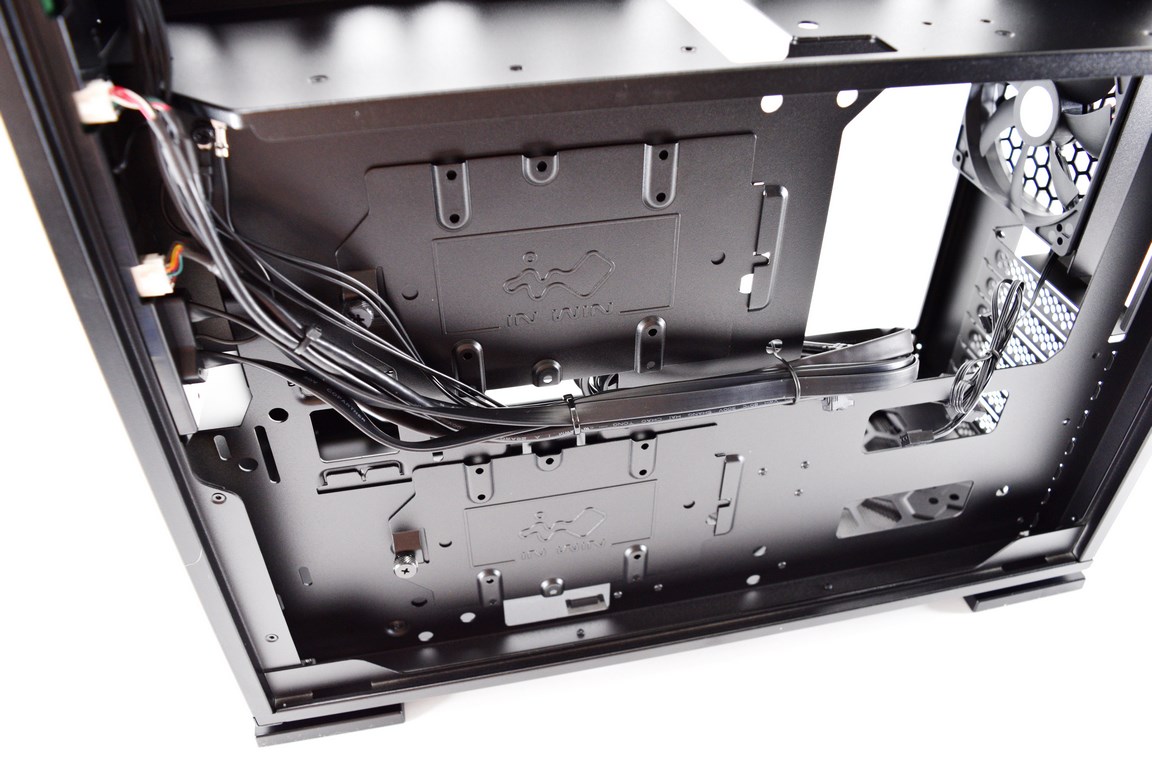

in win 303 black 25tin win 303 black 26tIN WIN has also placed two extra trays on the other side of the mainboard tray, this time however these are ment for both 2.5" and 3.5" drives (also held in place with thumbscrews).





in win 303 black 27t

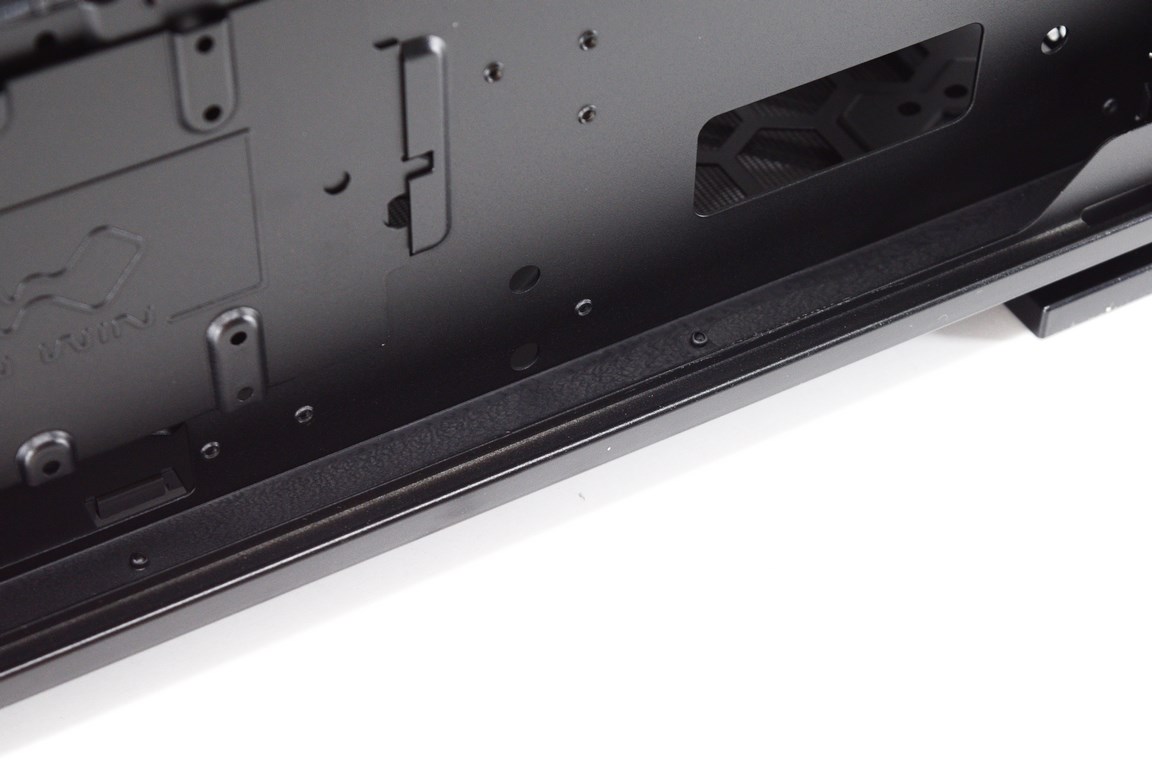

There's a good amount of space between the mainboard tray and the right side panel so routing cables shouldn't be hard.
