THE REDLINE RL06 PRO INTERIOR

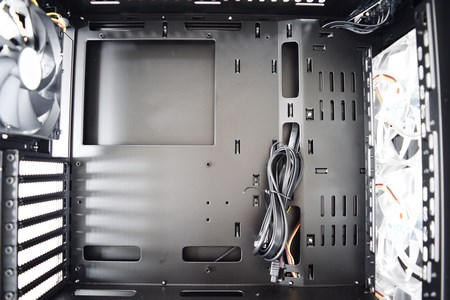

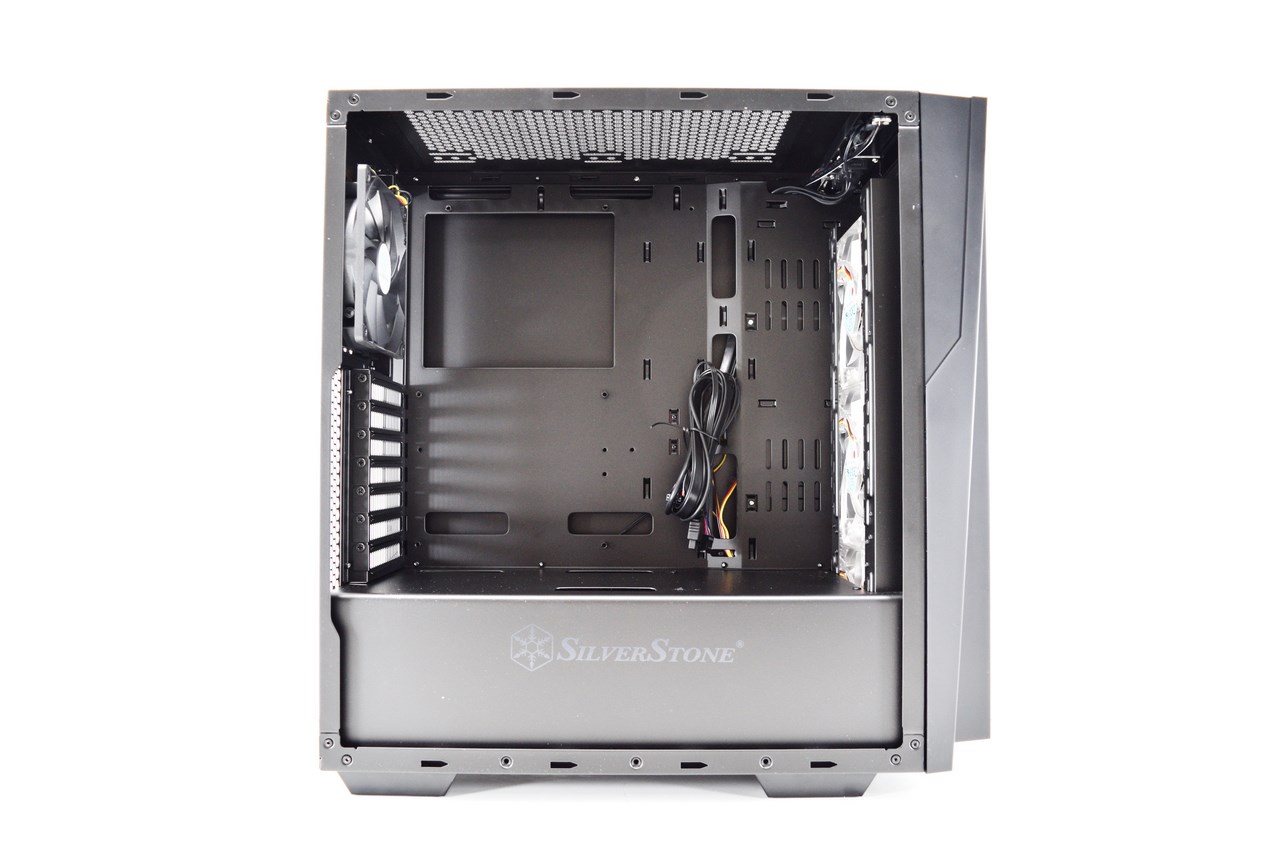

The RL06 PRO may not be as large as the Primera PM01 but the layout of the interior is similar and that gives it quite a bit of available space.

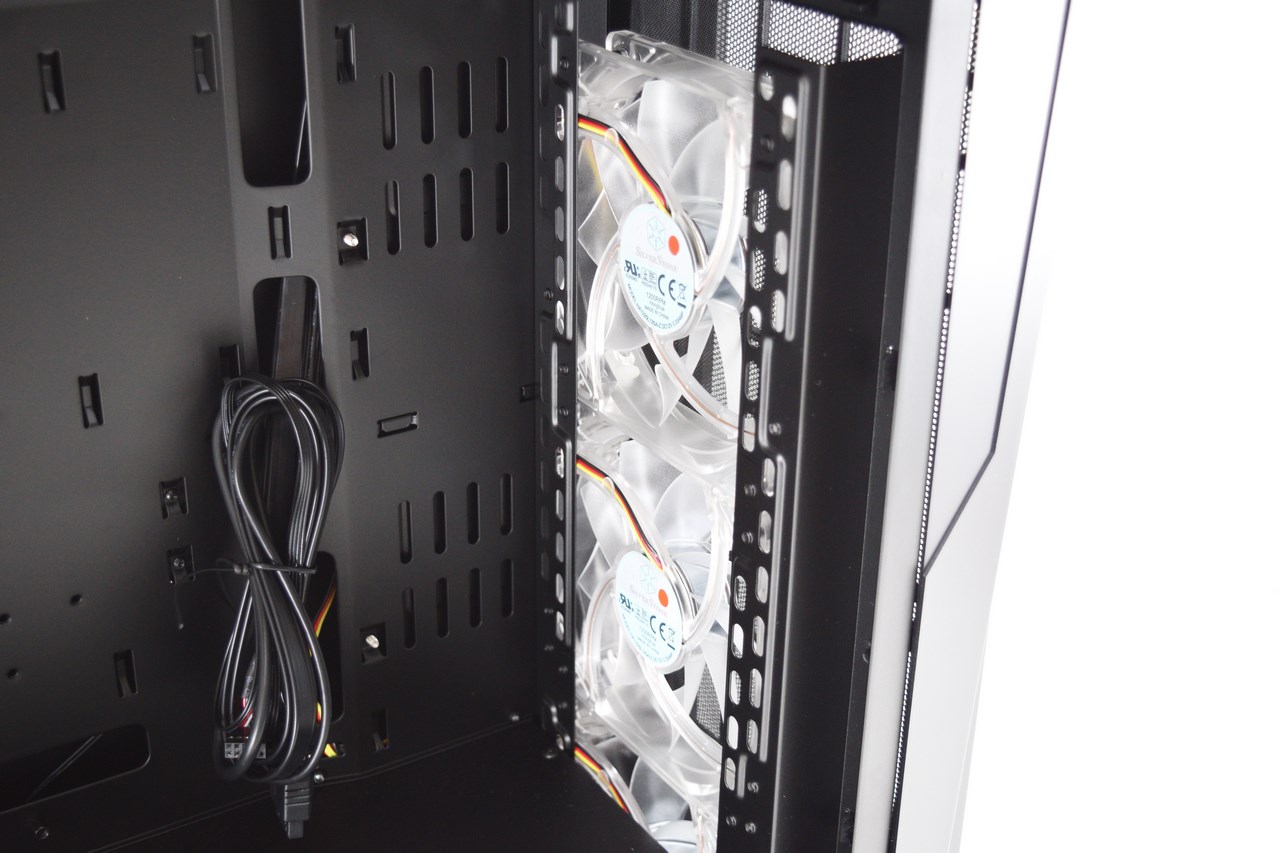

Here we see the three 120mm LED fans and the area where you can mount a radiator (you may even be able to mount a tube reservoir on the vertical mounting holes).

There are 7 cable management holes on the mainboard tray none of which is rubber coated.

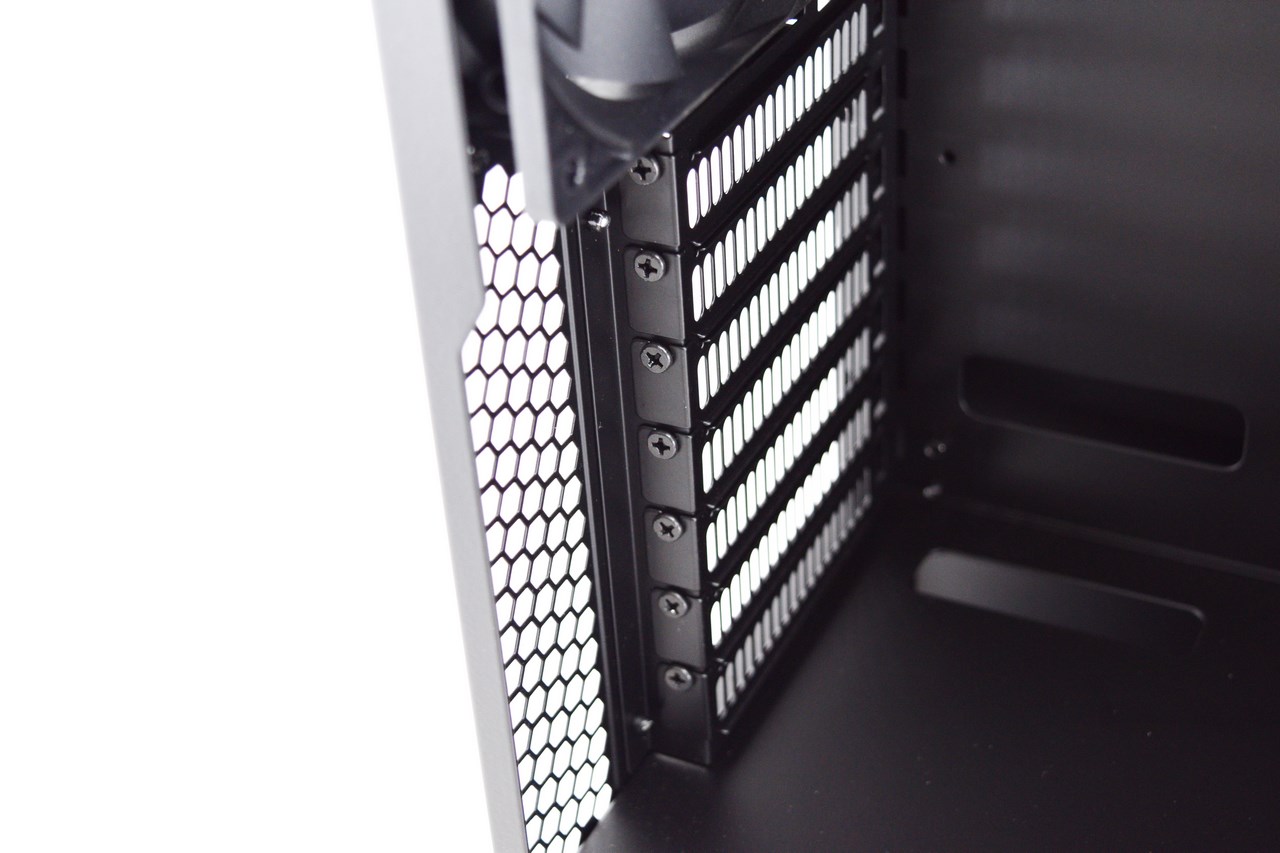

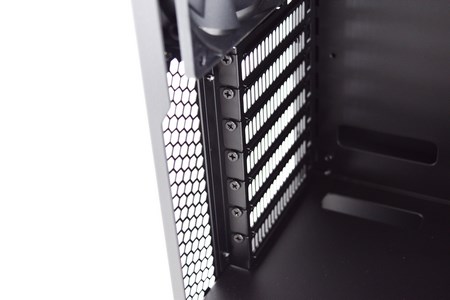

All 7 PCI expansion slots are secured in place via regular screws.

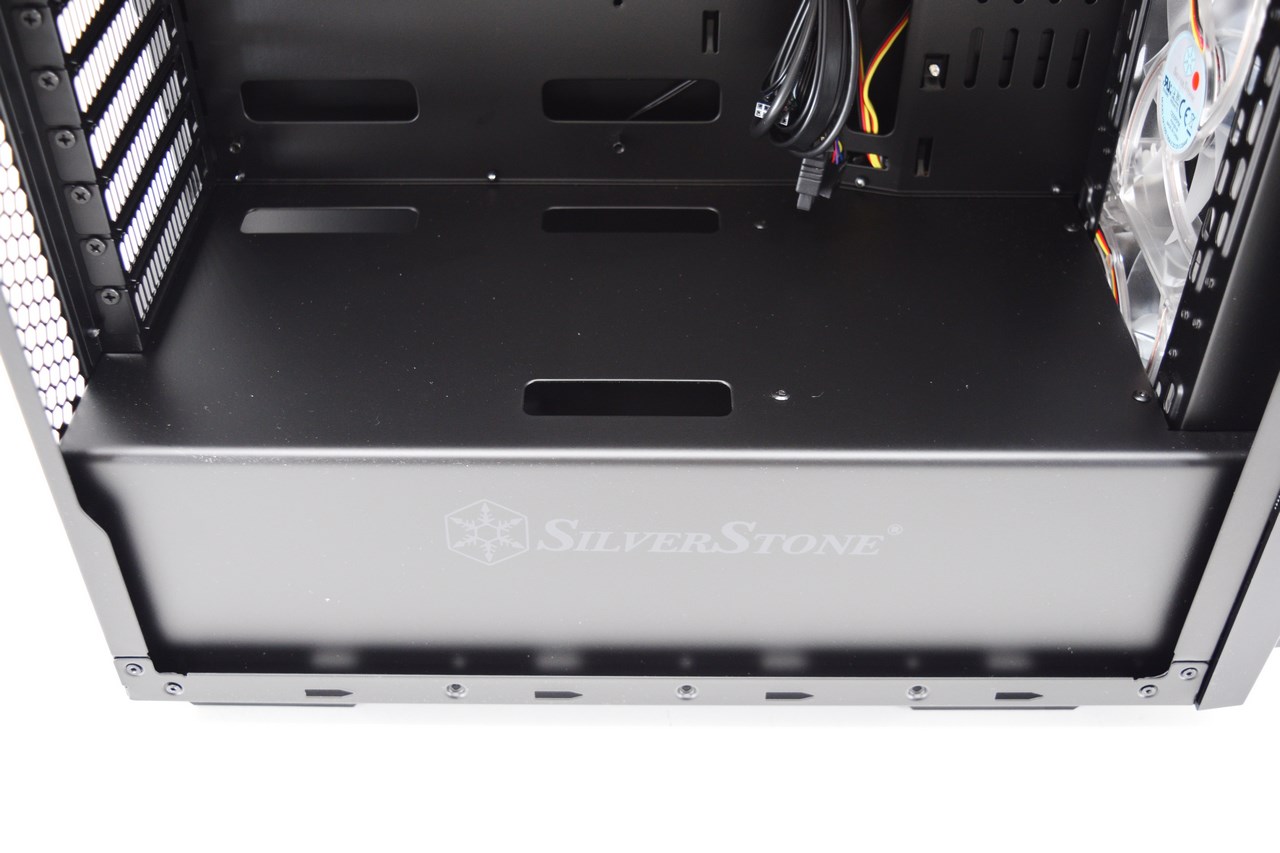

The PSU area cover also has three cable management holes on it.

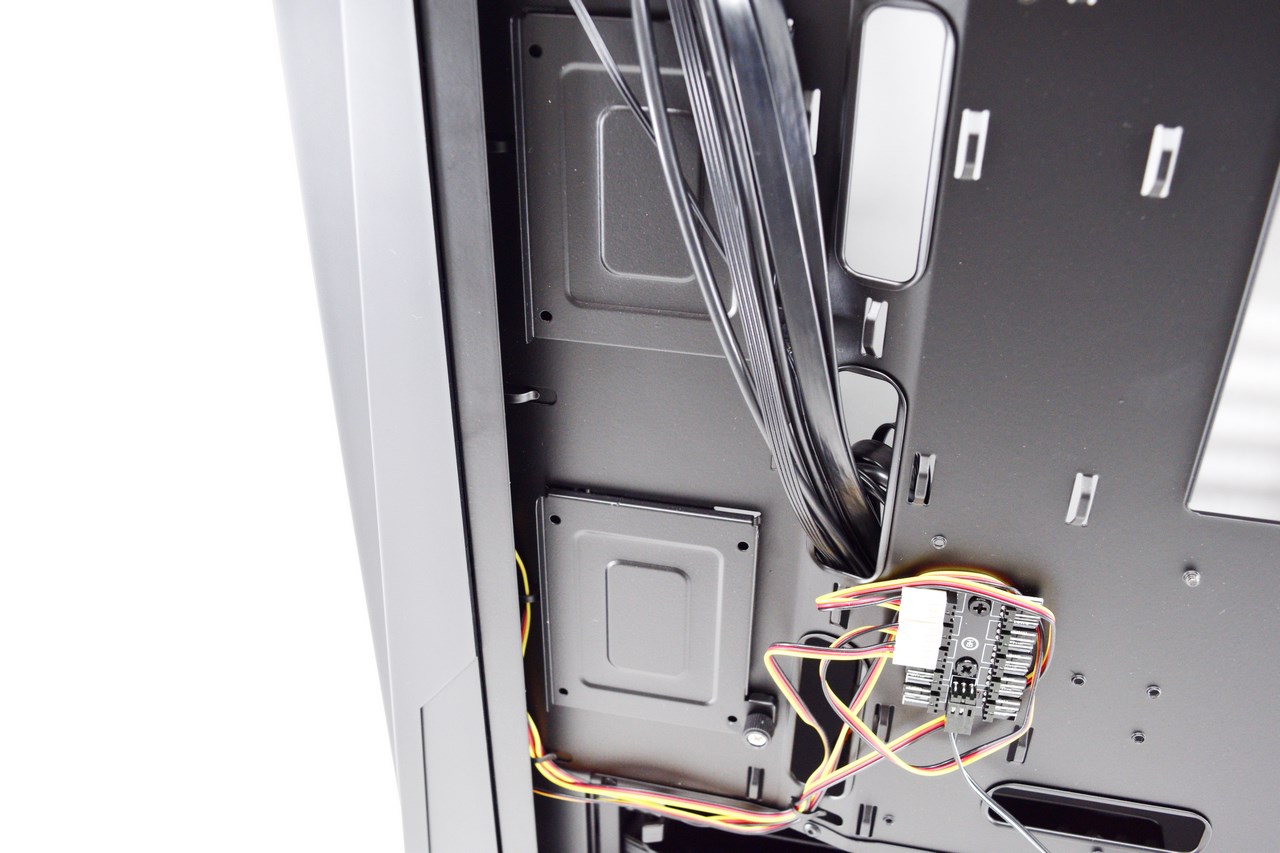

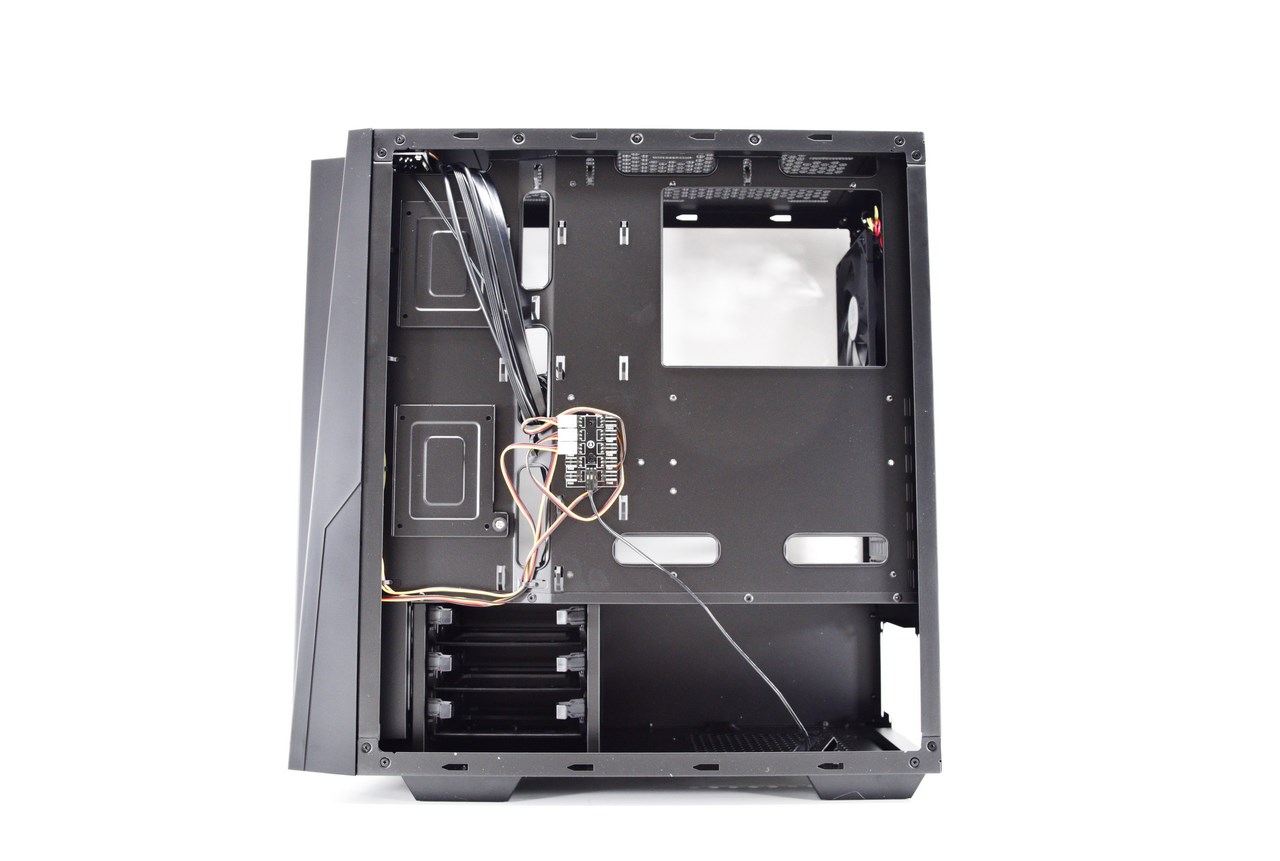

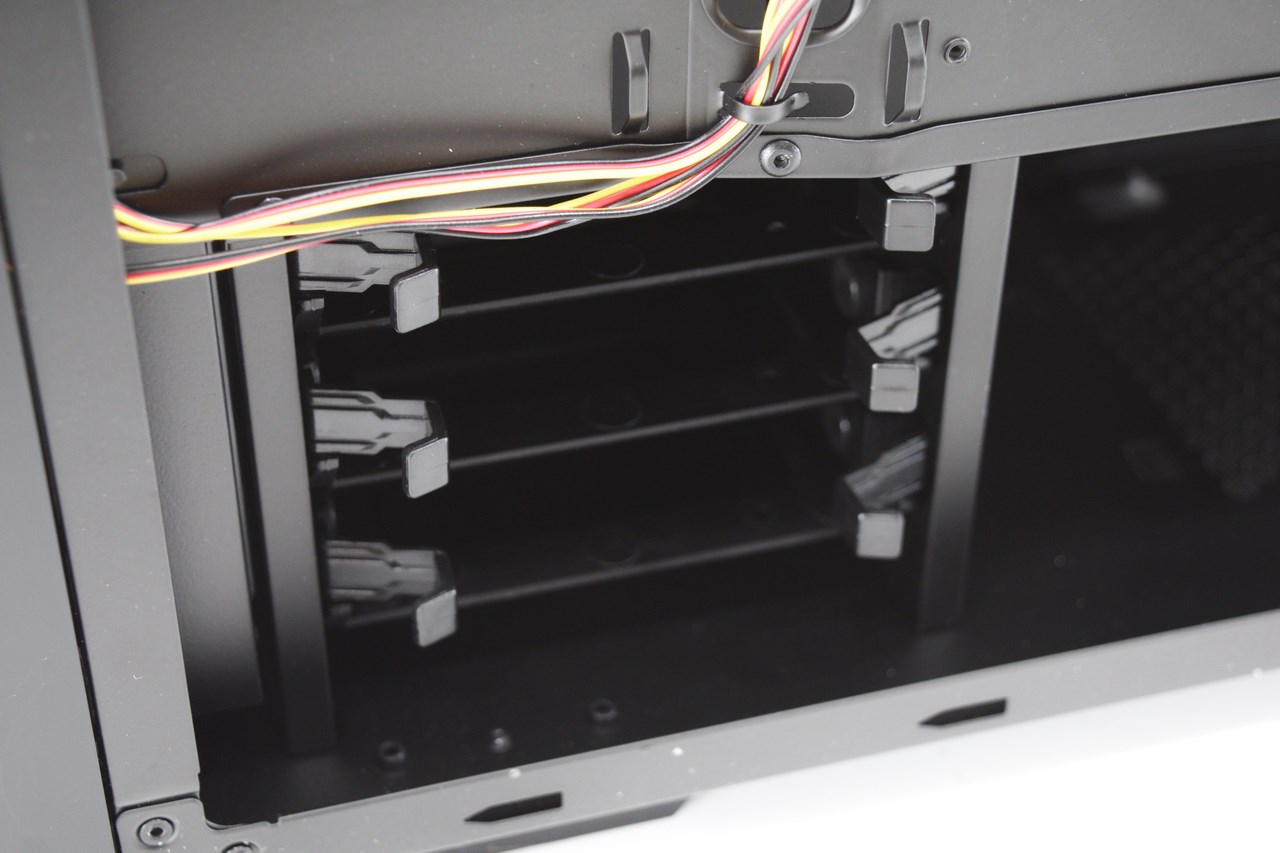

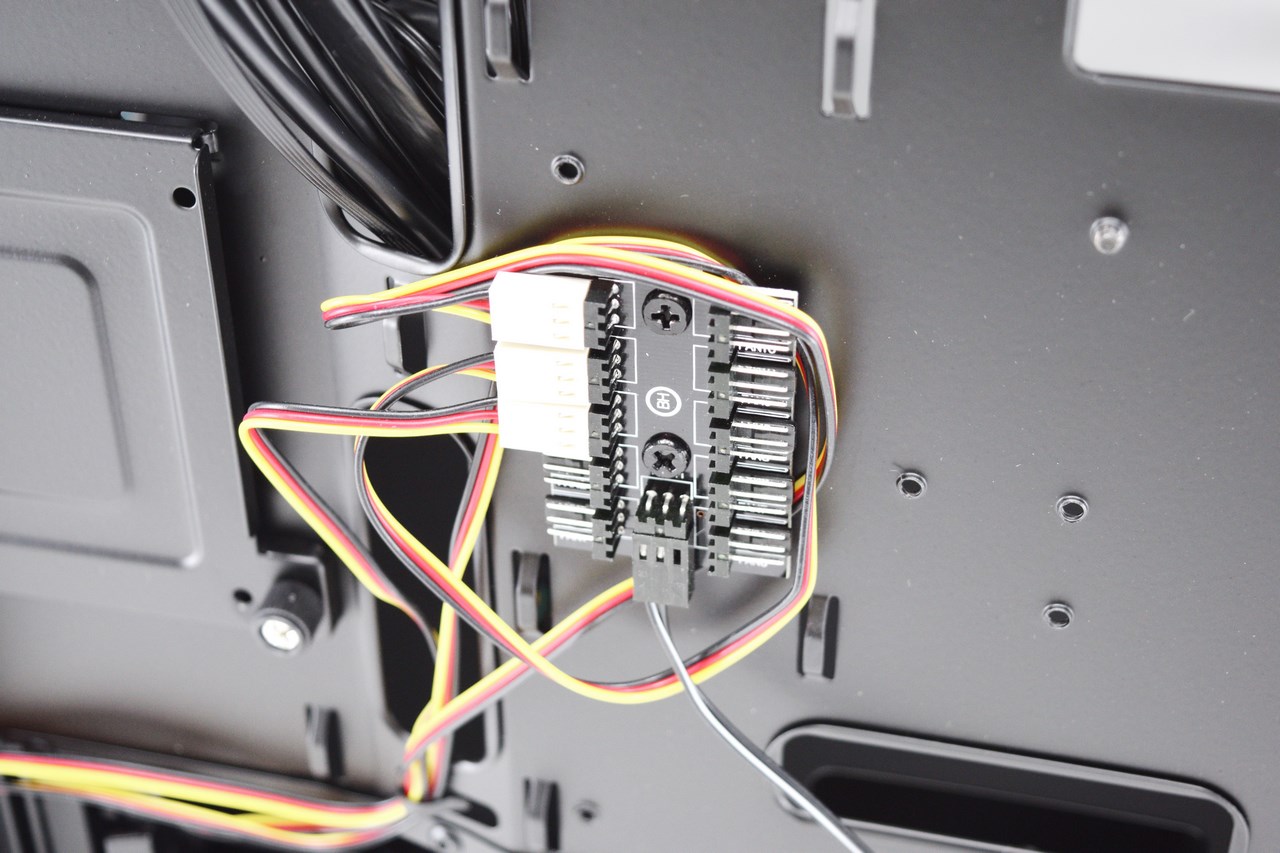

Turning the case around reveals a 10-way fan hub, two vertical 2.5" drive trays and a drive cage with three 3.5/2.5" trays.

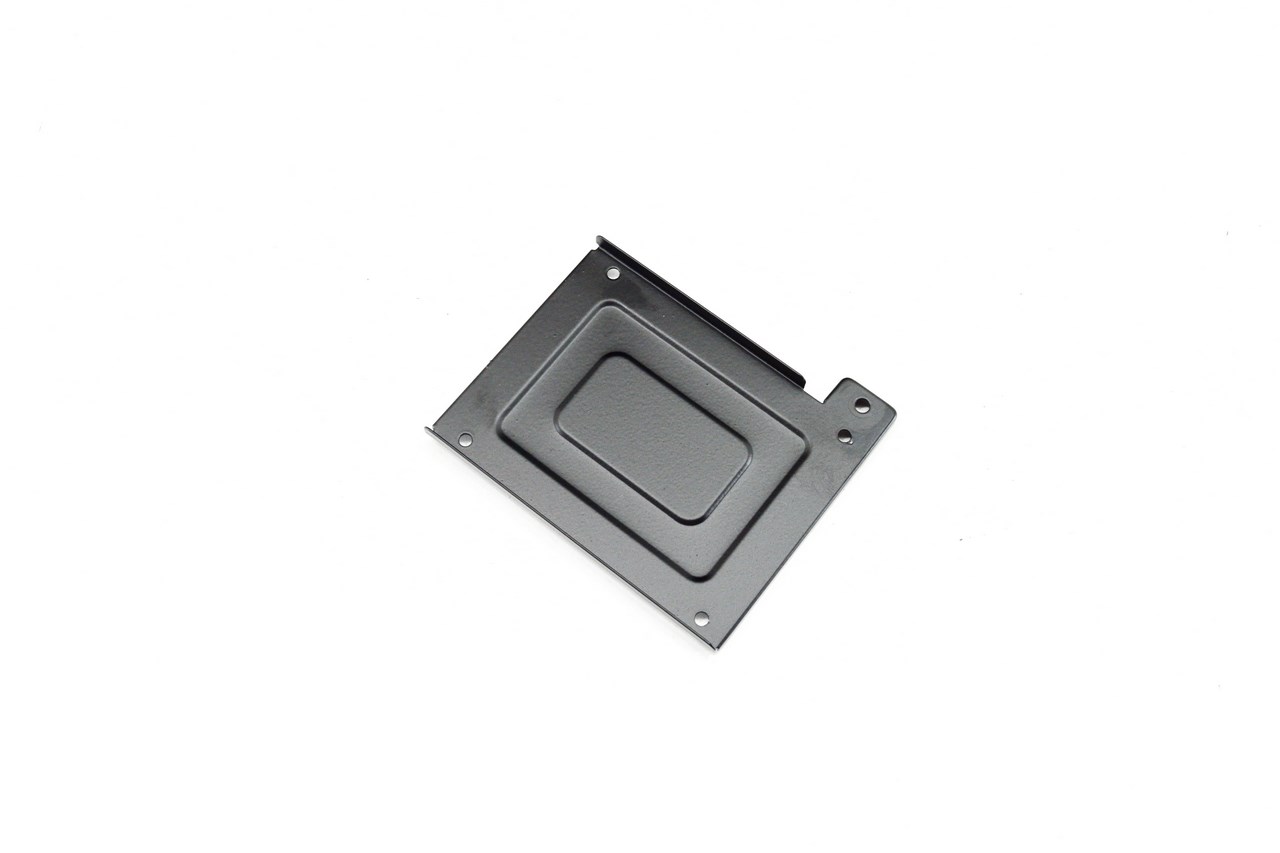

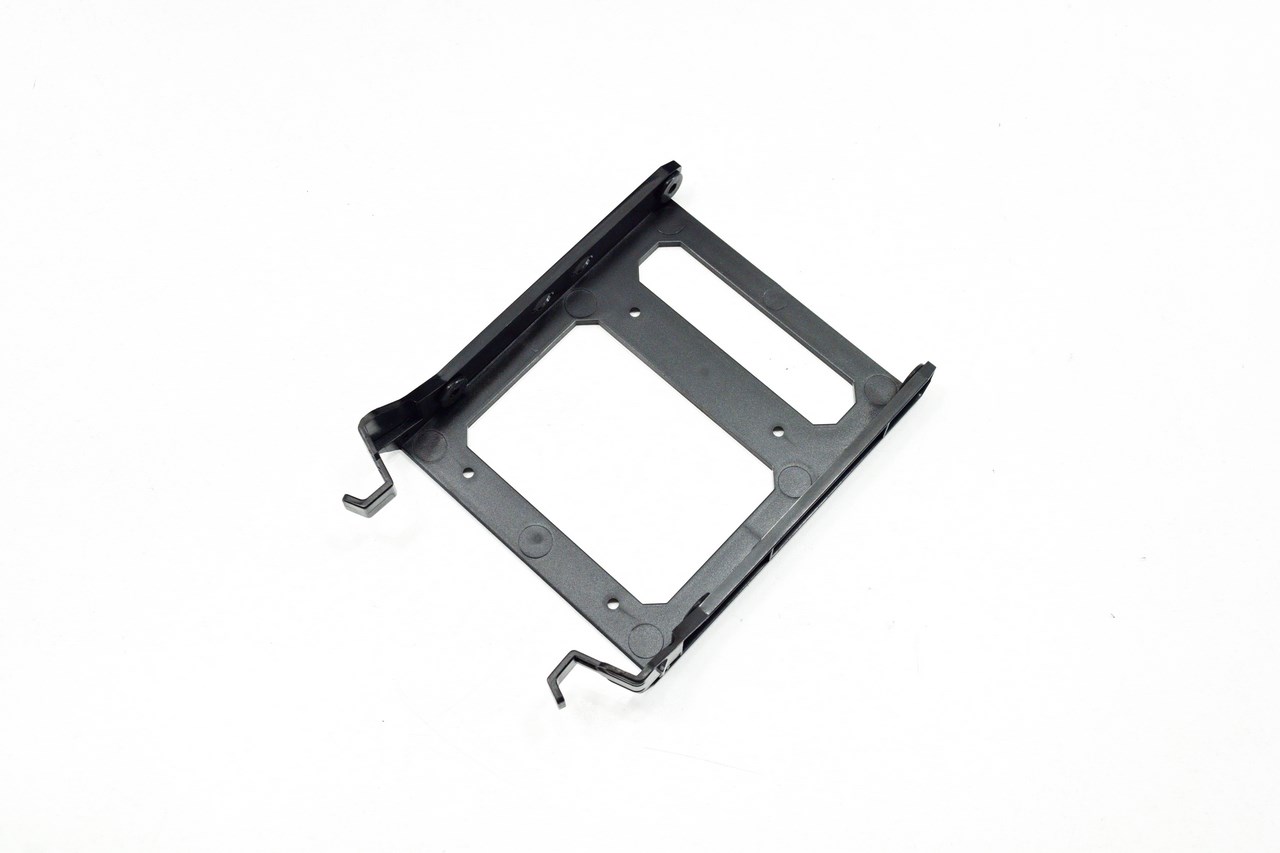

Just like with the Primera PM01 the vertical ones are made out of aluminum while the others are made out of plastic.

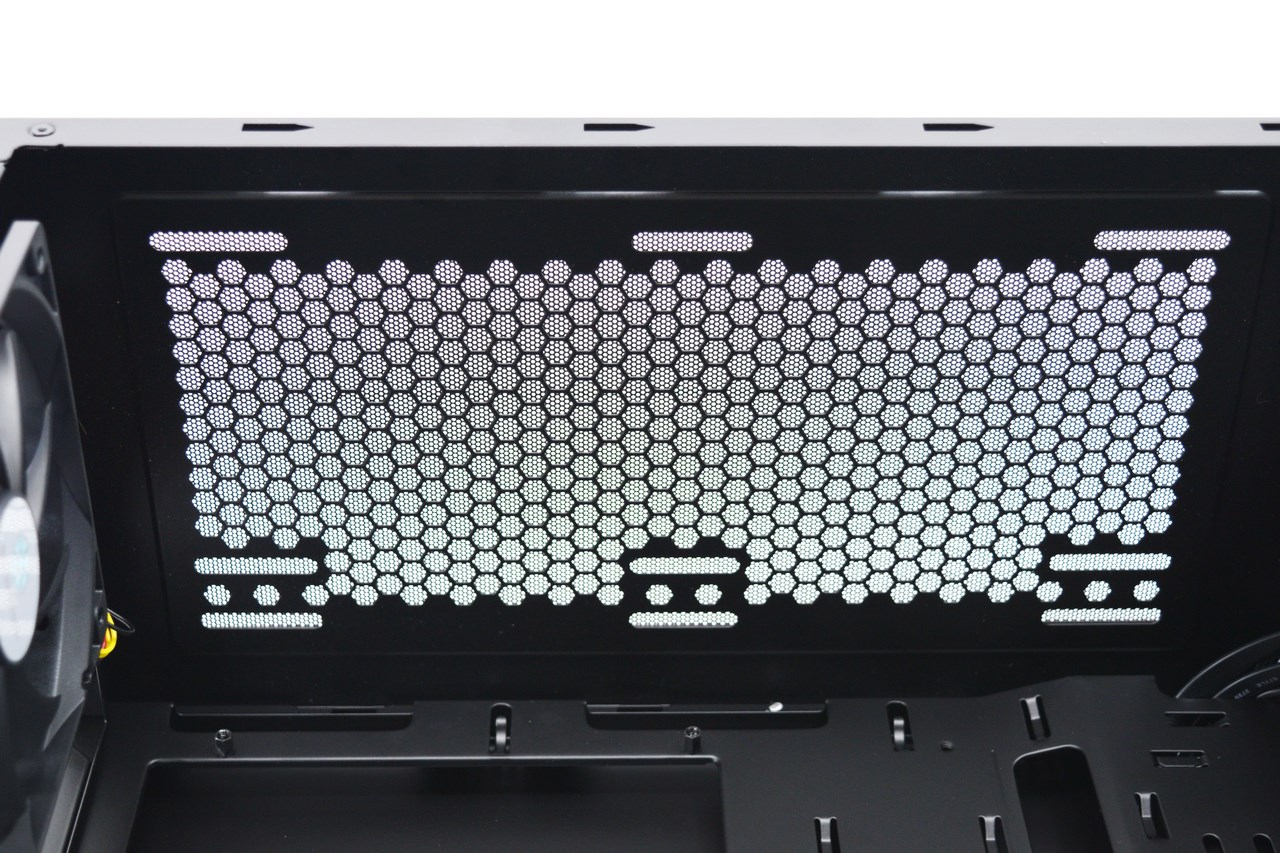

Here we see the top from the interior of the chassis.
