BUILDING THE SYSTEM

As always the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

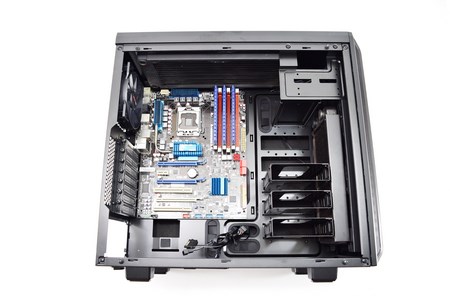

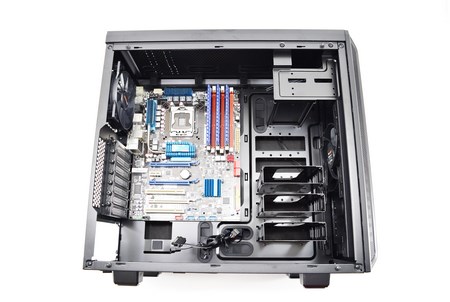

As it’s clear from the above picture mounting a regular size ATX mainboard inside the Pure Base 600 Window means you get to lose two of its cable management holes.

Here we mounted a 240mm at the front and a 280mm radiator at the top leaving plenty of room for even 360mm ones (you will need to remove the 5.25” bays for that to happen however).

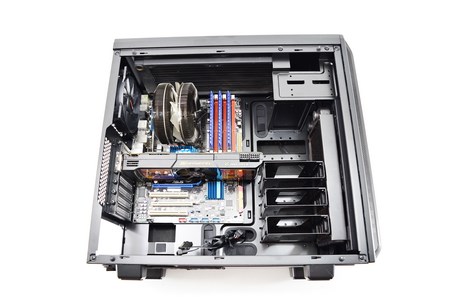

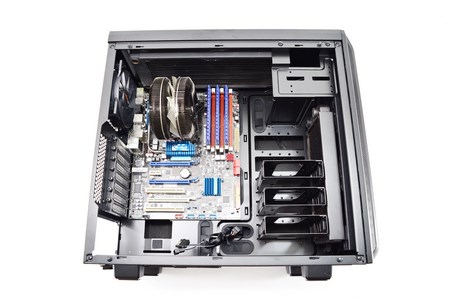

With enough room for CPU coolers up to 165mm in height you may not be able to mount any model you wish.

Our GeForce GTX590 is 280mm in length and as you can all see it’s exactly what you will be able to use if you decide not to remove the drive cages.

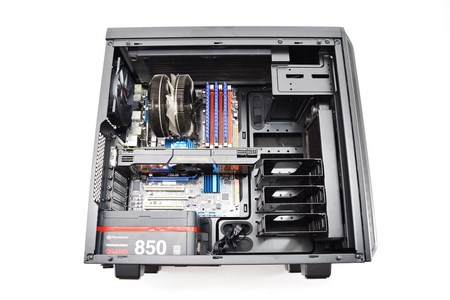

You can use pretty much any PSU in the market with the Pure Base 600 Window but as you can see from the above picture even a 180mm long model will take one of the bottom holes used for cable routing.
