THE CRYSTAL 680X RGB EXTERIOR

Measuring 423mm in length, 344 in width and 505mm in height the CRYSTAL 680X RGB is certainly compact.

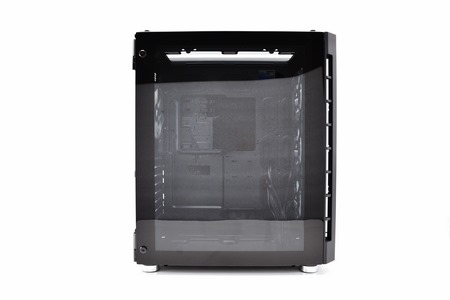

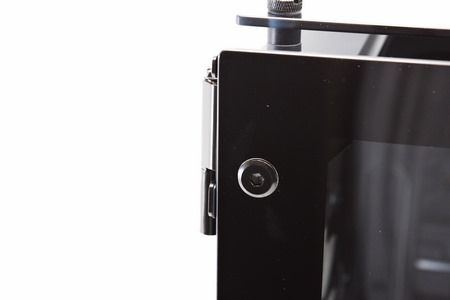

On the left side we find a hinged tempered glass door.

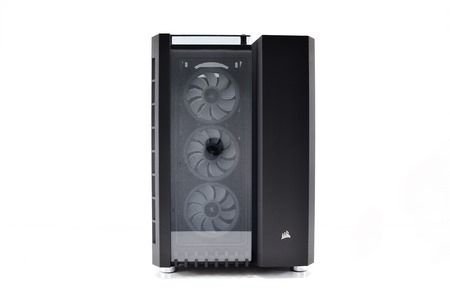

The fascia has two parts a tempered glass panel and a plastic panel.

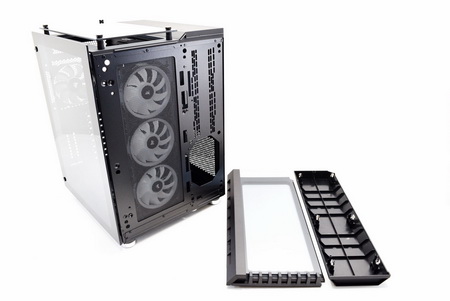

You can remove the plastic panel the same way you would any fascia but to remove the tempered glass panel you need to first remove several screws located both beneath the plastic panel and on the interior of the case.

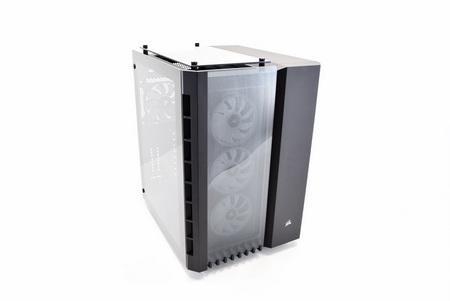

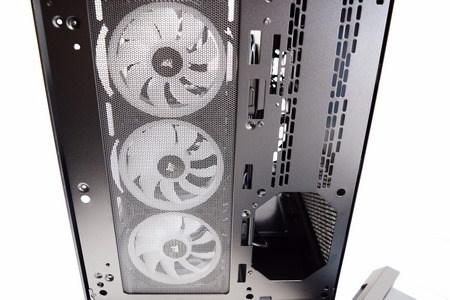

Here we see the three LL120 RGB fans each of which has a total of 48 customizable RGB LEDs.

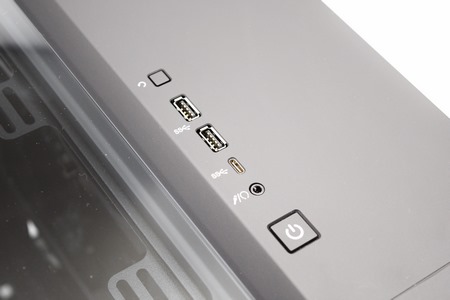

The I/O is located just over the plastic section of the fascia and it includes the on/off power button, reset button, headphones/microphone port, two USB 3.0 ports and a USB 3.1 Gen-2 Type-C port.

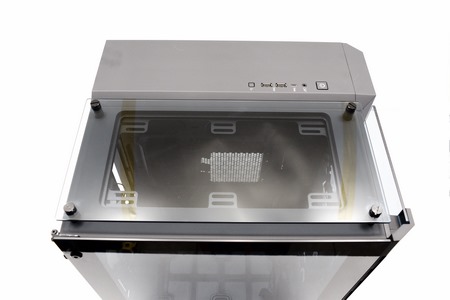

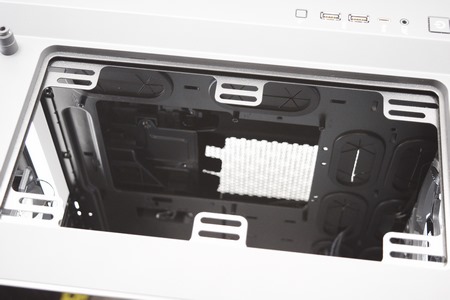

The top tempered glass panel is held in place with thumbscrews and beneath it there's room either for two 120mm/140mm fans or a single 240/280mm radiator.

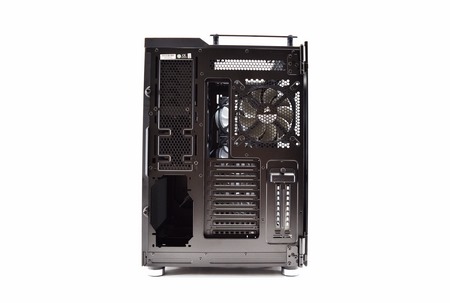

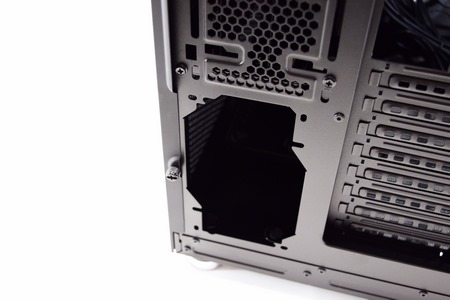

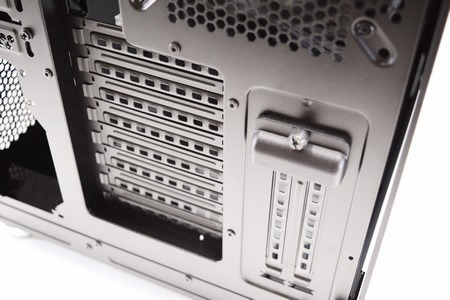

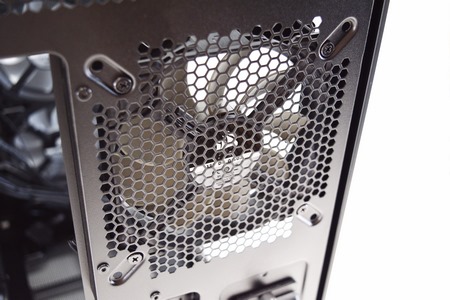

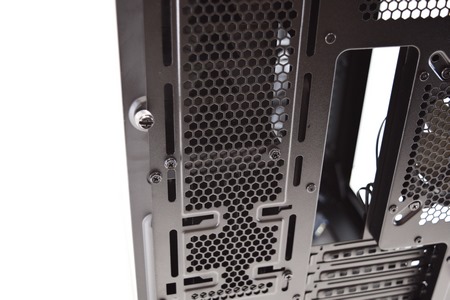

Moving at the rear of the case we find a regular (non LED) 120mm exhaust fan, 10 PCI expansion slots, perforated section (for the drives inside) and the PSU area.

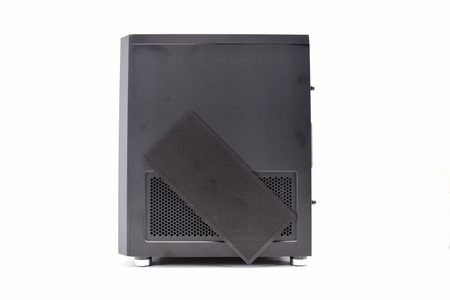

The right side panel is made out of steel and features a large perforated area with a magnetic air-filter (fans can't be mounted here).

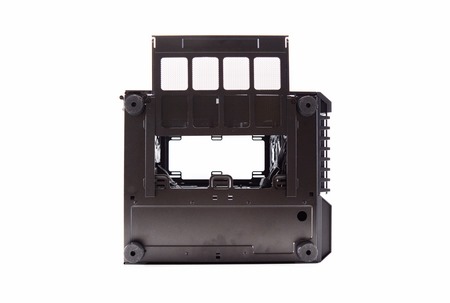

A large slide-in/out air-filter is placed at the base of the CRYSTAL 680X.
