THE POWERPLAY GPU-750FC INTERIOR

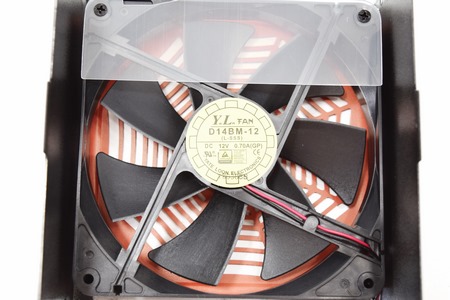

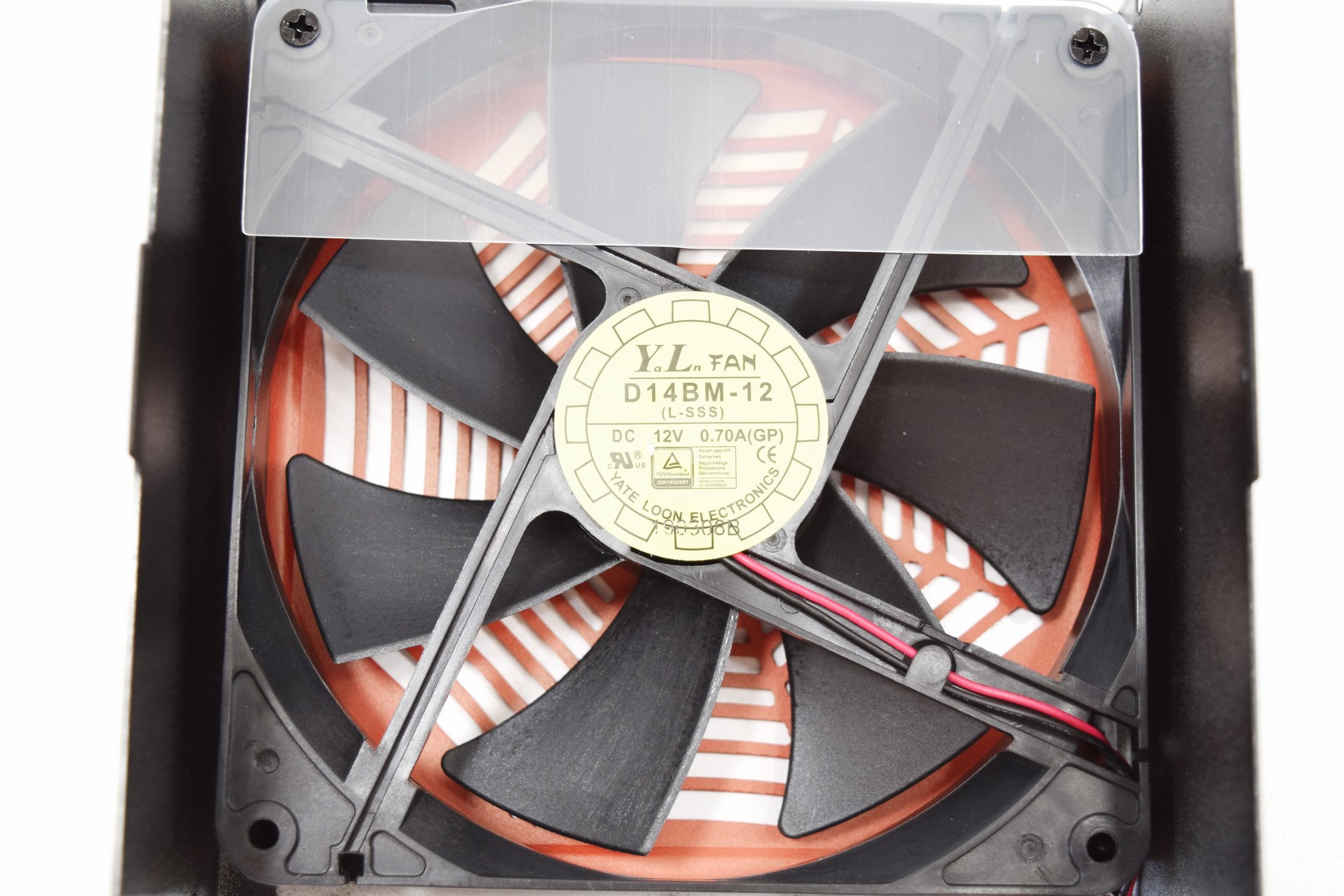

The 140mm fan is manufactured by Yate Loon Electronics and can reach speeds of up to 1400RPM to produce up to 62CFM of airflow with 29dB of noise.

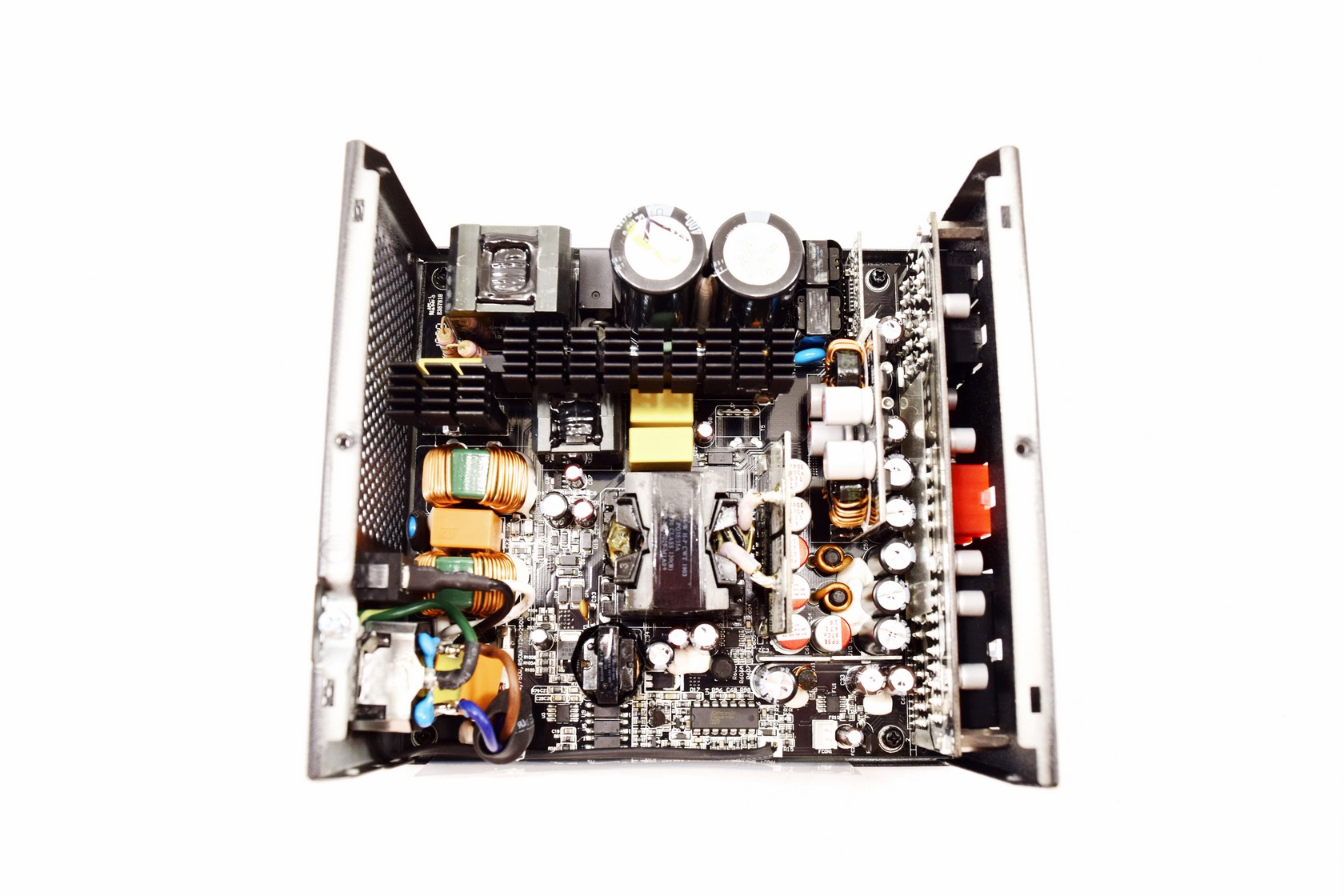

Just like with the platinum model i am also testing these days this gold model is also based on a CWT design (OEM manufacturer).

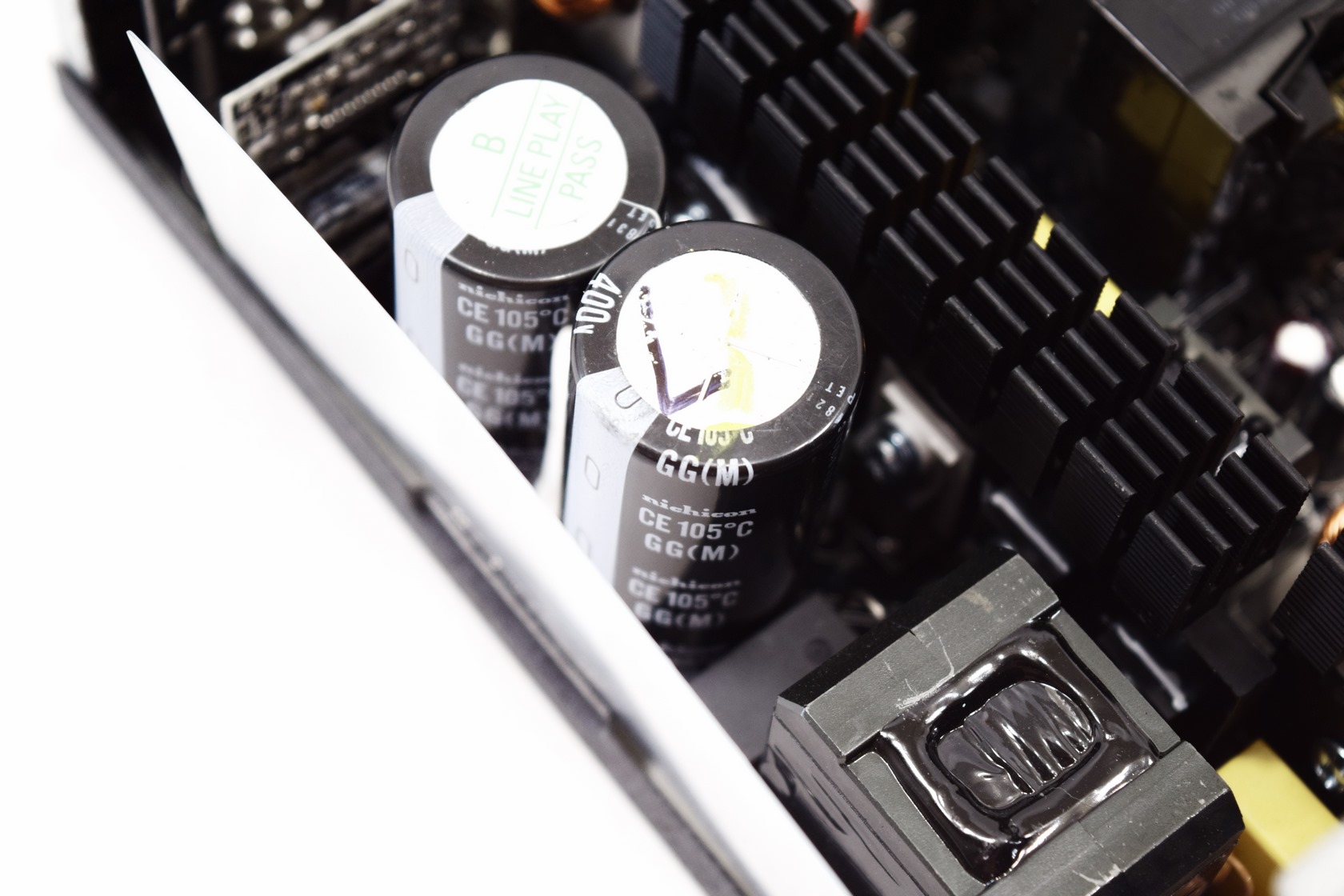

Chieftronic states that they are using Japanese capacitors and this is true since the primary ones are manufactured by nichicon (rated for use up to 105 degrees Celsius).

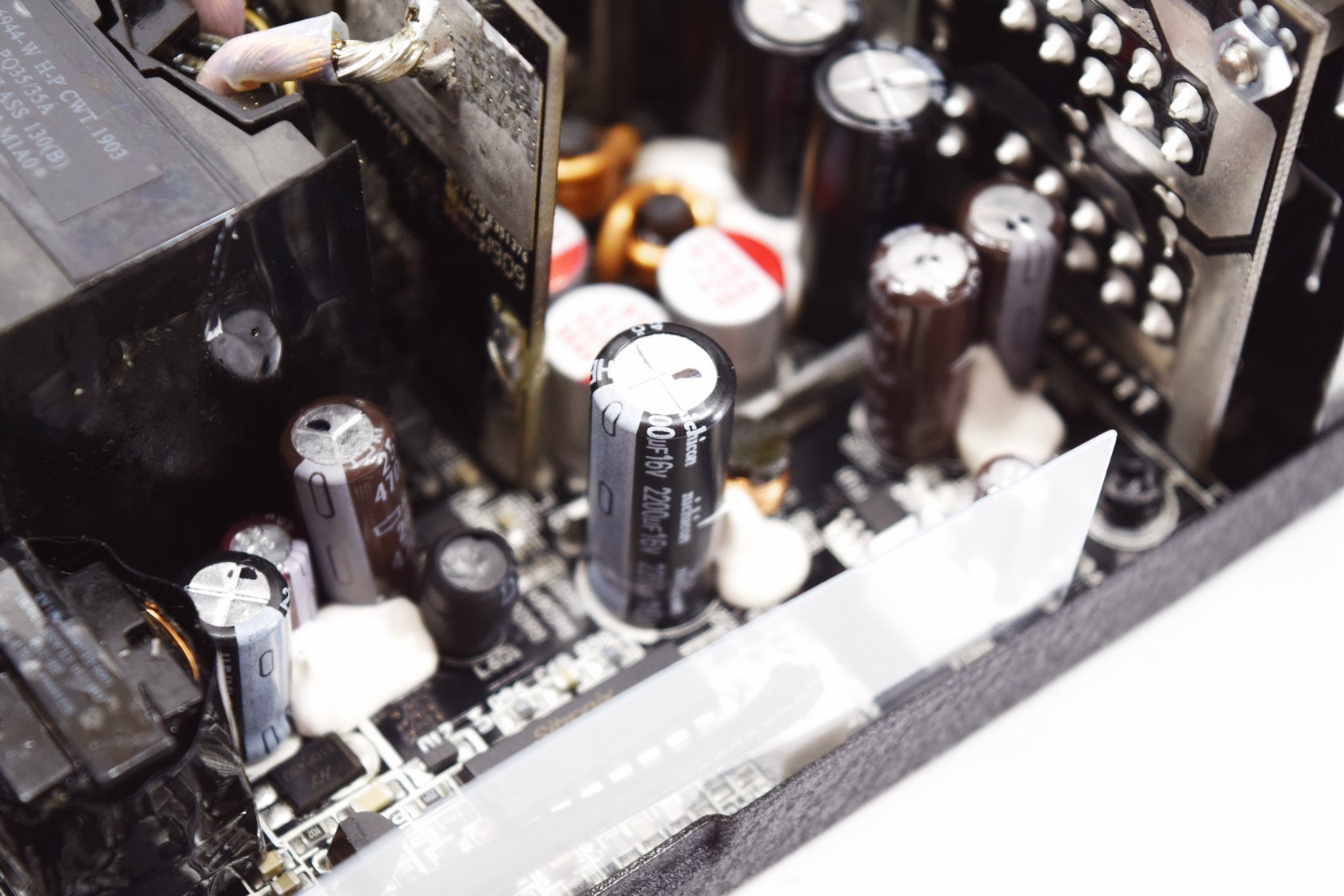

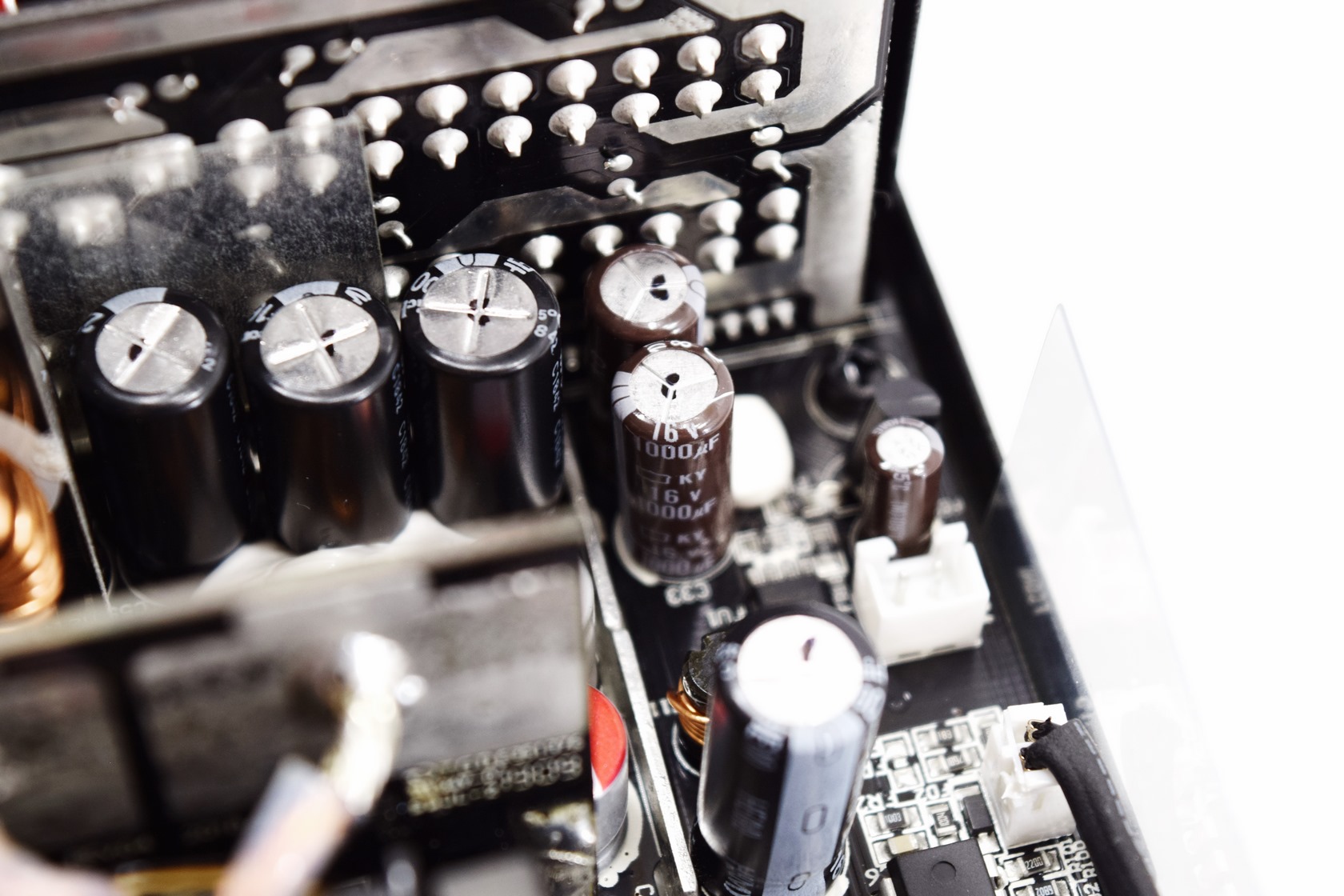

Secondary capacitors are manufactured by both nichicon and united Chemi-Con (also rated for use up to 105 degrees Celsius).
