THE CX850M V2 EXTERIOR

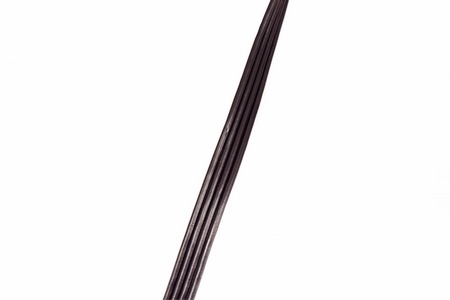

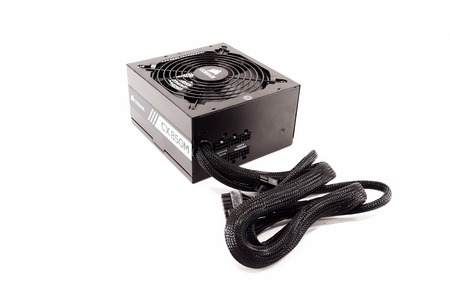

CORSAIR gave the CX850M 2017 Edition a round braided power cable for the motherboard (24pin) and flat power cables for both the graphics cards and SATA devices.

The CX850M V2 has the motherboard cable hardwired into its chassis which measures 150mm in width, 160mm in length and 86mm in height.

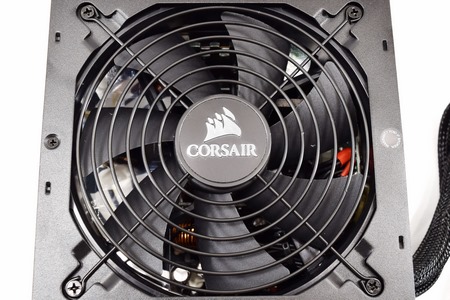

A 120mm fan is placed at the top beneath a regular grill with the company logo.

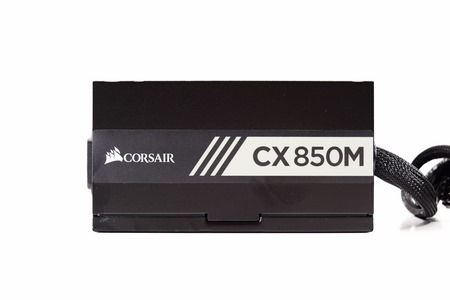

Both the company and model names are printed on both sides of the enclosure.

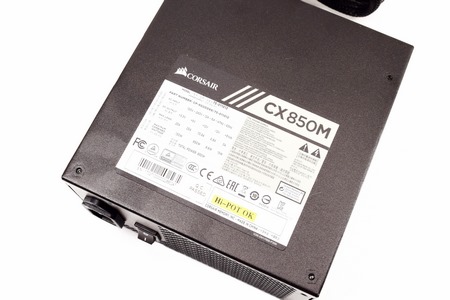

Turning the PSU over we find a large sticker containing the electrical specifications table.

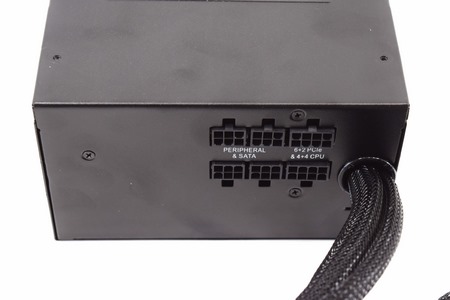

All 6 modular connectors are tagged and different in size/shape.

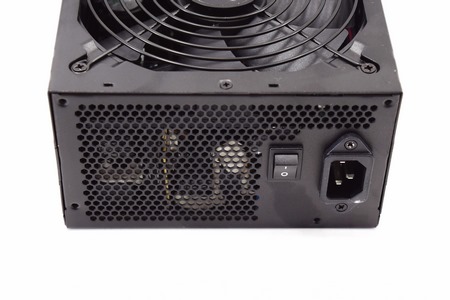

At the rear we find the typical honeycomb perforation, power on/off button and the power port.
