THE DARK POWER 12 1000W INTERIOR

Accessing the interior of the Dark Power 12 is slightly different than with the Dark Power Pro 12 but it still requires removing the aluminum cover and then both plastic air inlets.

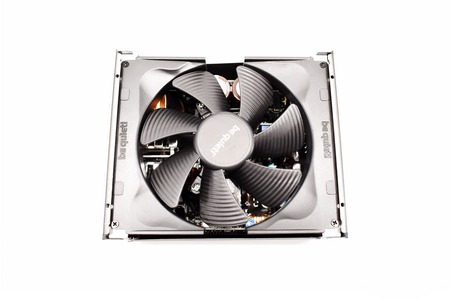

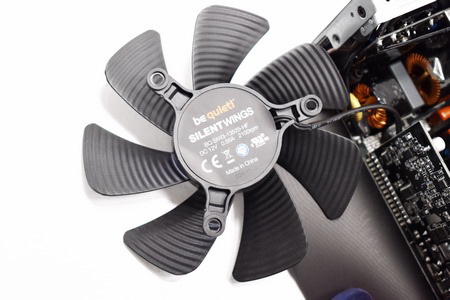

This time over be quiet! has used a 135mm frameless fan which can spin up to 2100RPM with just 25.8dBA of noise.

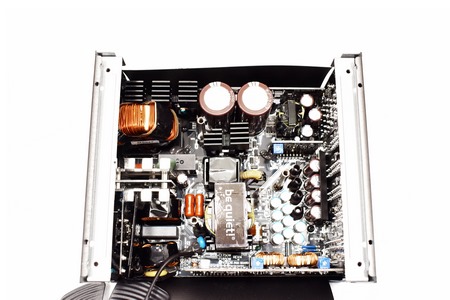

Interior layout is very clean and according to what i see this unit is manufactured by the FSP group.

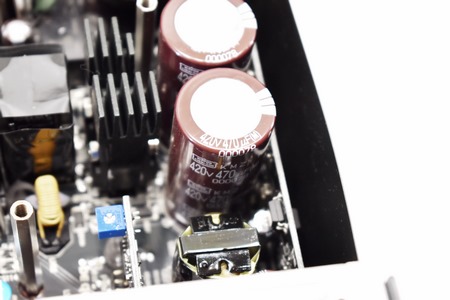

Both primary capacitors are manufactured by the Japanese Nippon Chemi-Con and are certified for use up to 105 degrees Celsius.

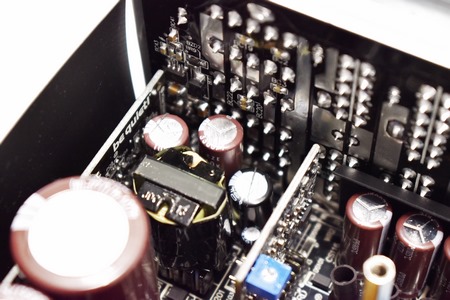

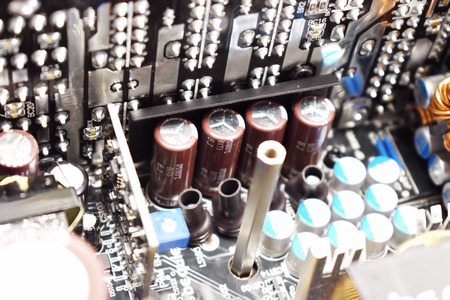

Secondary capacitors seem to be manufactured by United Chemi-Con and Rubycon and are all rated for use up to 105 degrees.
