THE PURE POWER 11 FM 750W EXTERIOR

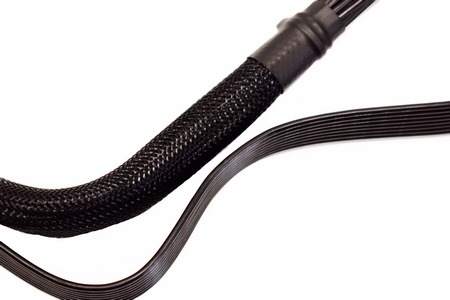

Be quiet! used a round braided power cable for the motherboard (24pin) and flat low-profile power cables for the graphics cards and SATA devices.

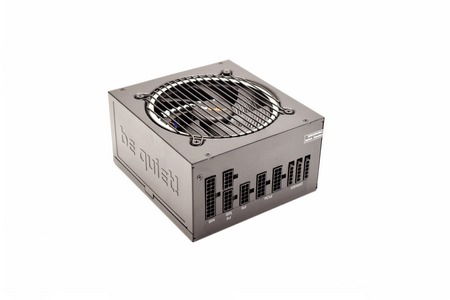

The chassis of the Pure Power 11 FM 750W measures 165mm in width, 150mm in length and 86mm in height.

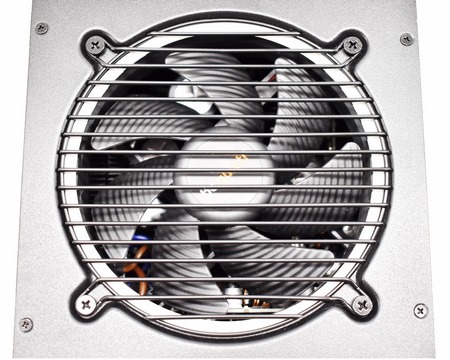

A Silent Wings 120mm fan is placed at the top beneath a nice looking grill.

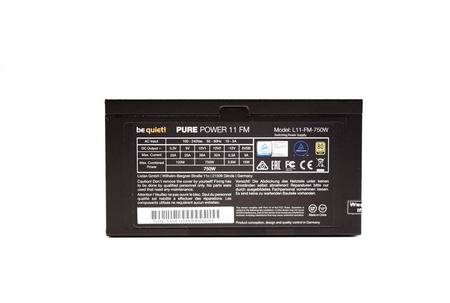

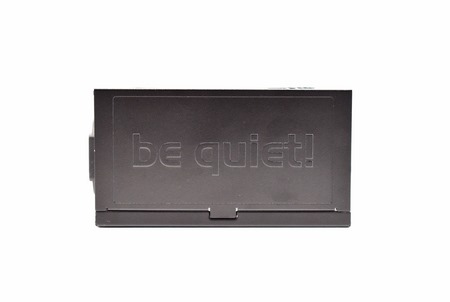

The company logo can be seen on the left side of the chassis while on the right side we find a large sticker containing the electrical specifications table.

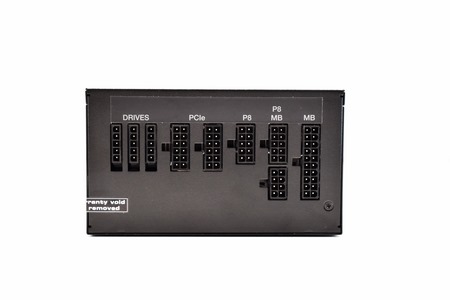

All 9 modular connectors are tagged and different in size/shape.

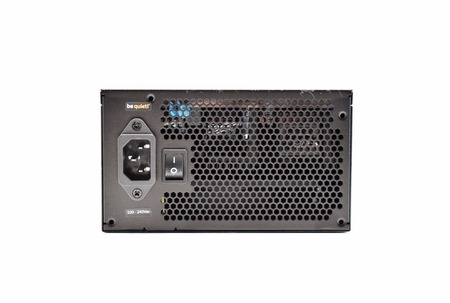

At the rear we find the typical honeycomb perforation, power on/off button and the power port.
