THE HYDRO PTM PRO 1200W EXTERIOR

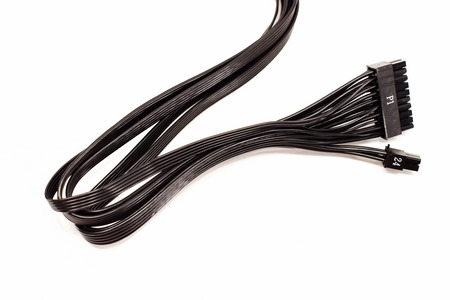

FSP has used low-profile slim modular cables for increased airflow levels and easier routing behind the motherboard tray.

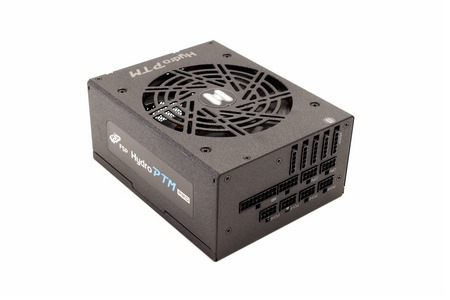

Measuring 190mm in length, 150mm in width and 86mm in height the Hydro PTM PRO 1200W is a rather large size model.

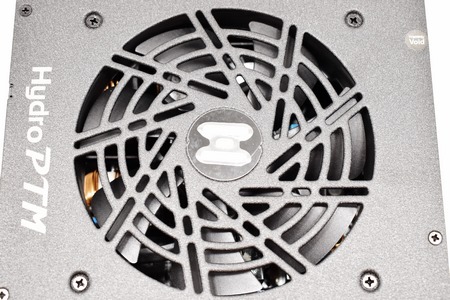

The 135mm FDB (fluid dynamic bearing) fan is located underneath a grille with the line logo at the center.

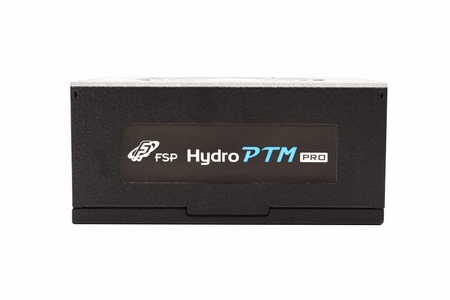

On both sides of the enclosure FSP has placed stickers which you can replace with the bundled ones if they match your taste better.

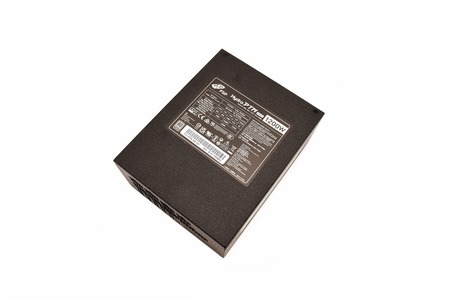

Turning the unit over we find a sticker with its electrical table on it.

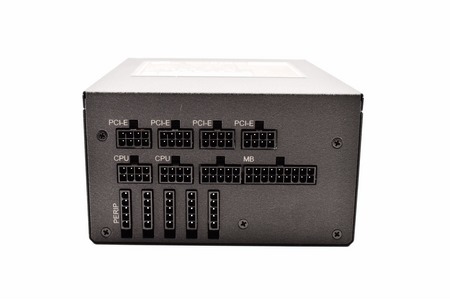

The 13 modular connectors located at the front of the enclosure are both tagged and different in shape.

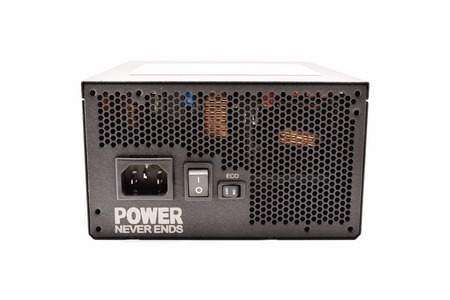

Moving at the rear we find the usual honeycomb perforation along with the eco and power on/off switches and the power port.
