THE VERTEX GX-1000 INTERIOR

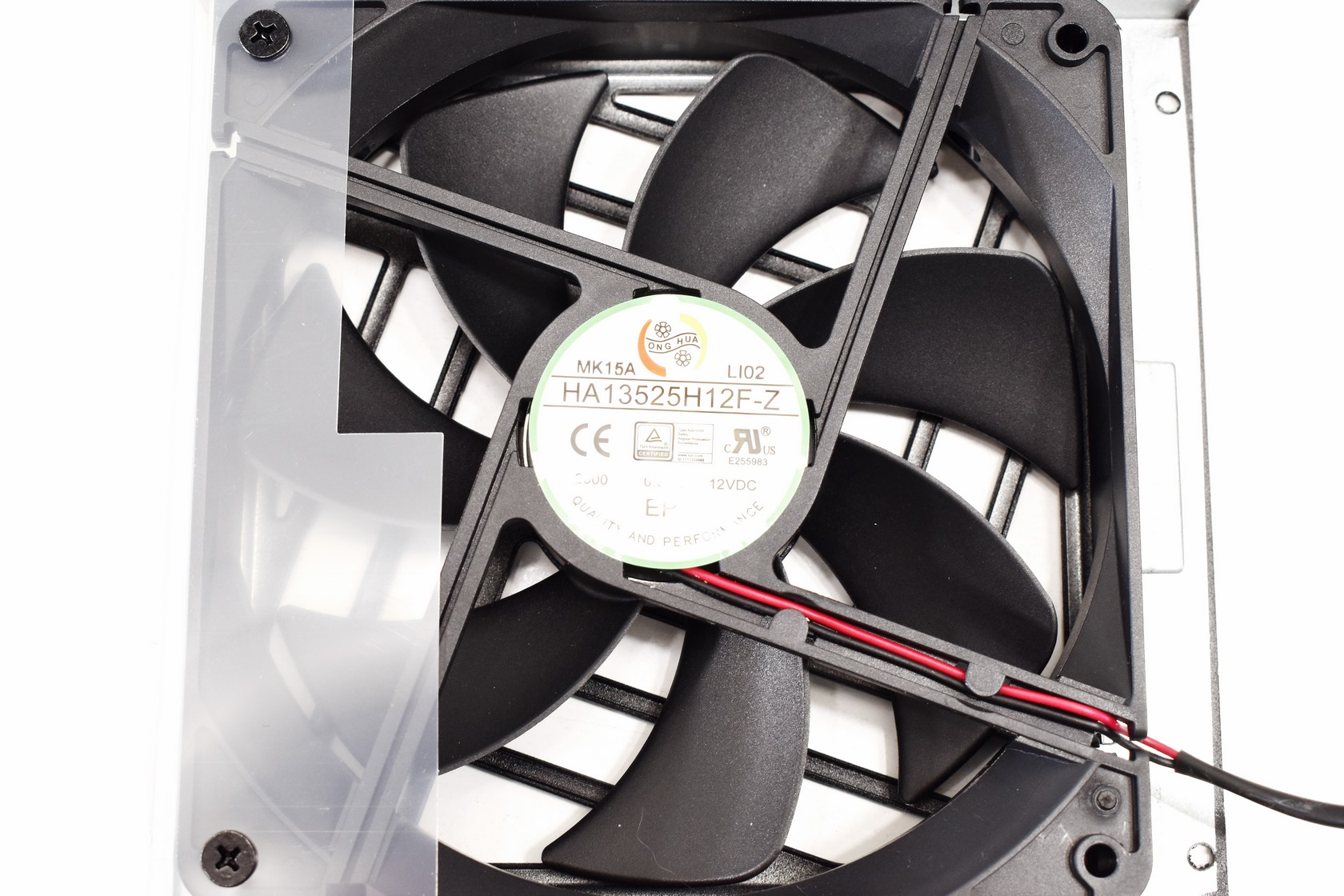

Hong Hua is the manufacturer of the 135mm fluid dynamic bearing fan used with the new VERTEX GX series.

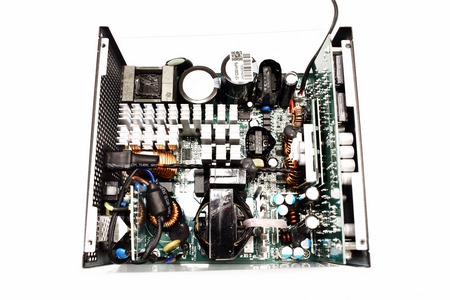

Once again, the interior is very clean and has numerous heatsinks in it (initially i thought this design was from CWT but according to Seasonic this is their very own production).

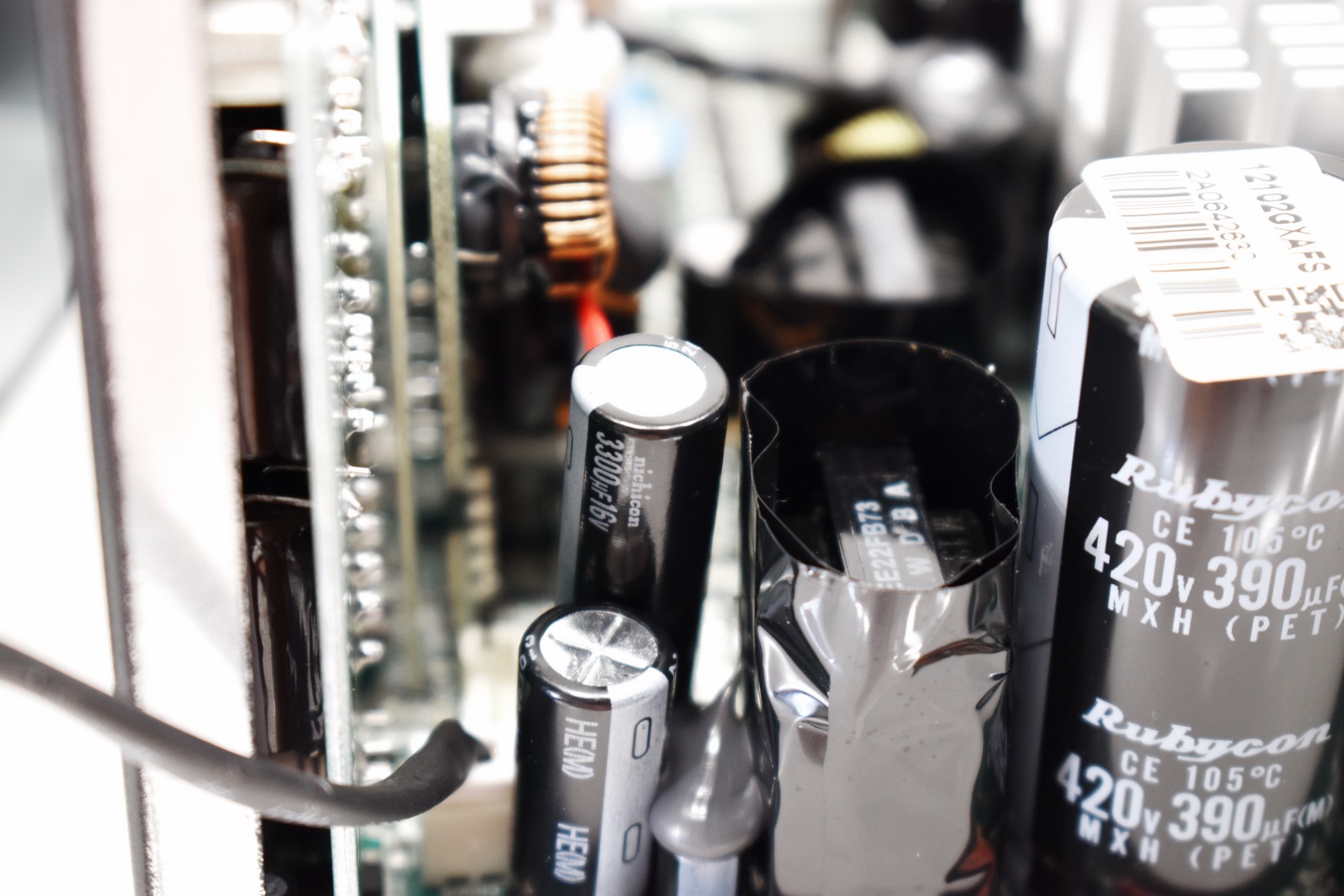

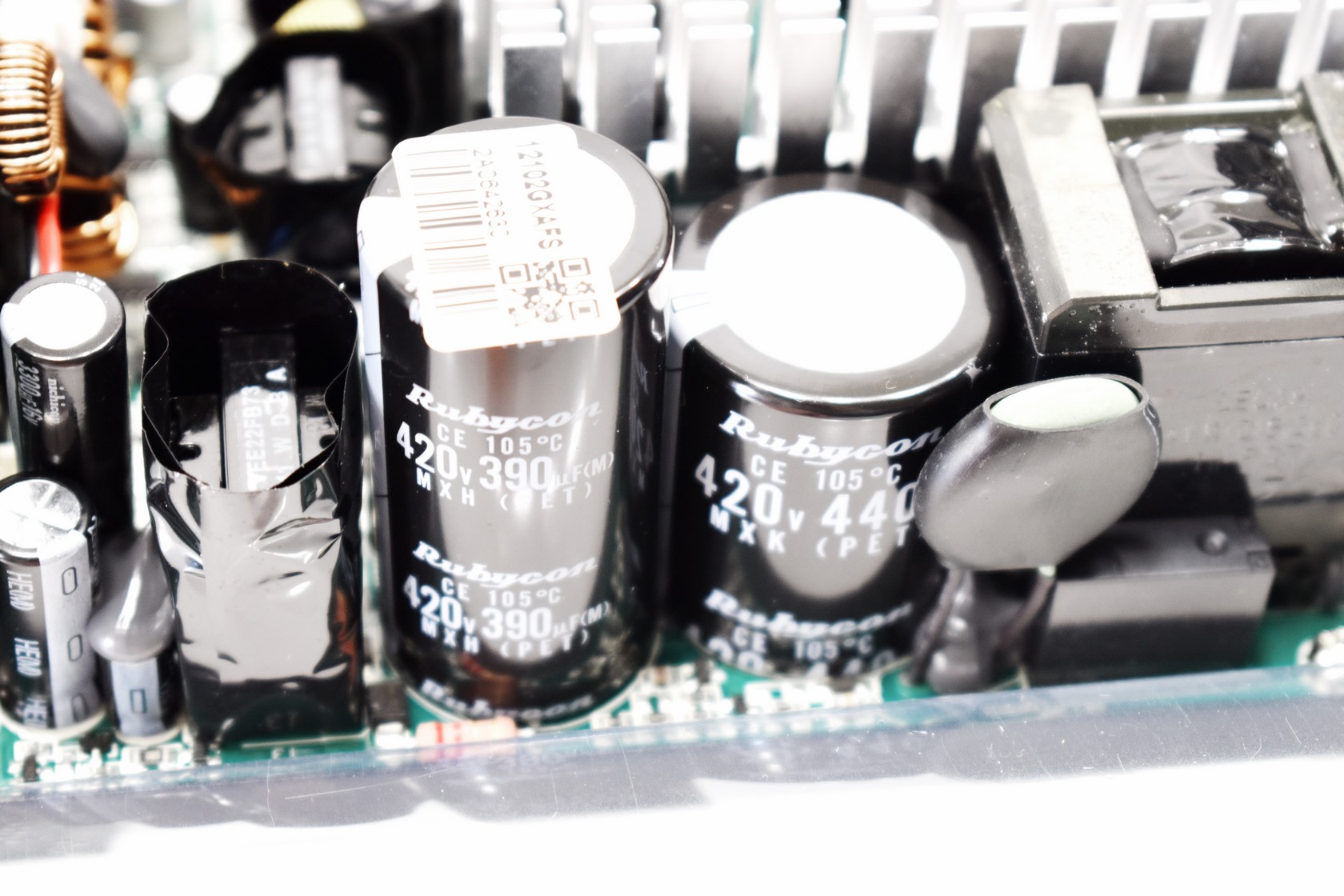

The two primary capacitors are manufactured by Rubycon and are rated for use up to 105 degrees Celsius.

Secondary capacitors are manufactured by nichicon and are also certified for use up to 105 degrees.
