THE HYDRO G PRO 850W EXTERIOR

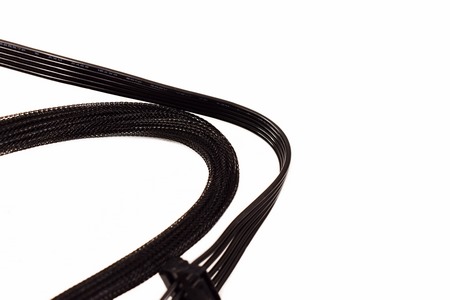

Aside the +12VHPWR cable which is braided every other is a low-profile (slim) one.

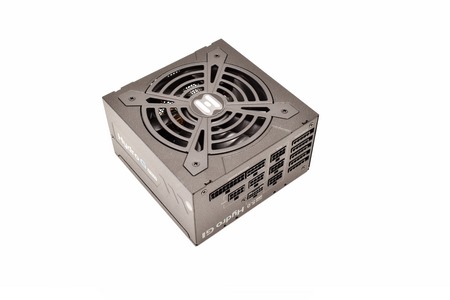

Measuring 150mm in length, 150mm in width and 86mm in height the Hydro G PRO 850W is your typical ATX model.

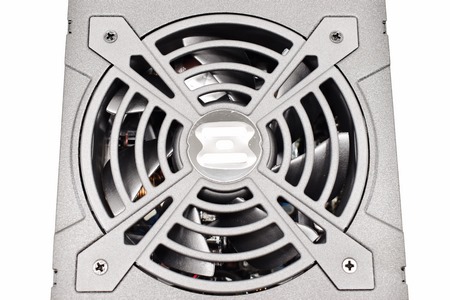

The 120mm FDB (fluid dynamic bearing) fan is located underneath a grille with the company logo at the center.

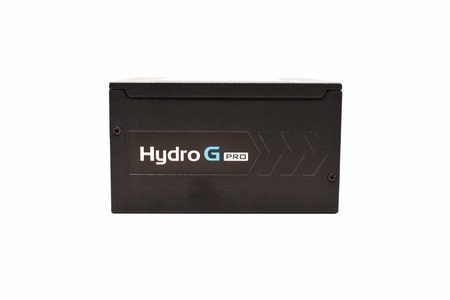

On both sides of the enclosure FSP has placed stickers with the model name on them (you can replace these with the bundled ones if they match your case/components more).

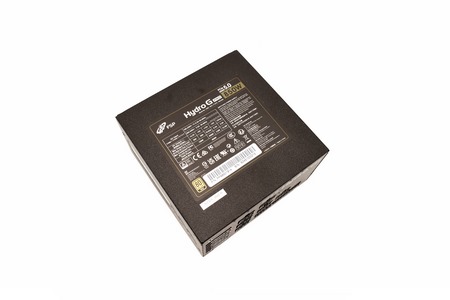

Turning the unit over we find a large sticker with the electrical table on it.

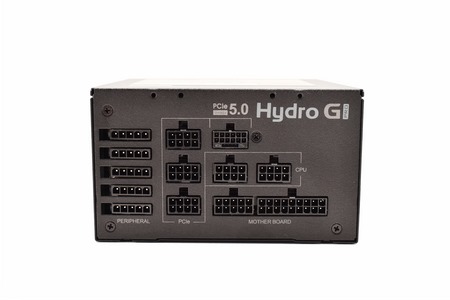

All 13 modular connectors located at the front of the enclosure are tagged and different in shape.

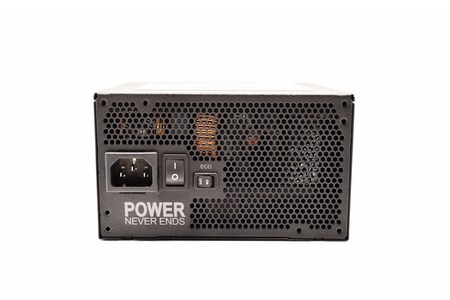

Moving at the rear we find the usual honeycomb perforation along with the eco and power on/off switches and the power port.
