THE DARK POWER PRO 13 1600W INTERIOR

In order to access the interior, you’ll first need to remove the front plate and top grille.

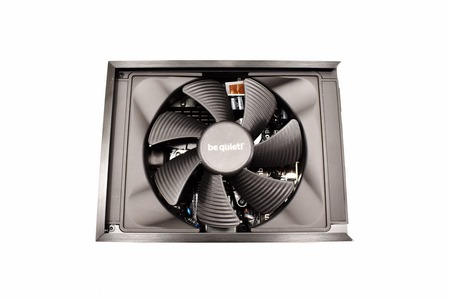

Just like with past Dark Power models the Silent Wings fan is attached onto the chassis directly so you'll need to also remove it (this fan can reach speeds of up to 2600RPM).

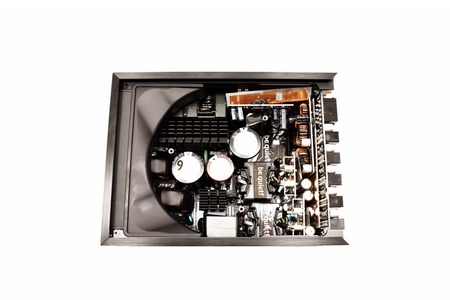

Interior layout is as expected very clean (wire-free) and according to everything I see this should be an FSP unit once again.

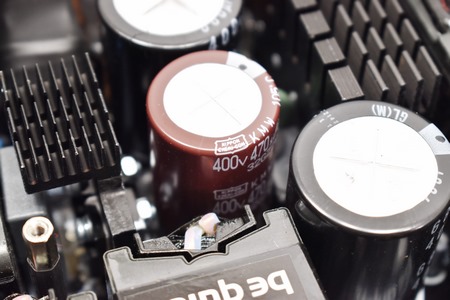

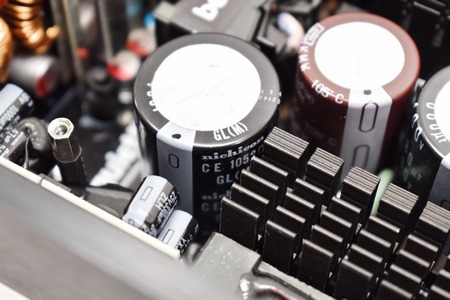

Primary capacitors are manufactured by both the Japanese Nippon Chemi-Con and nichicon (all are certified for use up to 105 degrees Celsius).

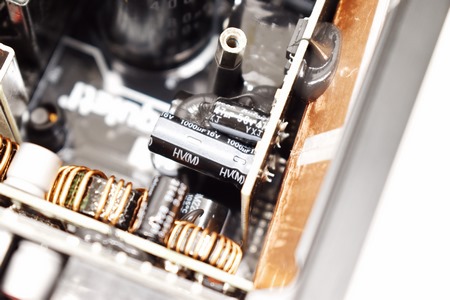

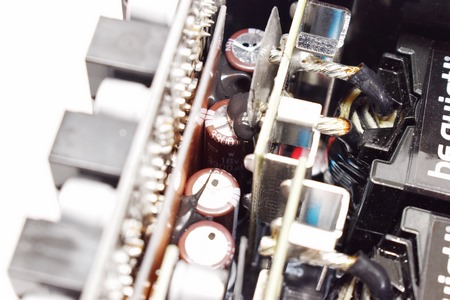

Secondary capacitors are manufactured by the Japanese United Chemi-Con and Rubycon and are all rated for use up to 105 degrees.
