THE MEG AI1300P PCIE5 INTERIOR

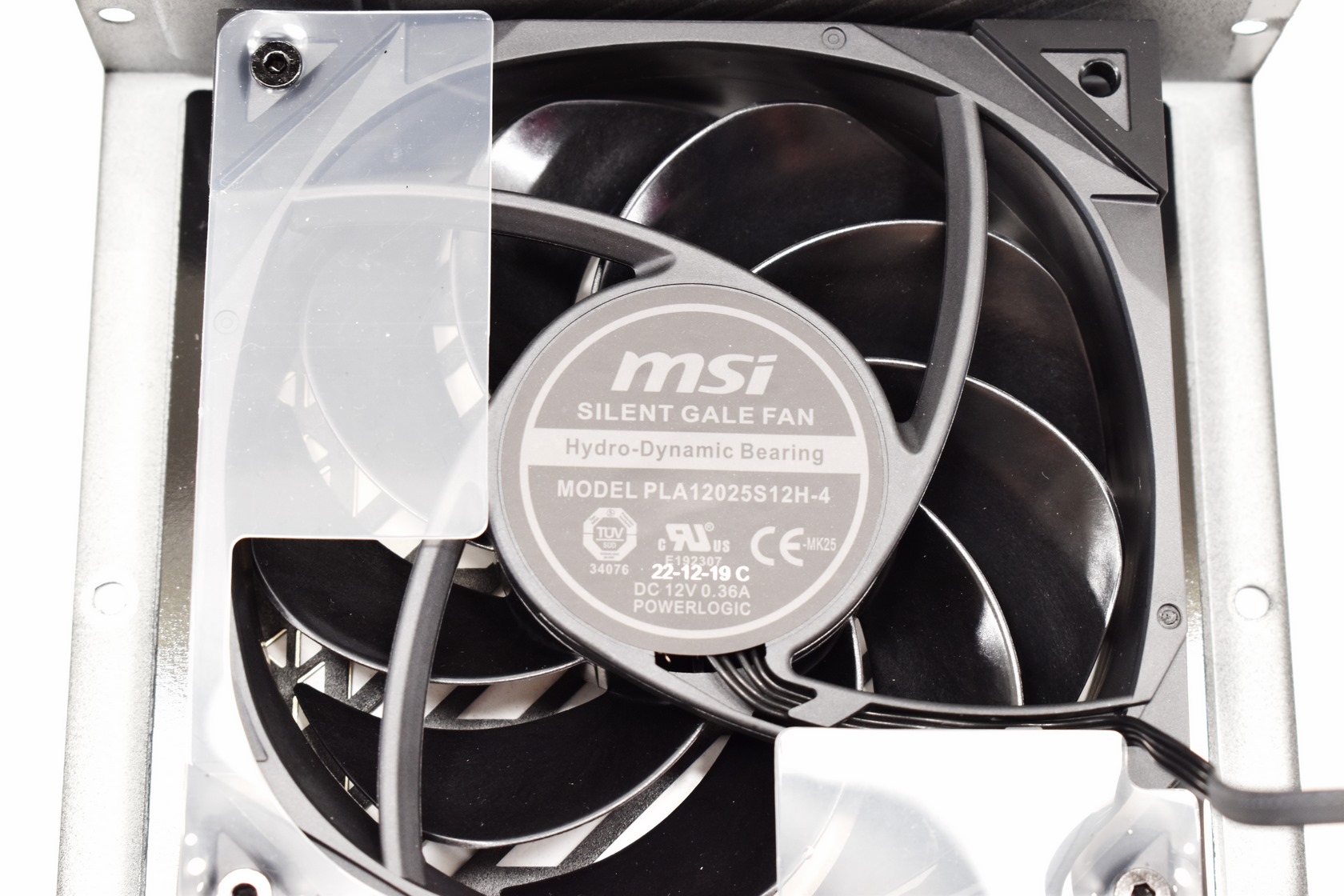

The 120mm HDB silent gale fan is manufactured by PowerLogic and according to MSI Center it can spin up to 2500RPM.

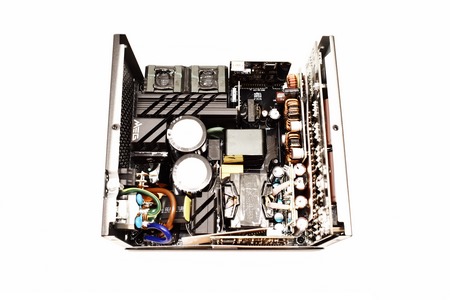

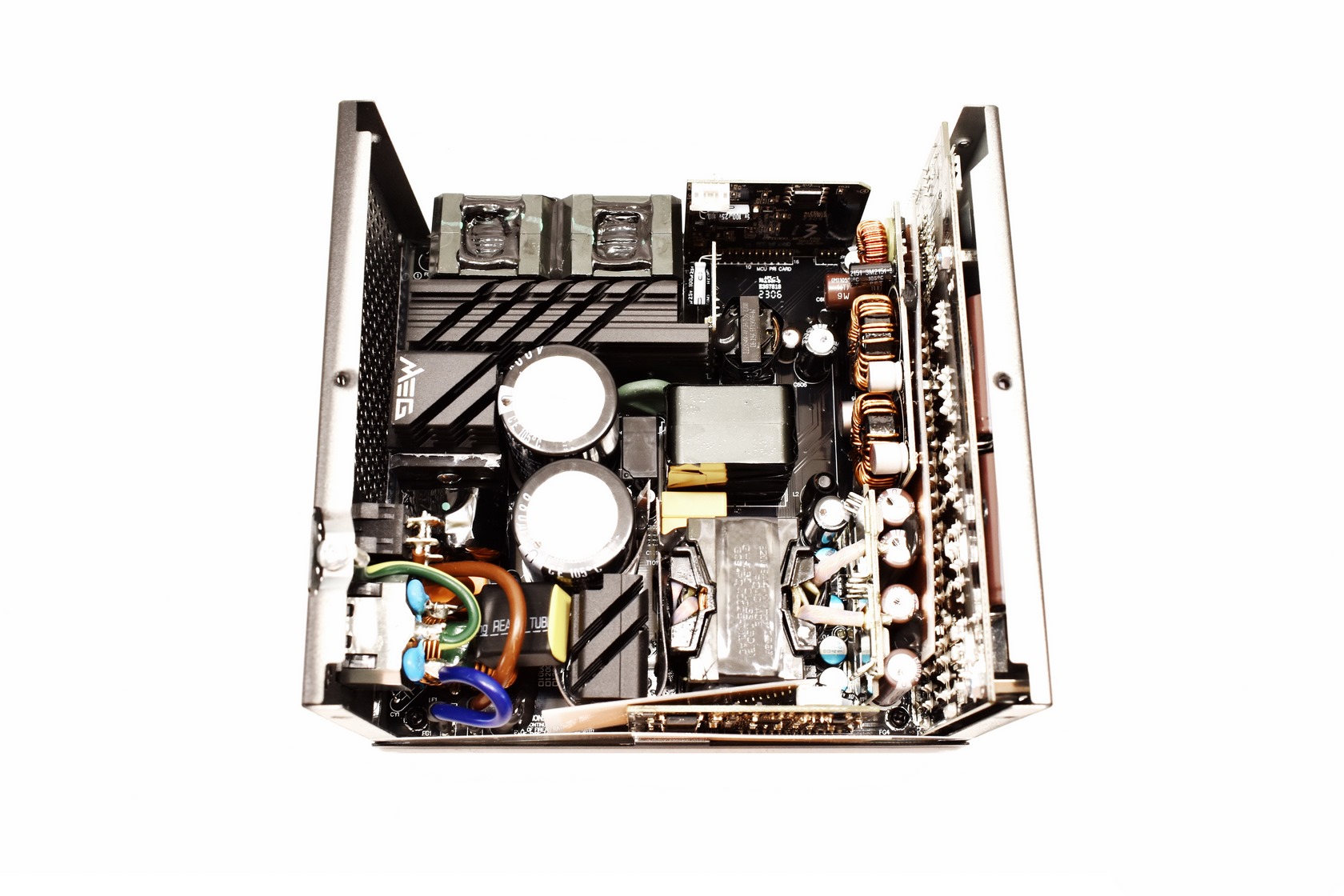

CWT (Channel Well Technologies) is the OEM behind this PSU and as you can see build quality and layout are very good.

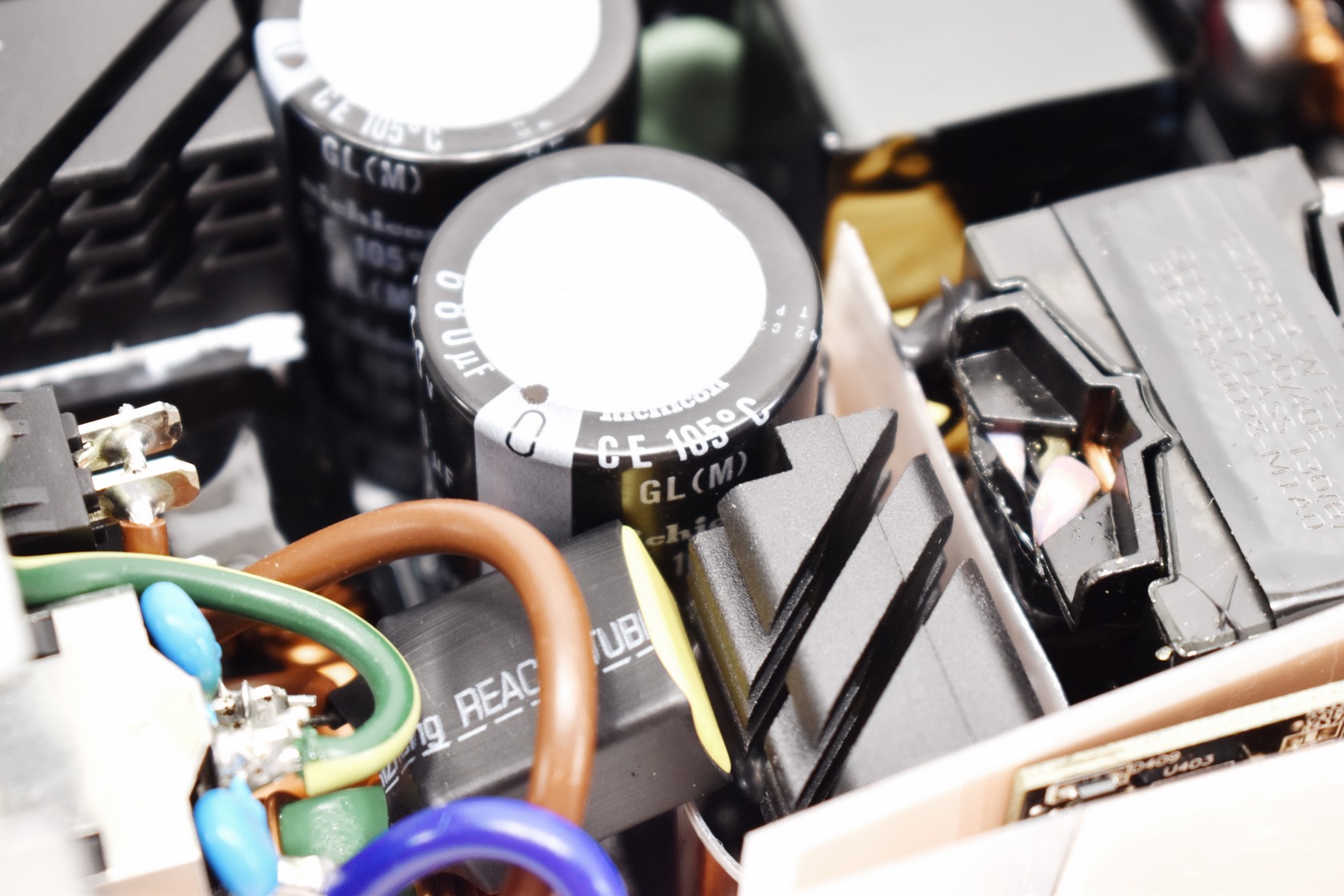

Both primary capacitors are manufactured by the Japanese nichicon and are certified for use up to 105 degrees Celsius.

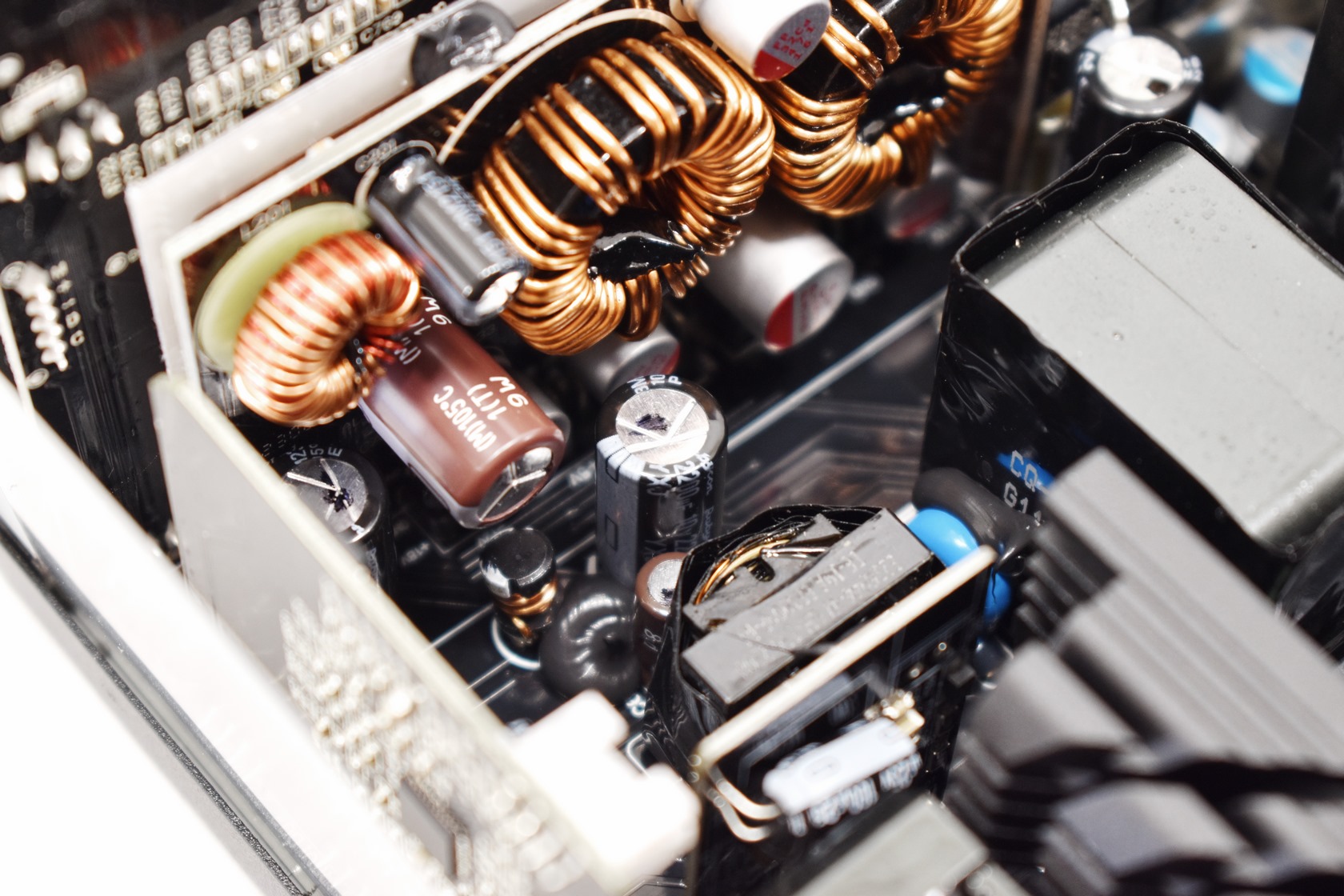

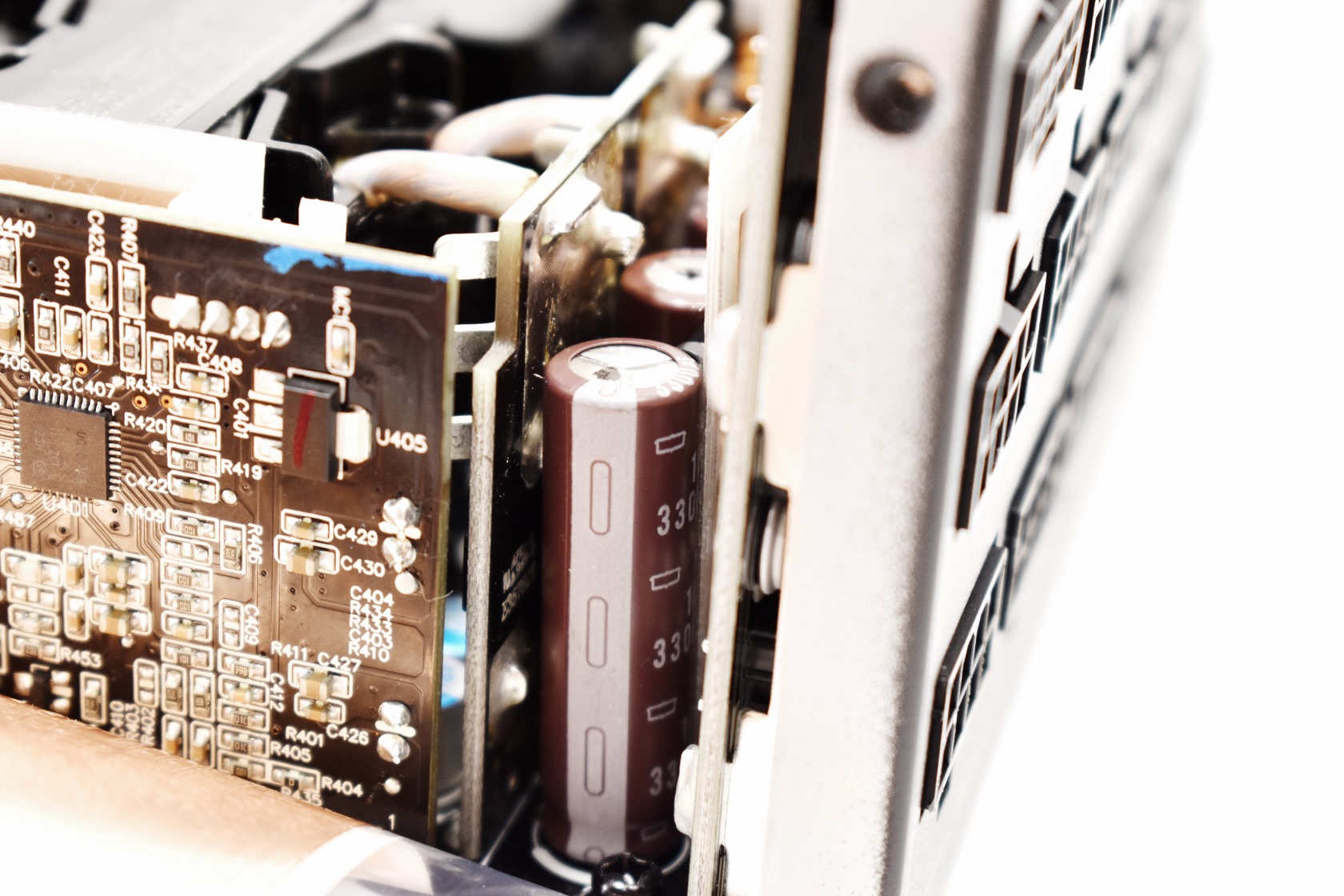

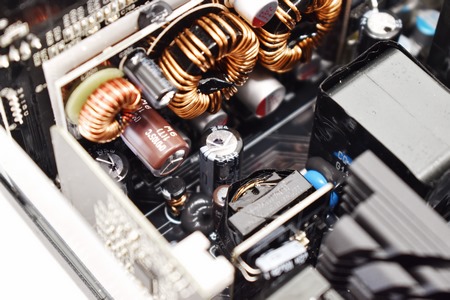

All secondary capacitors are manufactured by Rubycon and Nippon Chemi-Con and are also certified for use up to 105 degrees Celsius.
