INTRODUCTION

   After several months in the market ATX 3.0 & PCIe 5.0 compliant power supply units seem to have pretty much replaced their predecessors and even though the PCIe 6.0 standard is already a thing the simple truth is that these are more than enough to cover the needs of the market for many years to come. Yes, not every single company out there has updated their PSU lines to include ATX 3.0 & PCIe 5.0 compliant models but most as expected already have (so it's a safe bet that your favourite company already has at least one). DeepCool is one of the latest manufacturers to have one such product line and so today with me i have their PX1000G model.

   Established in 1996, DeepCool is a global brand in designing and manufacturing high-performance computer components for enthusiasts worldwide that includes CPU coolers, PC cases, Power Supplies, Peripherals, and more. With a strong background in independent research and development, DeepCool continues to provide high-quality products, premium customer service, and incredible value to our dedicated customers.

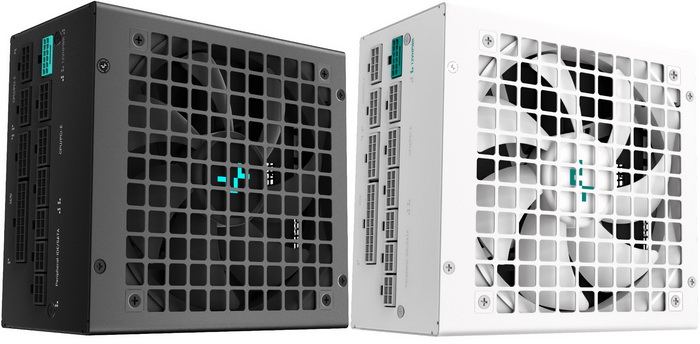

   The new PX line of fully modular ATX 3.0 & PCIe 5.0 power supply units is not only available in three capacities (850/1000/1200W) but also in two colors (black and white) thus allowing DeepCool to cover a larger segment of the global market compared to their competition. The entire line is 80 PLUS Gold certified (up to 90% electrical efficiency) and features active PFC and half bridge SRC LLC topology (DC to DC design), single strong +12V rail (83.3A) capable of outputting roughly 99.9% of the units’ total power output (999.6W) and a peak power output of 1238W (up to 2000W for 100ms according to ATX 3.0 specs – typically this is not something I can test however), secondary minor rails with a total output of 138.6W, 600W 12VHPWR PCIe cable, low profile (flat) cables, 3 PCIe 6+2 pin connectors, 135mm FDB (fluid dynamic bearing) fan with hybrid mode (zero RPM), 100% Japanese capacitors and an array of electrical protections including over-current (OCP), over-voltage (OVP), over-power (OPP), over-temperature (OTP), short-circuit (SCP) and under-voltage (UVP). Last but not least DeepCool covers the entire PX line of ATX 3.0 & PCIe 5.0 compliant power supply units with a very generous 10-year limited warranty.
