THE ODIN 1650W INTERIOR

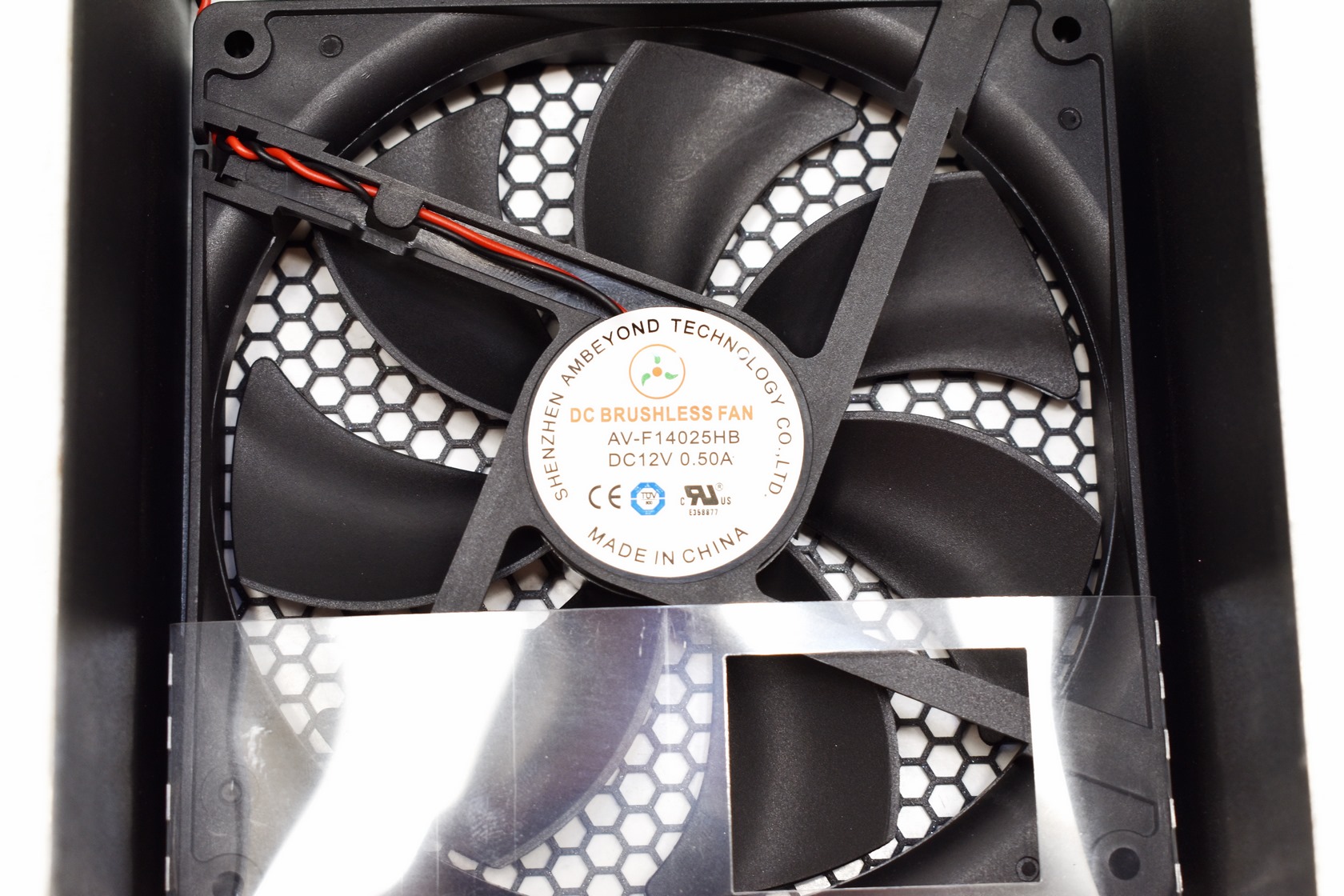

The 140mm DC brushless ball-bearing fan used is manufactured by AMBEYOND Technology (3000RPM/119.49CFM/7.81mmH2O/44.47dBA).

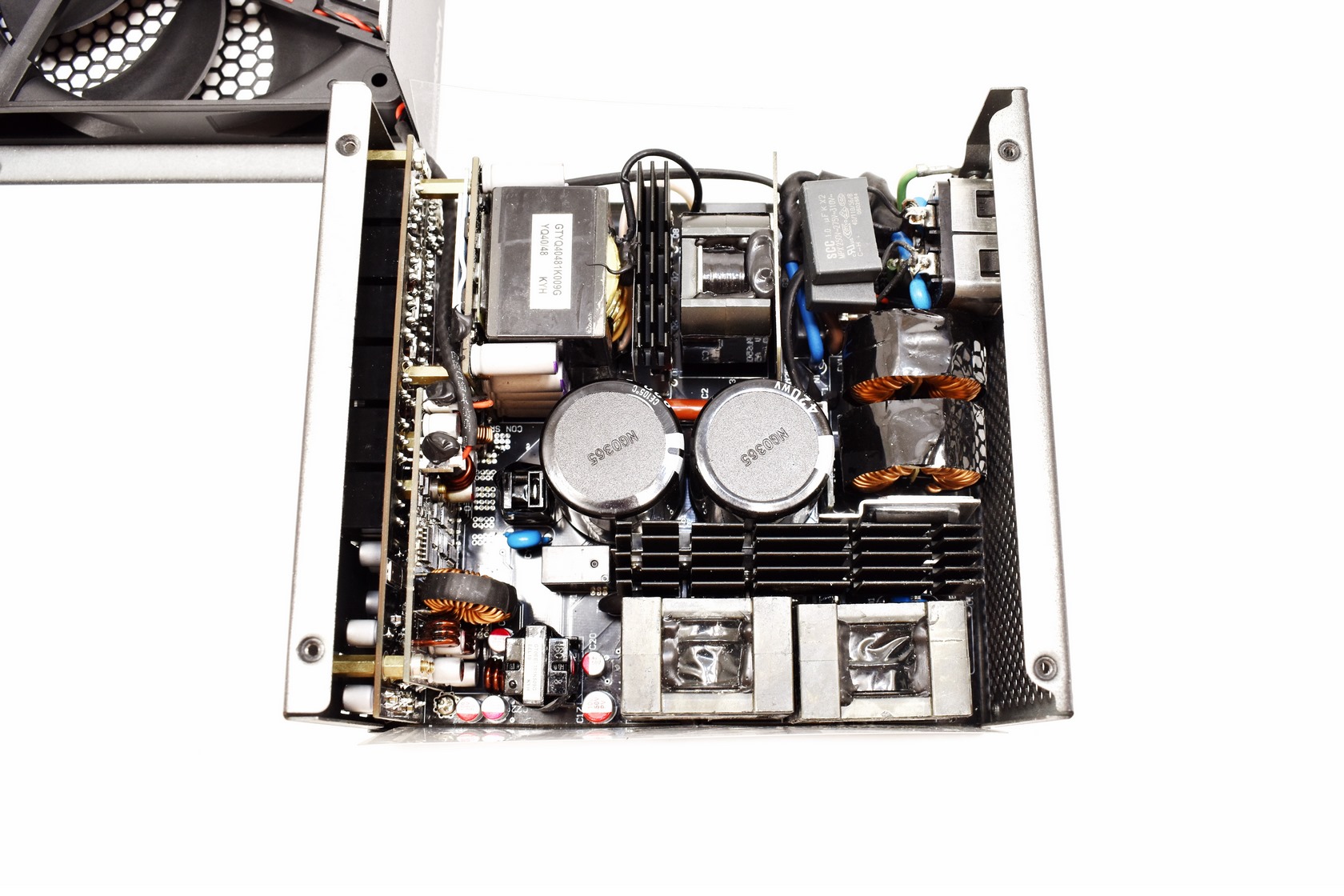

Interior layout is quite good and according to Apexgaming this is actually their very own design (Solytech).

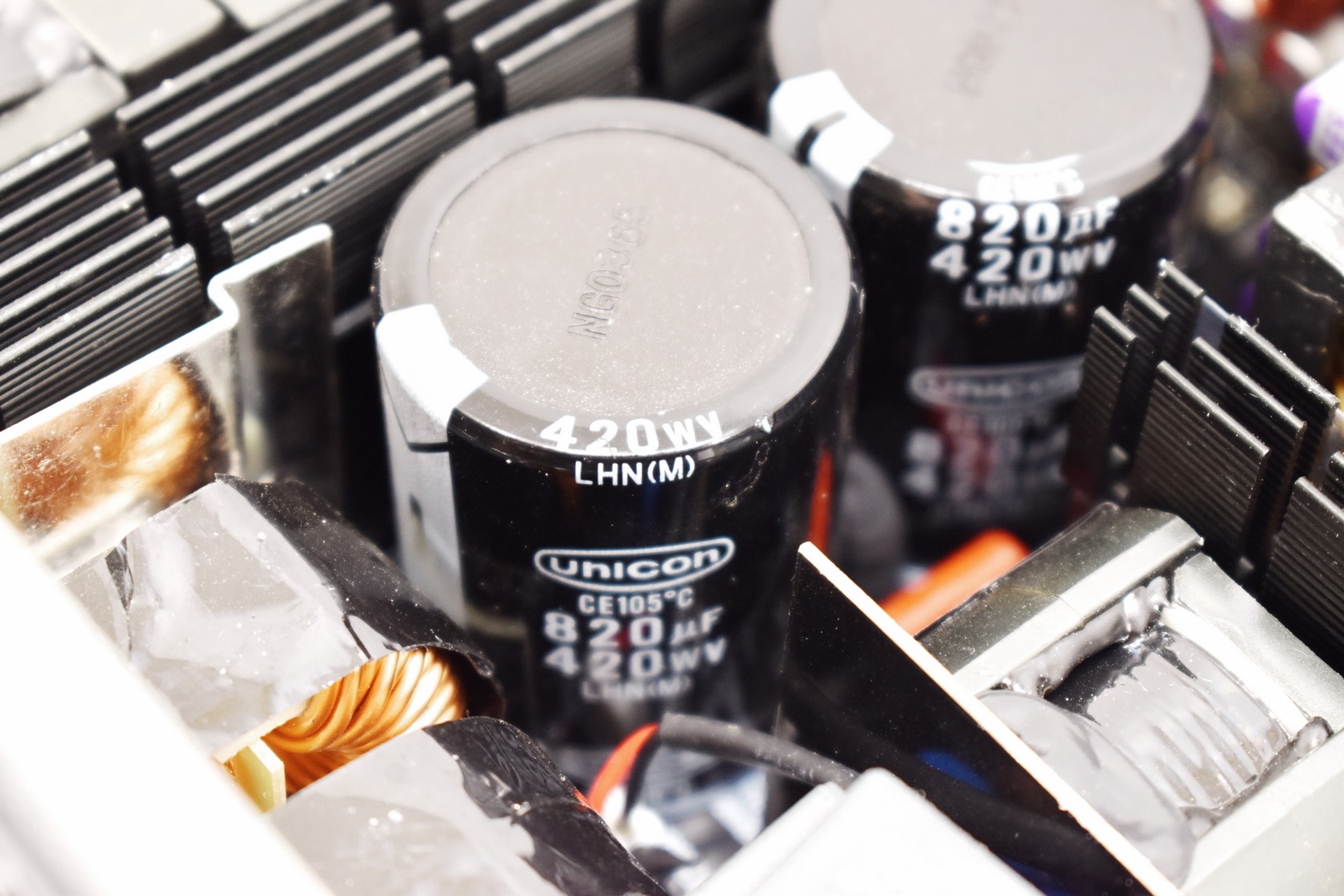

Primary capacitors are manufactured by the Japanese Unicon and are rated for use up to 105 degrees Celsius (unlike what I’ve seen with 99% of the power supplies to arrive in the lab Solytech chose to use solid capacitors instead of electrolytic ones on the secondary side).
