THE FOCUS GX-850 V4 EXTERIOR

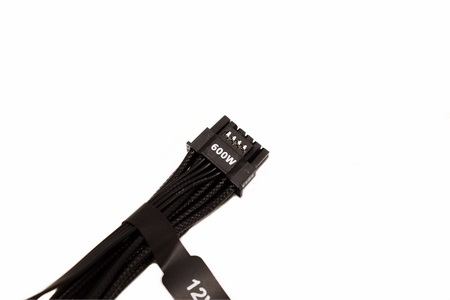

The V4 version of the FOCUS GX series comes with the latest 12V-2X6 power connector.

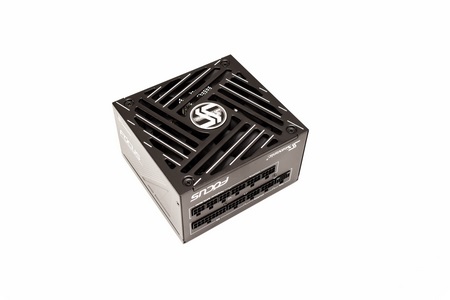

Measuring just 150mm in length, 140mm in width and 86mm in height the FOCUS GX-850 V4 is a somewhat small power supply unit.

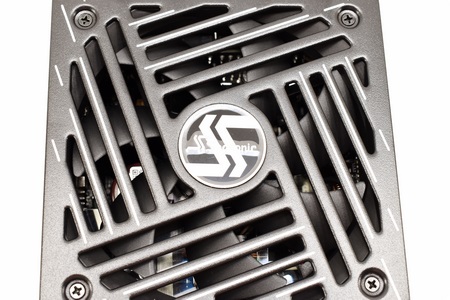

Just like with its predecessor the GX-850 V4 uses an 135mm fan.

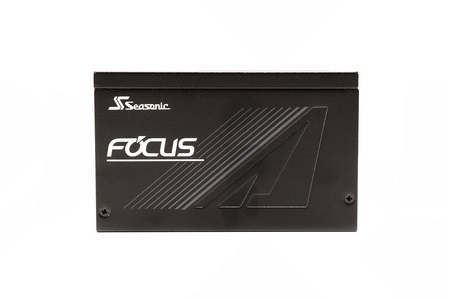

Both the company and model names are printed on the sides.

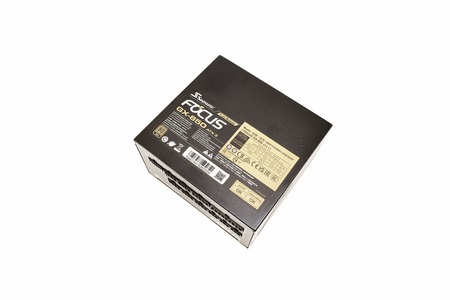

Typically, at the base of the enclosure we find the electrical table.

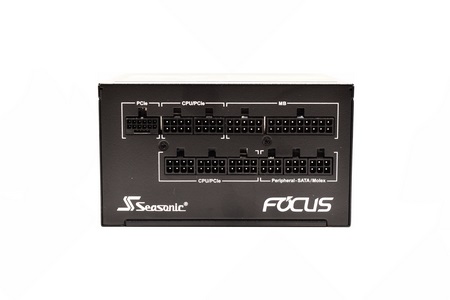

At the front of the enclosure, we find 11 modular ports all of which are tagged.





Moving at the rear we find the company logo, hybrid fan mode button, on/off power switch and the power port.
