PRIME TX-1600 NOCTUA EDITION INTERIOR

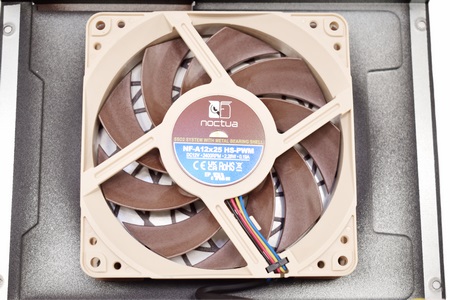

The NF-A12x25 HS-PWM 120mm fan can spin up to 2400RPM but the fan curve Seasonic has used should be considerably less than that.

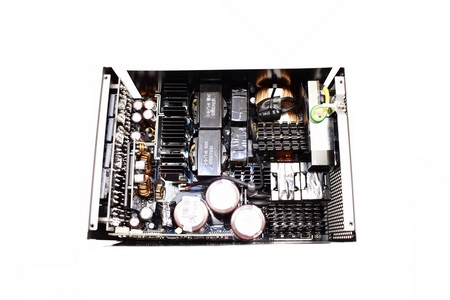

This is a massive power supply unit, so the interior is quite populated (the three primary capacitors do stand out).

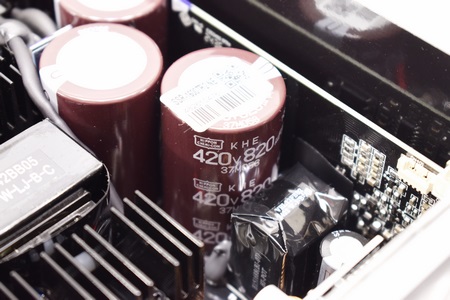

Primary capacitors are manufactured by Nippon Chemi-Con and are certified for use up to 105 degrees Celsius.

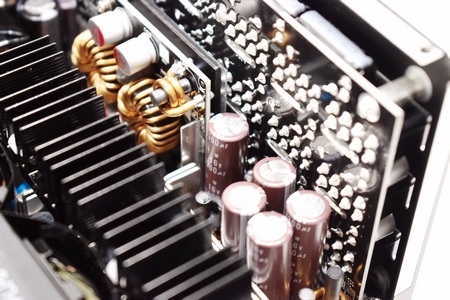

Secondary capacitors are manufactured by Nippon Chemi-Con and rubycon and are again certified for use up to 105 degrees Celsius.
