THE DARK POWER 14 1200W EXTERIOR

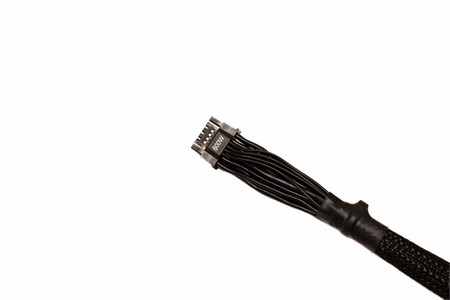

All modular cables are braided/sleeved and that also goes for the two 12V-2x6 connectors.

The Dark Power 14 1200W output model is a large one measuring 175mm in length, 150mm in width and 86mm in height.

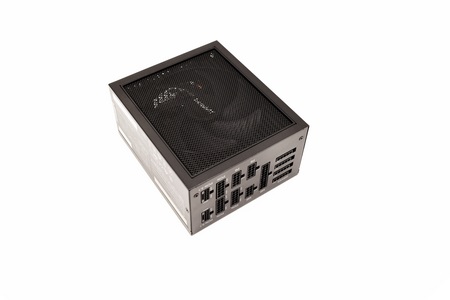

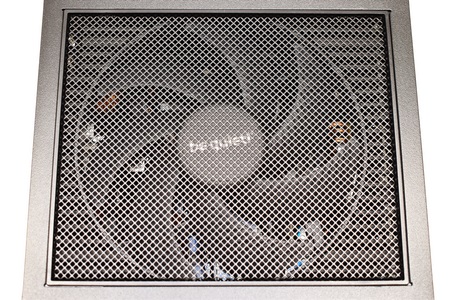

As with past Dark Power models the 135mm Silent Wings fan sits behind a grille that takes most of the unit's base.

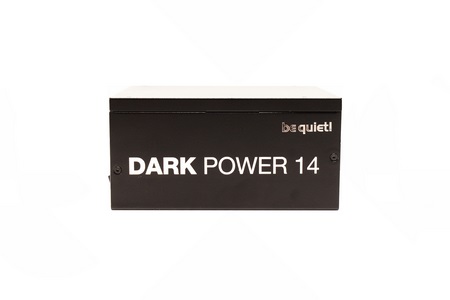

The model and company names are placed on the left side of the enclosure.

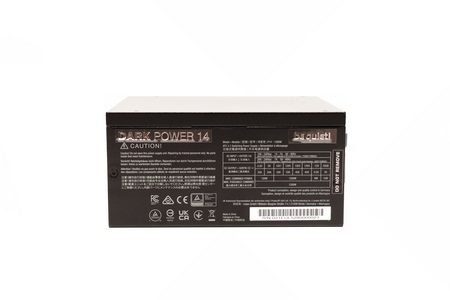

On the right side of the enclosure aside the model and company names we also find the electrical table and serial number.

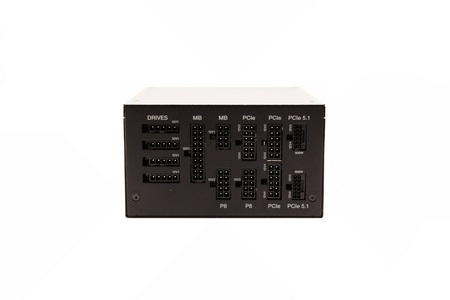

All 13 modular ports are different in size/type and tagged.

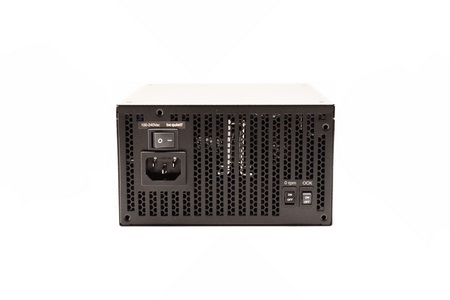

At the rear of the enclosure, we find the on/off power switch, zero-RPM fan switch, OCK (multi/single rail – better design compared to the separate PCI expansion slot addon with previous models) switch and the power port.
