THE HCP-850 EXTERIOR

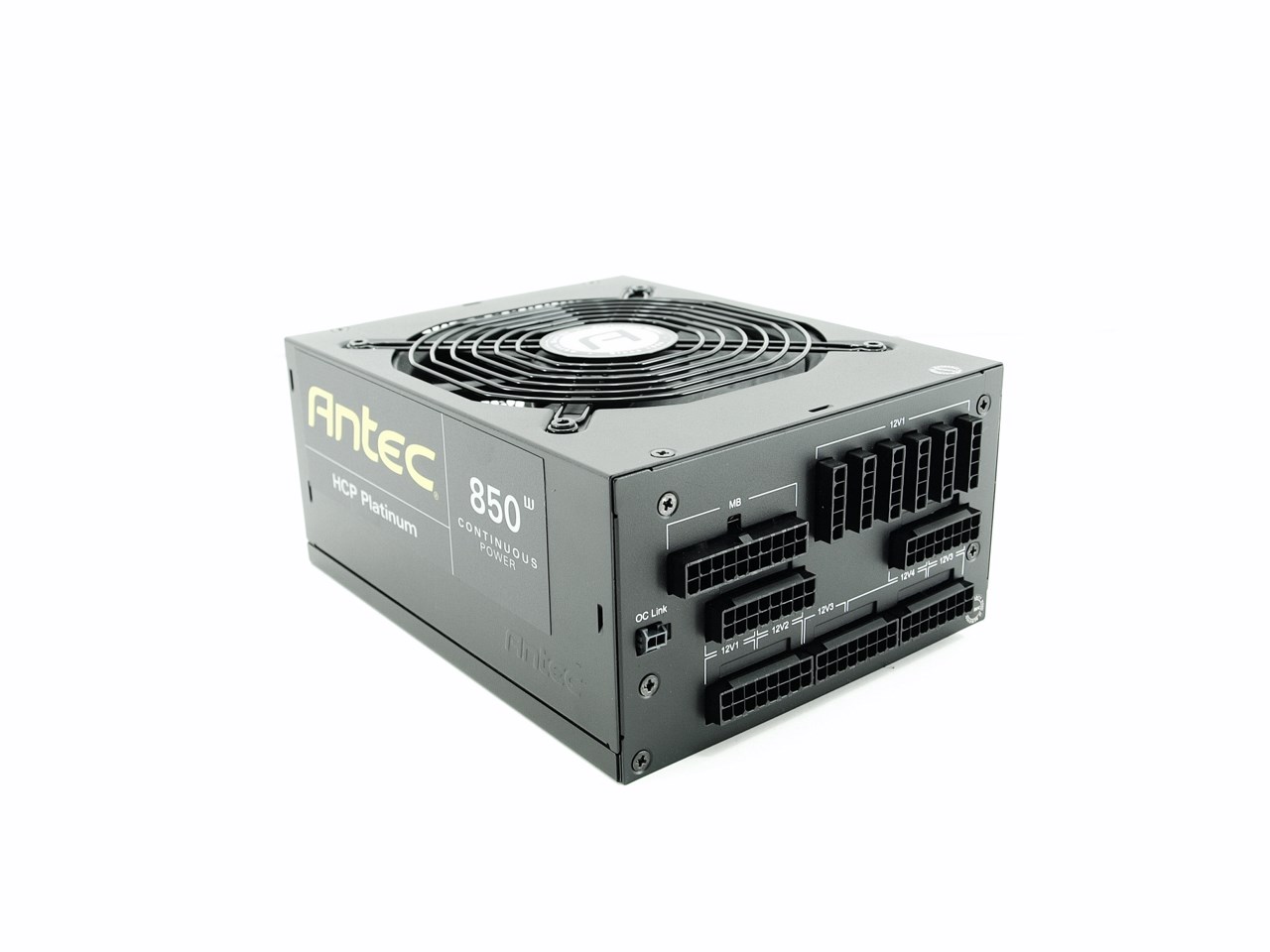

The black matte colored HCP-850 may not be the largest PSU out there but it's above average in size and measures 190mm in length, 150mm in width and 86mm in height (weighs 2159g).

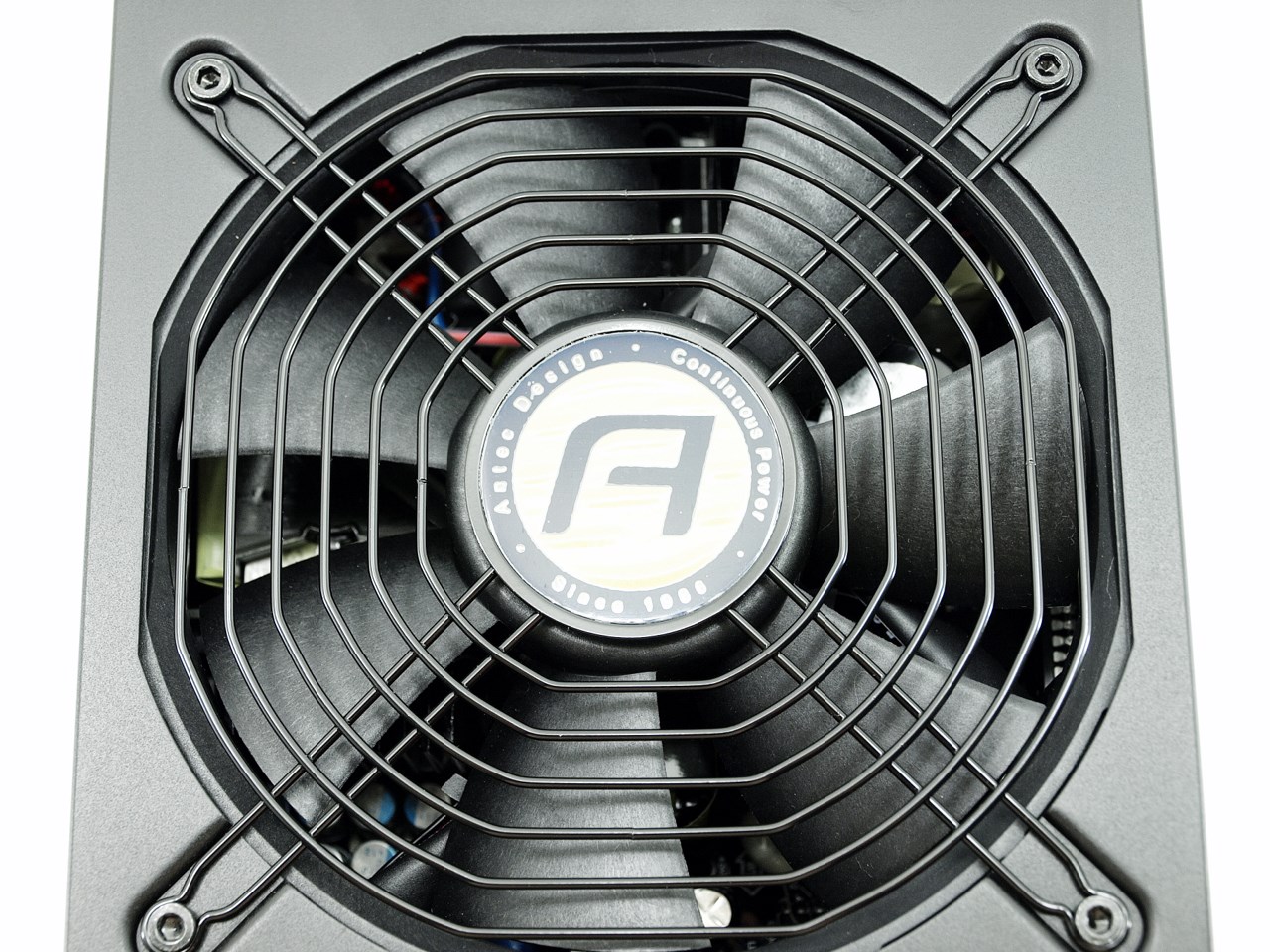

For cooling Antec has used a 135mm double ball bearing fan regulated by the unit’s thermal manager.

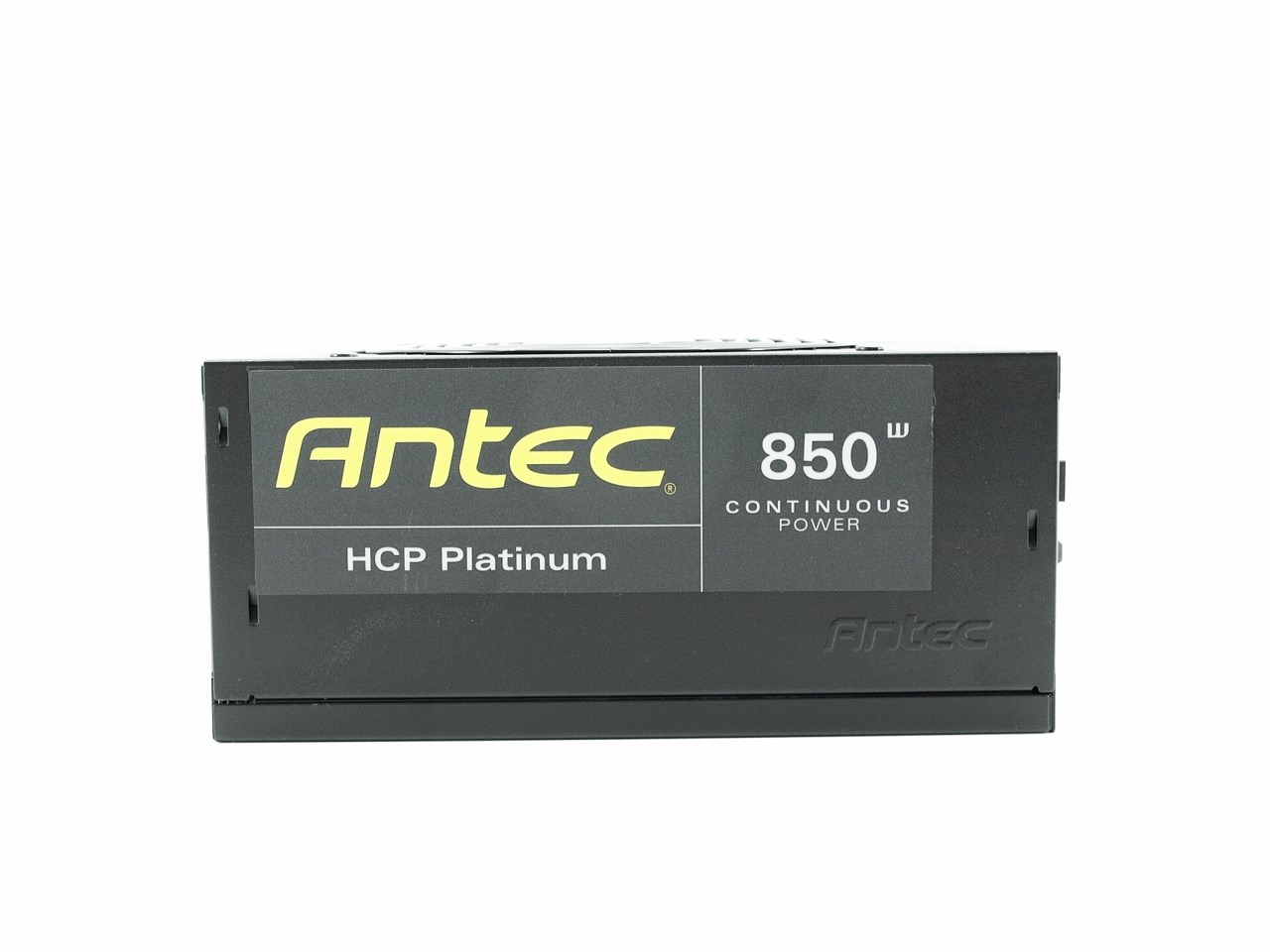

As usual stickers with the model name and output power is placed on both sides of the unit.

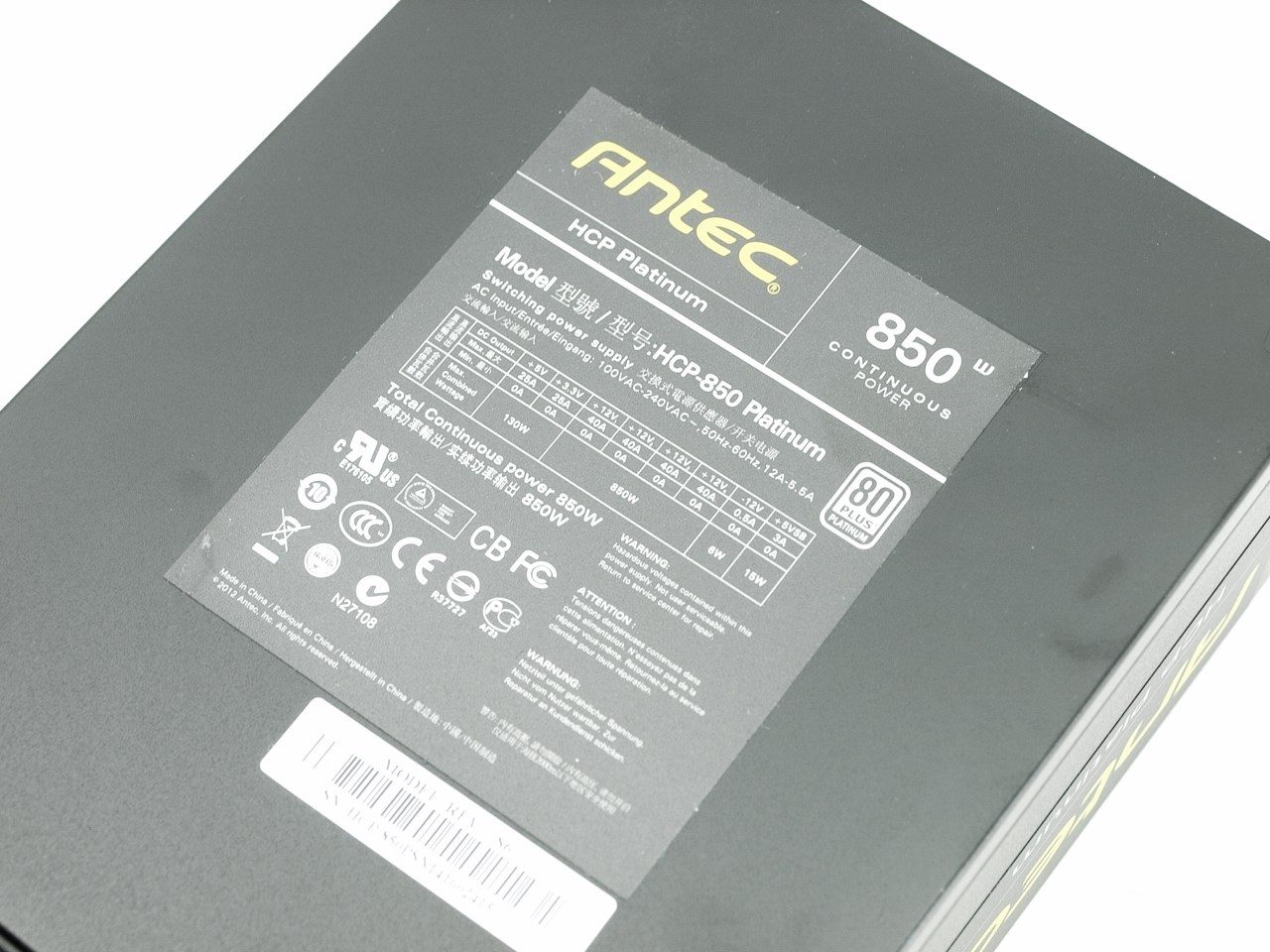

The electrical table is placed on a large sticker at the bottom.

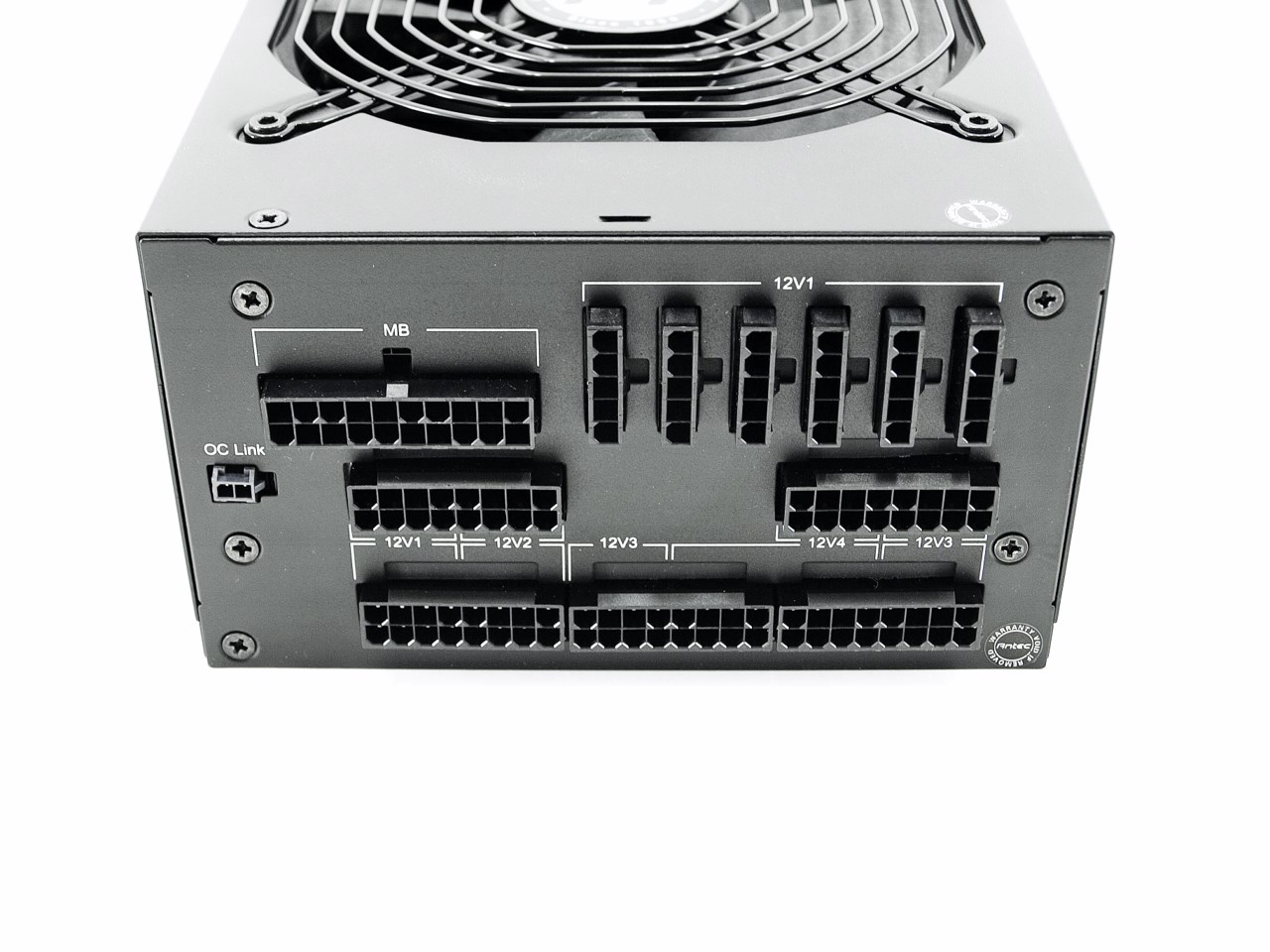

Although not color coded all of the modular connectors are tagged and specific in size.

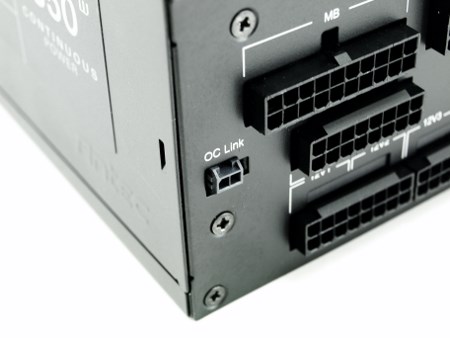

The OC Link connector allows you to connect a second HCP with the unit in case you ever need more power.

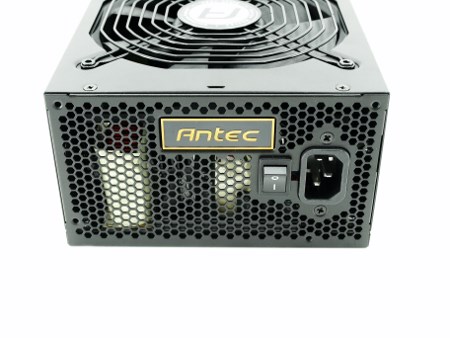

Moving at the rear we see the typical honeycomb perforation, the on/off switch, AC power port and the company logo.
