THE DQ1250 INTERIOR

















quanta dq1250 15t

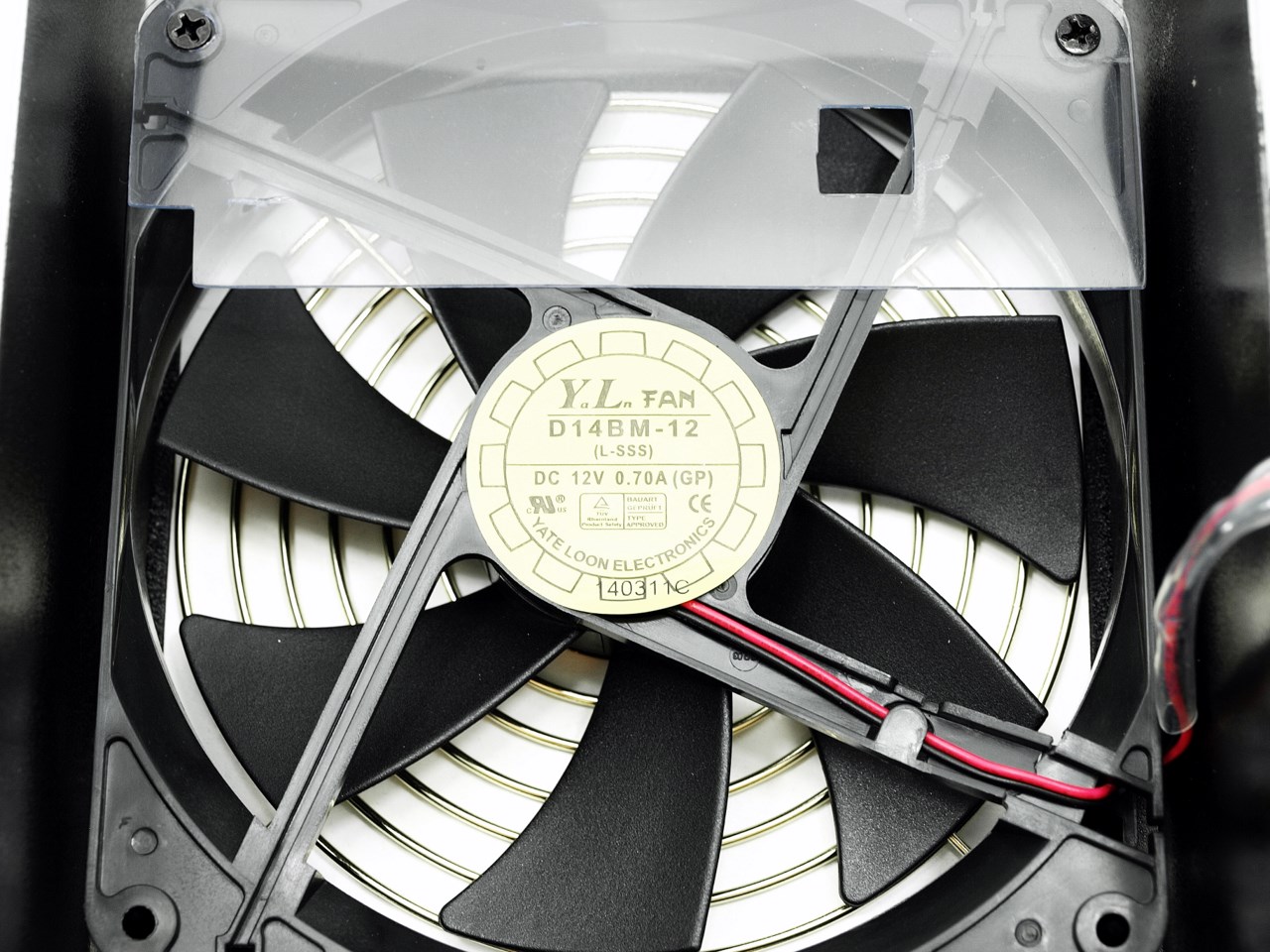

Yate Loon is the manufacturer behind the 140mm (actually 135mm) ball bearing fan which can spin up to 1400RPM to produce 62CFM of airflow with just 29dBA of noise.





quanta dq1250 16t

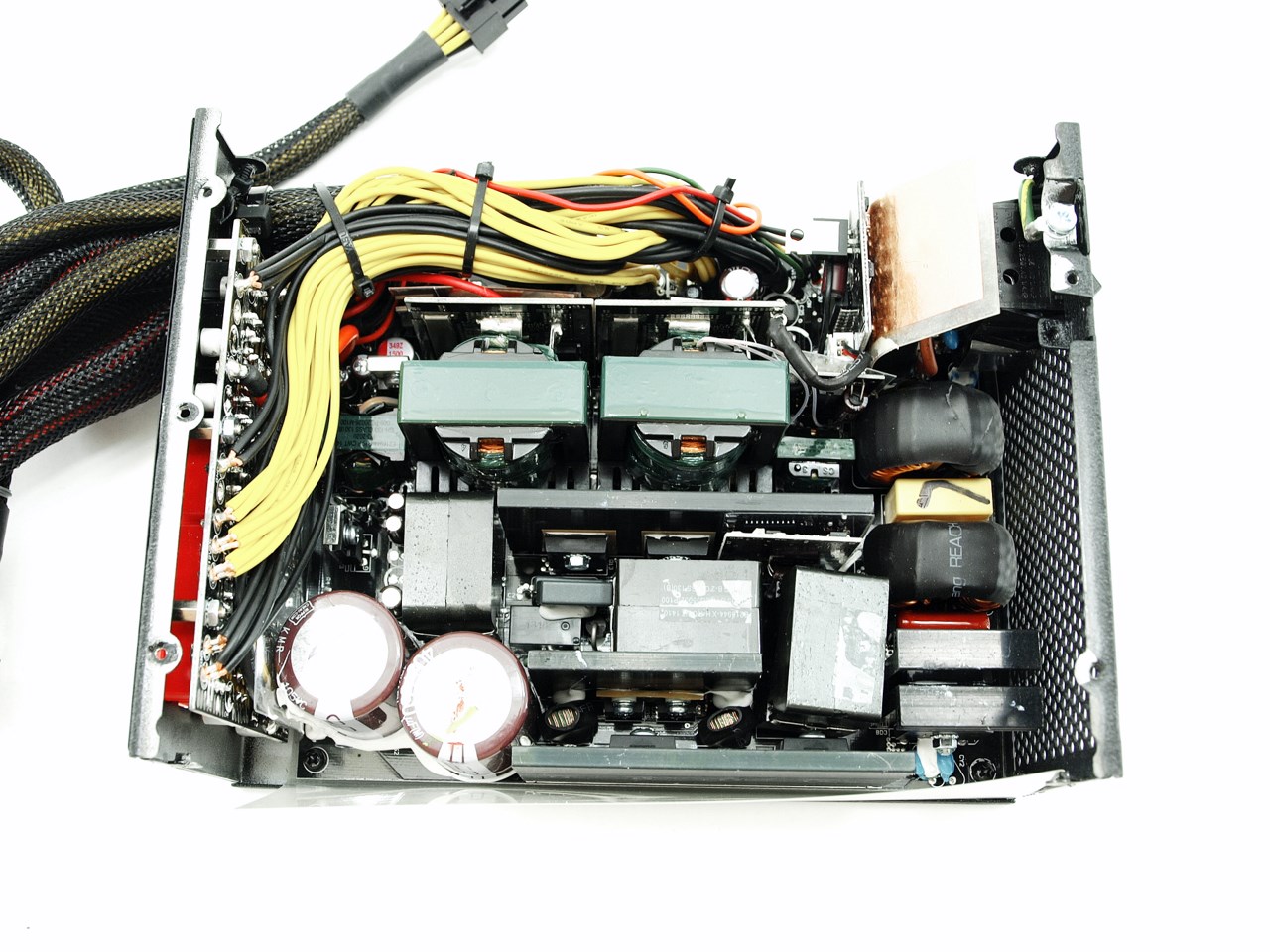

Channel Well Technologies is an old favorite of mine so although i did recognize the exterior design (CWT however uses a nicer looking red LED on/off switch) i had to see the PUO board to be certain.





quanta dq1250 17t

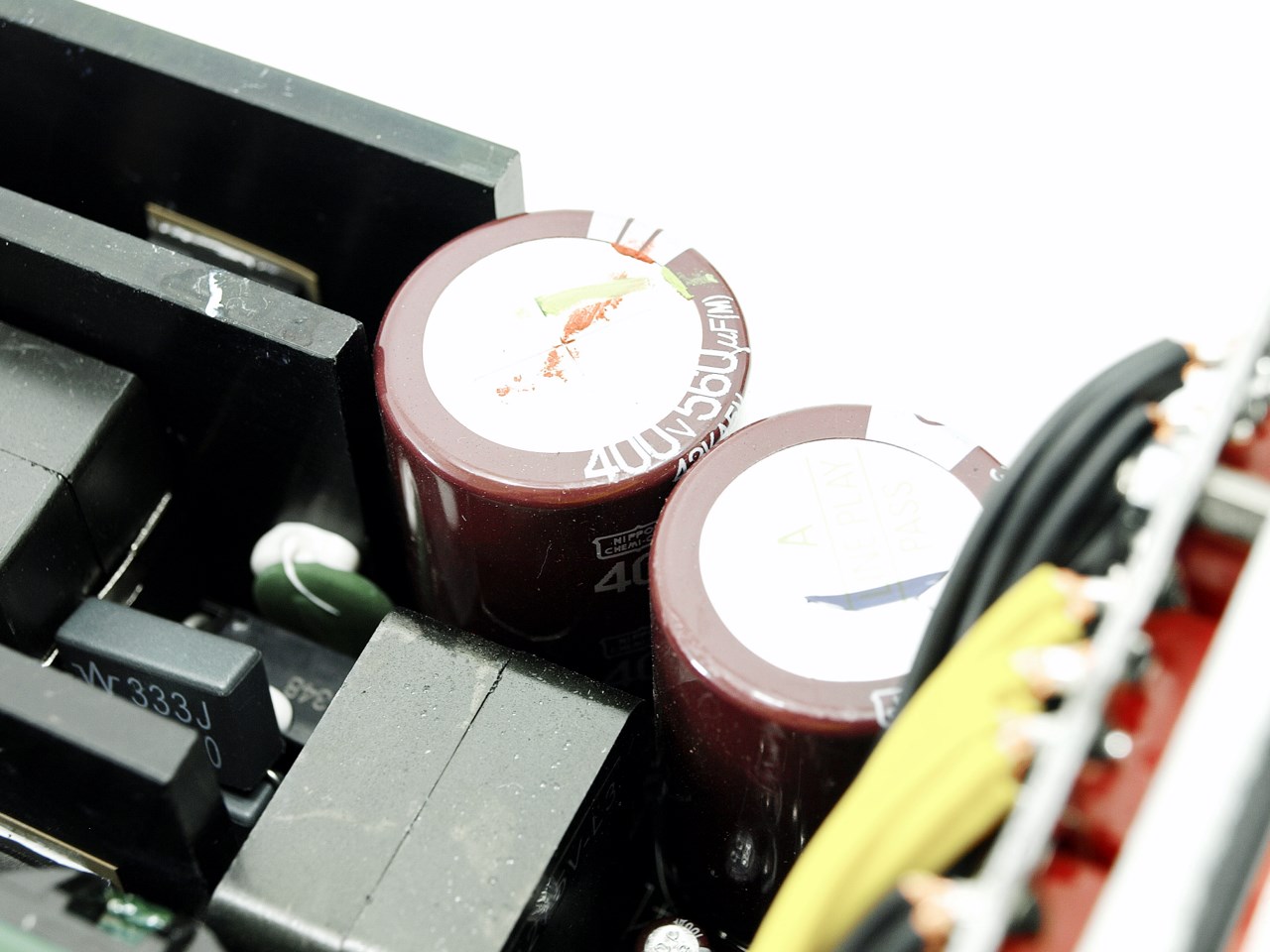

For the primary capacitors we see that CWT uses Nippon Chemi-Con ones certified for use up to 105 degrees Celsius.





quanta dq1250 18t

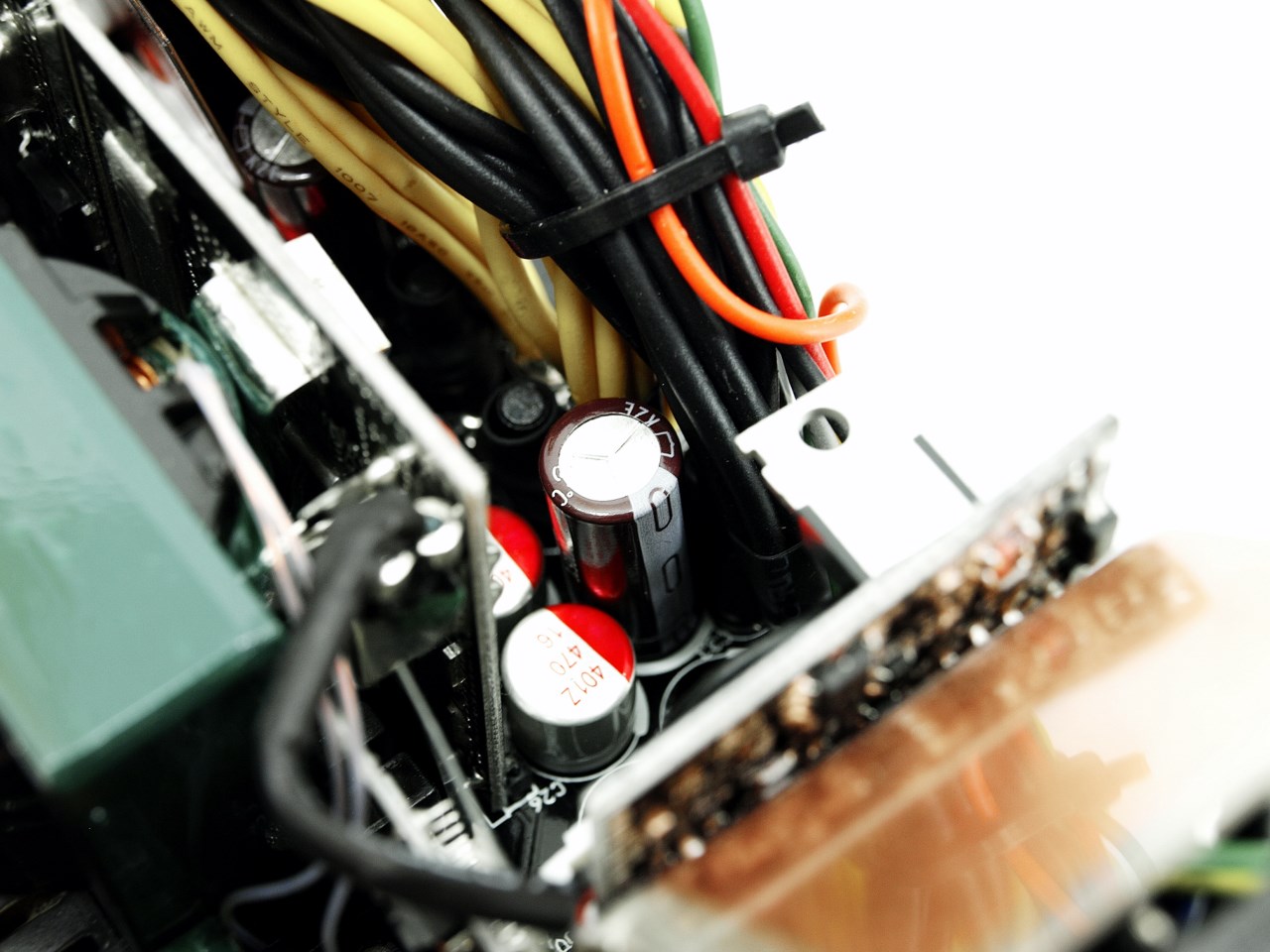

United Chemi-Con is responsible for the secondary capacitors which are also certified for use up to 105 degrees.
