THE VAMPIRE RX-1000GH INTERIOR

















vampire rx 1000gh 15t

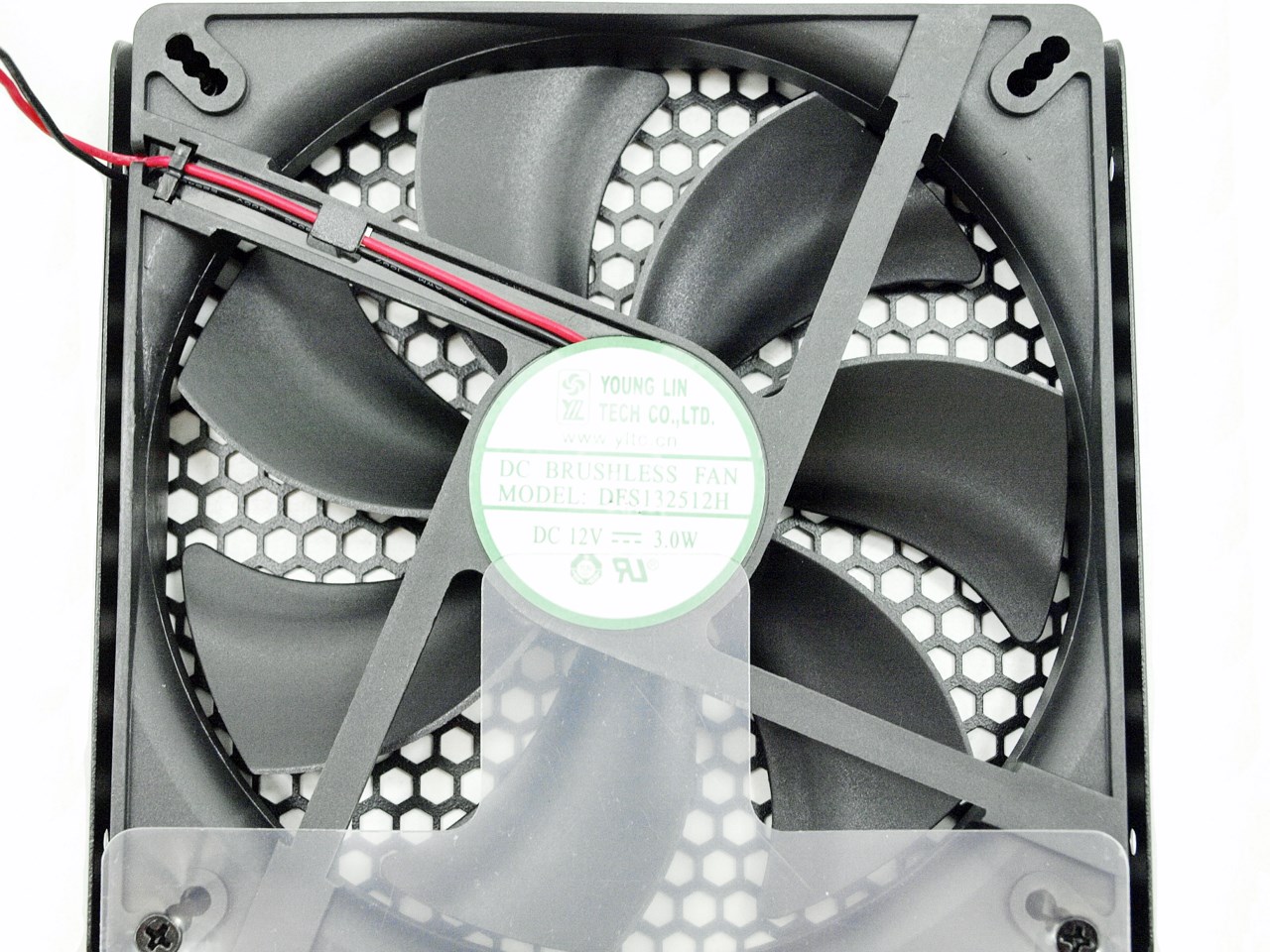

The 135mm fan used is manufactured by Young Lin Technologies and can spin up to 1700RPM to produce airflow levels of up to 91.16CFM with 36.28dBA of noise.





vampire rx 1000gh 16t

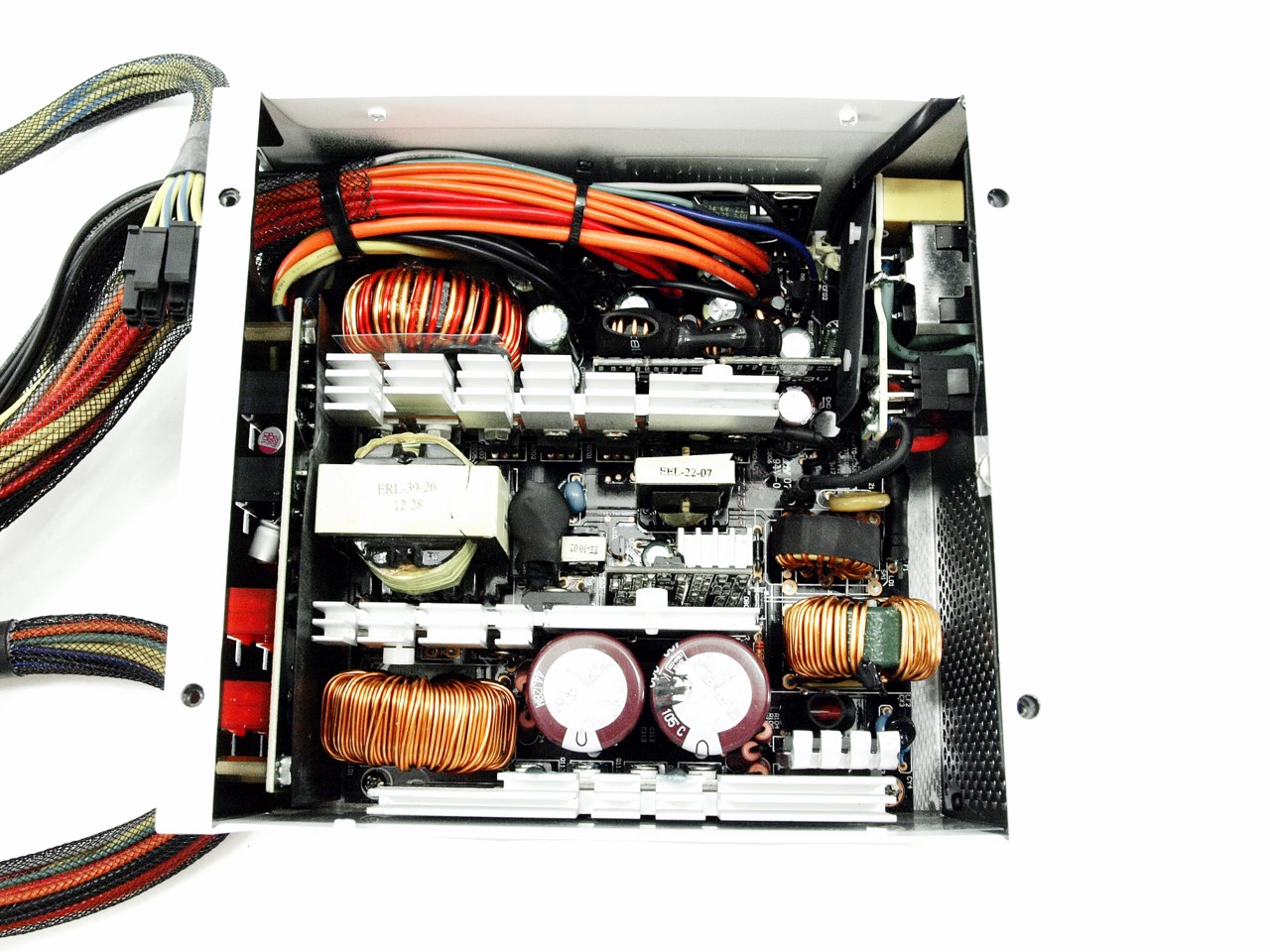

Relatively clean design with 3 heatsinks and from what i see this seems to be a HEC manufactured PSU.





vampire rx 1000gh 17t

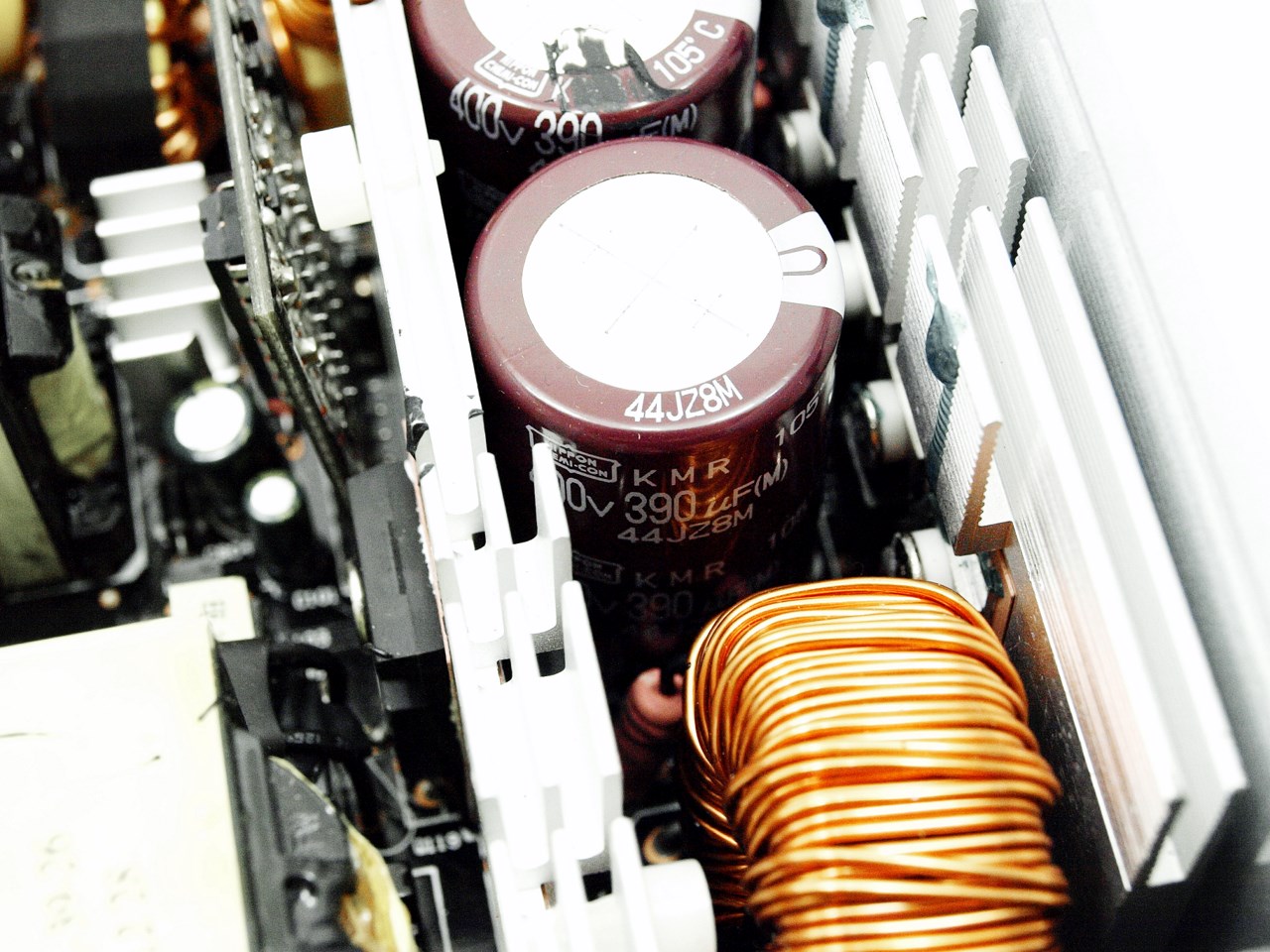

The two primary capacitors are manufactured by Nippon Chemi-Con and are certified for use up to 105 degrees Celsius.





vampire rx 1000gh 18t

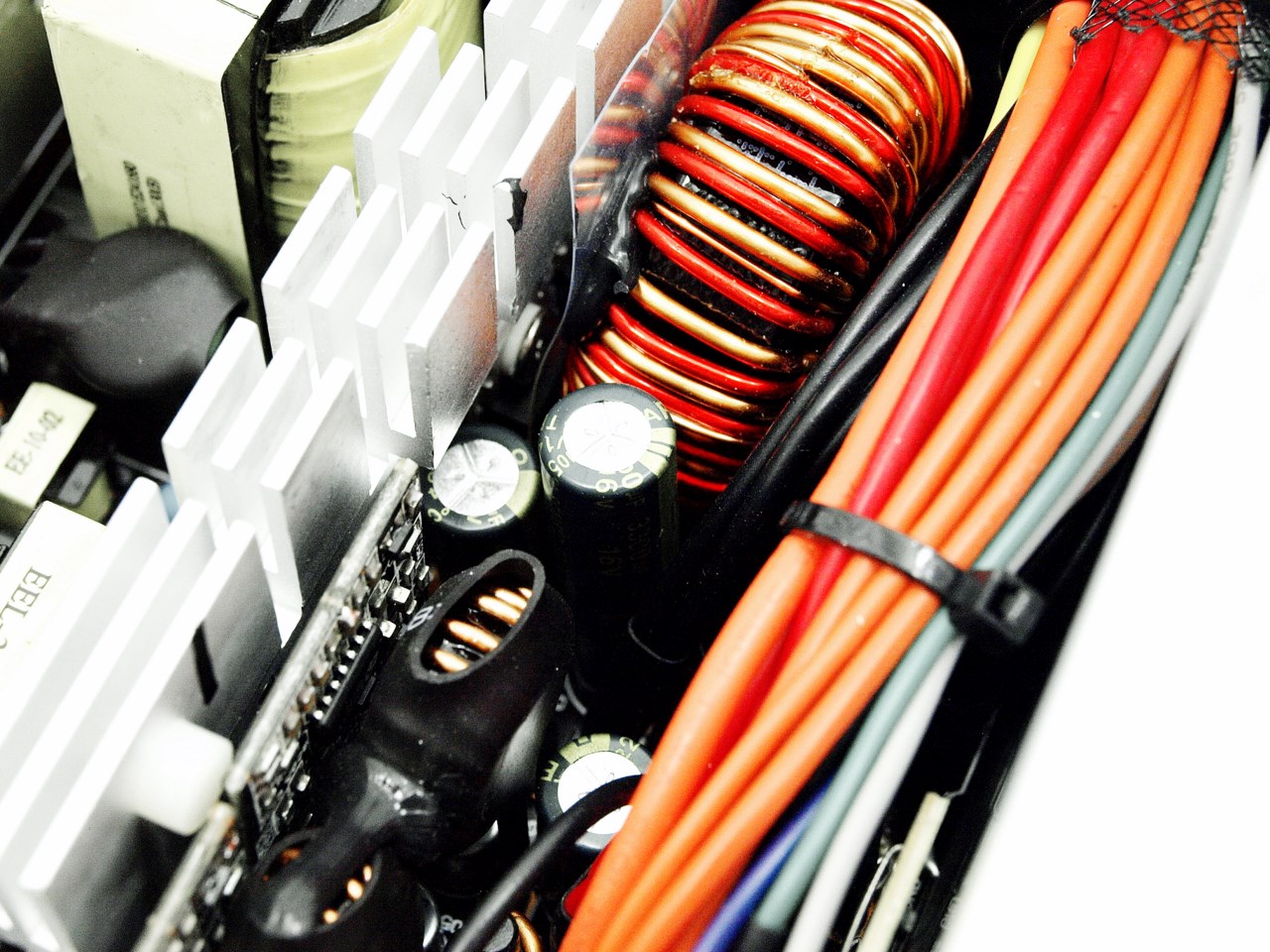

Secondary capacitors are manufactured by Teapo and are also 105 degrees certified.
