THE STRIDER TITANIUM SST-ST80F-TI INTERIOR

















silverstone strider st80f ti 15t

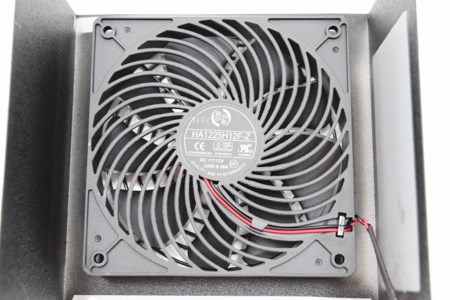

The 120mm Fluid Dynamic Bearing (FDB) fan used in the Strider Titanium 800W is made by Ong Hua and can spin up to 2200RPM (due to its size this PSU doesn't have a semi-passive feature but the fan is set to a maximum speed of 1000RPM).





silverstone strider st80f ti 16t

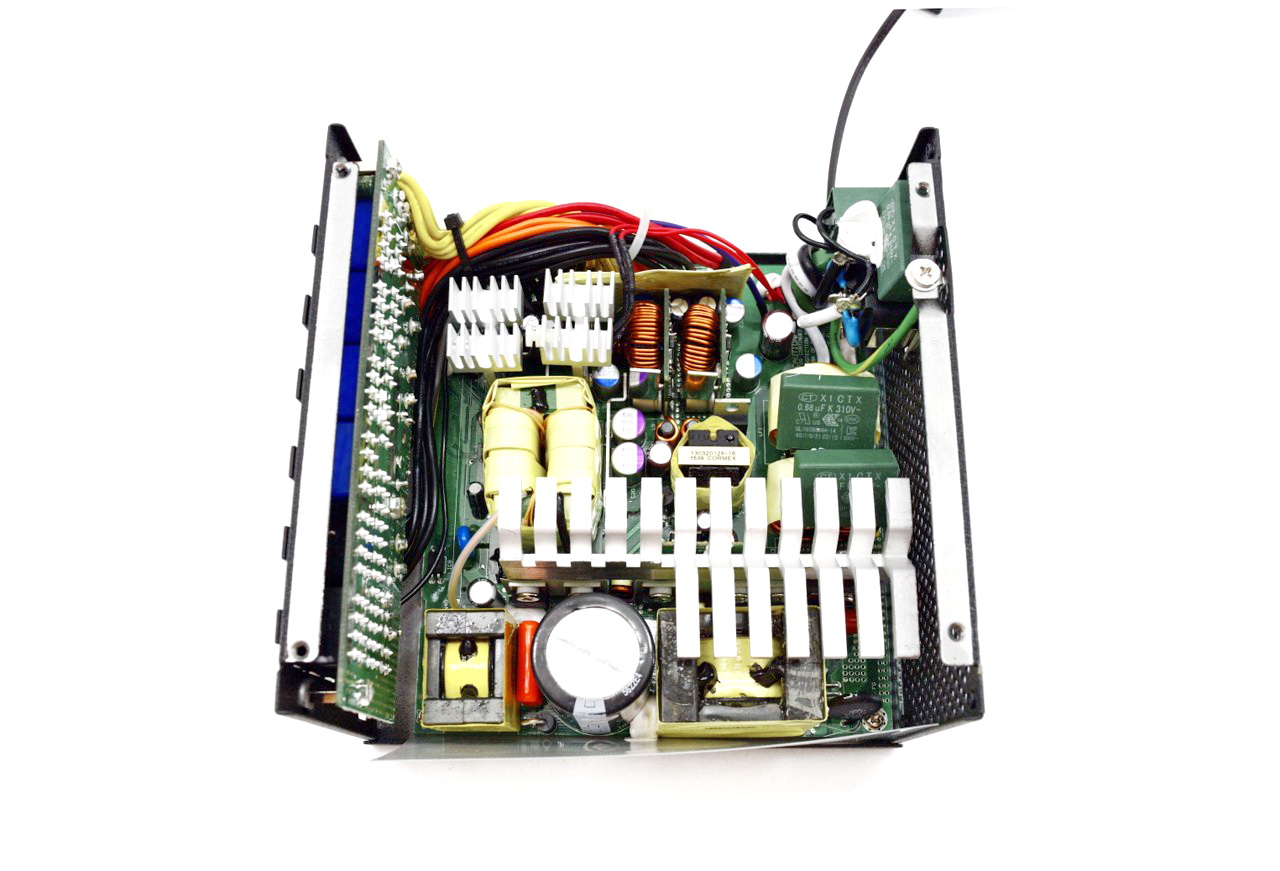

Judging by interior design and quality it's a safe bet that Enhance electronics is behind this PSU.





silverstone strider st80f ti 17t

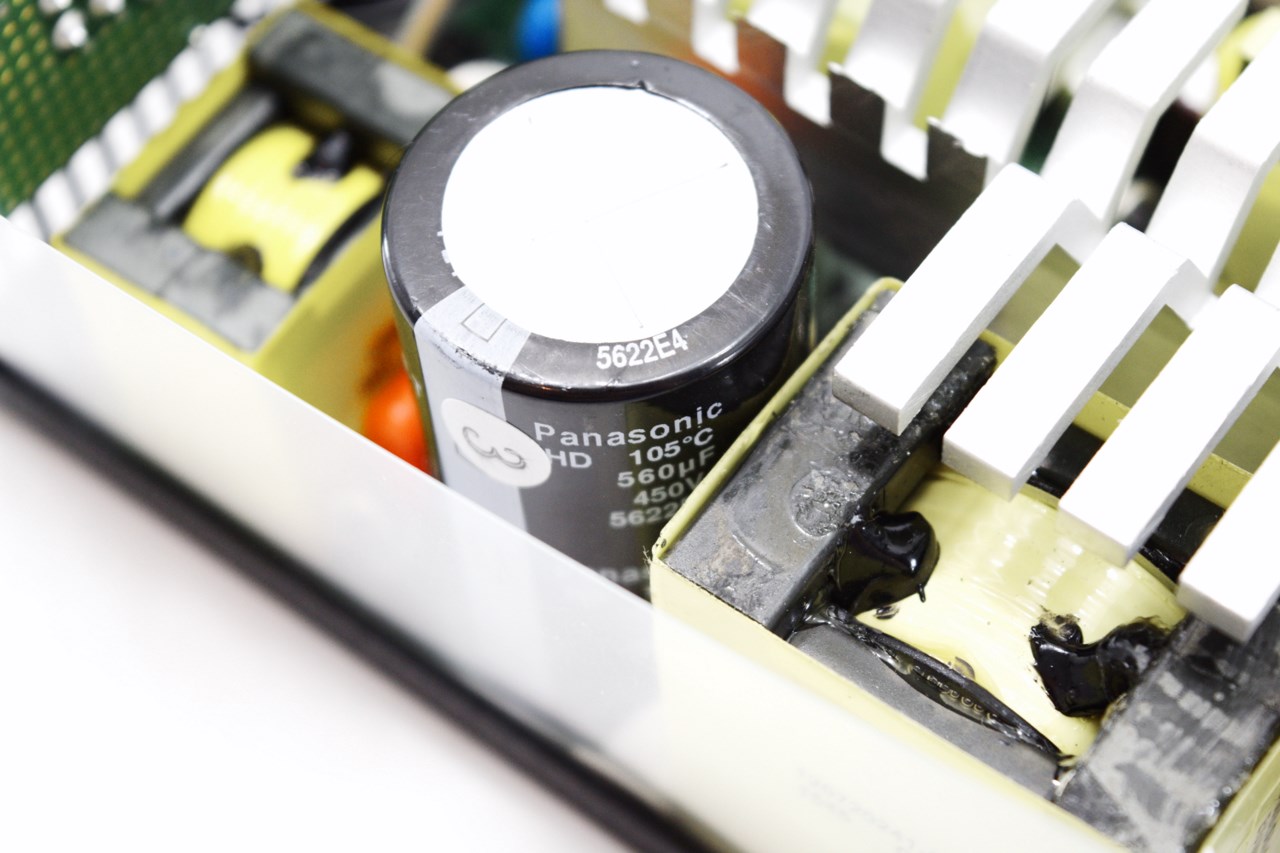

Primary capacitor is manufactured by Panasonic and is rated for use up to 105°C.





silverstone strider st80f ti 18tsilverstone strider st80f ti 19t

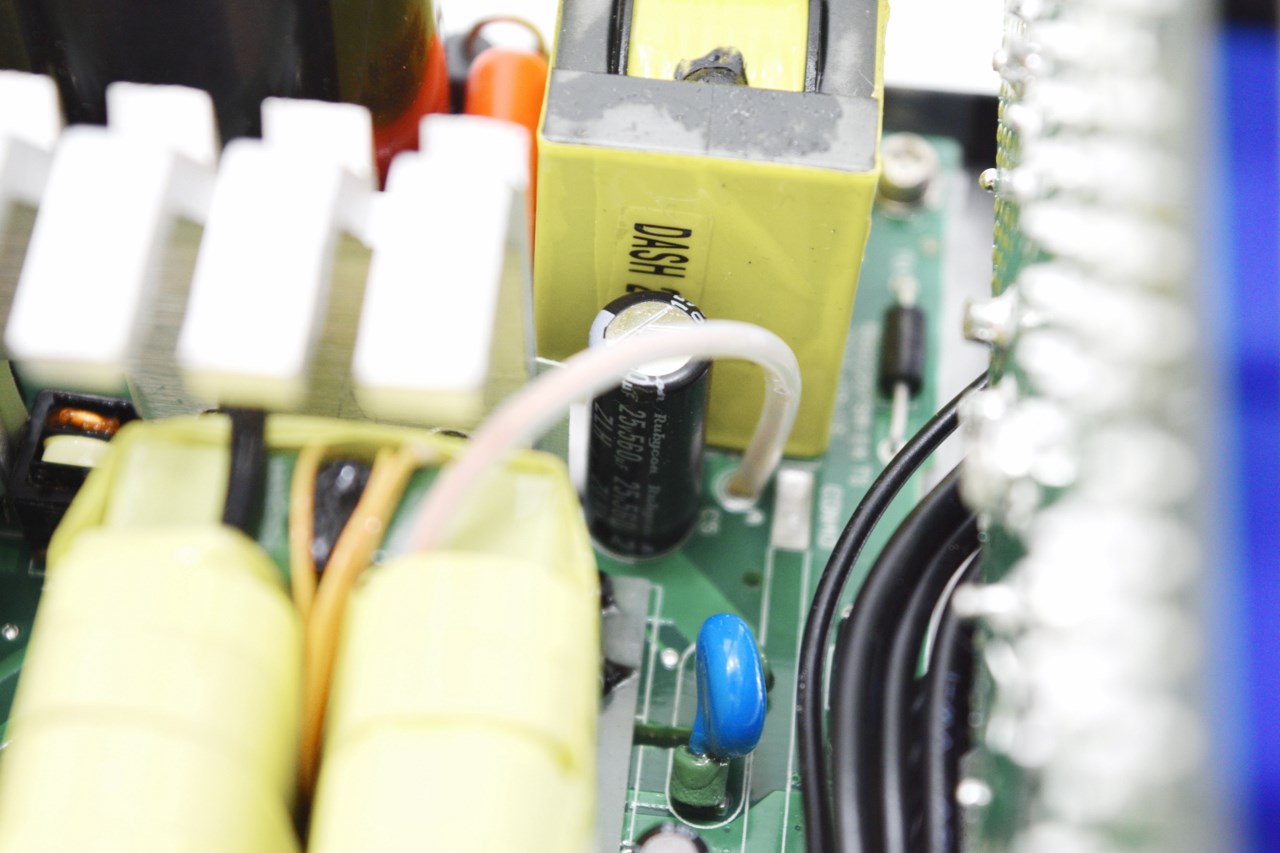

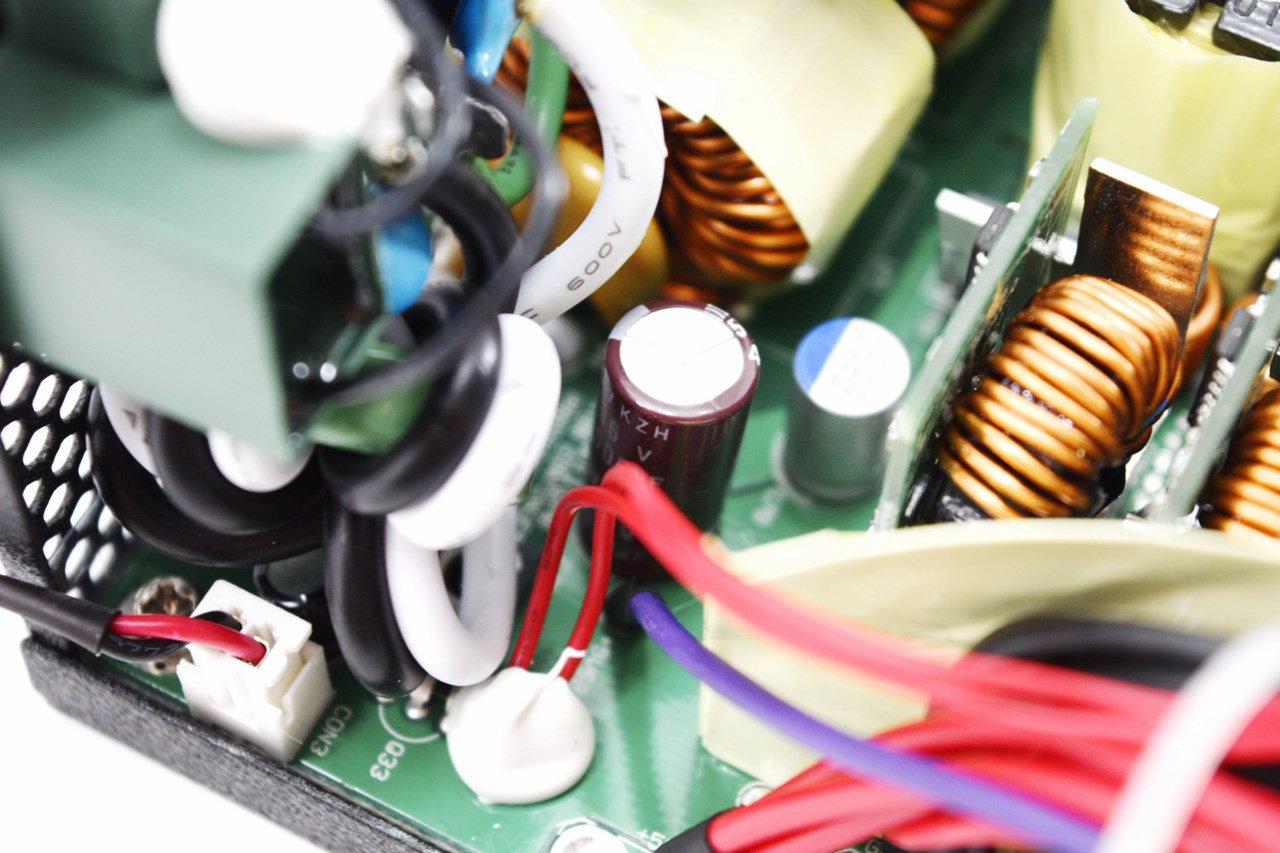

Capacitors on the secondary side are manufactured by Chemi-Con and Rubycon and are also certified for use up to 105°C.
