THE SMART DPS G 700W INTERIOR



















smart dps g 700w 12t

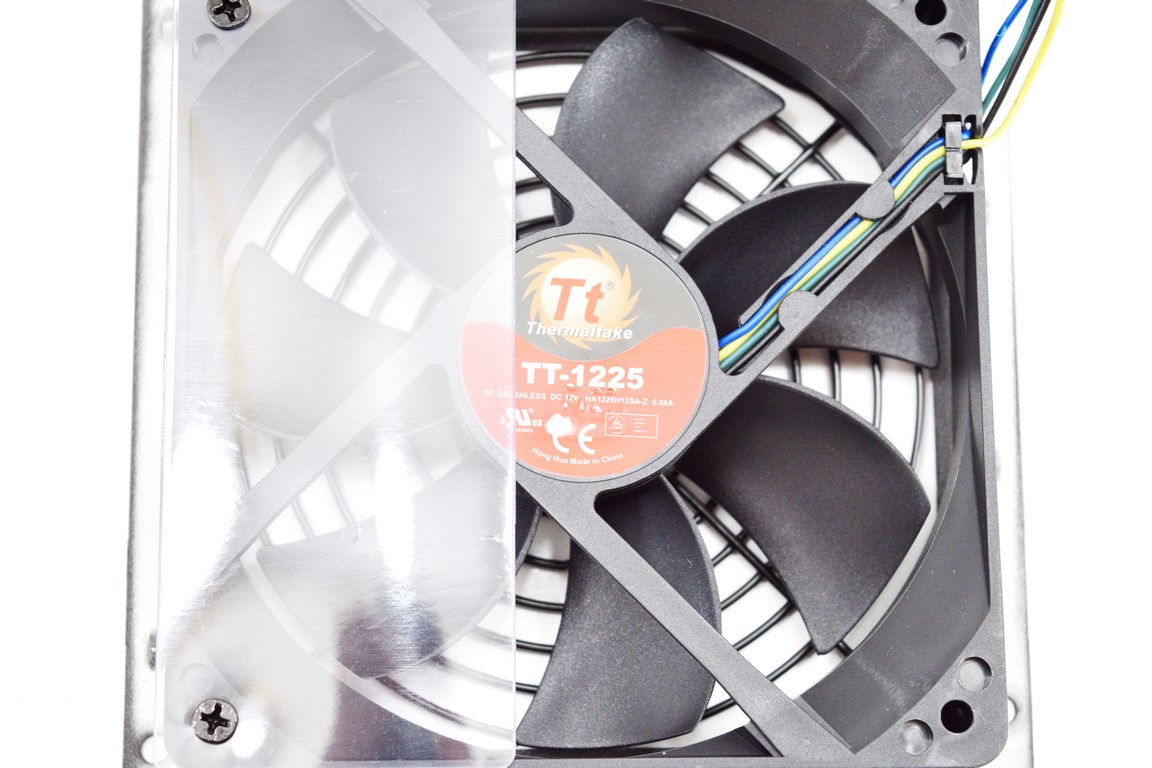

The 120mm fan used is manufactured by Hong Hua an can spin up to 1400RPM to produce up to 41.6CFM of airflow with just 21dBA of noise.





smart dps g 700w 13t

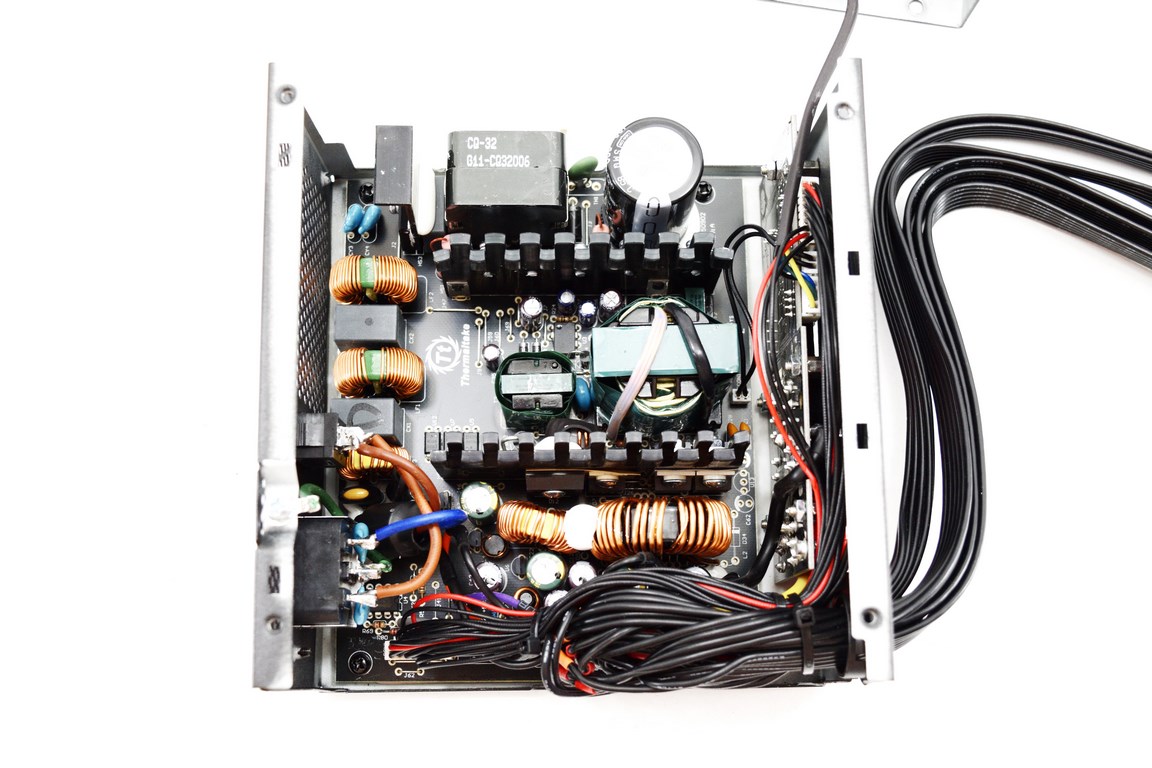

Layout is clean and we see two large heatsinks separating the unit in 3 sections.





smart dps g 700w 14t

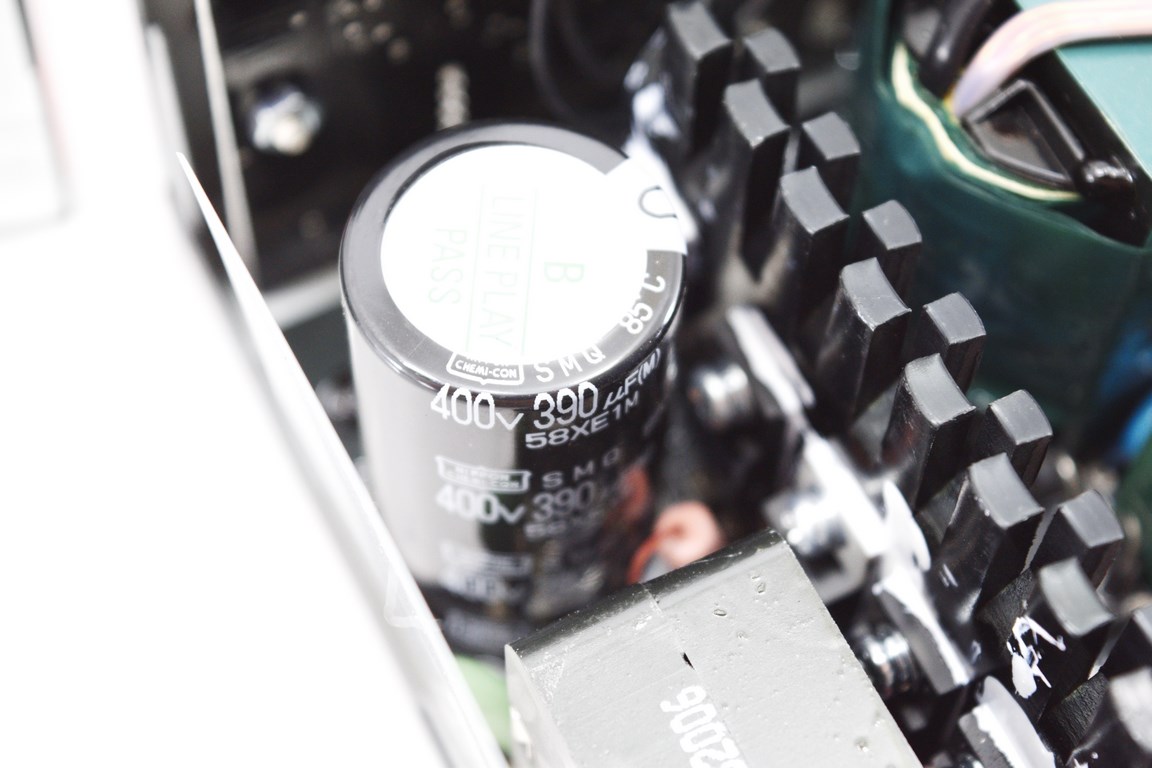

For the primary capacitors Thermaltake has used 400v/390µf by Nippon Chemi-Con rated for use up to 85 degrees Celsius.





smart dps g 700w 15tsmart dps g 700w 16t

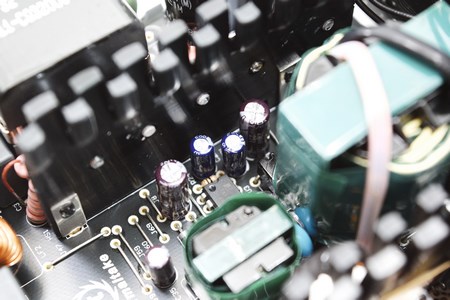

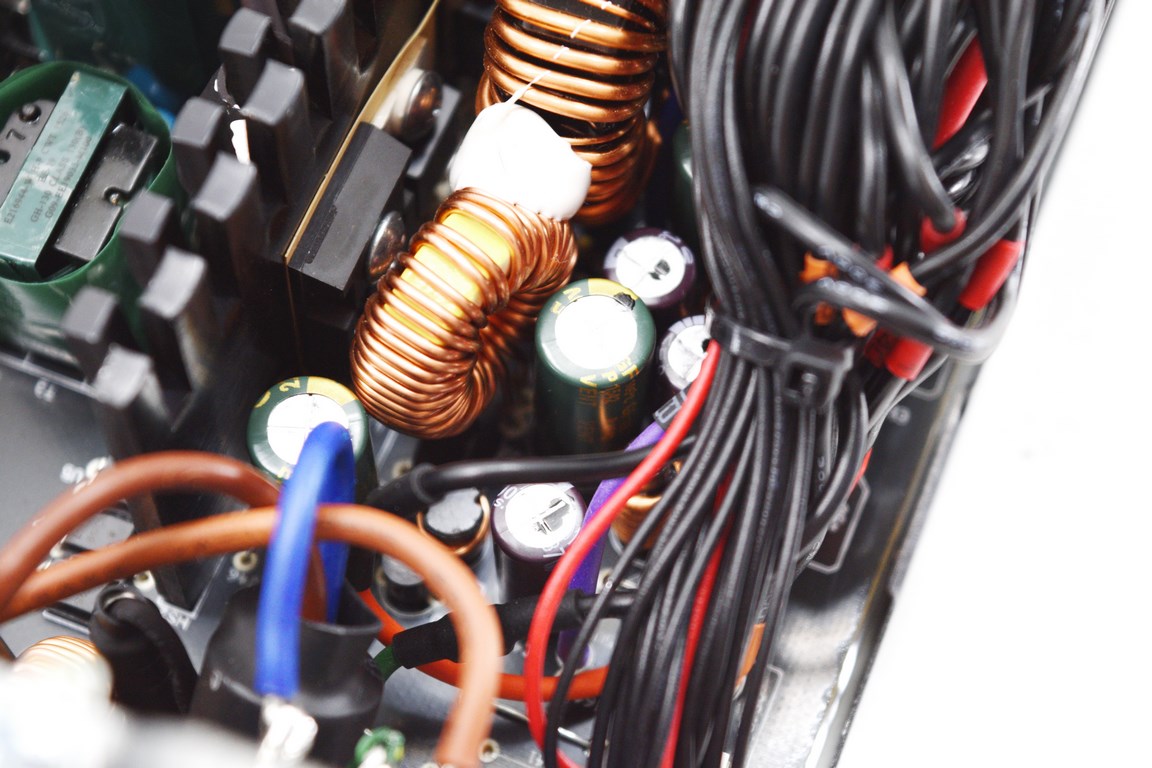

Secondary capacitors are obviously not of the same quality since they are made by Chhsi, Nichicon and Jwco.
