THE AG-650M INTERIOR

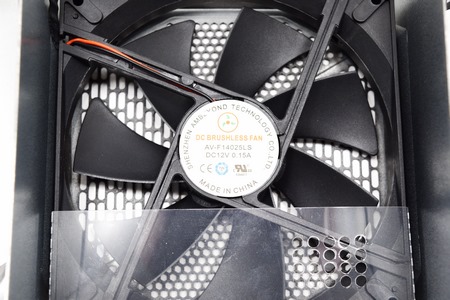

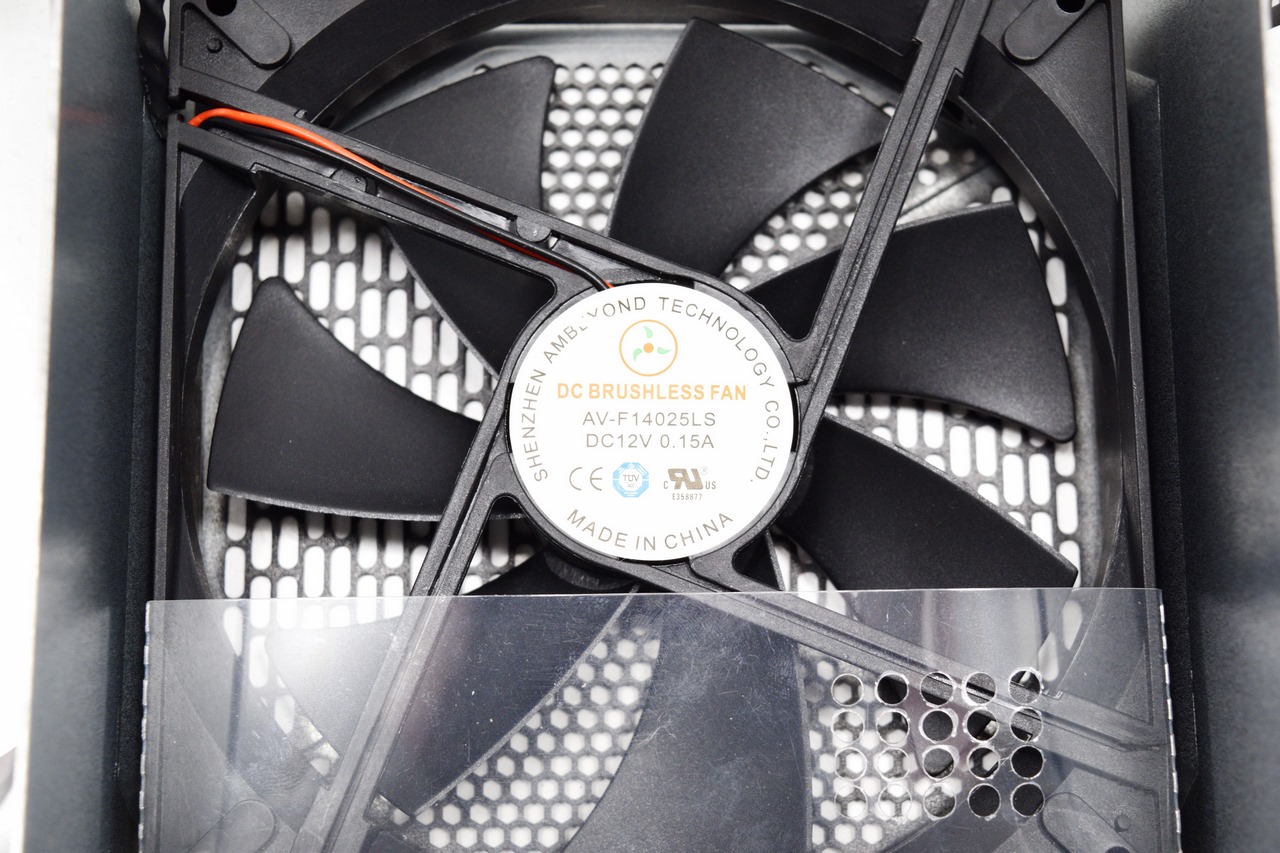

The 140mm fan used in the AG-650M can spin up to 1000RPM to produce up to 79.66CFM of airflow with up to 5.26mmH2O of static pressure and up to 39.98dBA of noise.

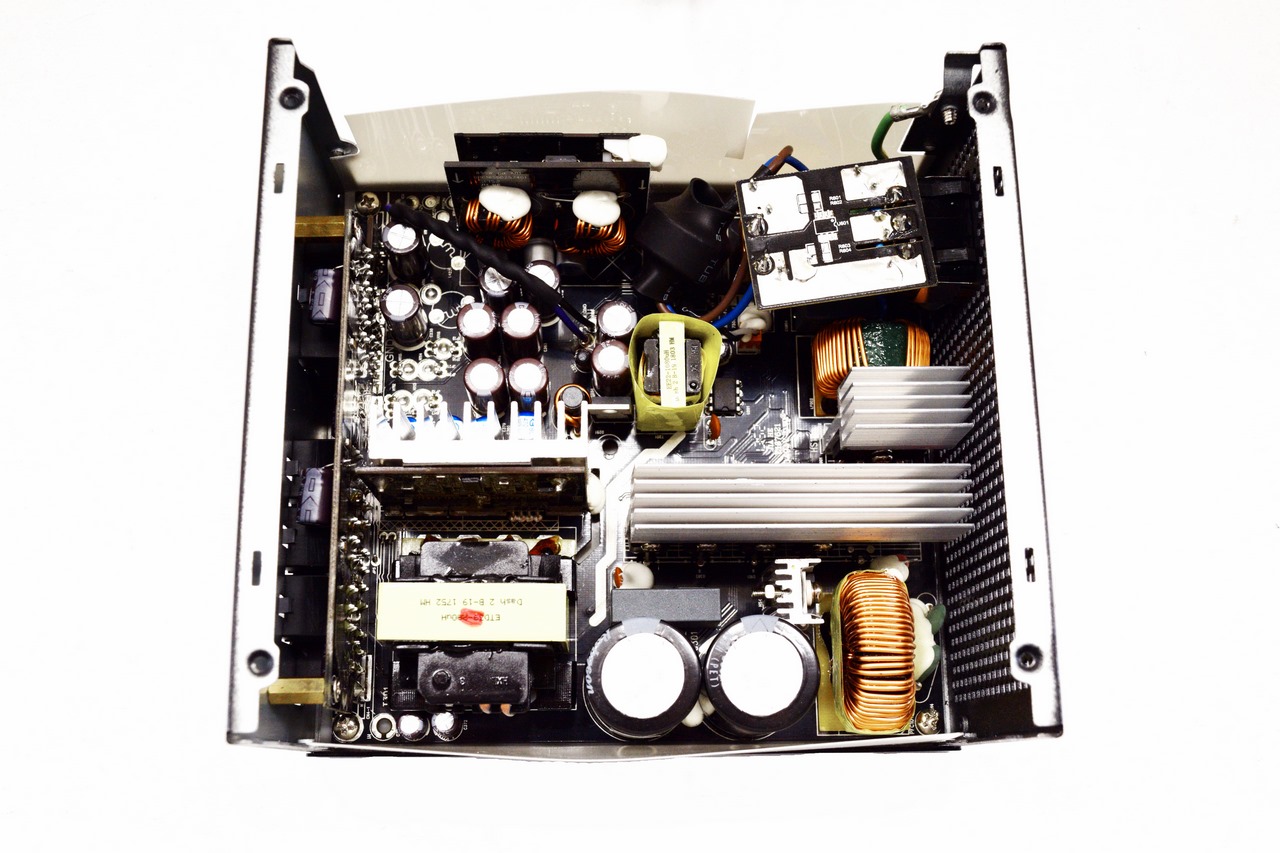

The interior of the unit is very clean and features two primary capacitors.

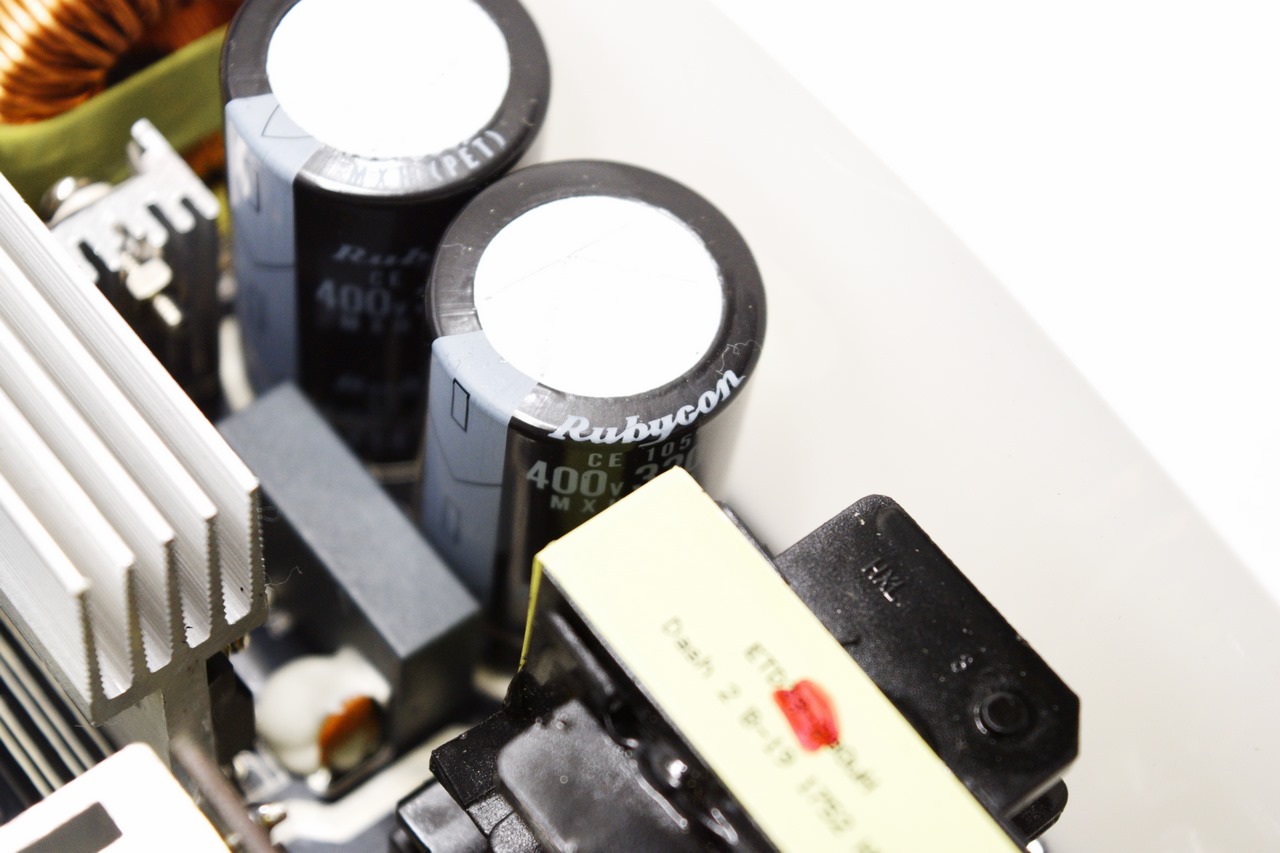

These capacitors are indeed manufactured by the Japanese Rubycon and are certified for use up to 105 degrees Celsius.

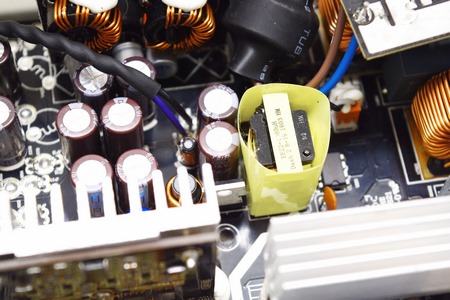

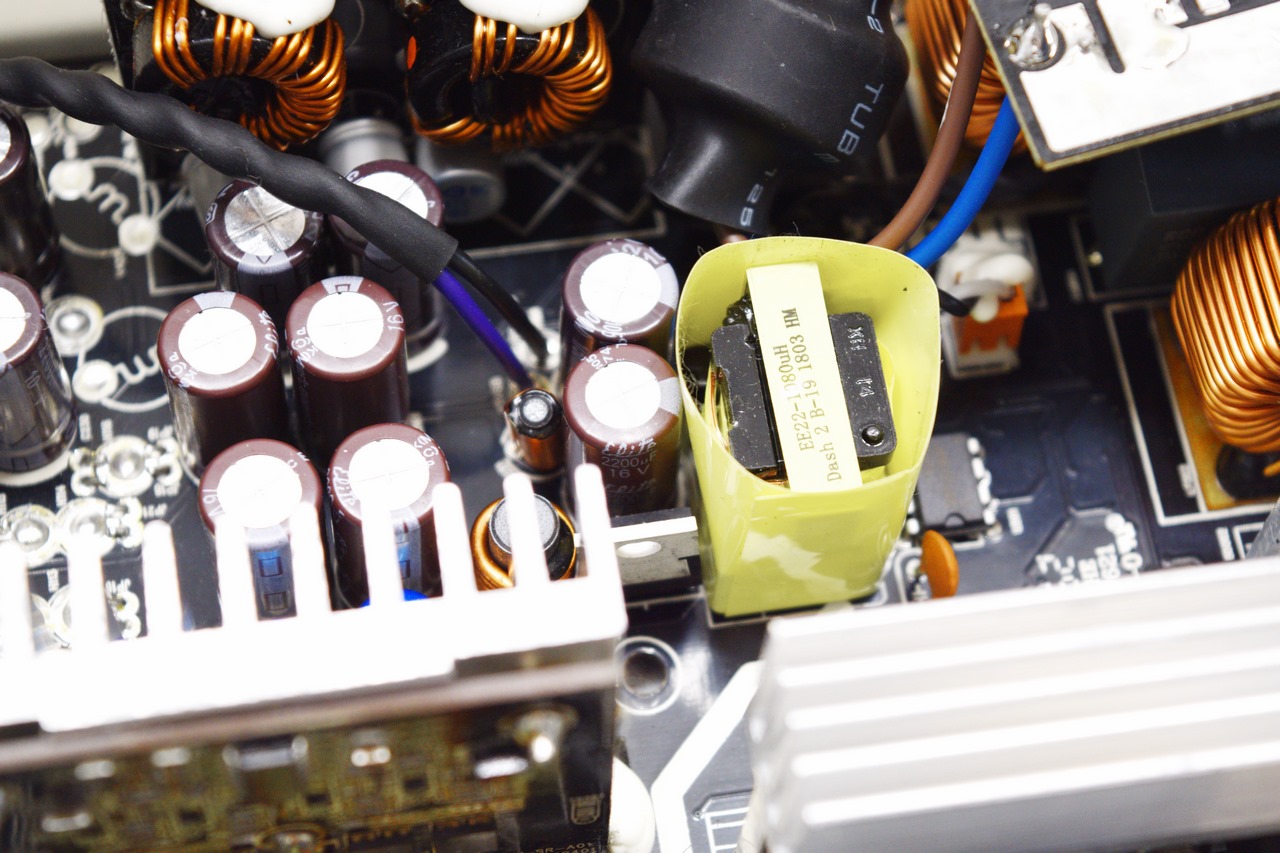

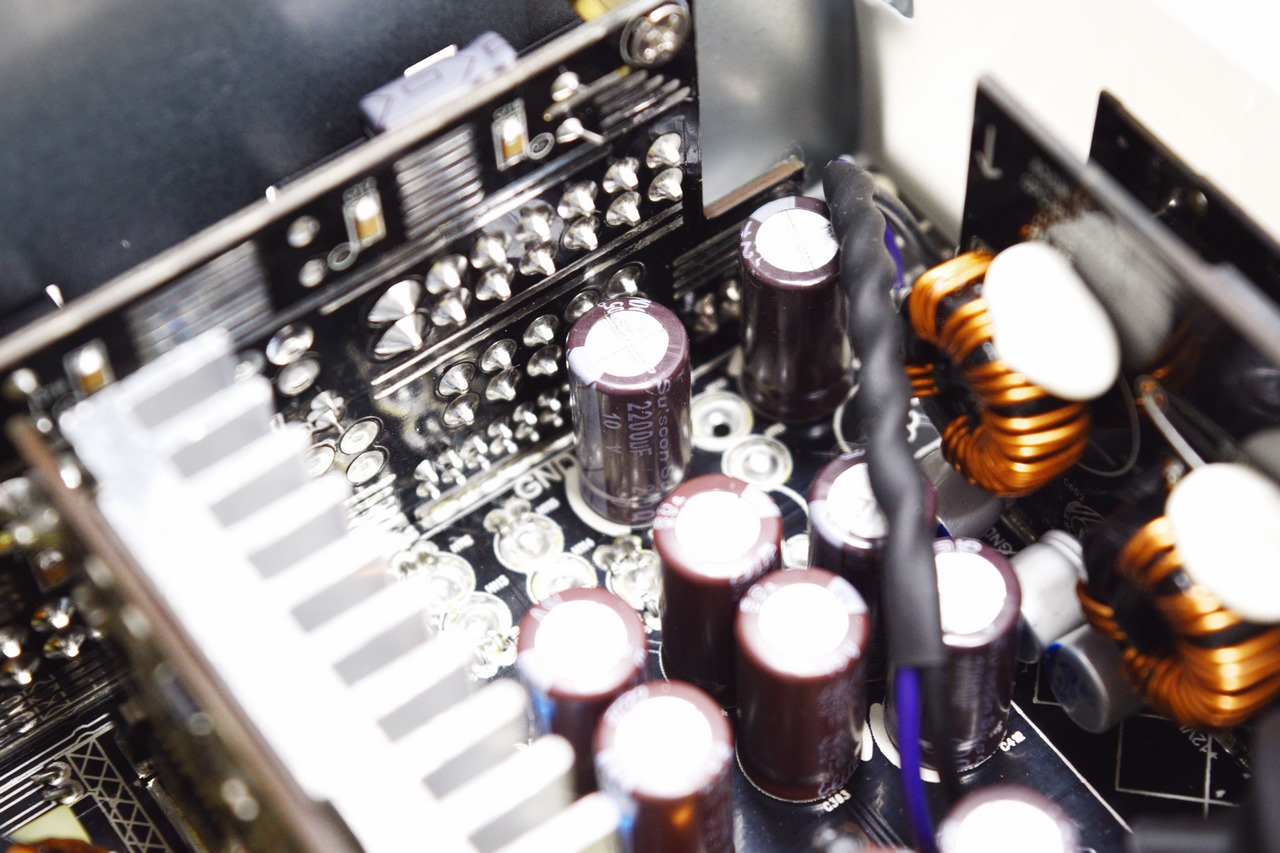

Although the two primary capacitors are manufactured by Rubycon the secondary ones are manufactured by the Chinese Elite and Su'scon brands (although these are also rated for use up to 105 degrees Celsius).
