THE KC2000 1TB

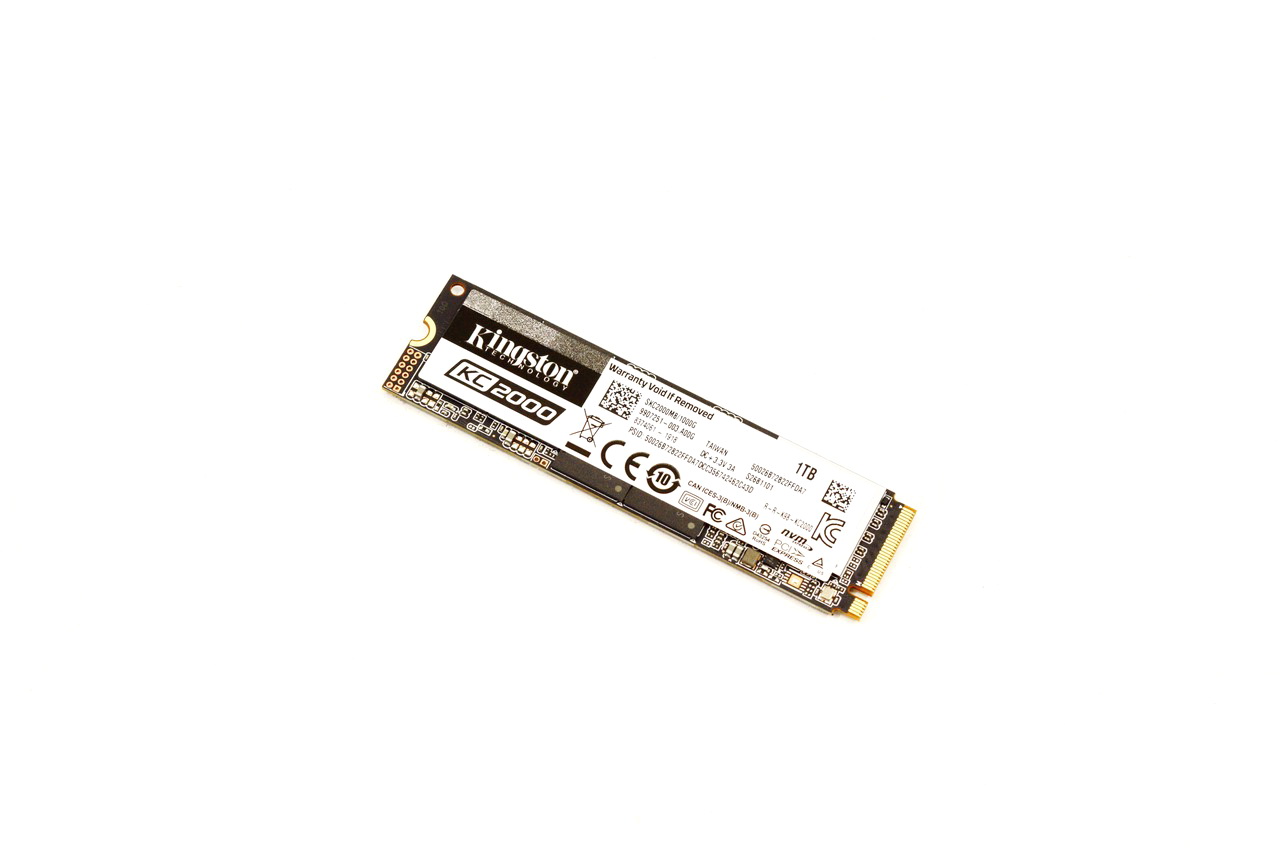

The KC2000 M.2 NVMe follows the typical 2280 form factor and our model makes use of both sides of the PCB.

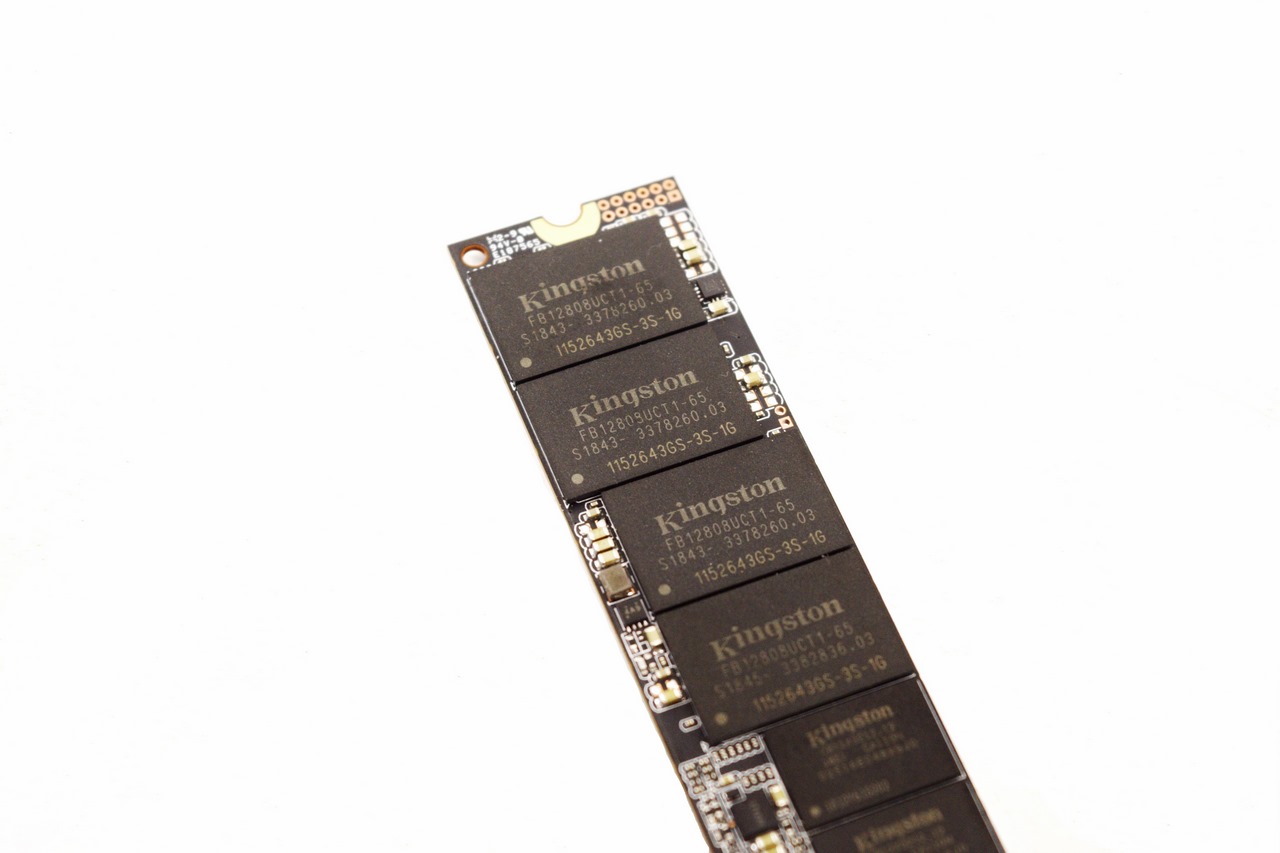

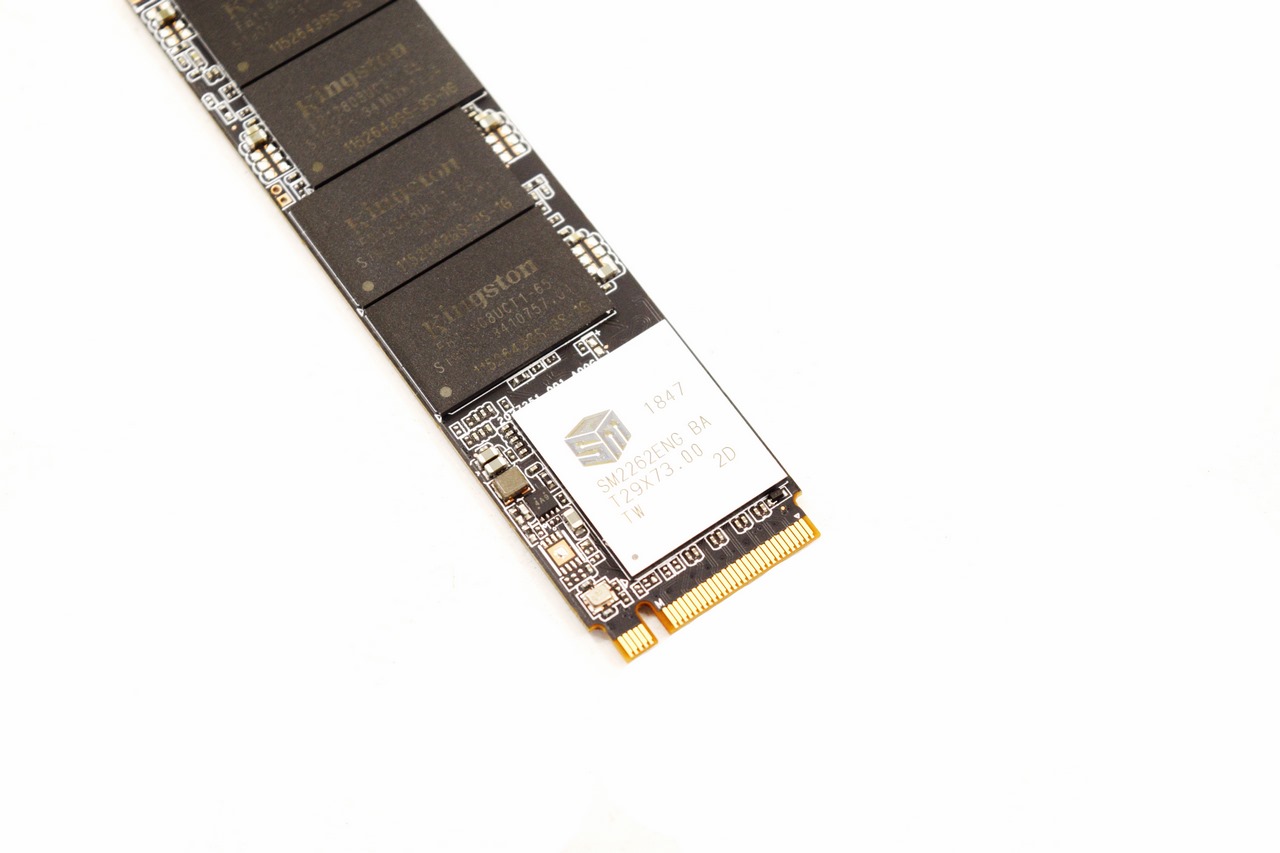

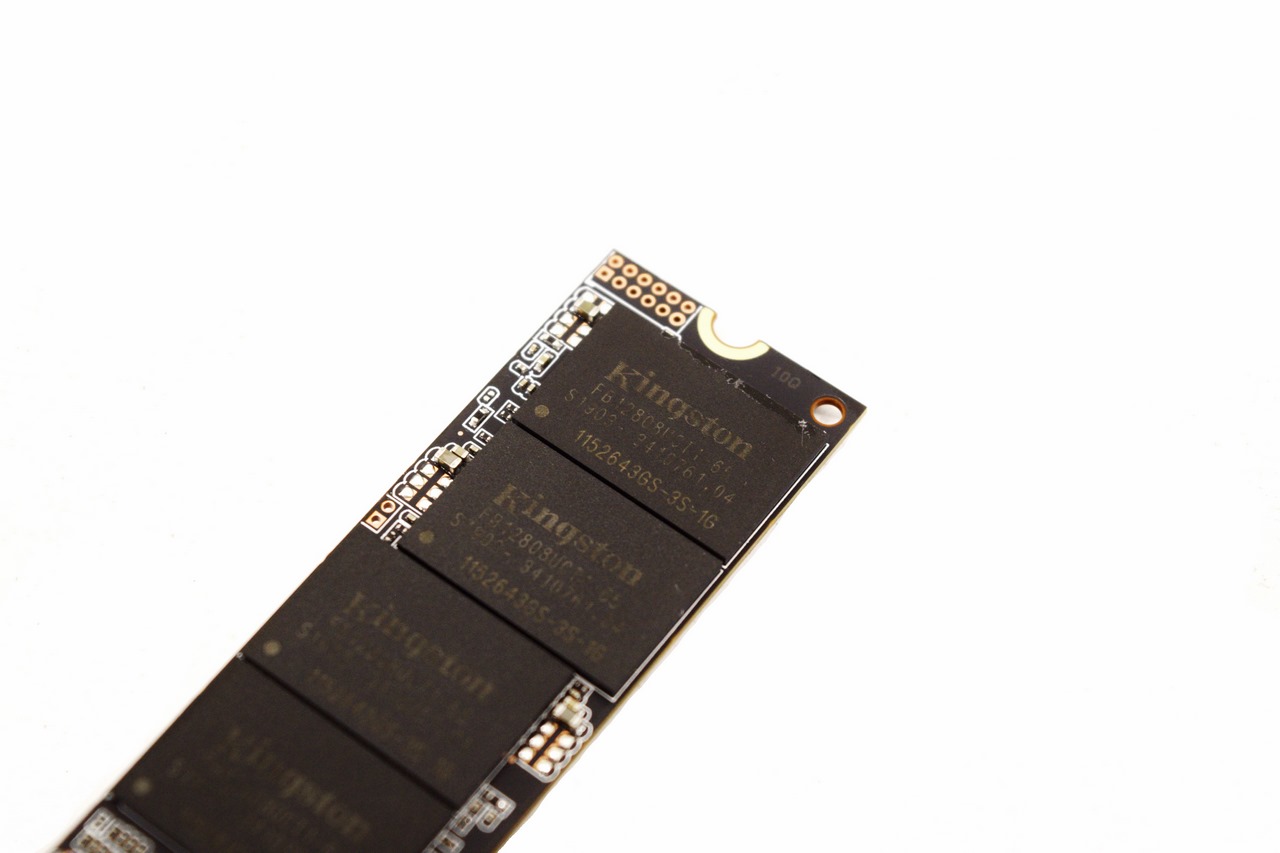

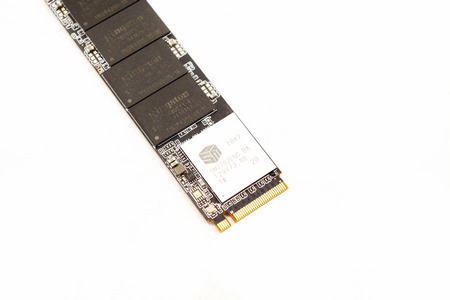

On the top side of the PCB we find 4 Toshiba BiCS4 96-layer 3D TLC NAND flash modules (each 128GB in capacity) and the Silicon Motion SM2262EN NAND flash controller.

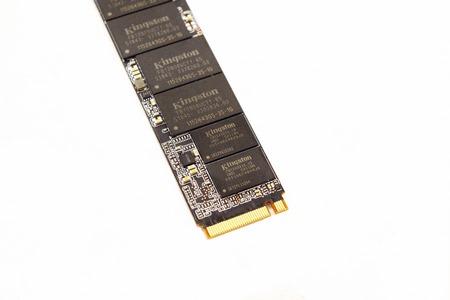

4 more Toshiba BiCS4 96-layer 3D TLC NAND flash modules (again 128GB in capacity each) are also located on the opposite side of the PCB alongside two 512MB LPDDR3 SDRAM modules.
