THE HELIX-L 1TB

We received the Helix-L 1TB inside a blister pack so from the front you can see the drive itself.

A thank you text by Mushkin is placed at the rear along with a sticker which contains the product serial number and barcode.

Inside the pack you will find the Helix-L M.2 SSD, thank you note from the CEO of Mushkin and a sticker.

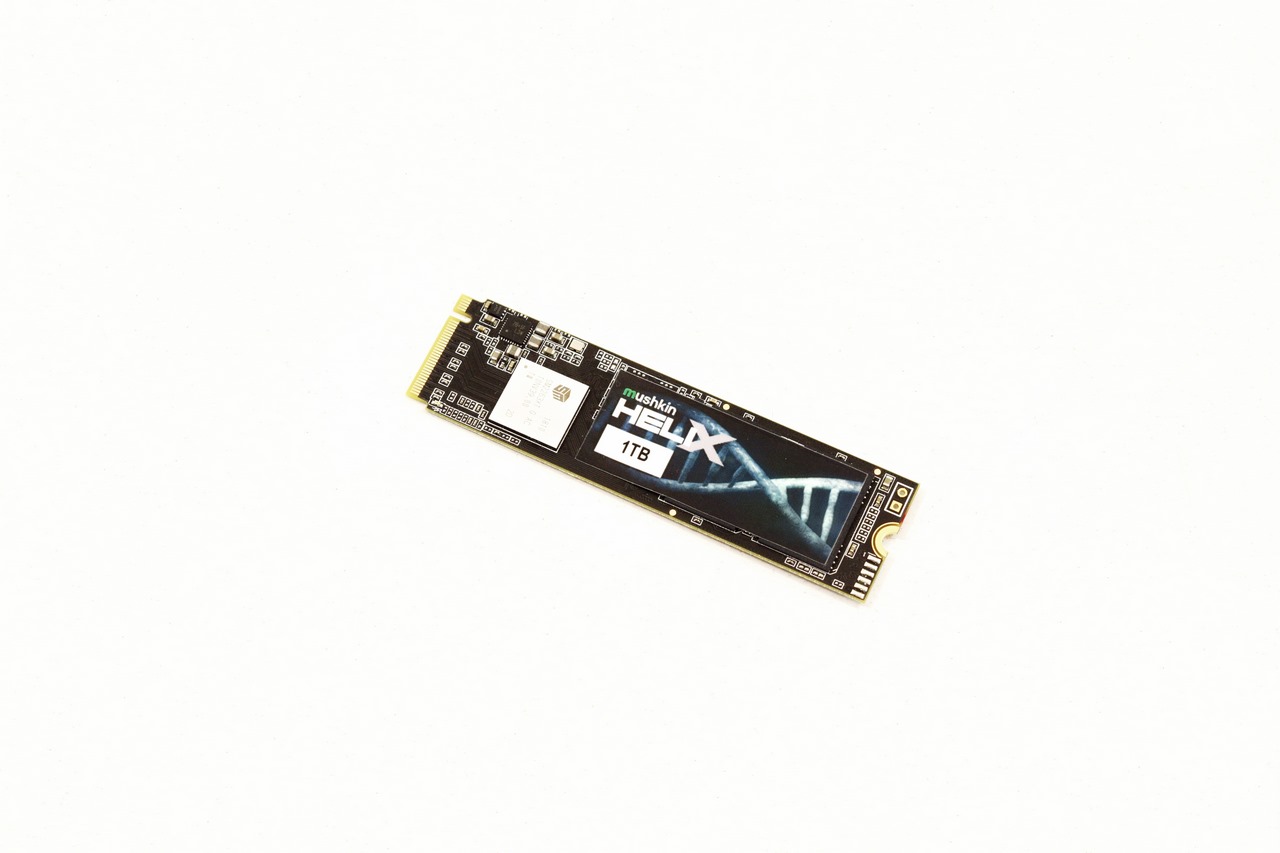

The Helix-L follows the typical M.2 2280 form factor (22mm wide and 80mm long).

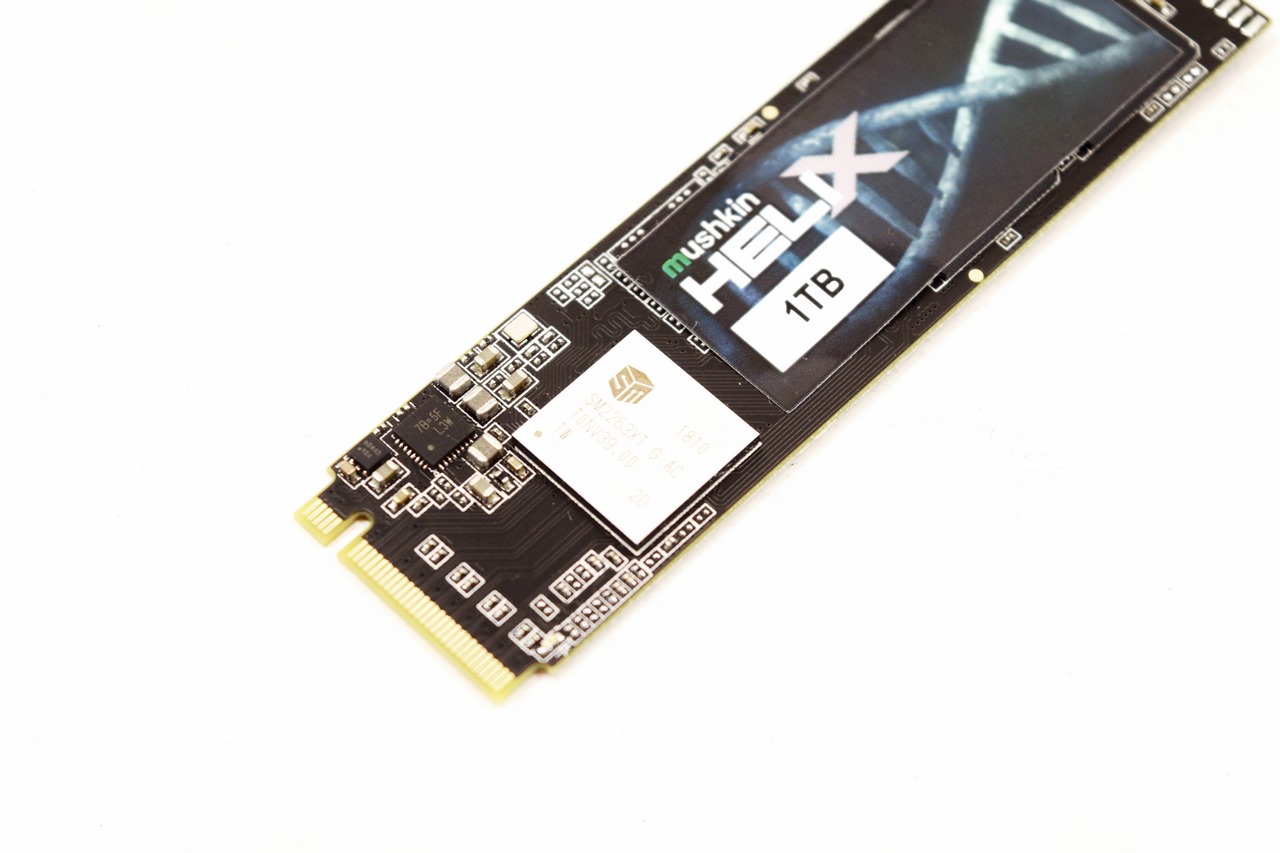

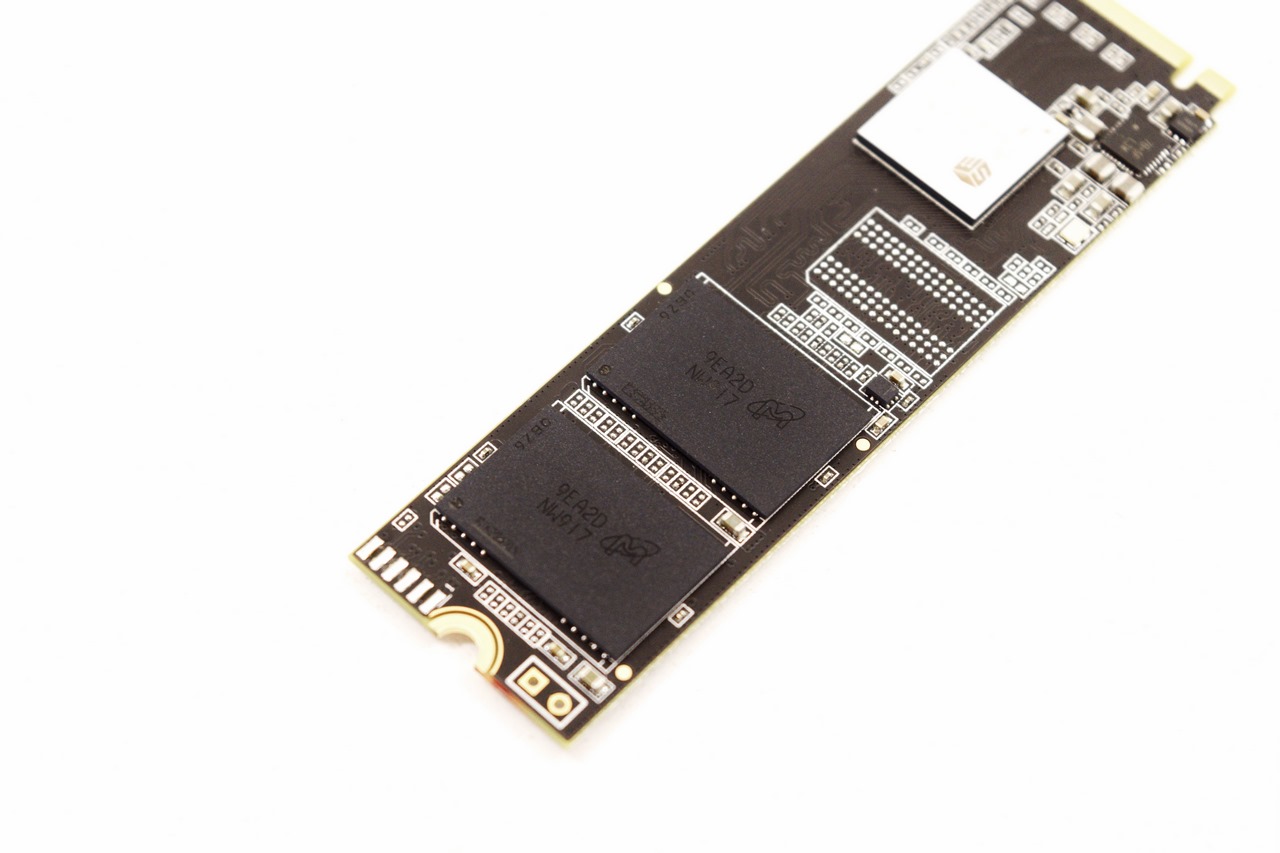

On the top side of the PCB we find the SM2263XT controller right next to two 256GB 64-Layer 3D TLC NAND flash modules by Micron (the empty space is clearly designed for models with DRAM modules).

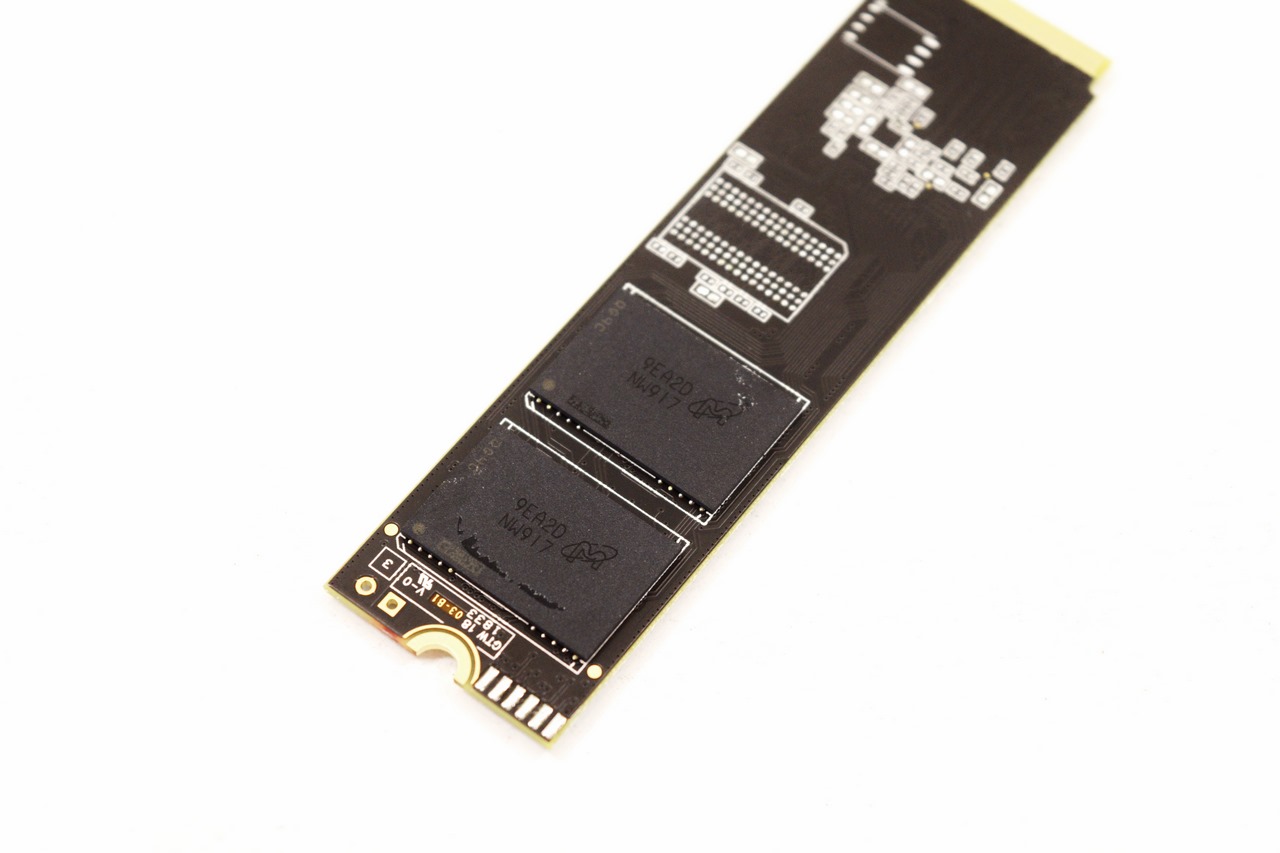

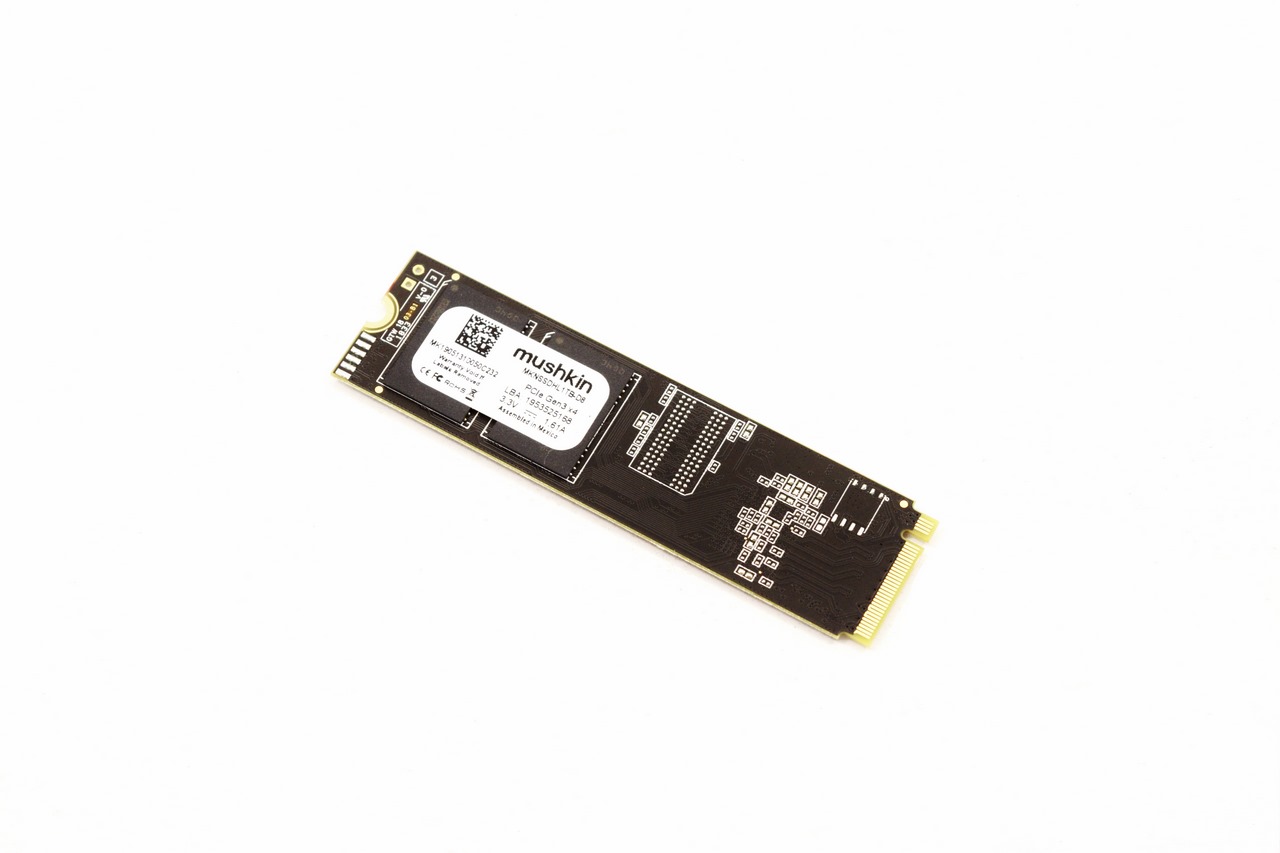

Moving on the other side of the PCB we find two more 256GB modules by Micron (and a second empty space again for DRAM placement).
