THE US70 1TB

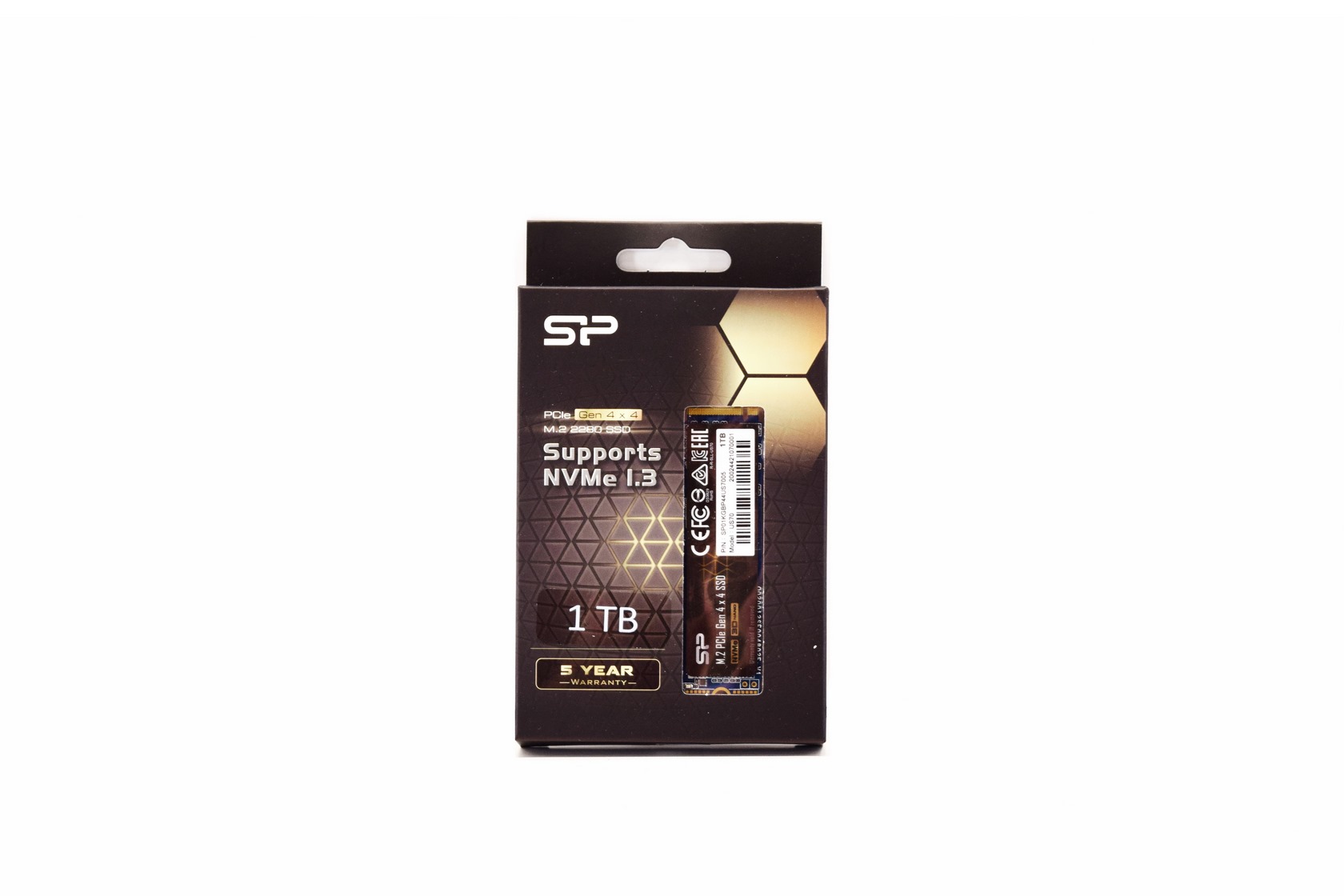

Silicon Power has once again used the same box as with their previous SSD models, this time however it's black and gold.

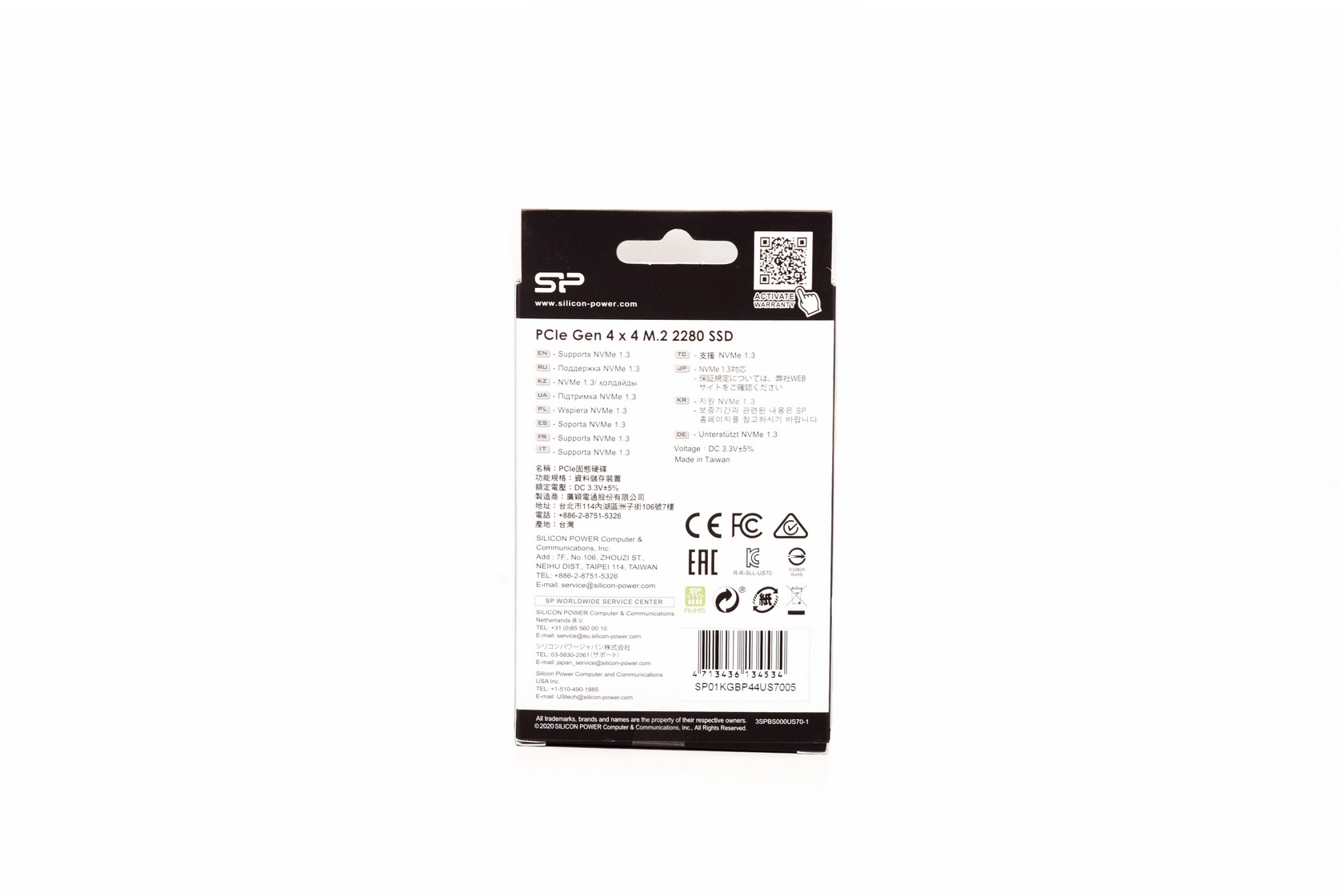

The NVMe v.13 standard is printed at the rear in 12 languages right over contact information for Silicon Power.

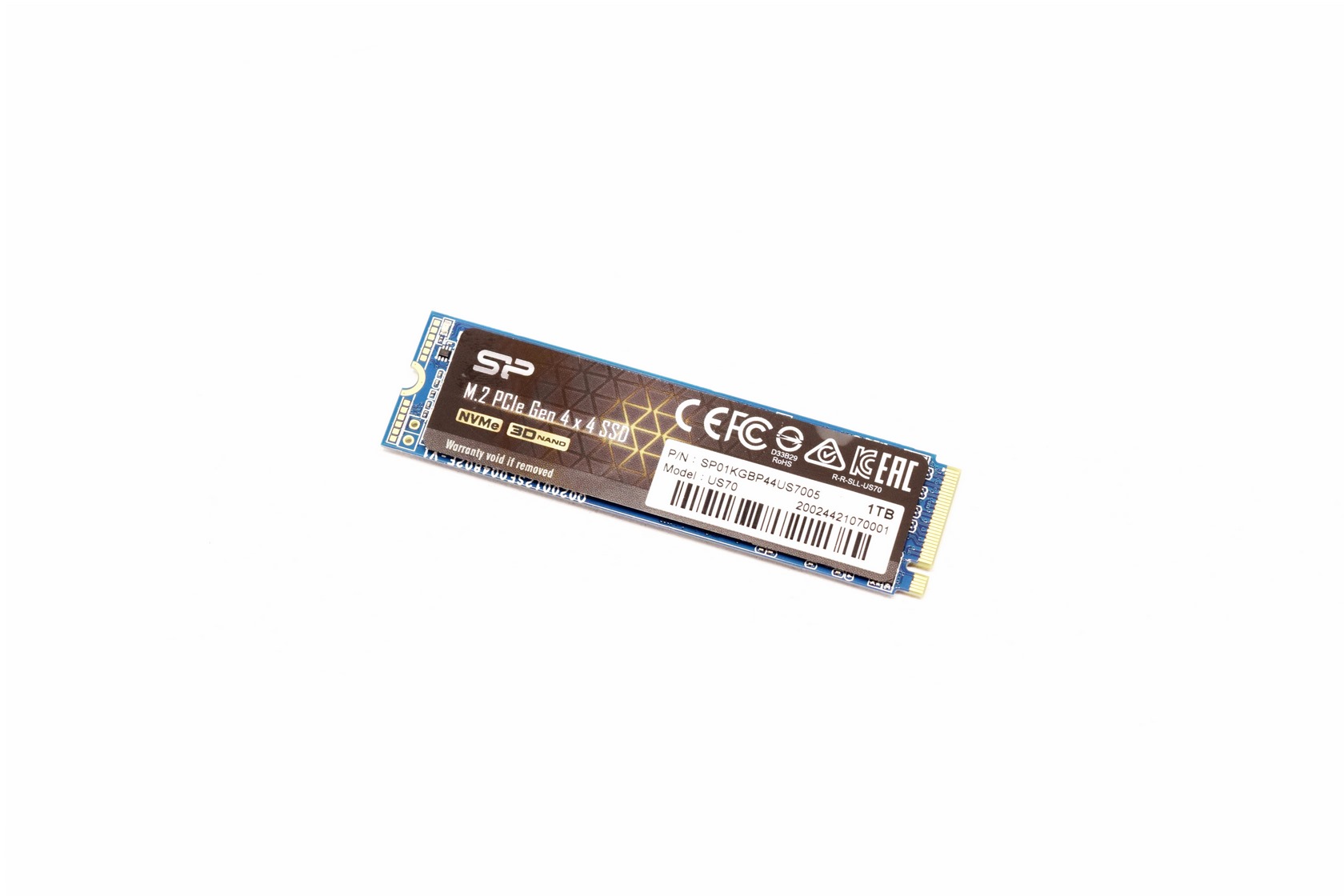

The drive follows the typical 2280 form factor (22mm in width and 80mm in length).

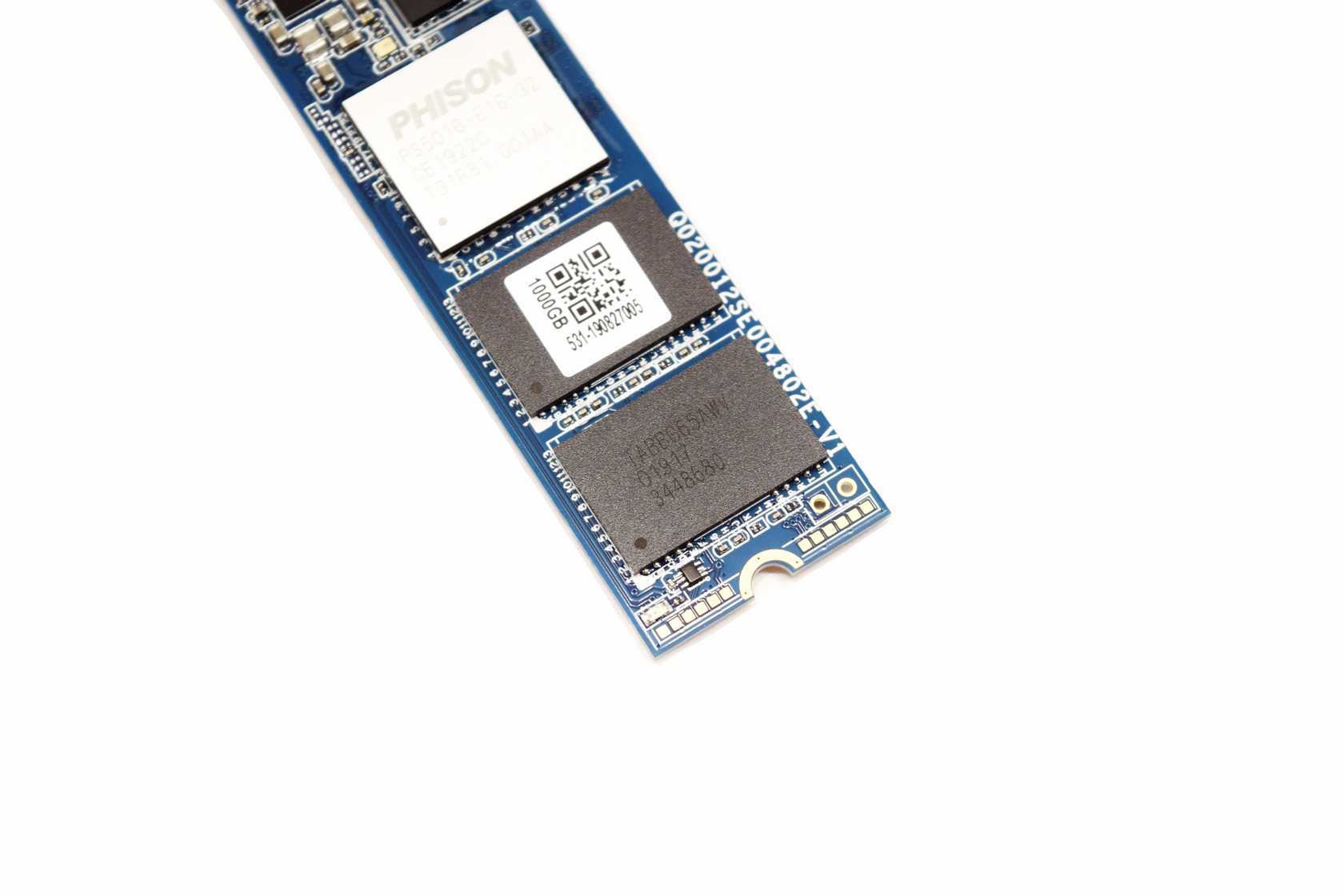

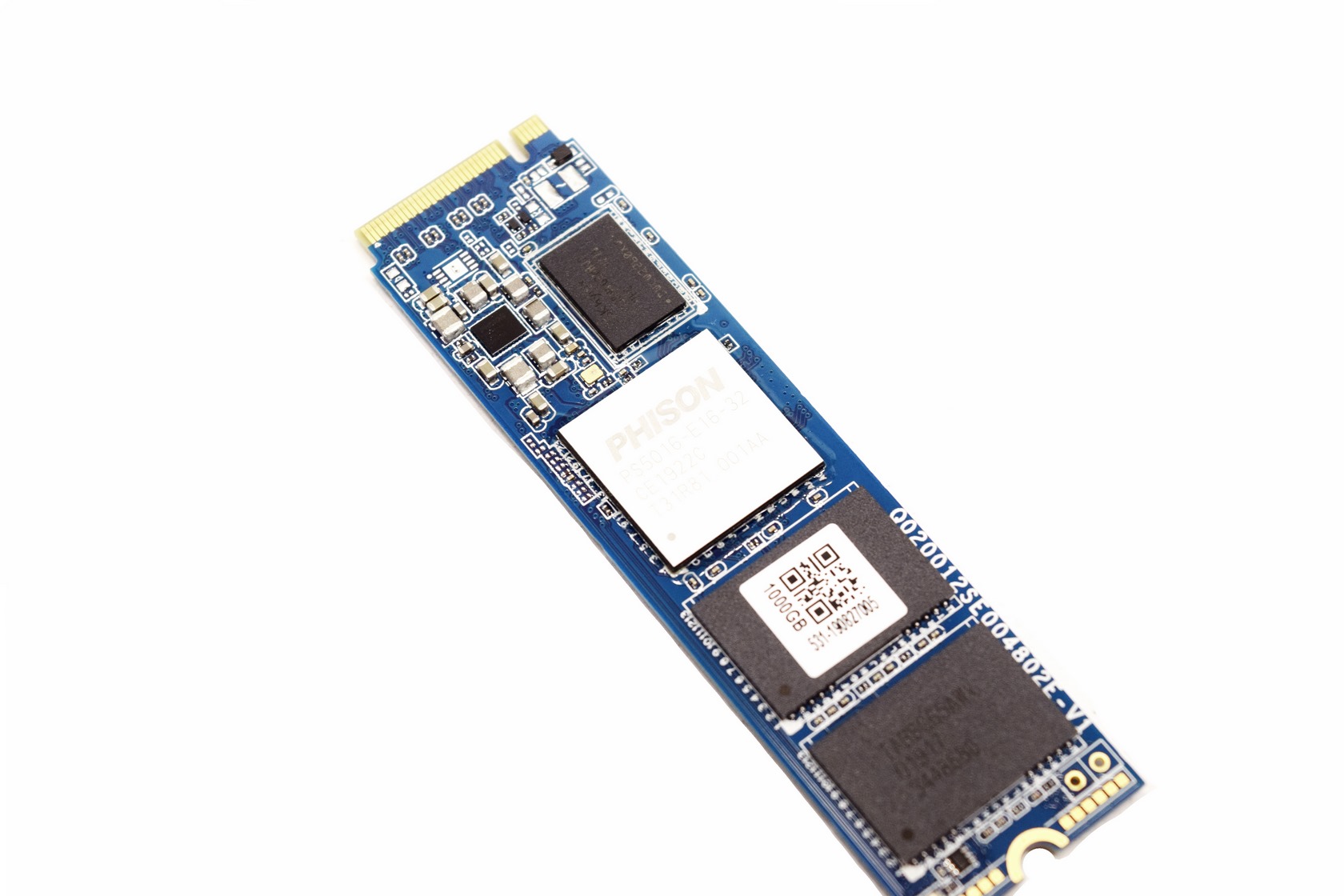

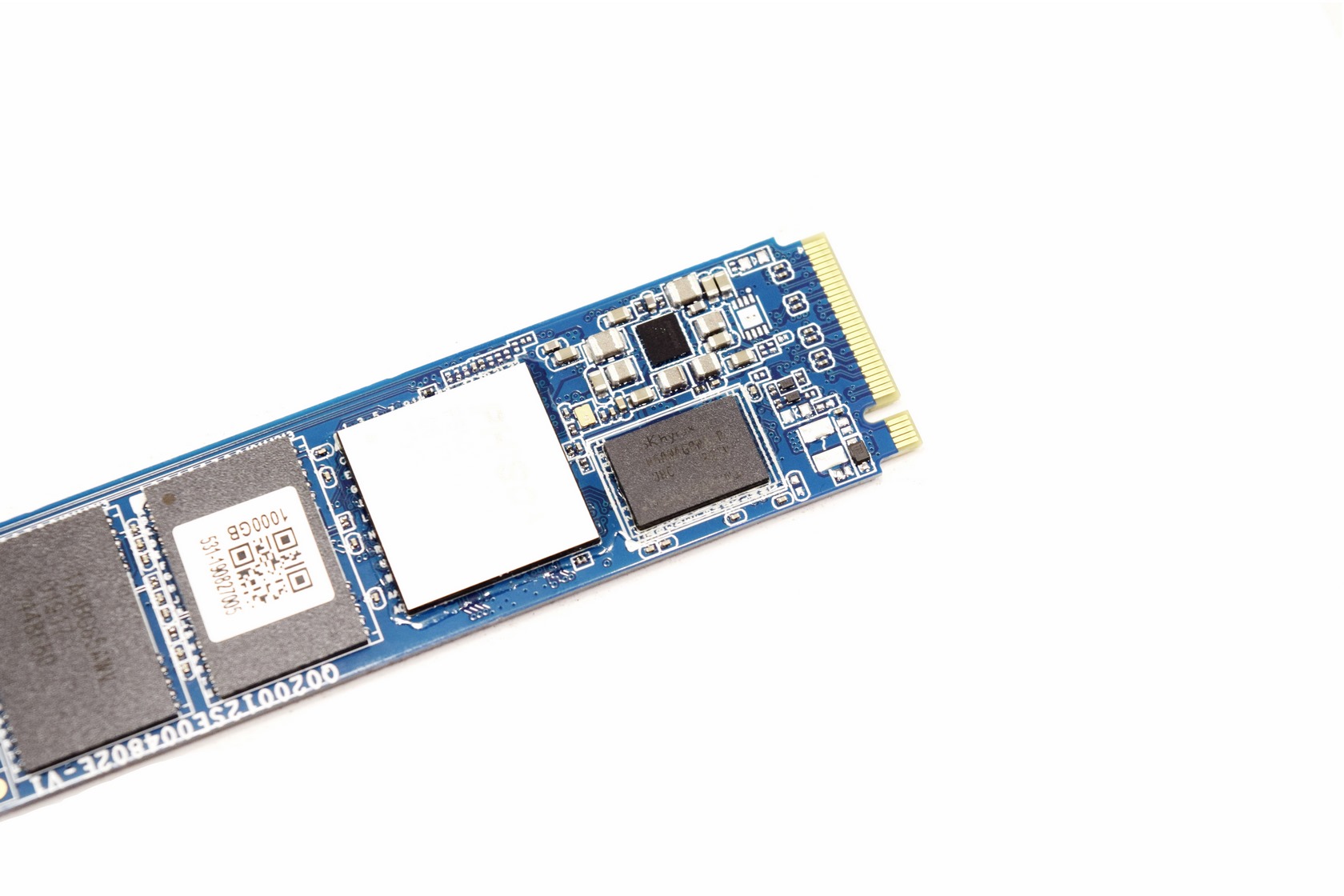

Under the top sticker we find the PS5016-E16-32 Gen 4 NAND flash controller along with a single 512MB DDR4 SDRAM module by SKhynix and two 3D TLC NAND modules by Sandisk.

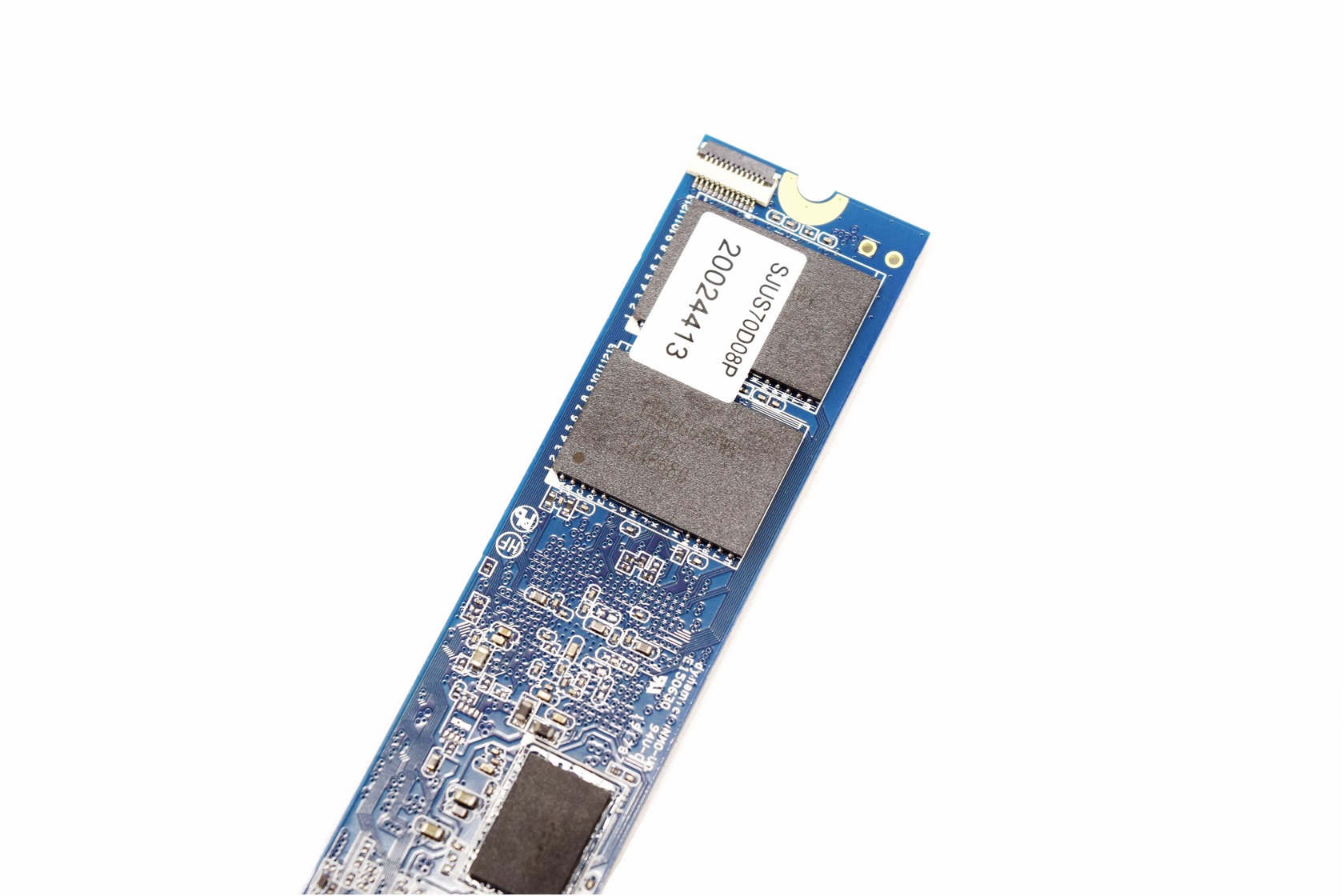

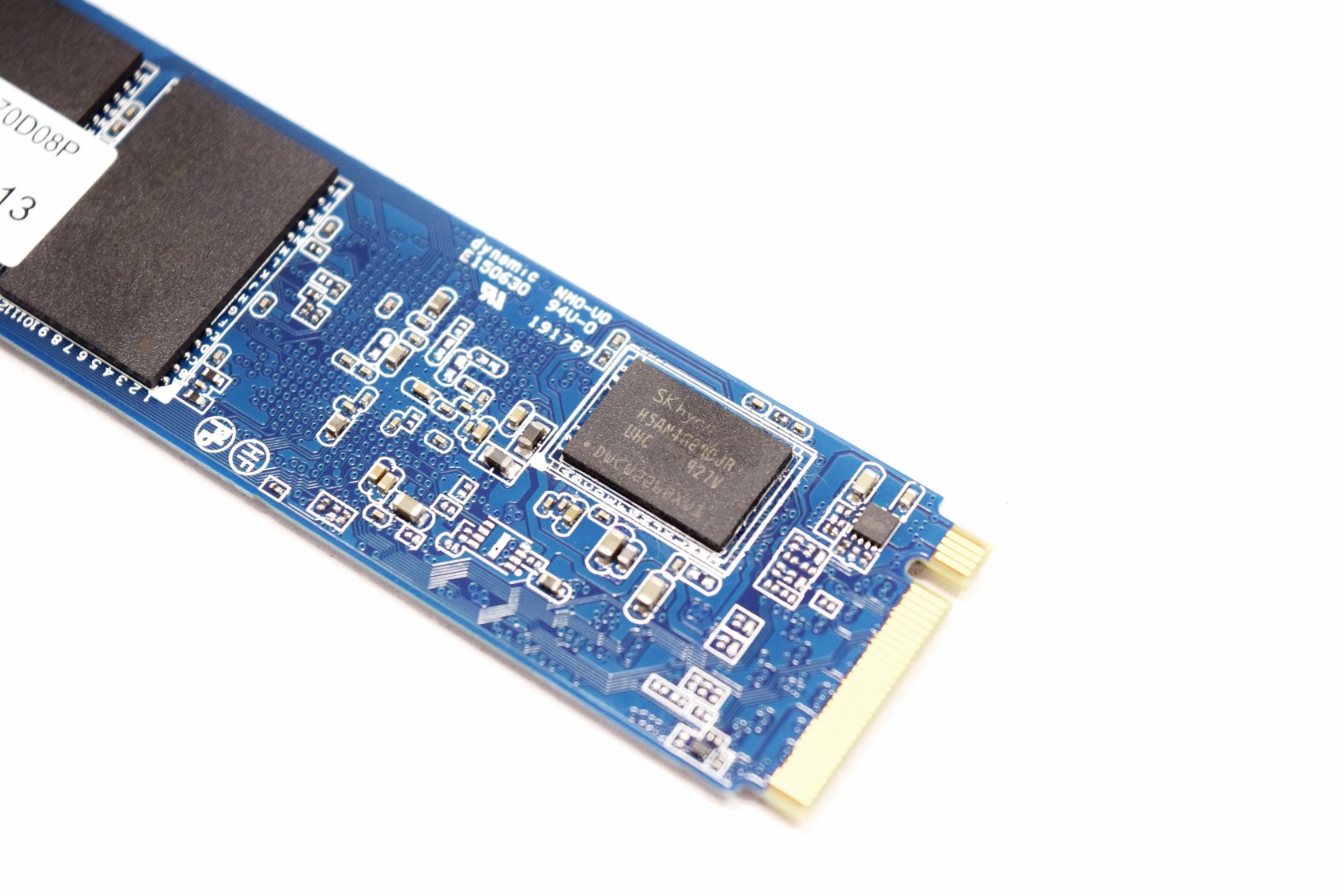

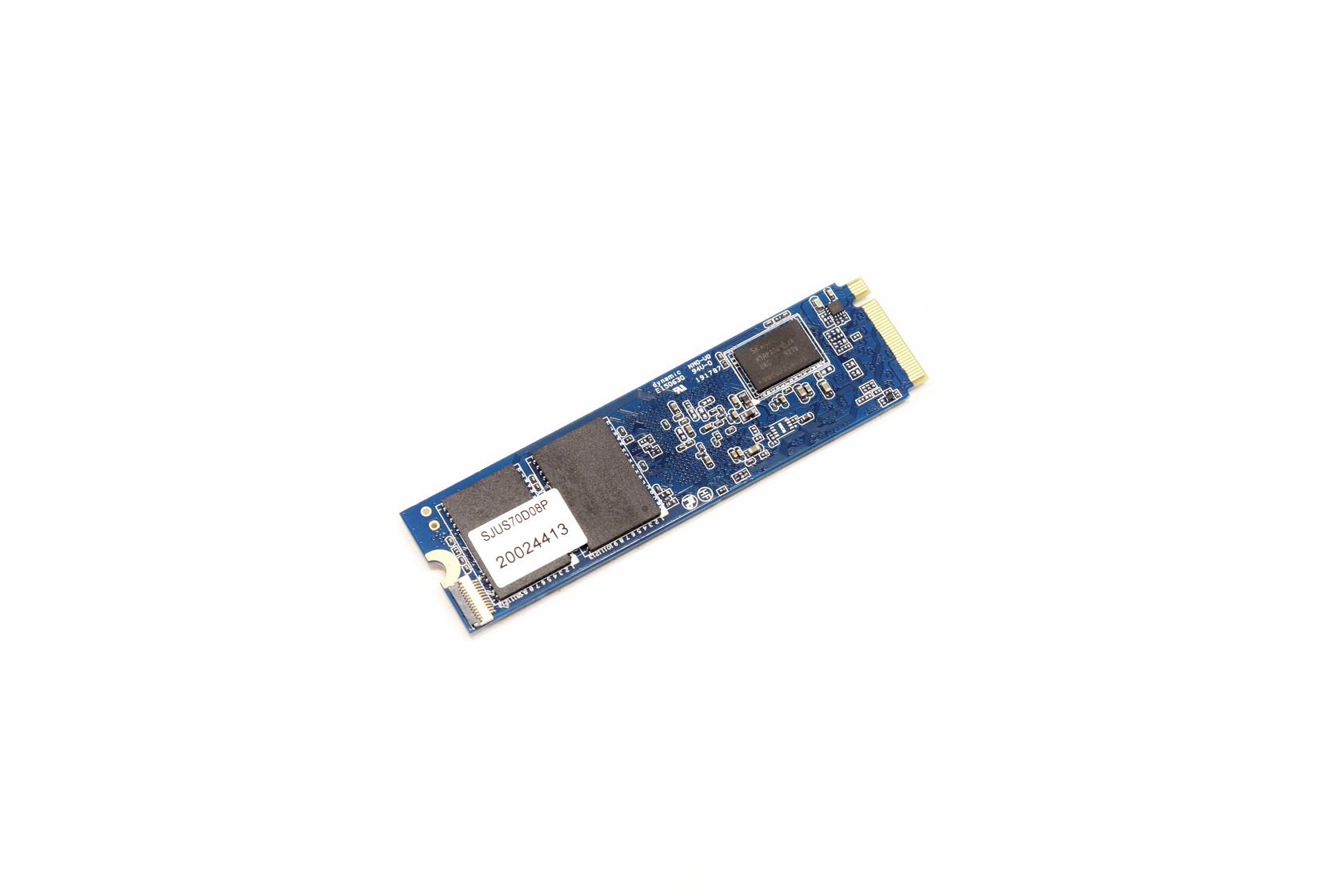

One more 512MB DDR4 SDRAM module by SKhynix is located on the opposite side of the PCB along with two more 3D TLC NAND modules by Sandisk (256GB in capacity each).
