THE P5 1TB & 2TB

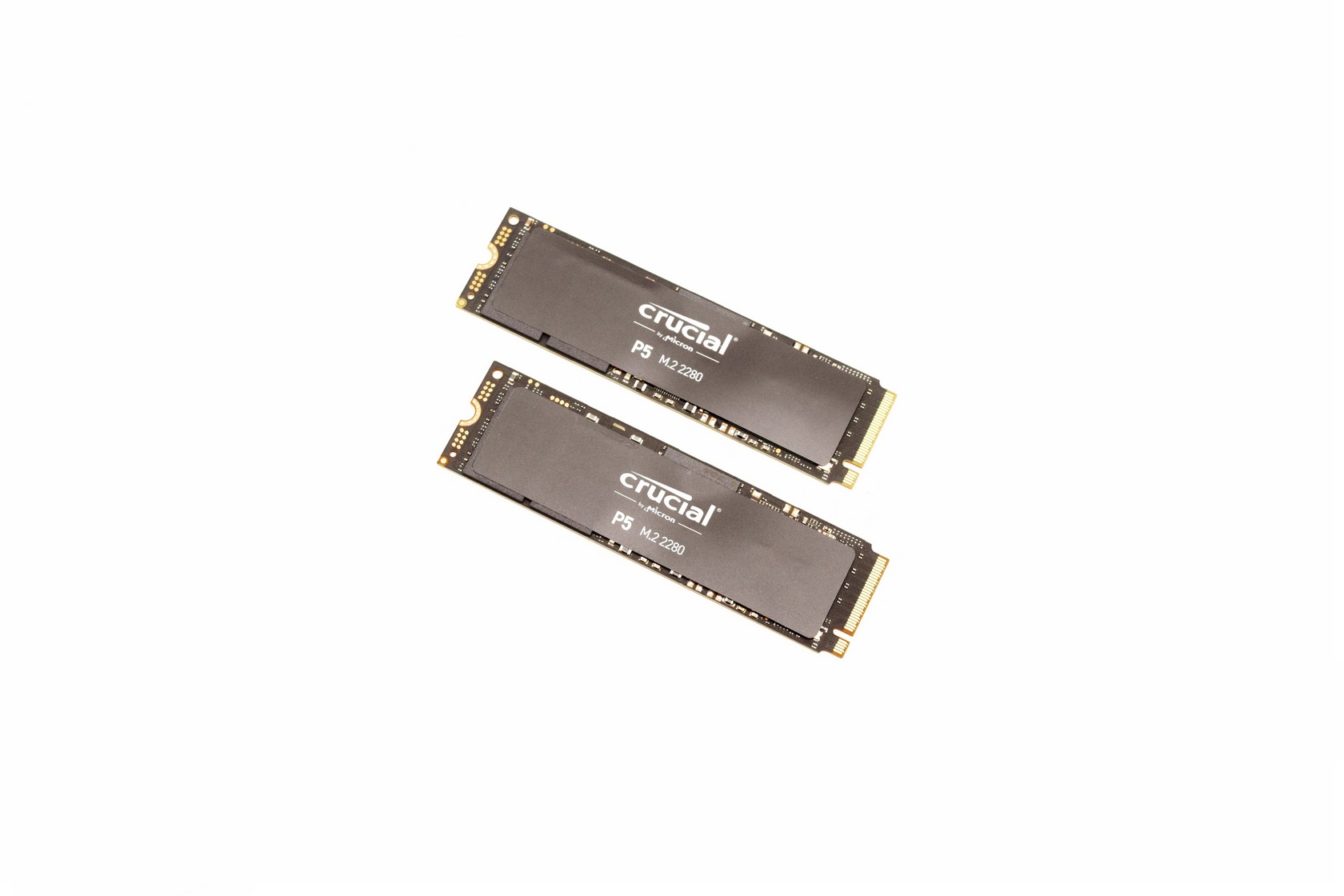

Both drives follow the typical 2280 standard (22mm in width and 80mm in length) and feature a nice black sticker at the top.

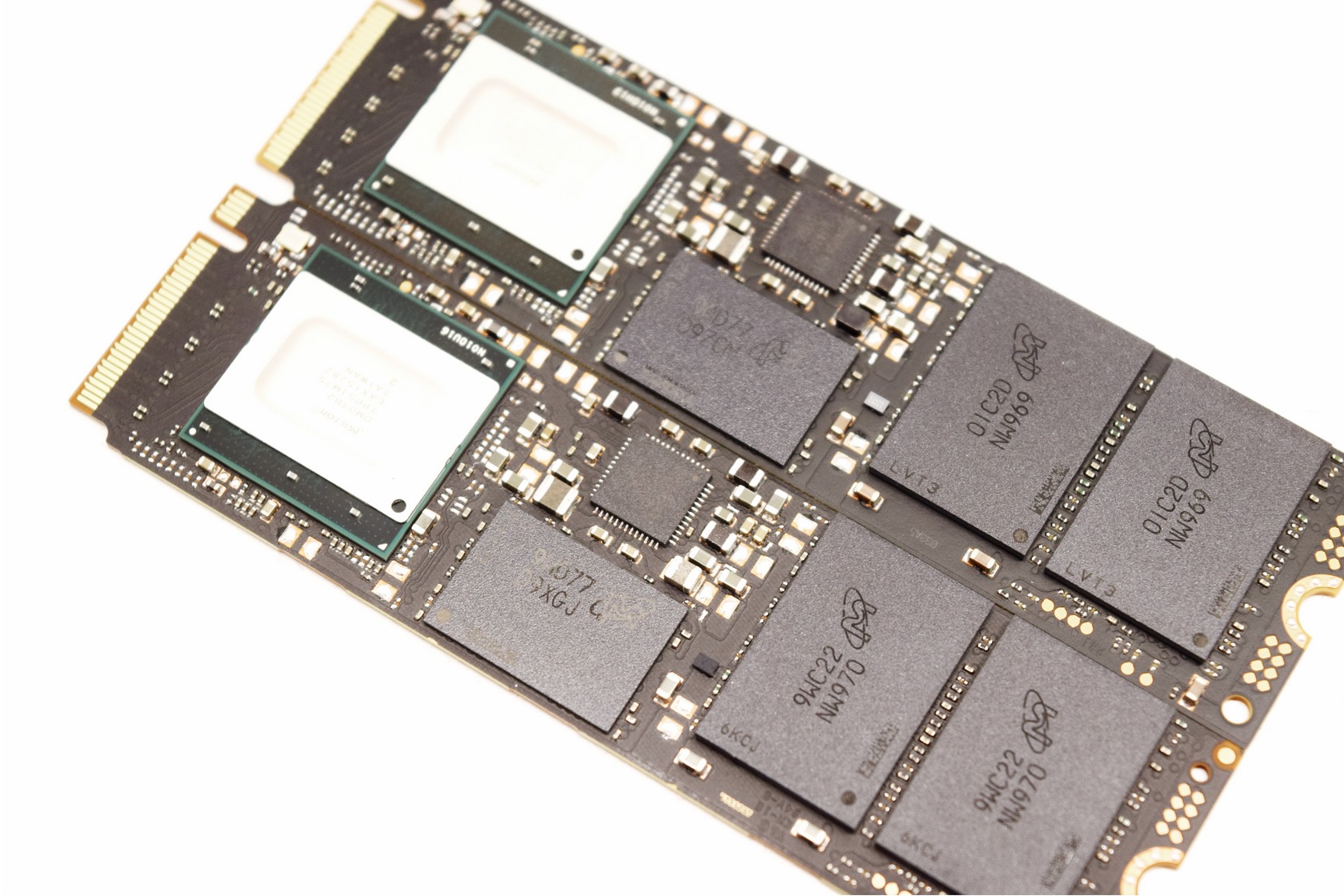

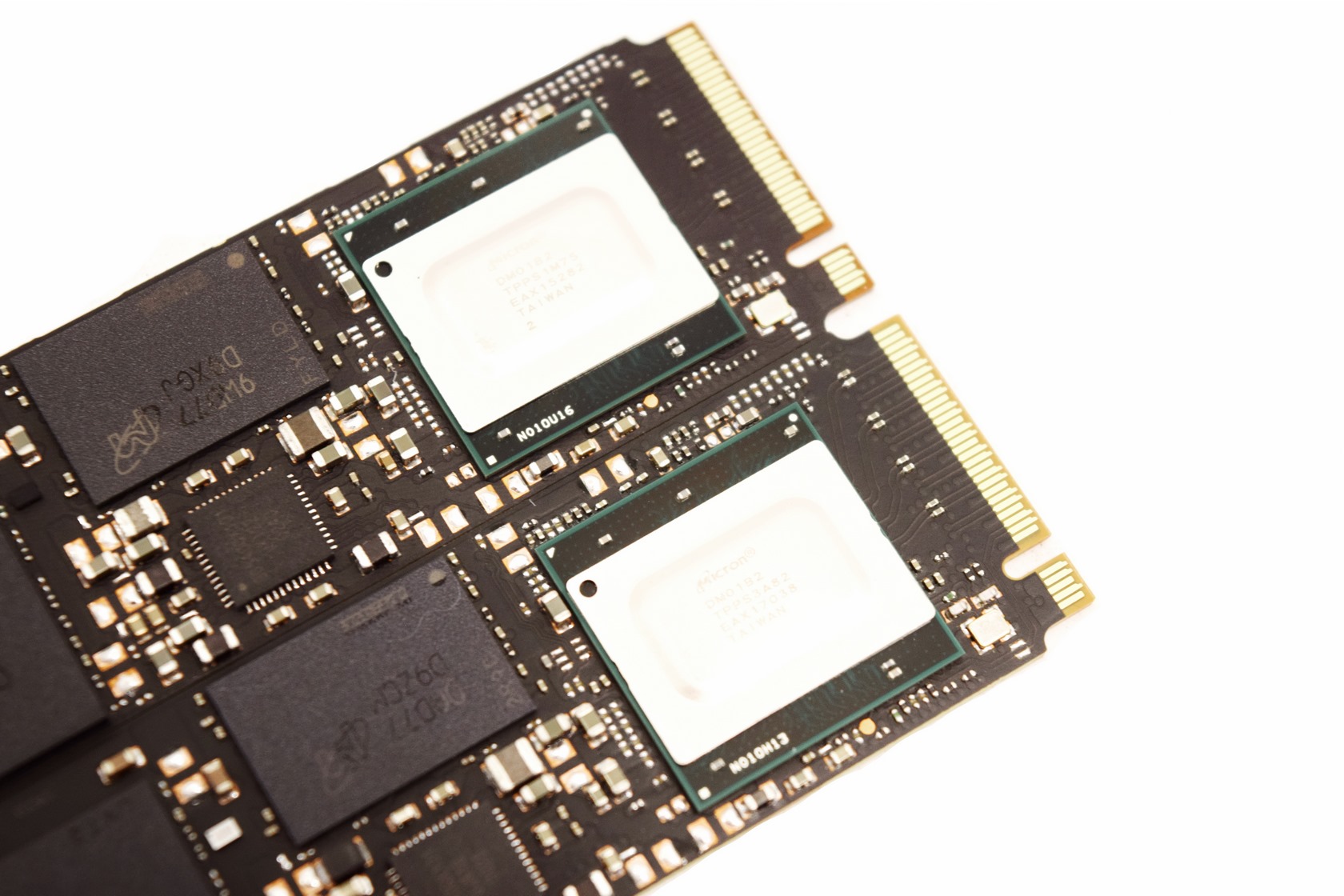

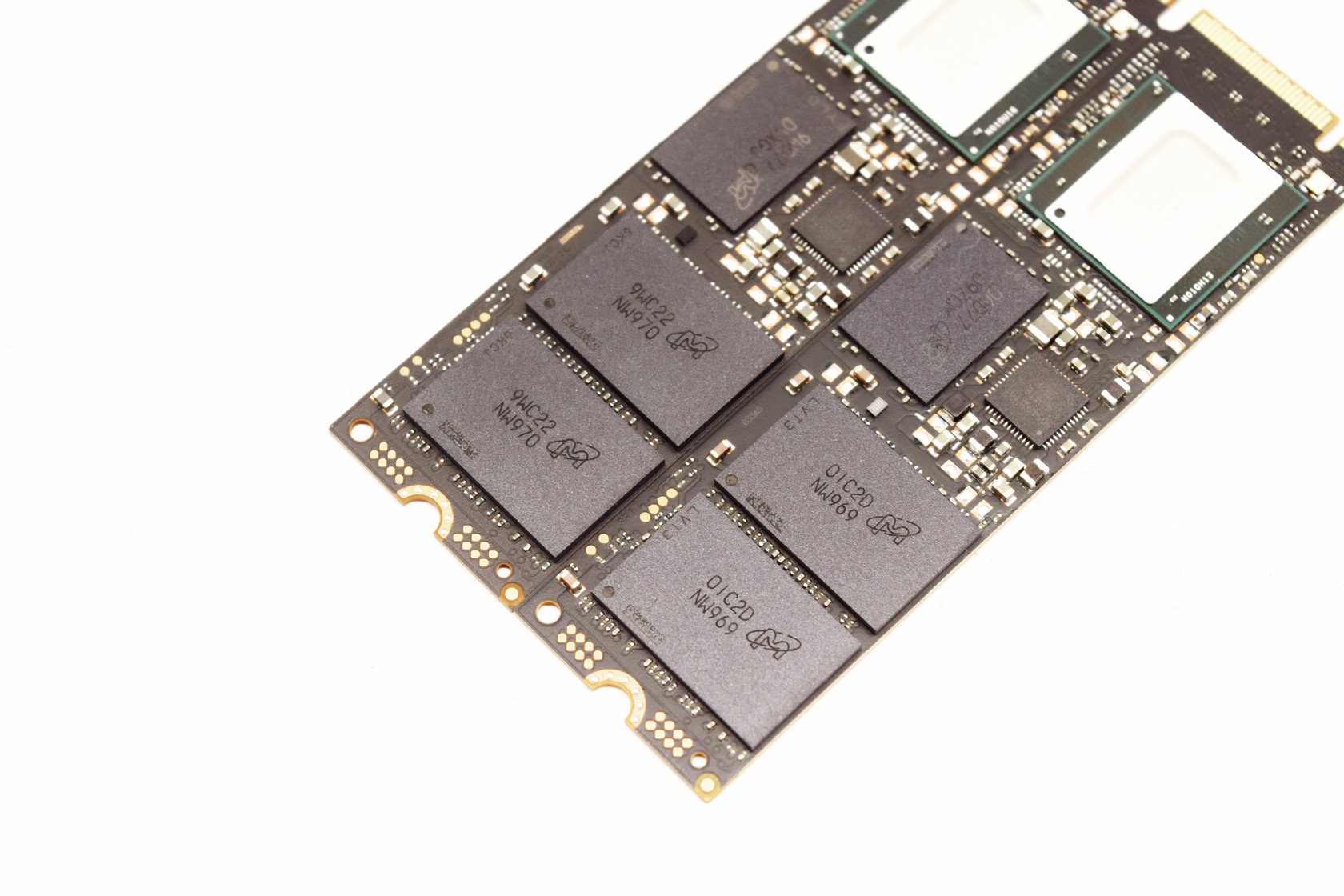

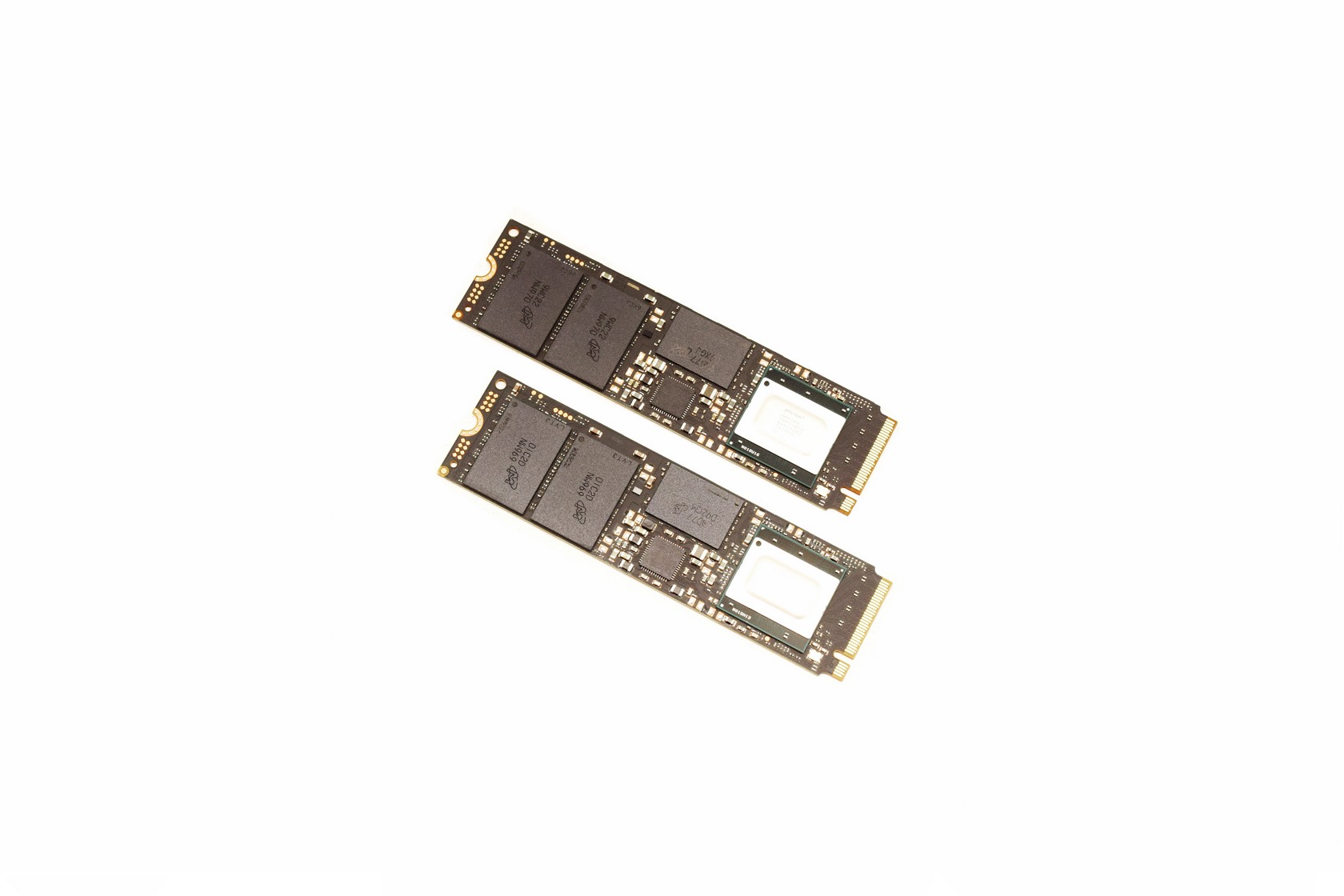

Beneath the sticker we find the DM01B2 NAND flash controller by Micron/Crucial along with a single LPDDR4 DRAM module (1GB for the 1TB model and 2GB for the 2TB model) and two 512Gbit 96L TLC NAND flash modules (512GB each for the 1TB model and 1024GB each for the 2TB model).





The opposite side of the PCB is completely empty and only has a sticker with information like the firmware version, capacity, country of origin and various logos printed on it.
