THE GAMMA 1TB

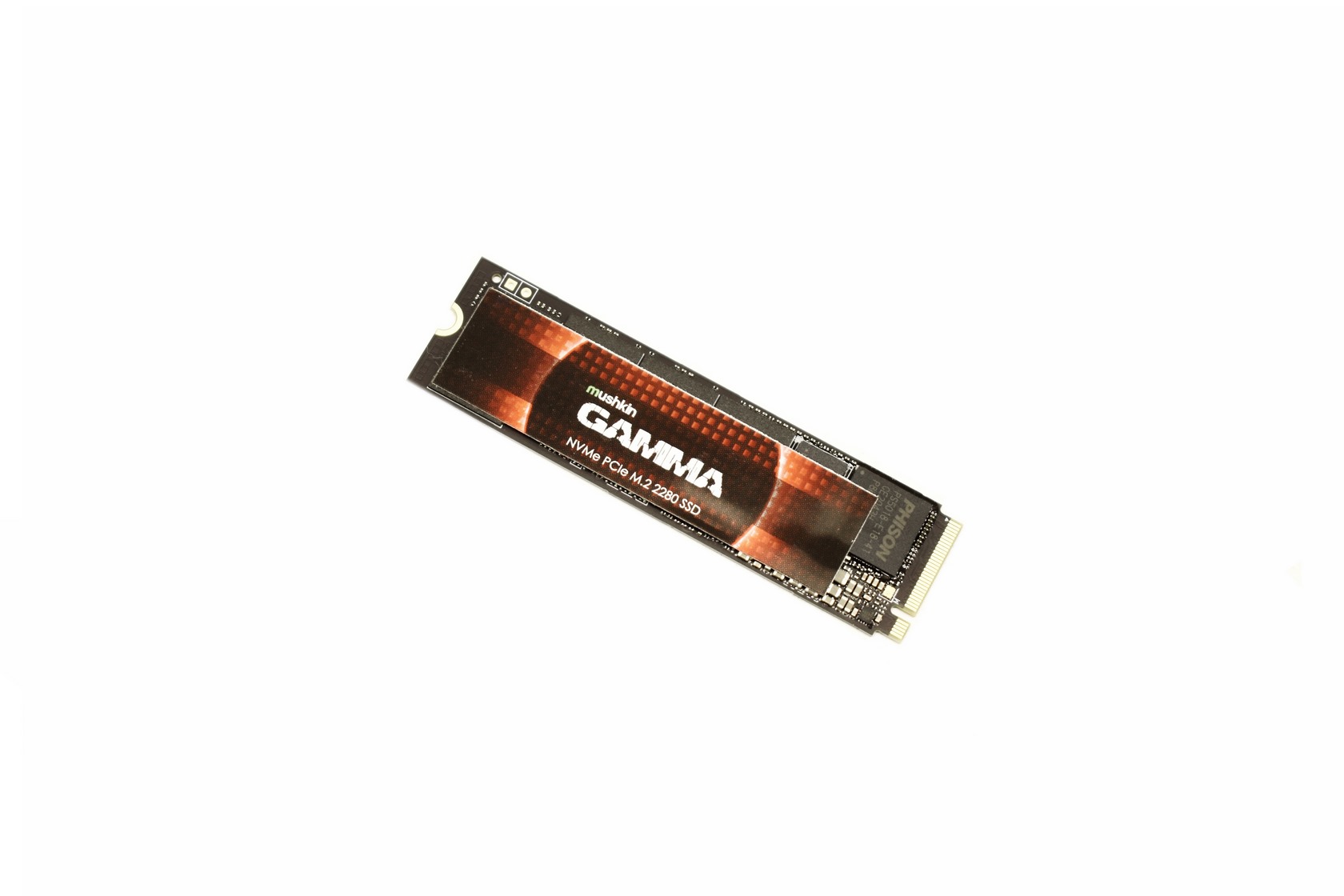

Once again in my hands i have an drive that follows the typical M.2 2280 form factor (22mm wide and 80mm long / M-key).

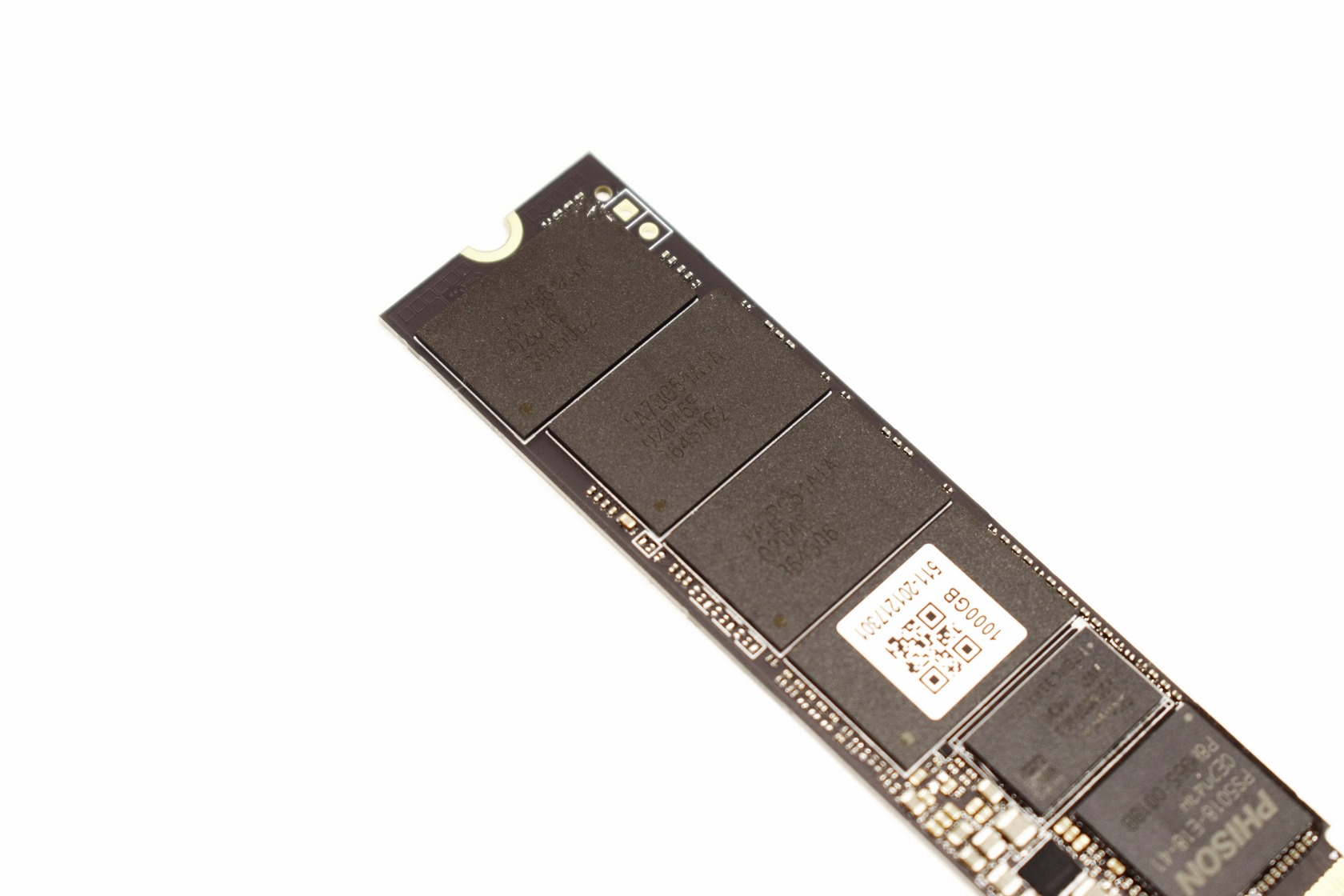

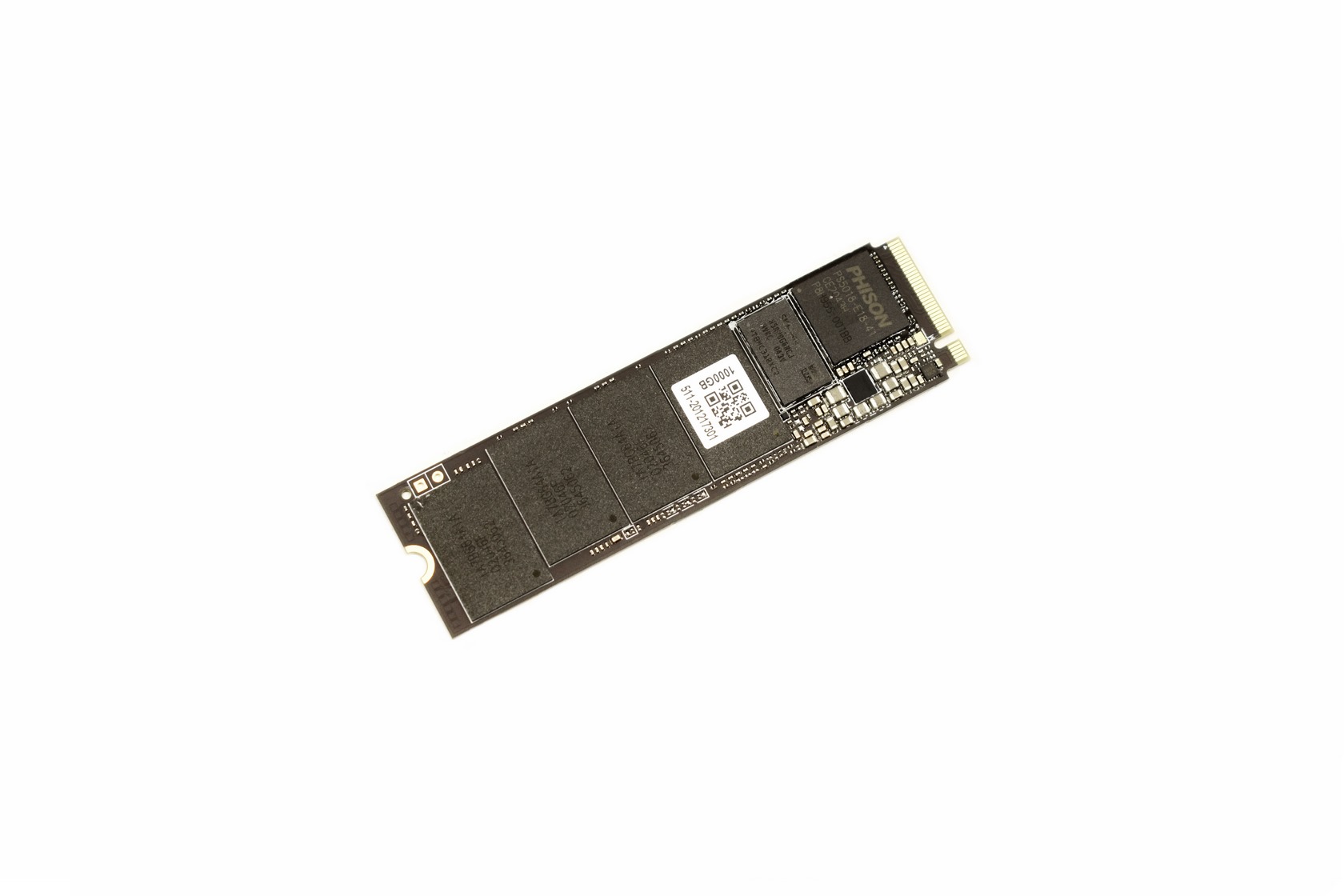

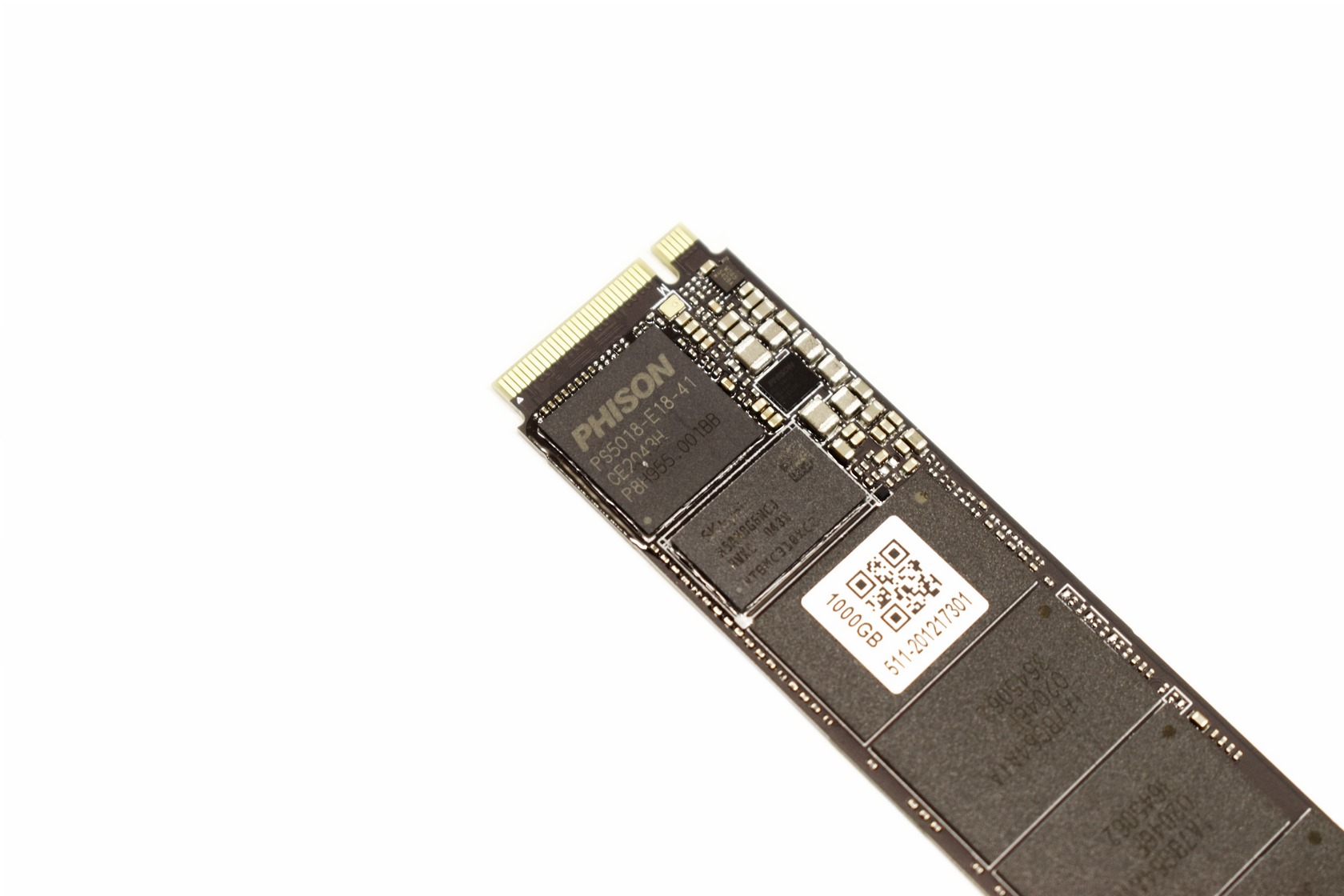

Underneath the sticker located on the top side of the PCB we see the PHISON PS5018-E18 NAND flash controller right next to four Micron 256GB 96-Layer 3D TLC NAND flash modules and a single DDR4 2666MHz module by SK Hynix.

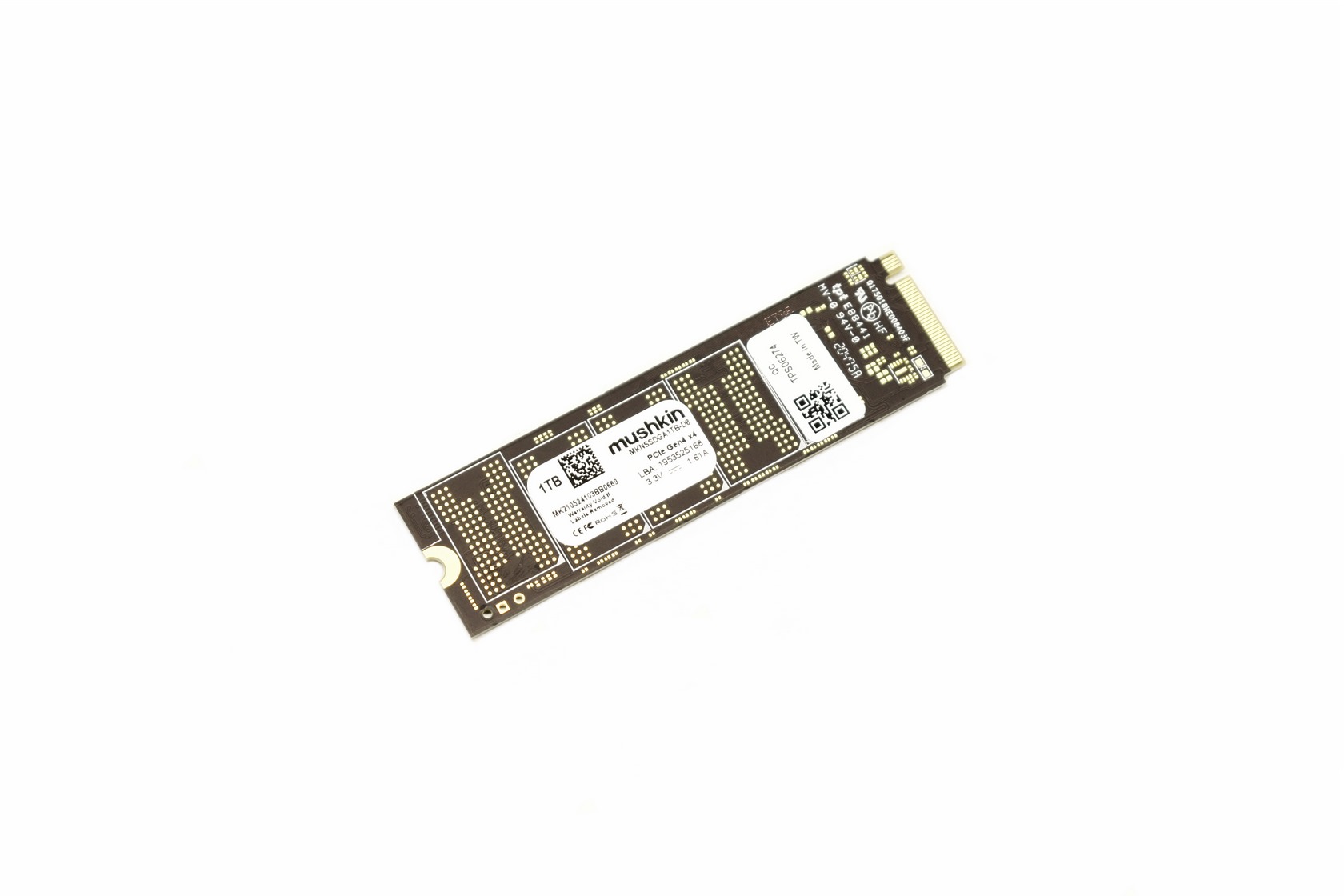

The other side of the PCB is empty which means it's populated in the larger capacity variants.
