THE ROCKET 4 PLUS 2TB

As always, the Rocket 4 Plus 2TB is an NVMe 1.4 M.2 Gen 4x4 SSD which once again follows the typical 2280 factor (22mm in width and 80mm in length).

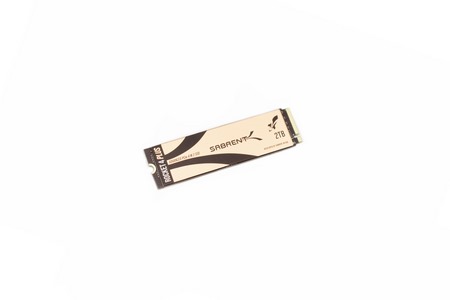

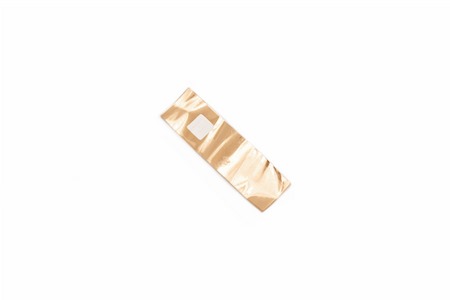

Typically, the top sticker is actually a thin copper heatspreader which helps dissipate heat (even without the PS5 heatsink).

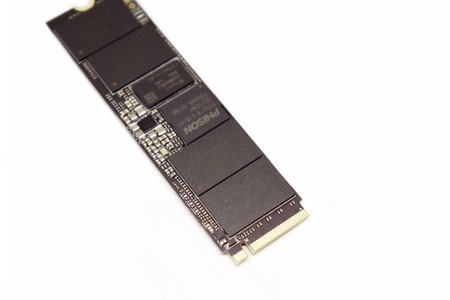

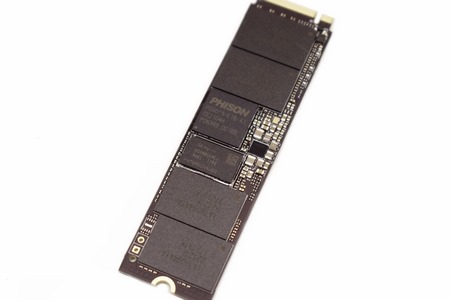

On the top side of the PCB once again we find the PHISON PS5018-E18 NAND flash controller and a 1GB DDR4 SDRAM 2666MHz module by SKhynix.

This time over however we also find 4 Micron 512Gb 176-layer 3D TLC NAND flash modules.

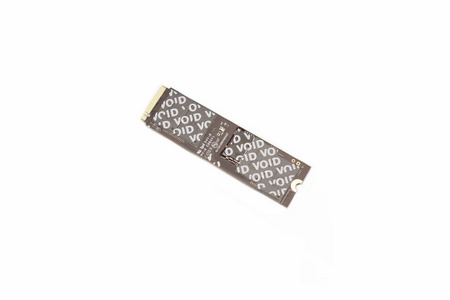

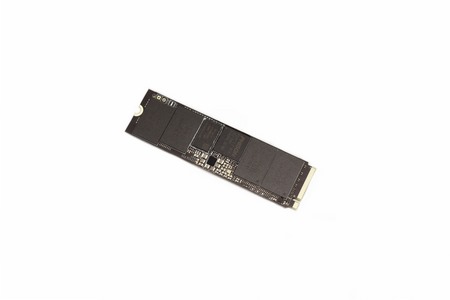

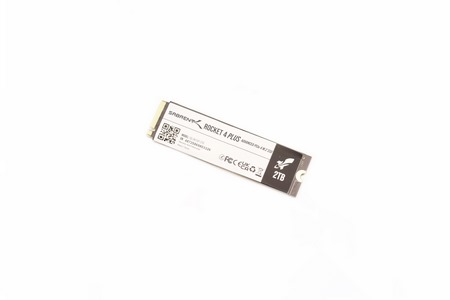

Just like its predecessor this isn't a single side M.2 SSD model so turning the drive over we see yet another sticker under which we find a 2nd 1GB DDR4 SDRAM 2666MHz module by SKhynix and 4 more 512Gb 176-layer 3D TLC NAND flash modules by Micron (removing this sticker will void your warranty).
