THE P5 PLUS 1TB

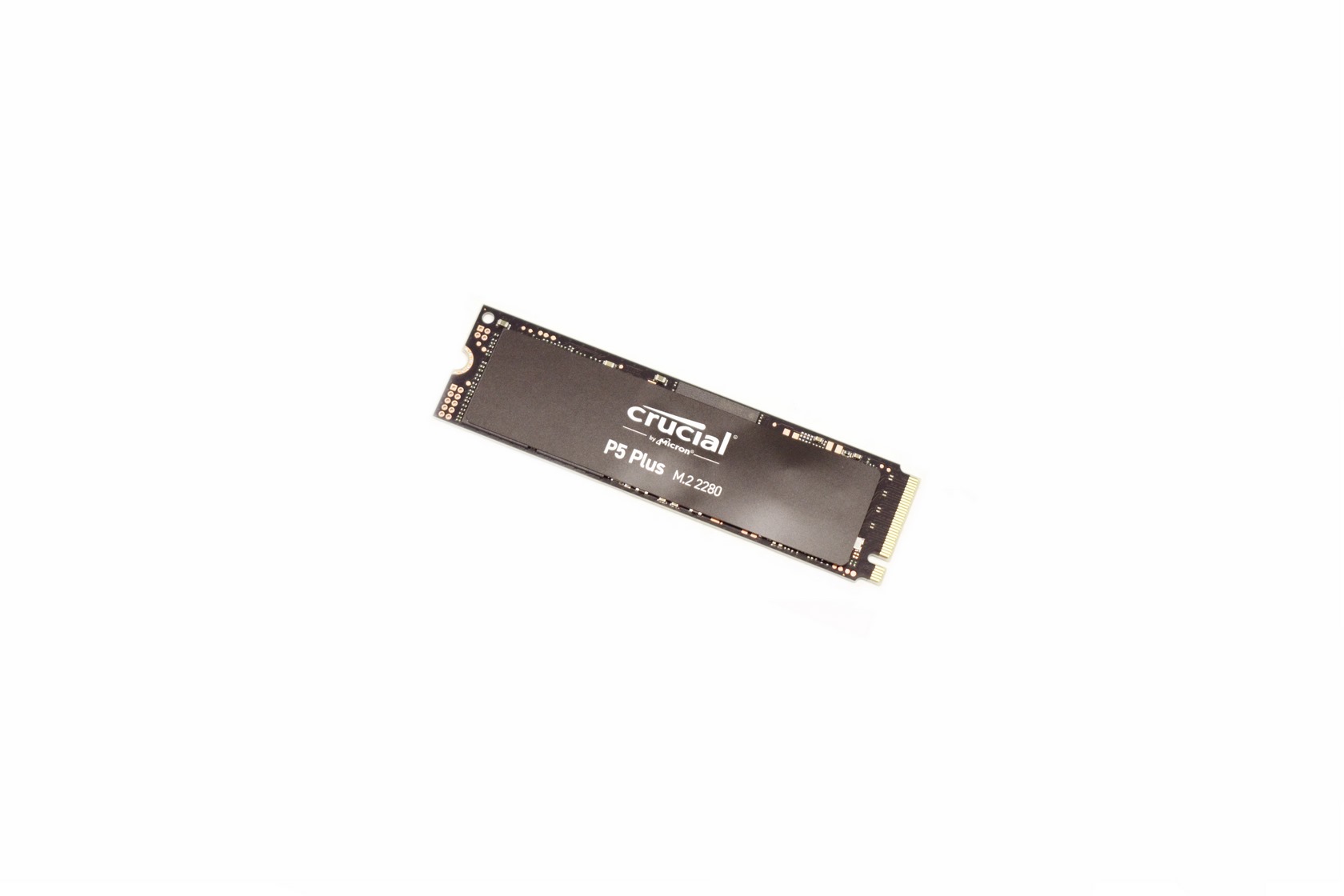

Just like the P5 the P5 Plus follows the typical 2280 standard (22mm in width and 80mm in length) and comes with a black sticker on top.

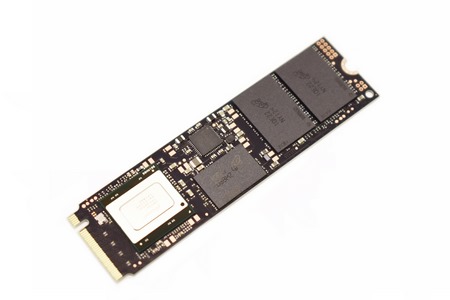

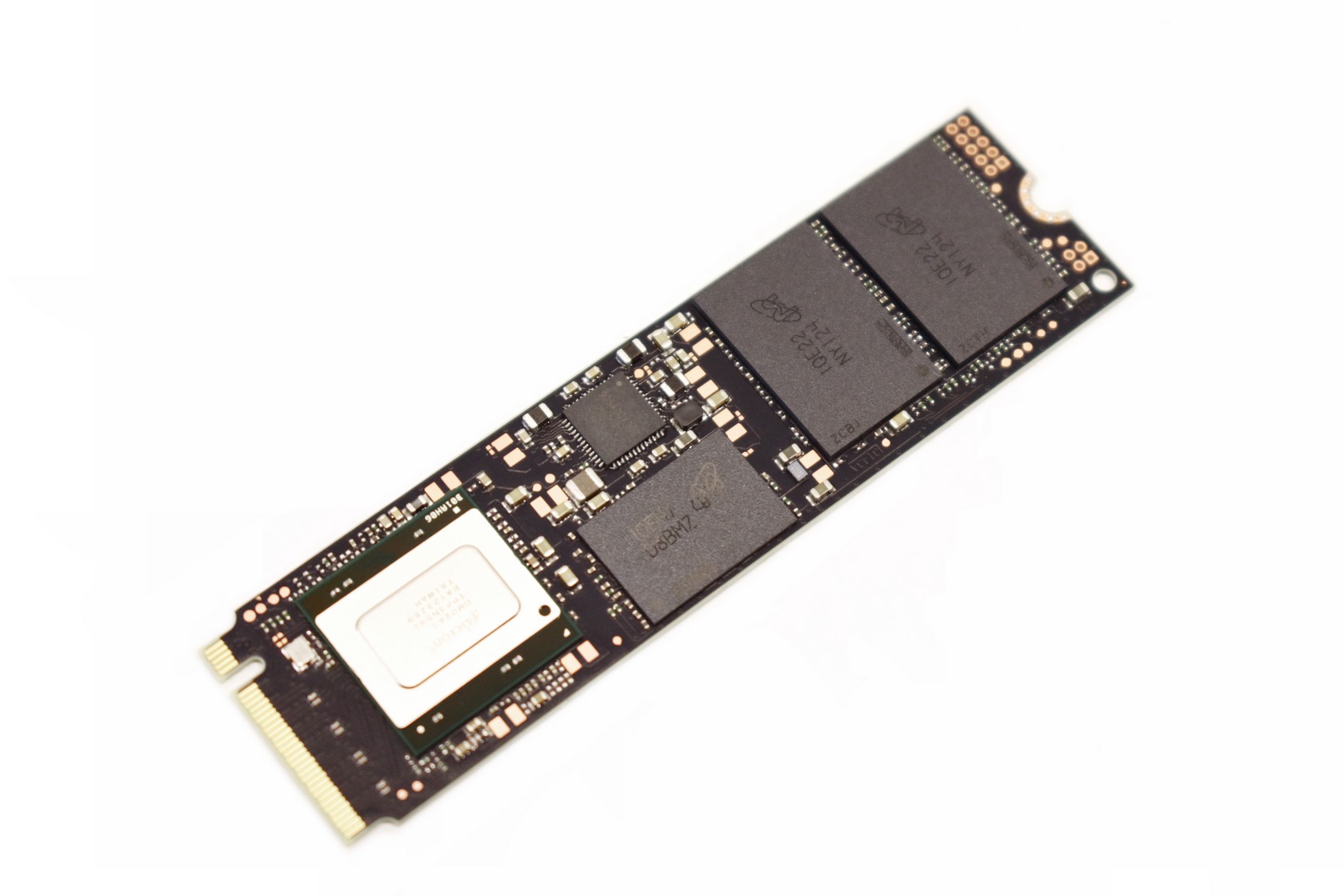

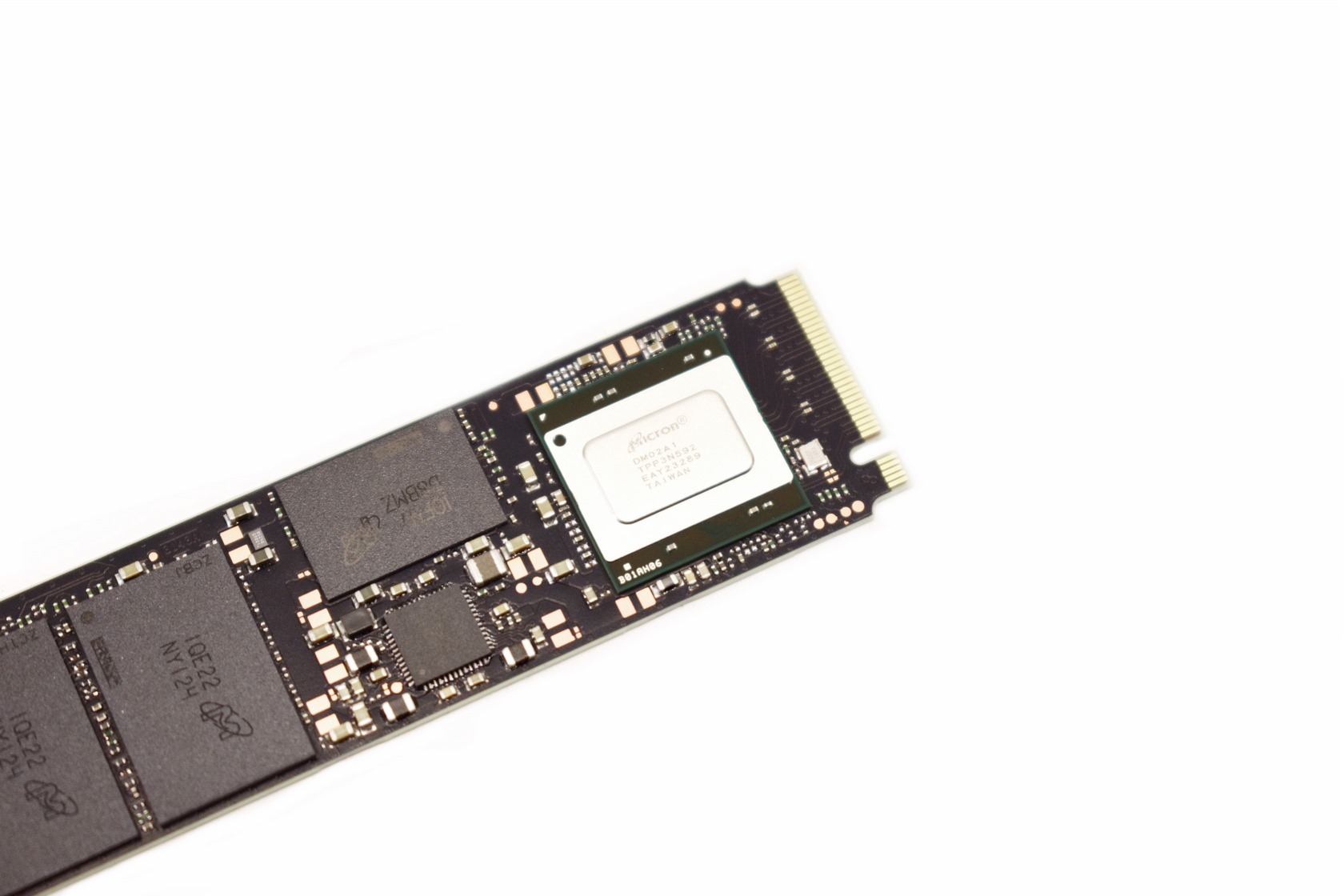

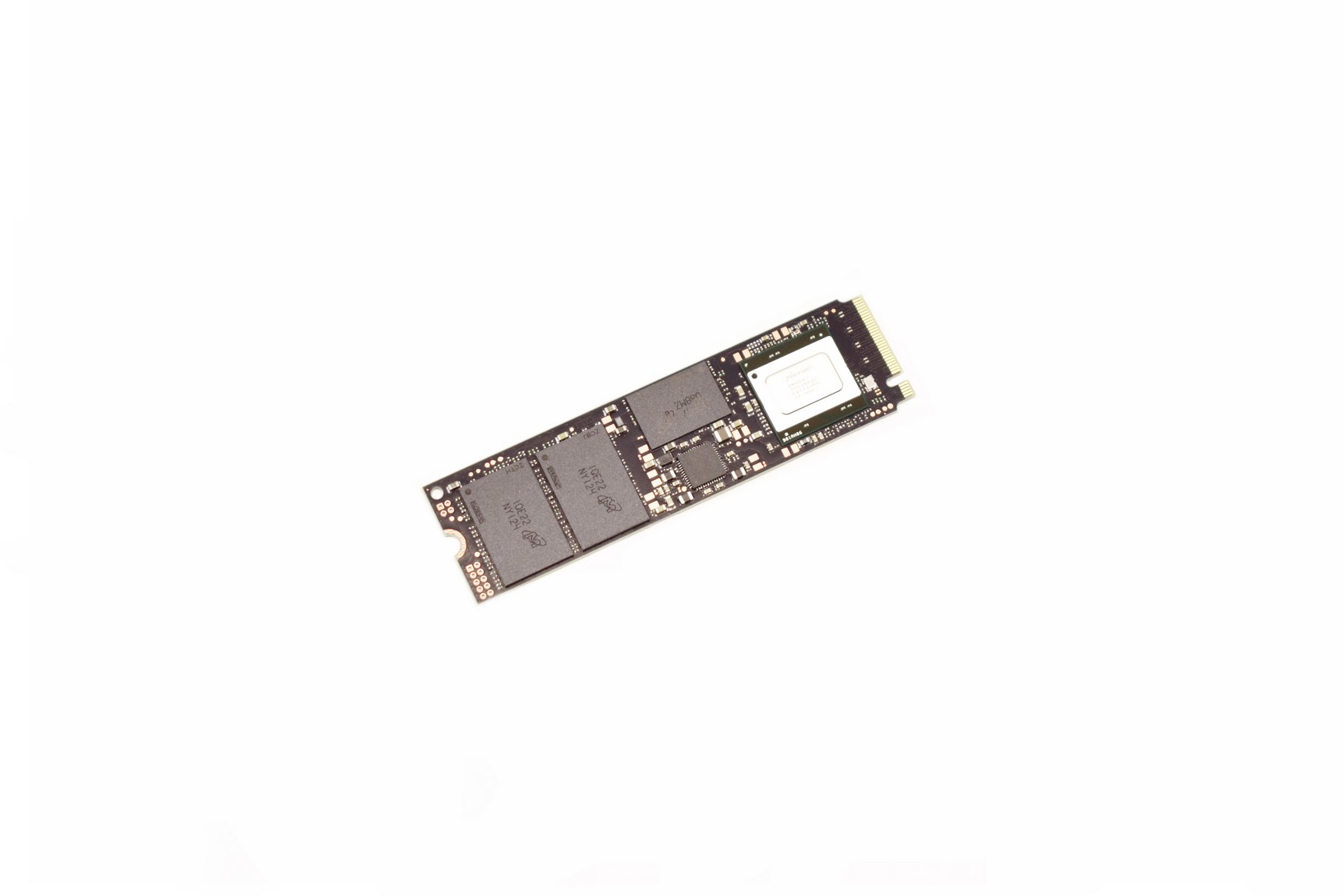

Beneath the sticker we find their in-house 8-channel NAND flash controller along with three 176-layer 3D TLC NAND flash modules by Micron and an 1GB LDDR4 SDRAM module.

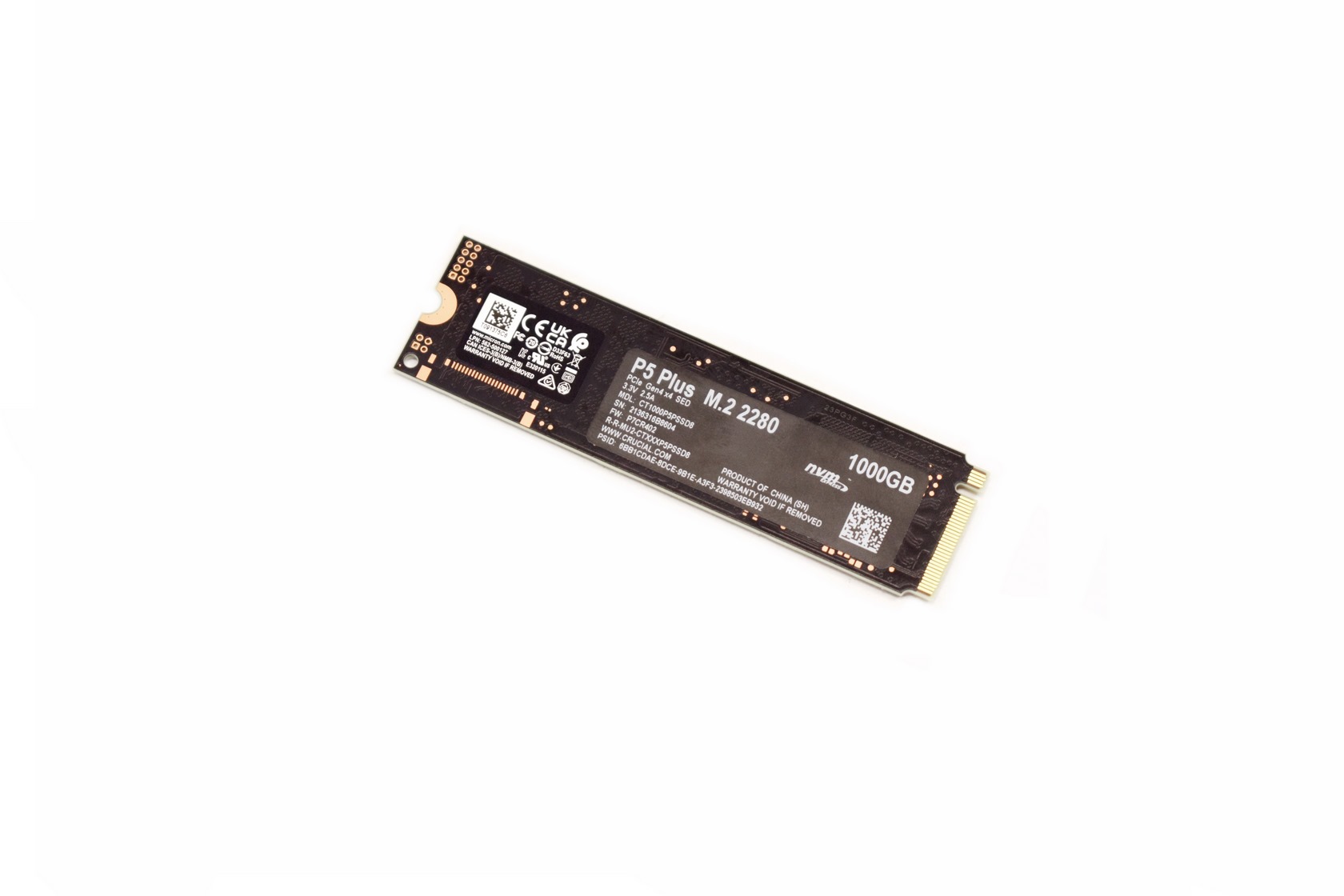

Since this is a single side SSD the other side of the PCB is completely empty and has 2 stickers on it with information and numerous certifications about the drive.
