THE NM800 PRO 1TB

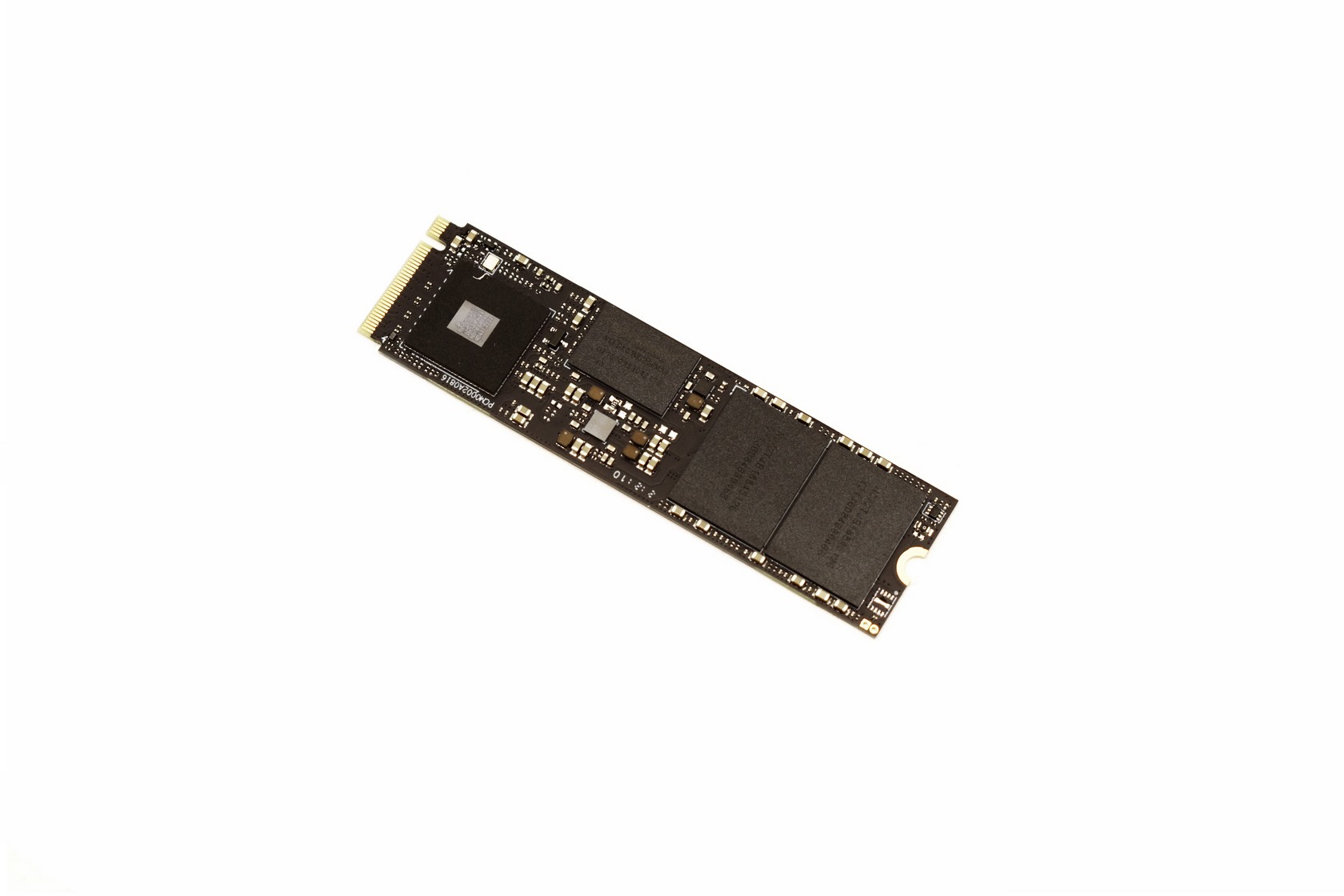

Following the same 2280 form factor as all other M.2 NVMe models the NM800 PRO doesn't really stand out (it's however quite heavier than most).

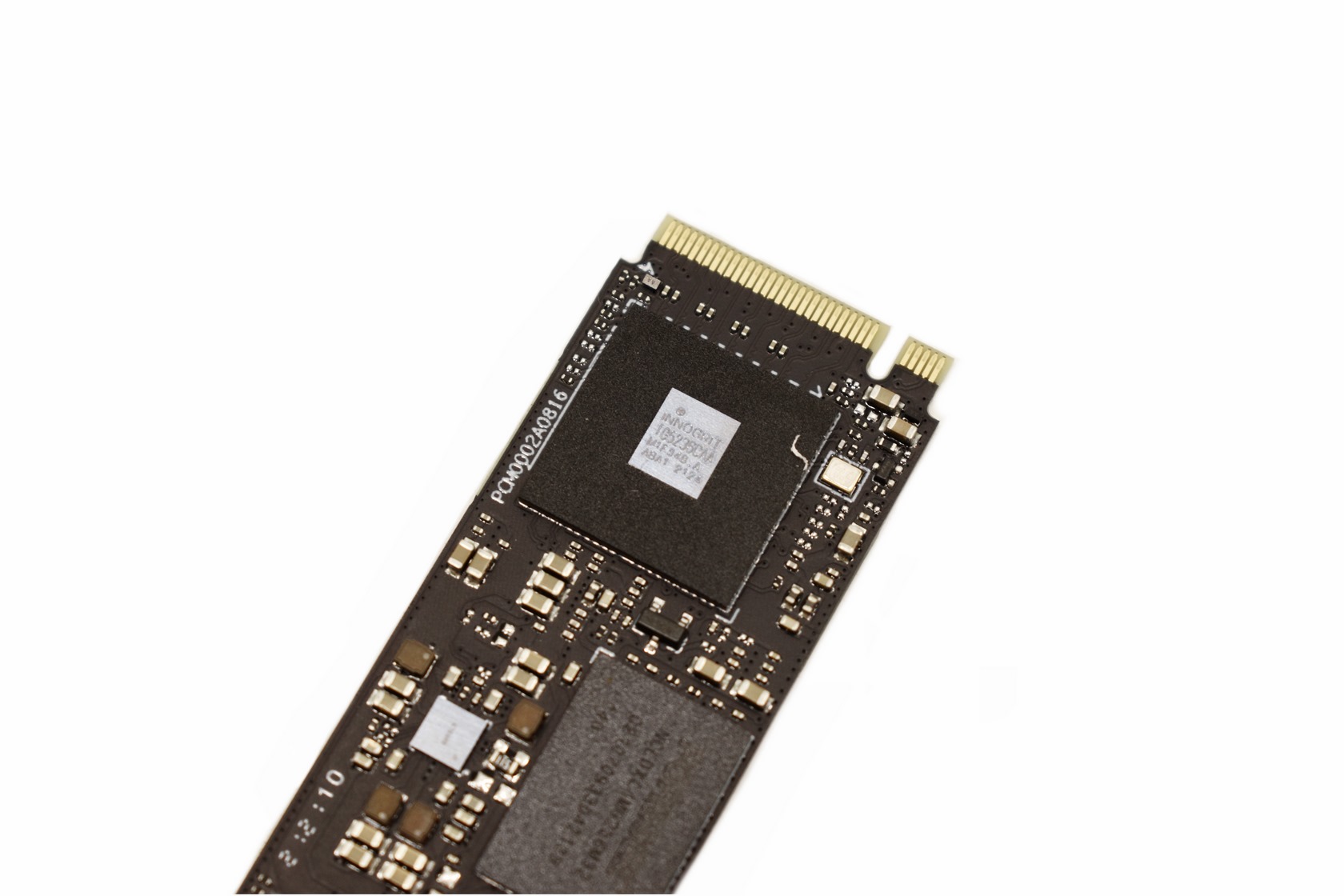

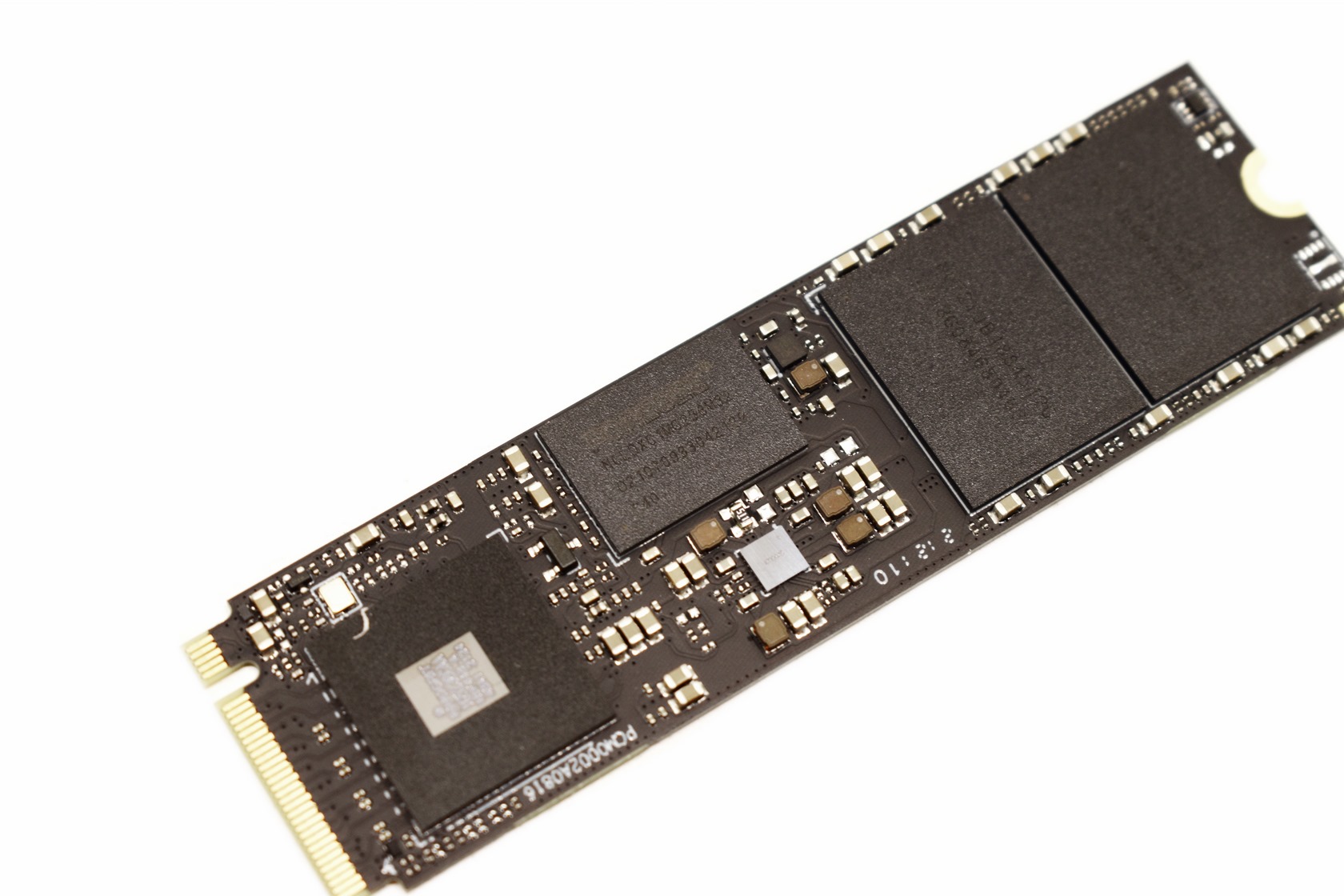

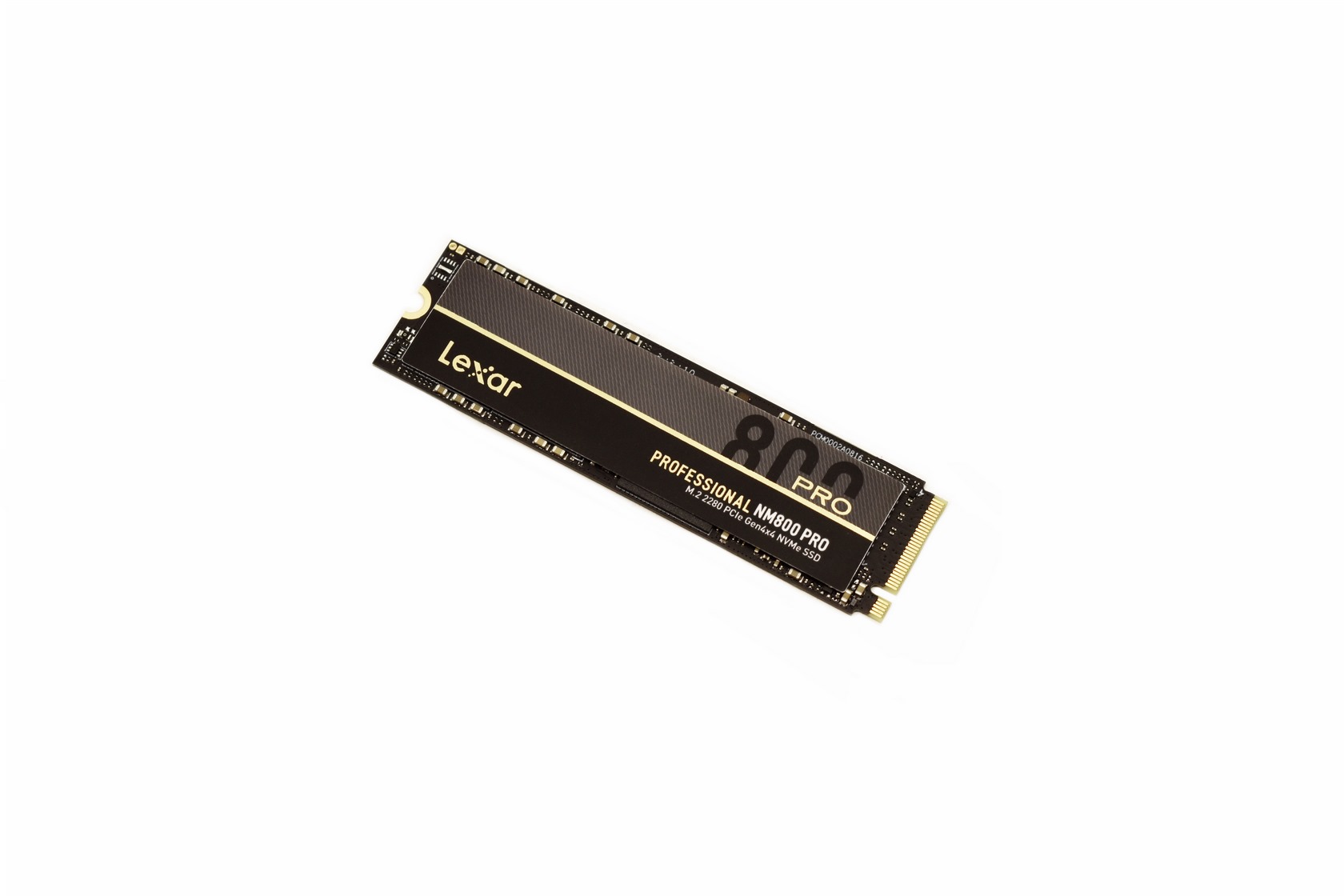

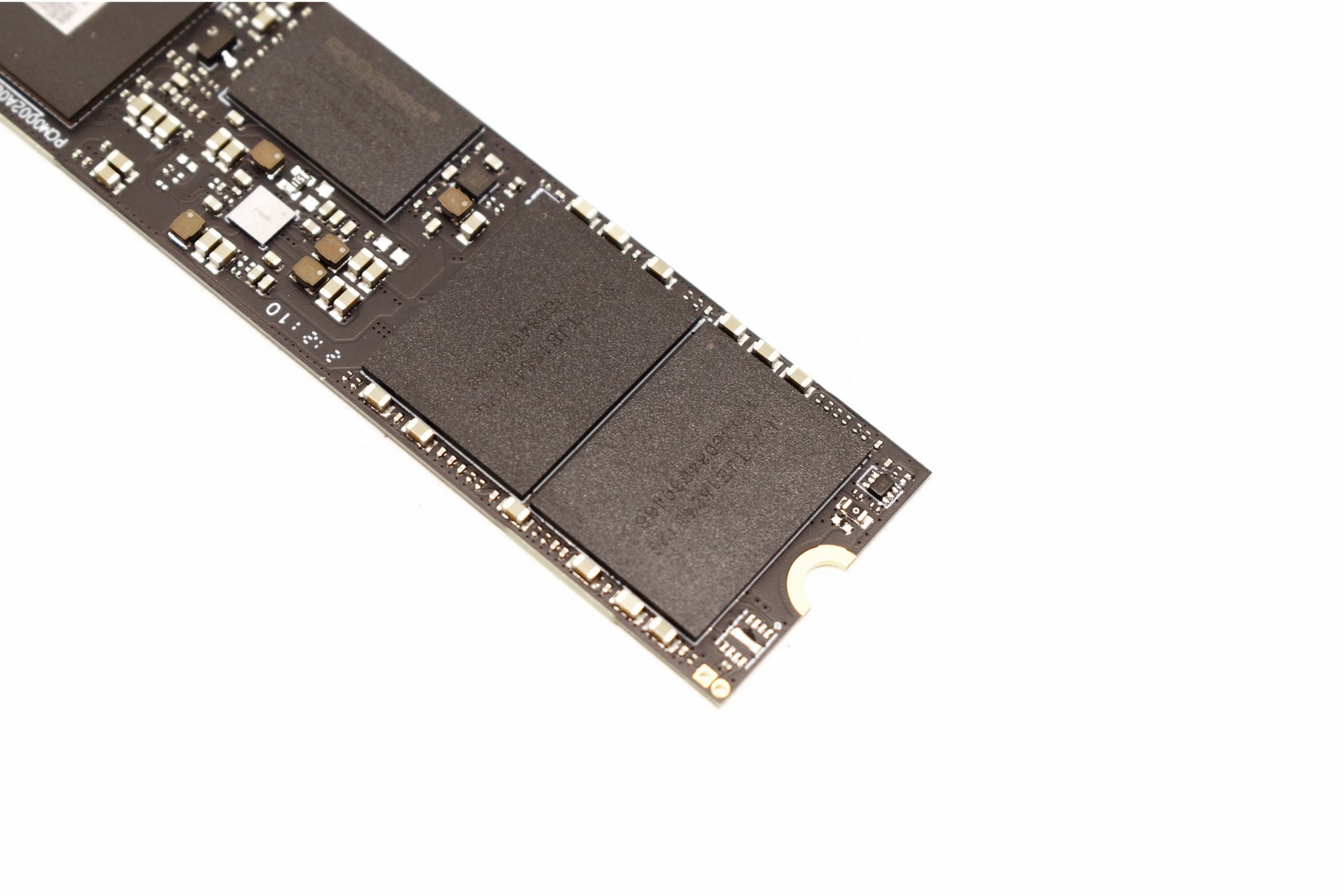

Underneath the large sticker at the top, we find the Innogrit IG5236 NAND flash controller together with an 1GB DDR4L module and two 176-layer 3D TLC NAND flash modules.

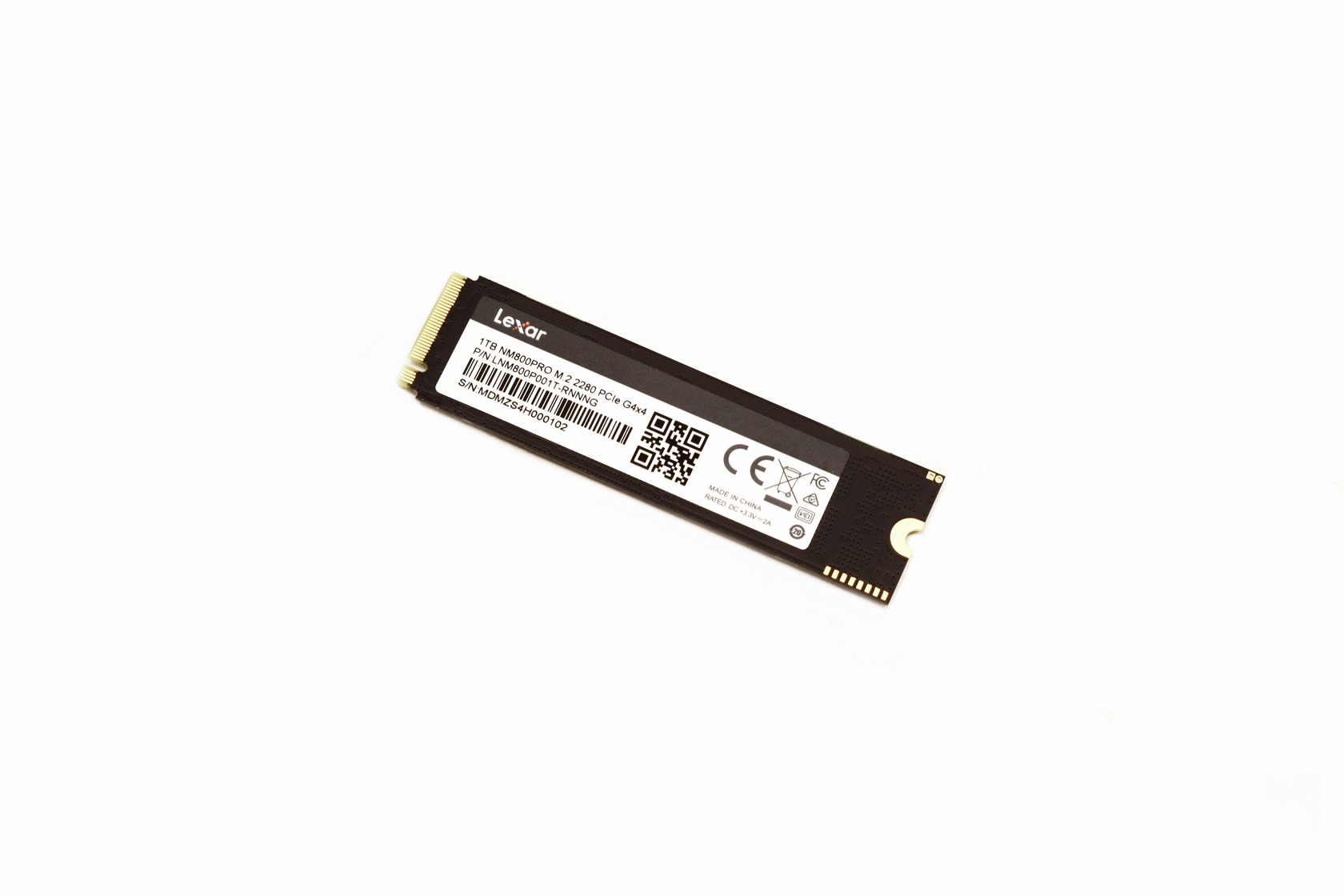

Since the 1TB capacity of the NM800 PRO is a single sided model the other side of the PCB just has a sticker on it with the serial numbers and capacity.
