THE T700 PRO 2TB

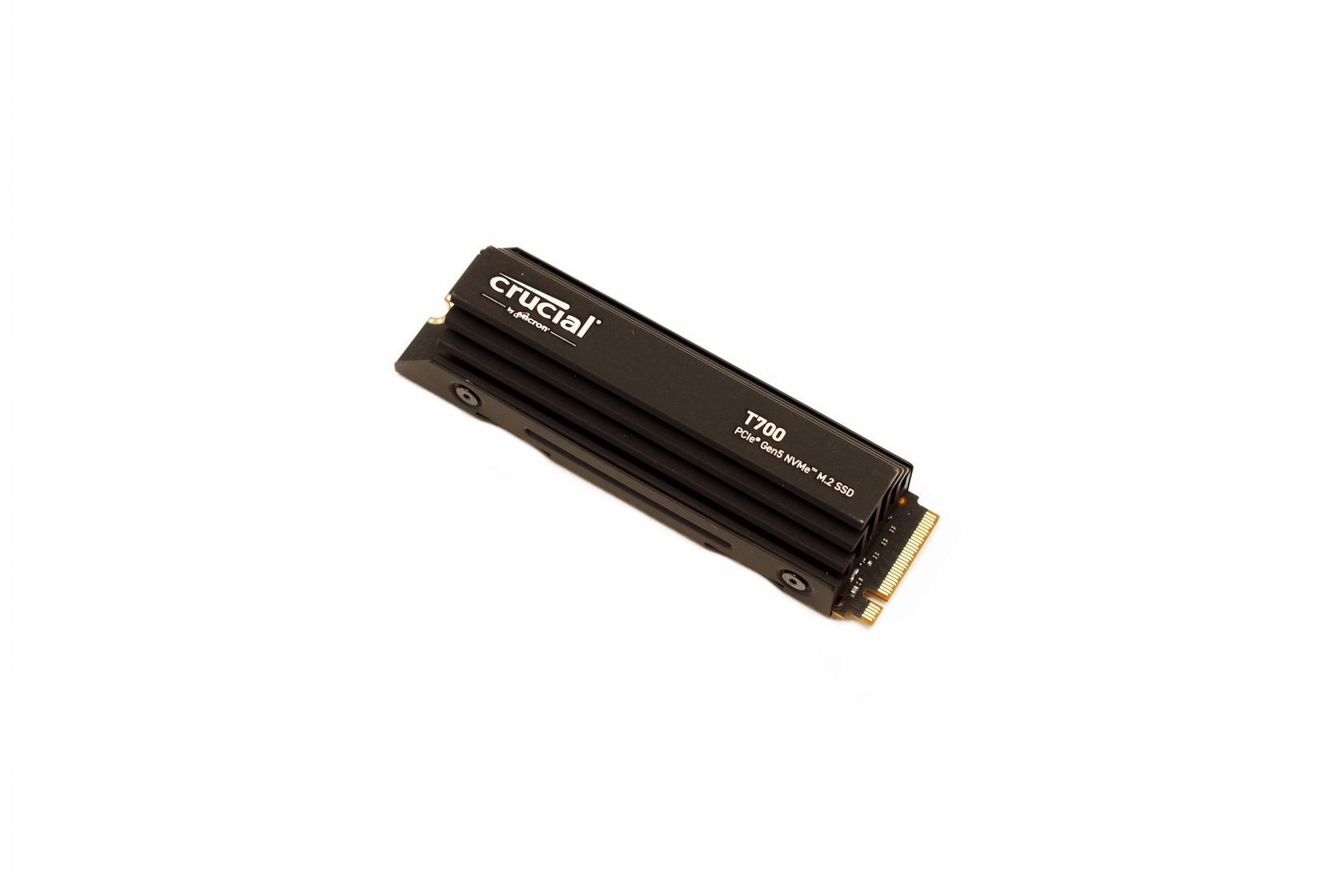

Thanks to its rather thick heatsink the T700 does stand out.

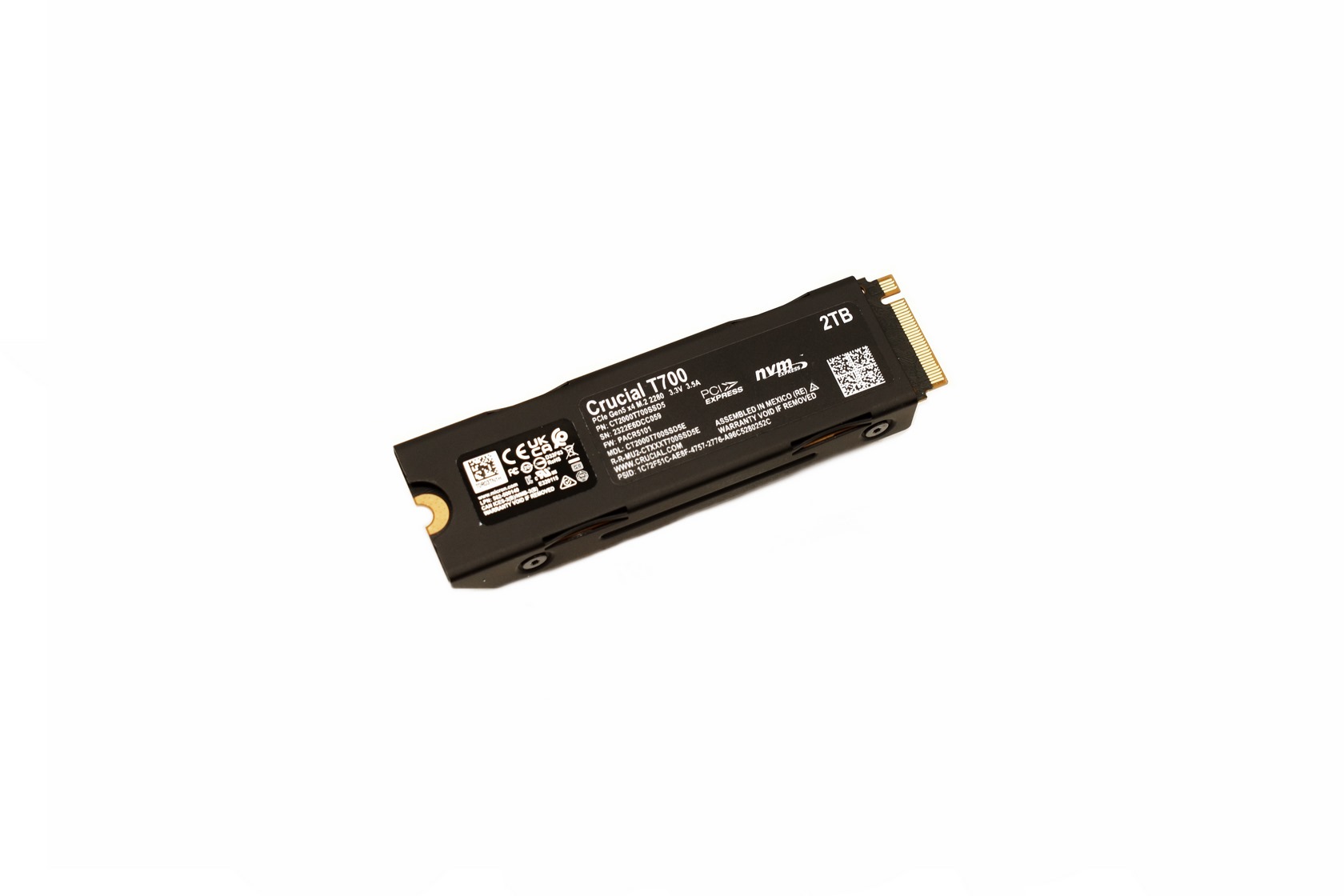

As expected, details for the drive are printed on a sticker located at the base of the enclosure.

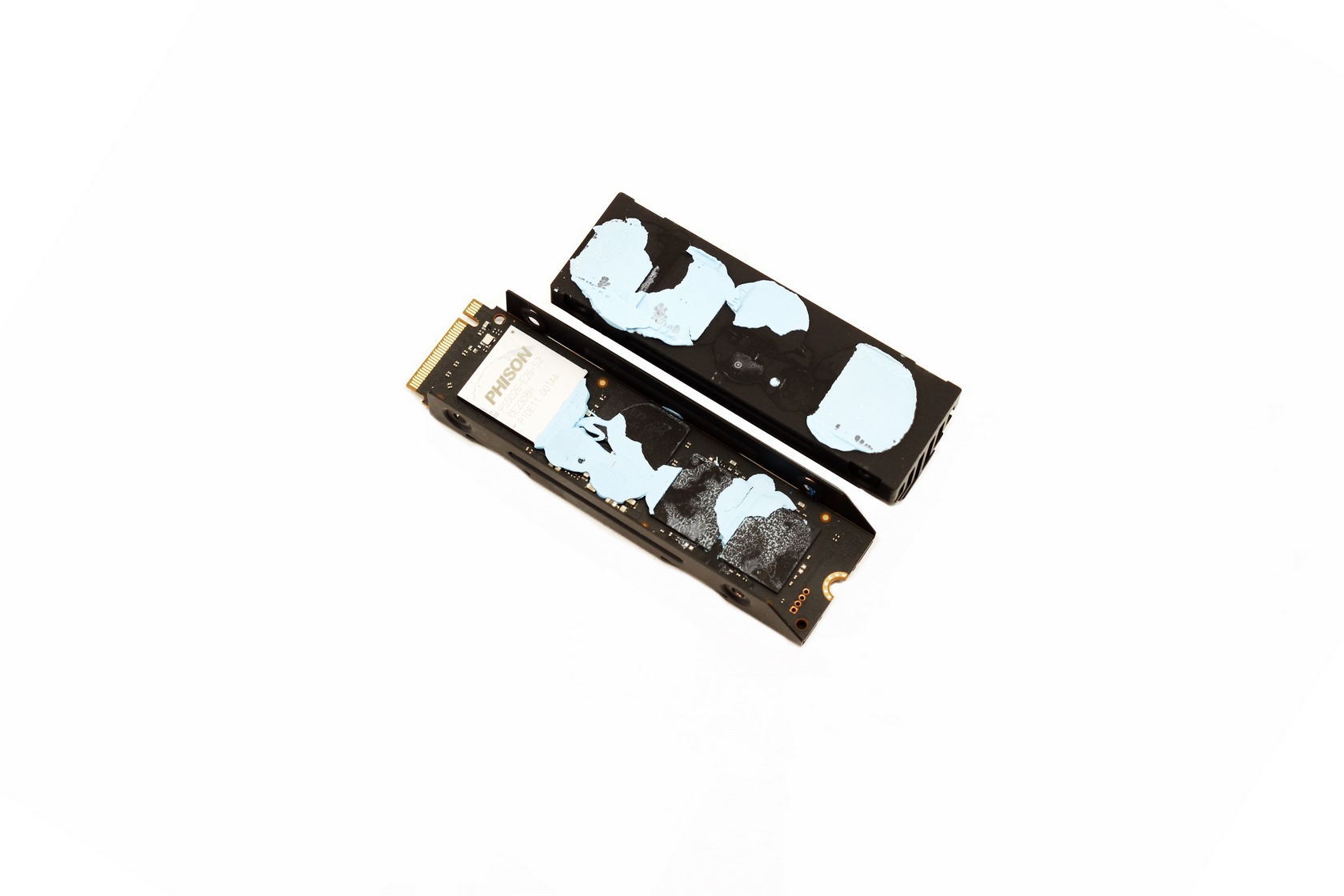

The heatsink is held in place with 4 screws so removing them and then the top is quite easy.

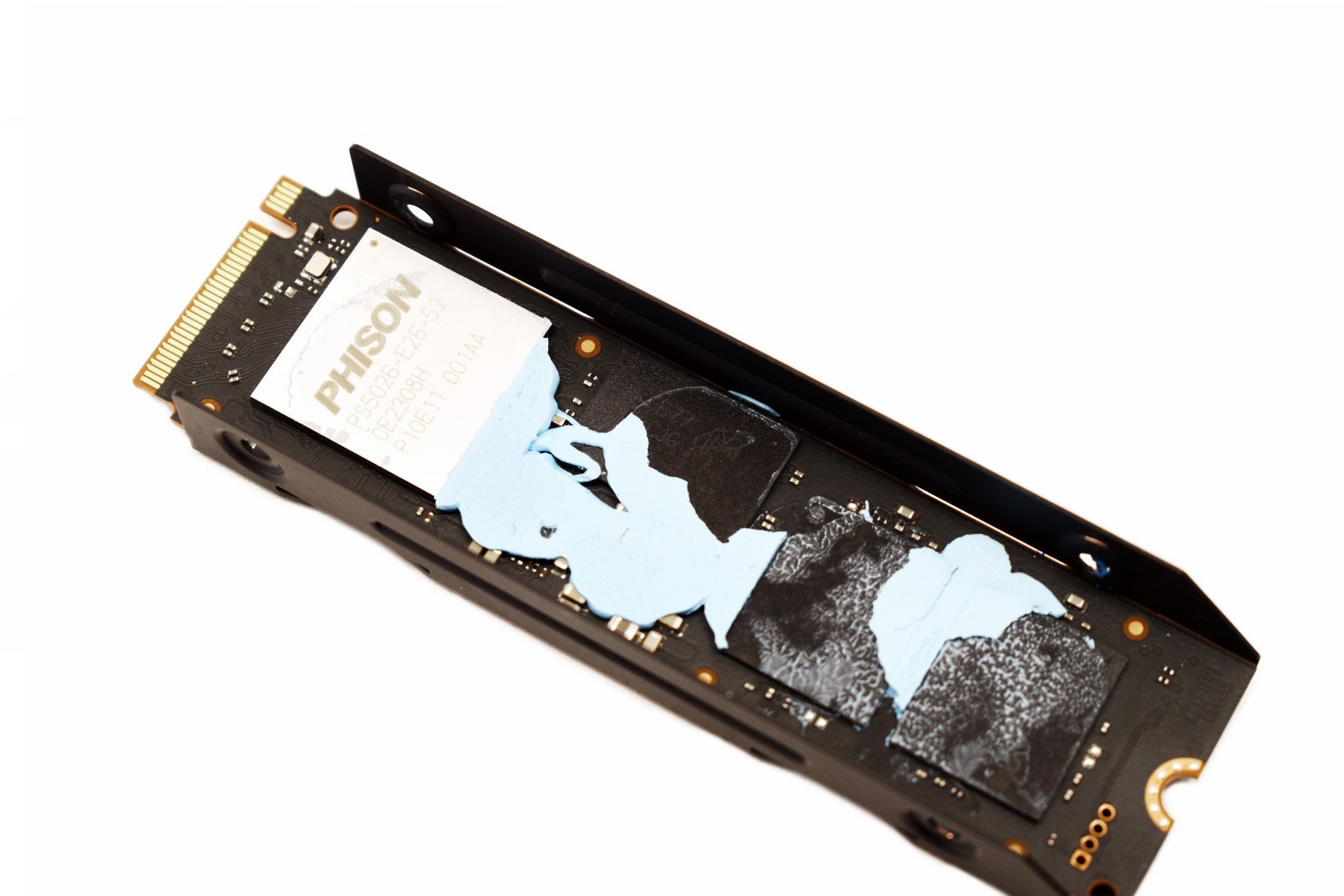

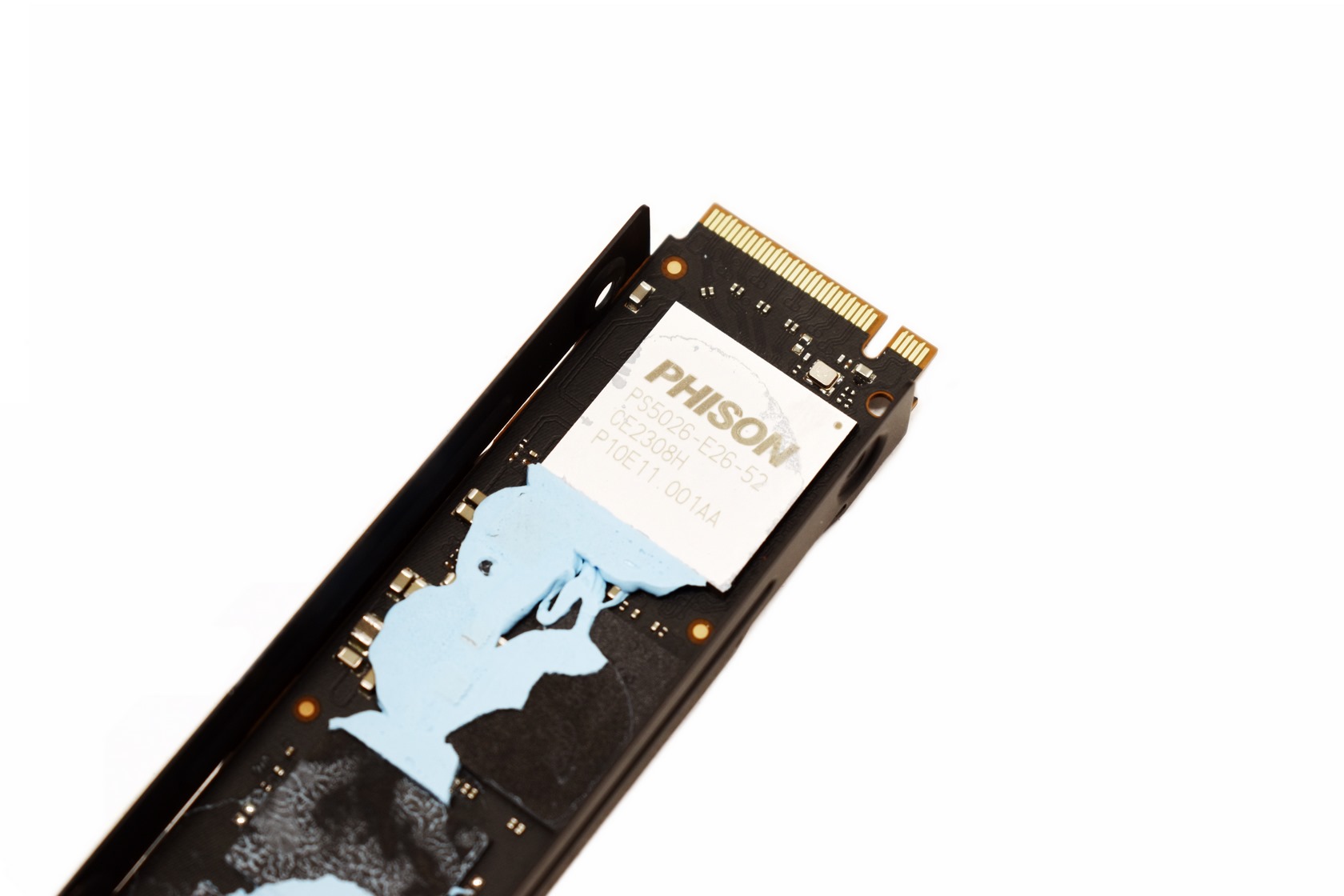

At the top we find the Phison PS5026 (E26) NAND flash controller together with a 4GB LPDDR4-4266 DRAM module and two 232-layer 3D TLC NAND flash modules.

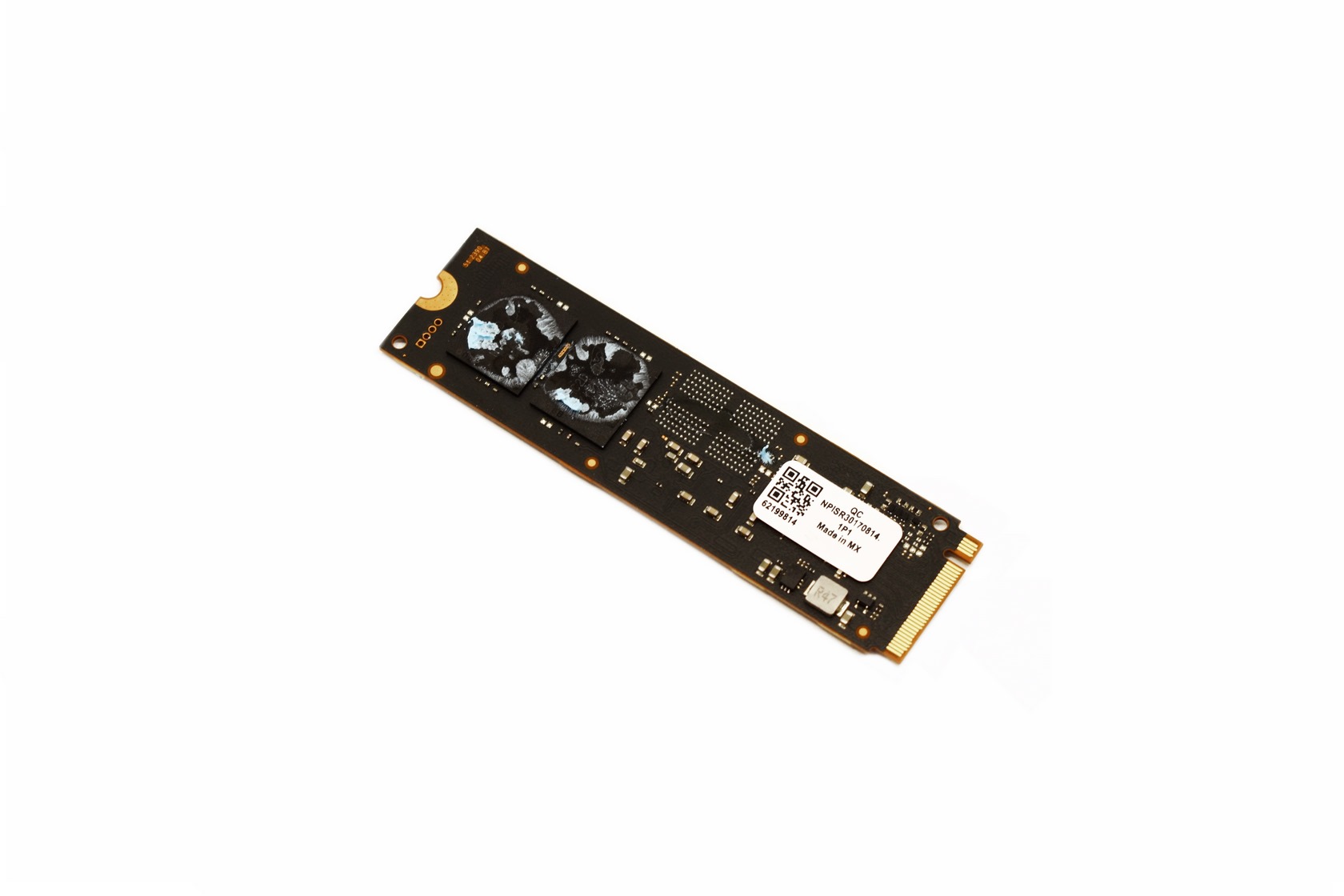

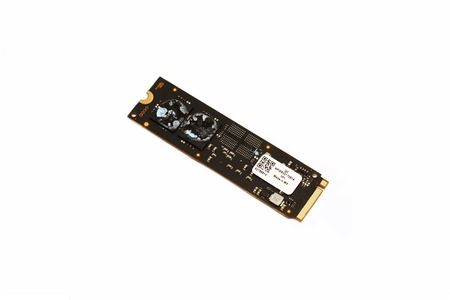

Turning the drive over we find two more 232-layer 3D TLC NAND flash modules and an empty DRAM space (for use with the 4TB model probably - review soon).

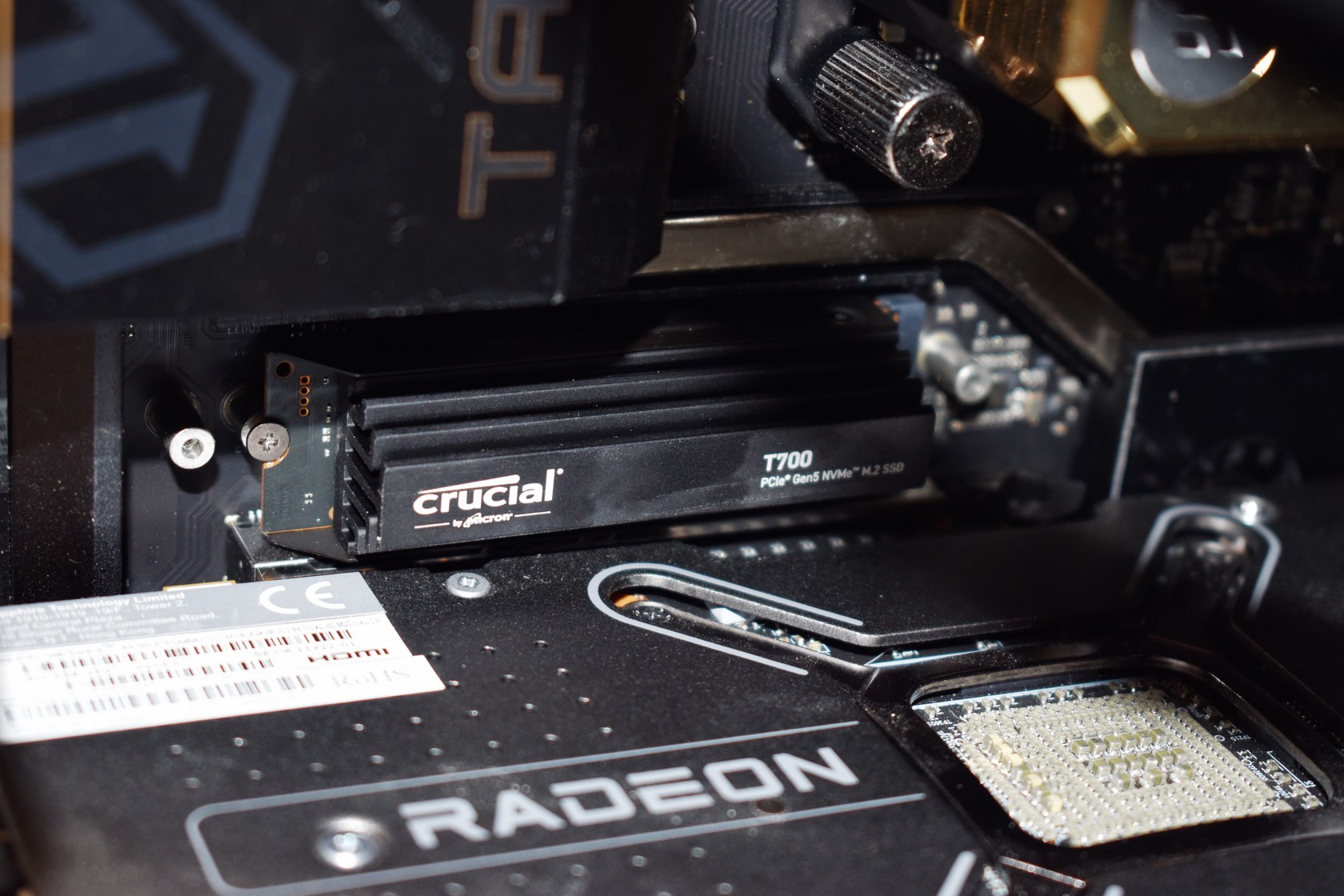

Here you can see the T700 installed on the ASRock X670E Taichi after all my tests were completed (the discoloration could be due to heat).
