THE T700 PRO SERIES 4TB (HEATSINK)

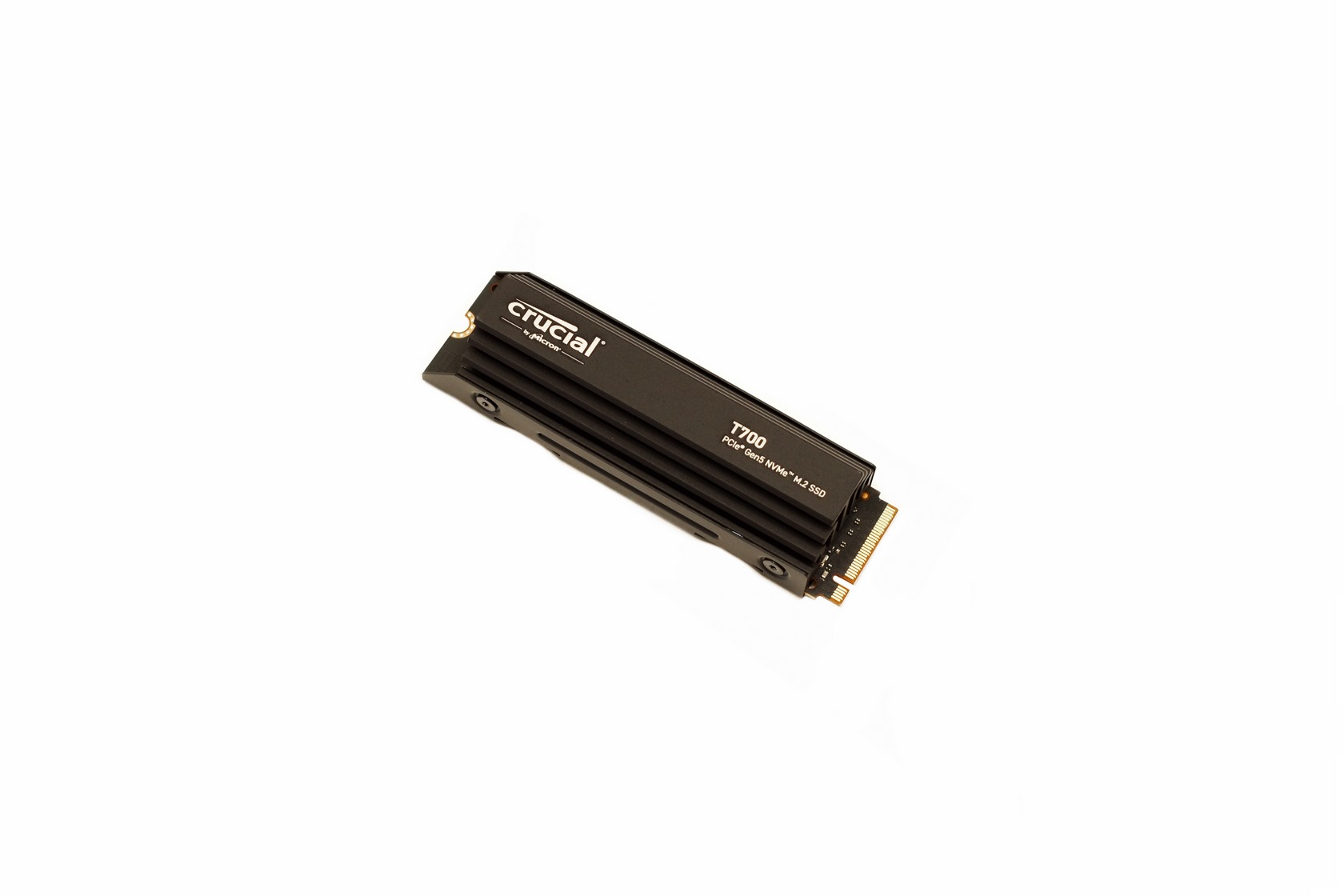

Thanks to its rather thick heatsink the T700 Pro Series Gen5 SSD looks and is quite unique.

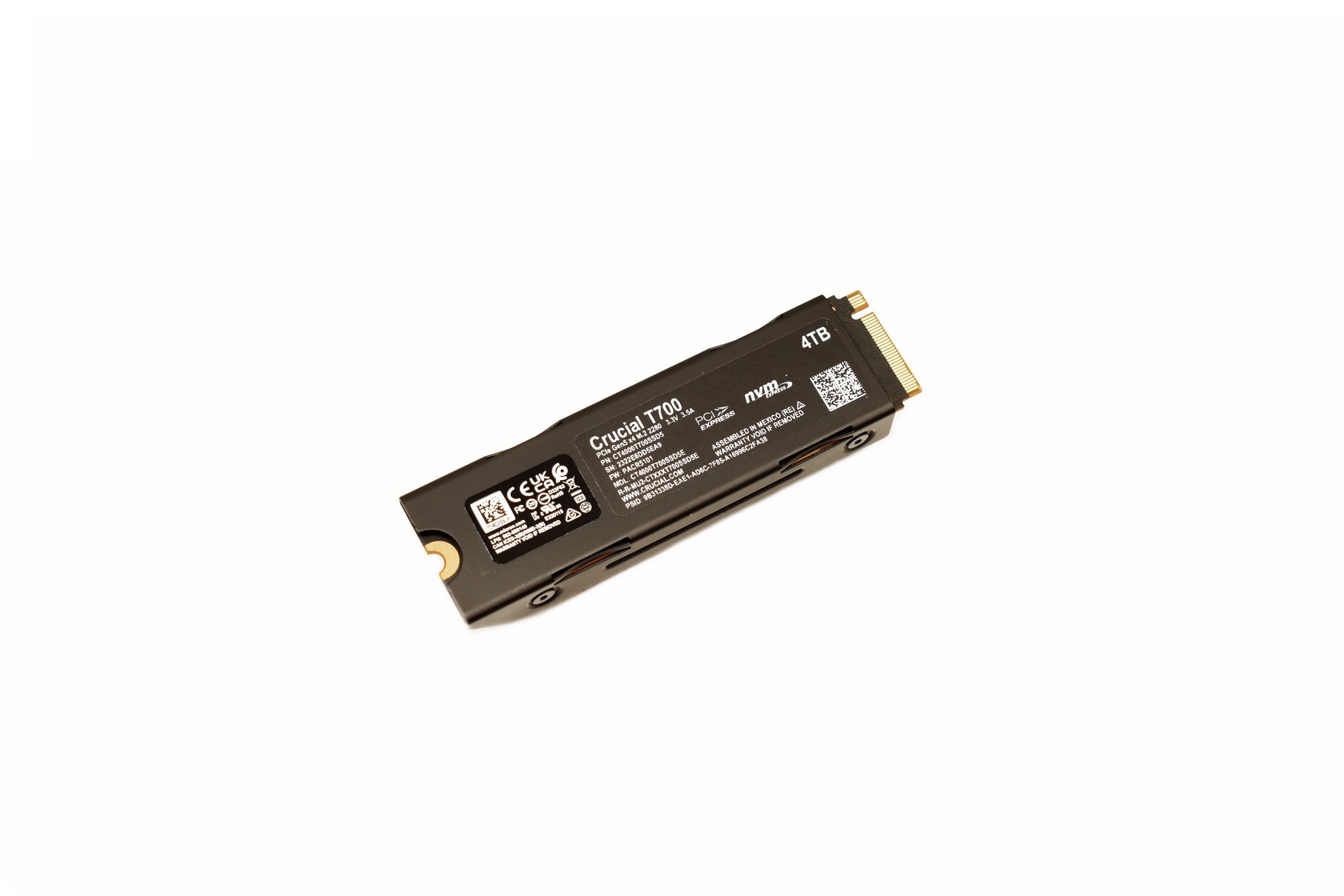

As expected, details for the drive are printed on a sticker located at the base of the enclosure.

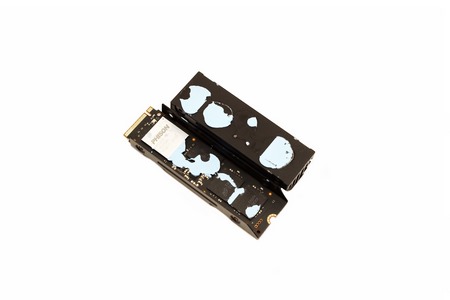

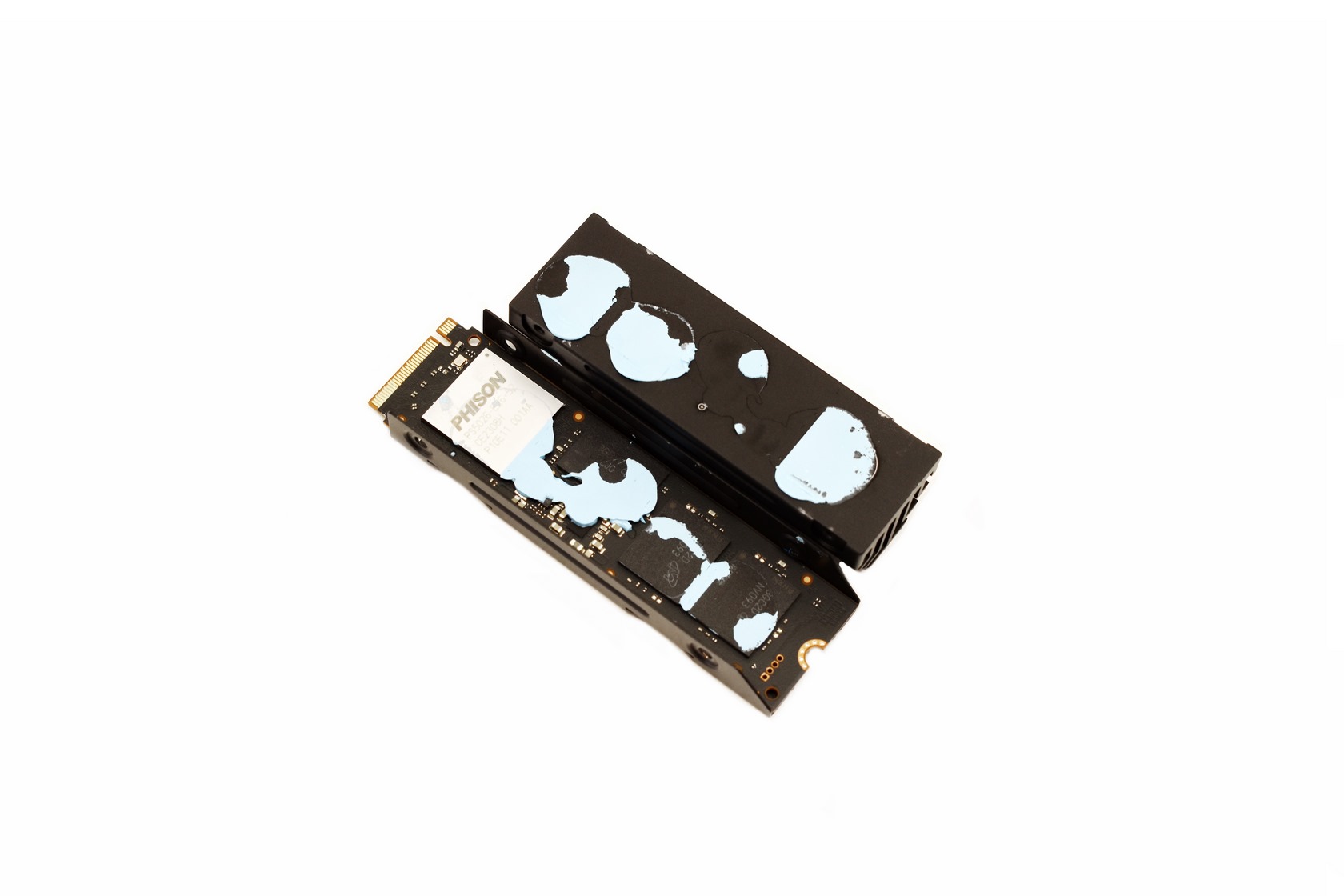

The heatsink is held in place with 4 screws so removing them and then the top is quite easy.

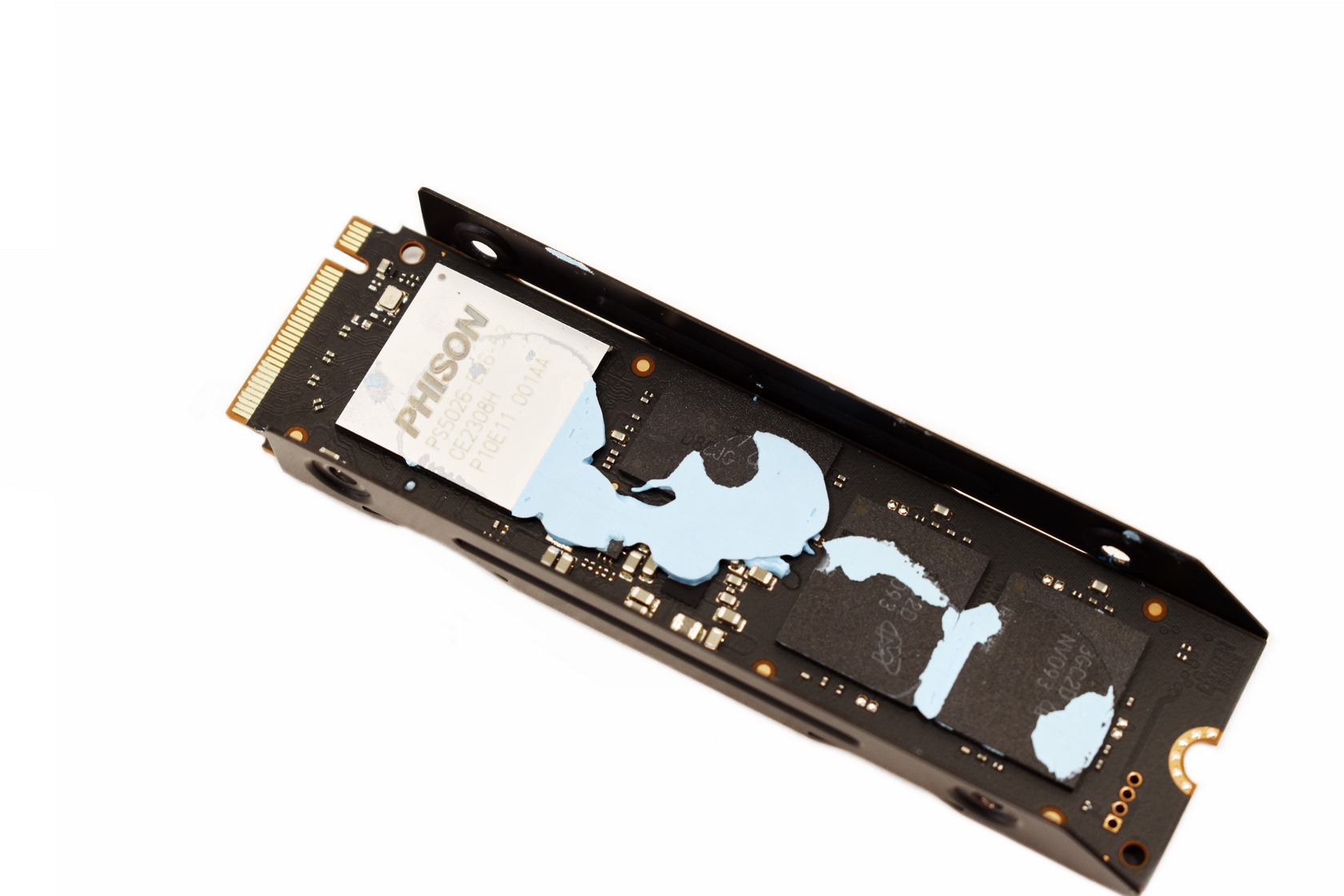

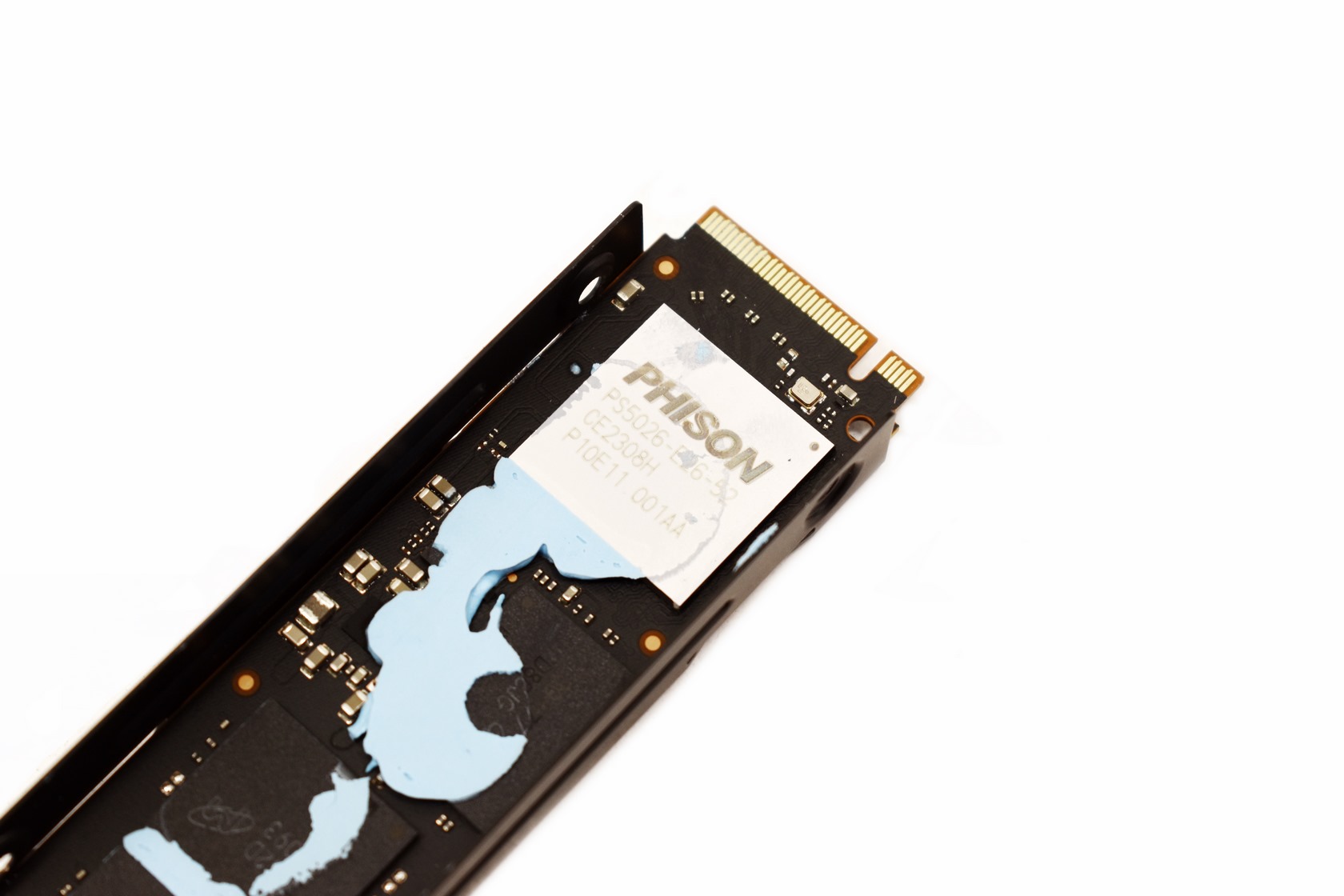

At the top we find the Phison PS5026 (E26) NAND flash controller together with a 2GB LPDDR4-4266 DRAM module and two 232-layer 3D TLC NAND flash modules.

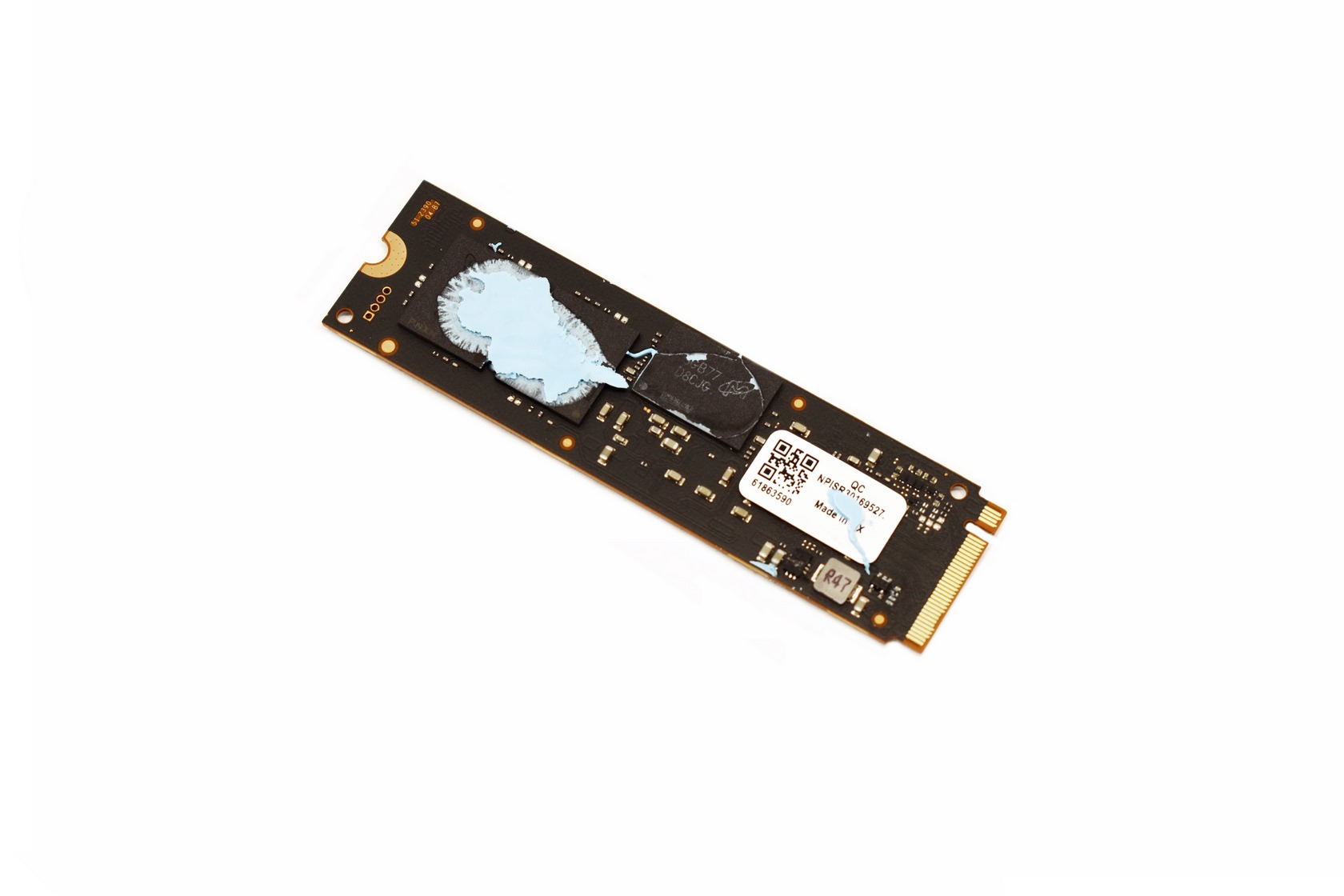

Turning the drive over we find two more 232-layer 3D TLC NAND flash modules and another 2GB LPDDR4-4266 DRAM module.

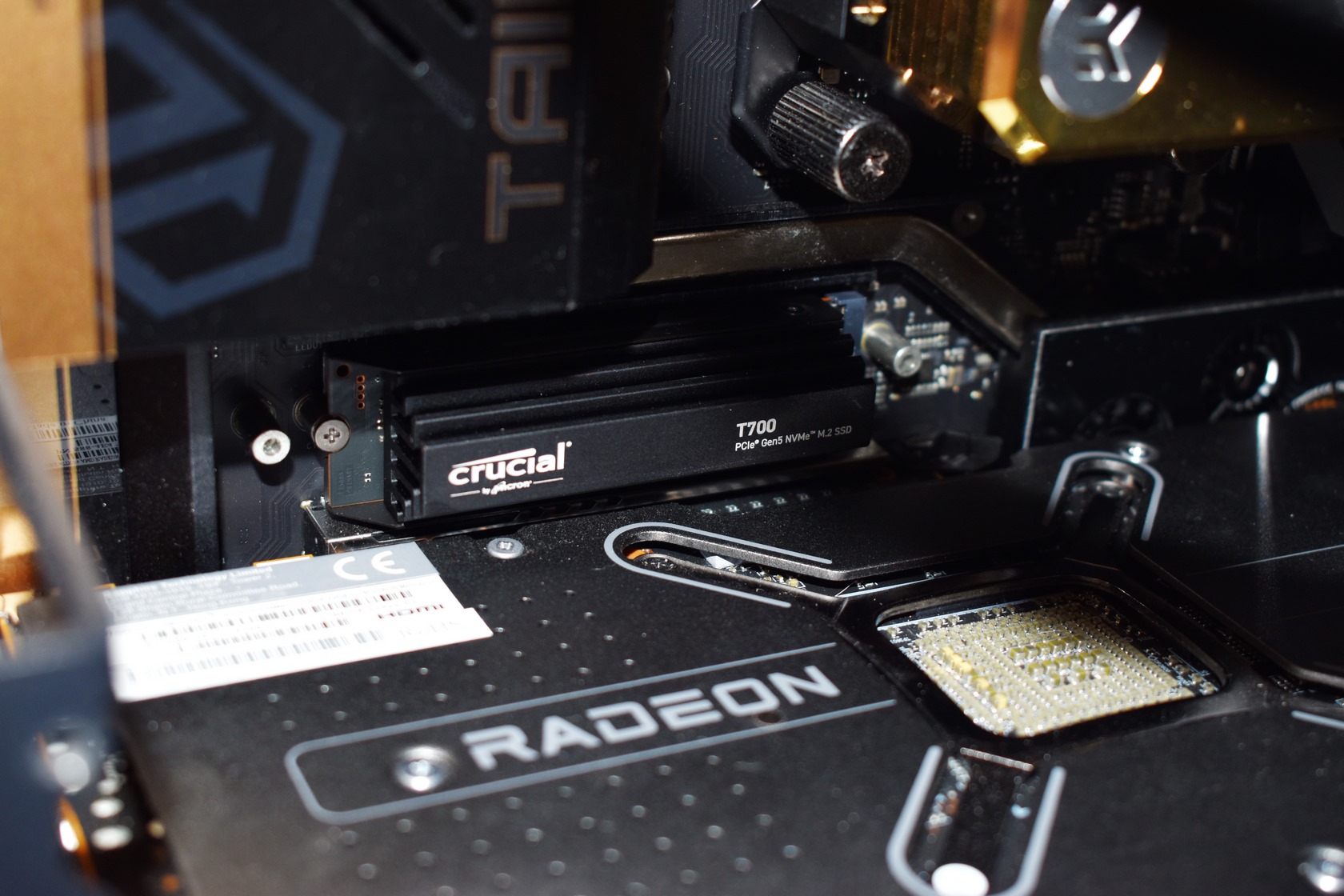

Here you can see the T700 Pro Series installed on the ASRock X670E Taichi.
