THE NM790 HEATSINK 4TB

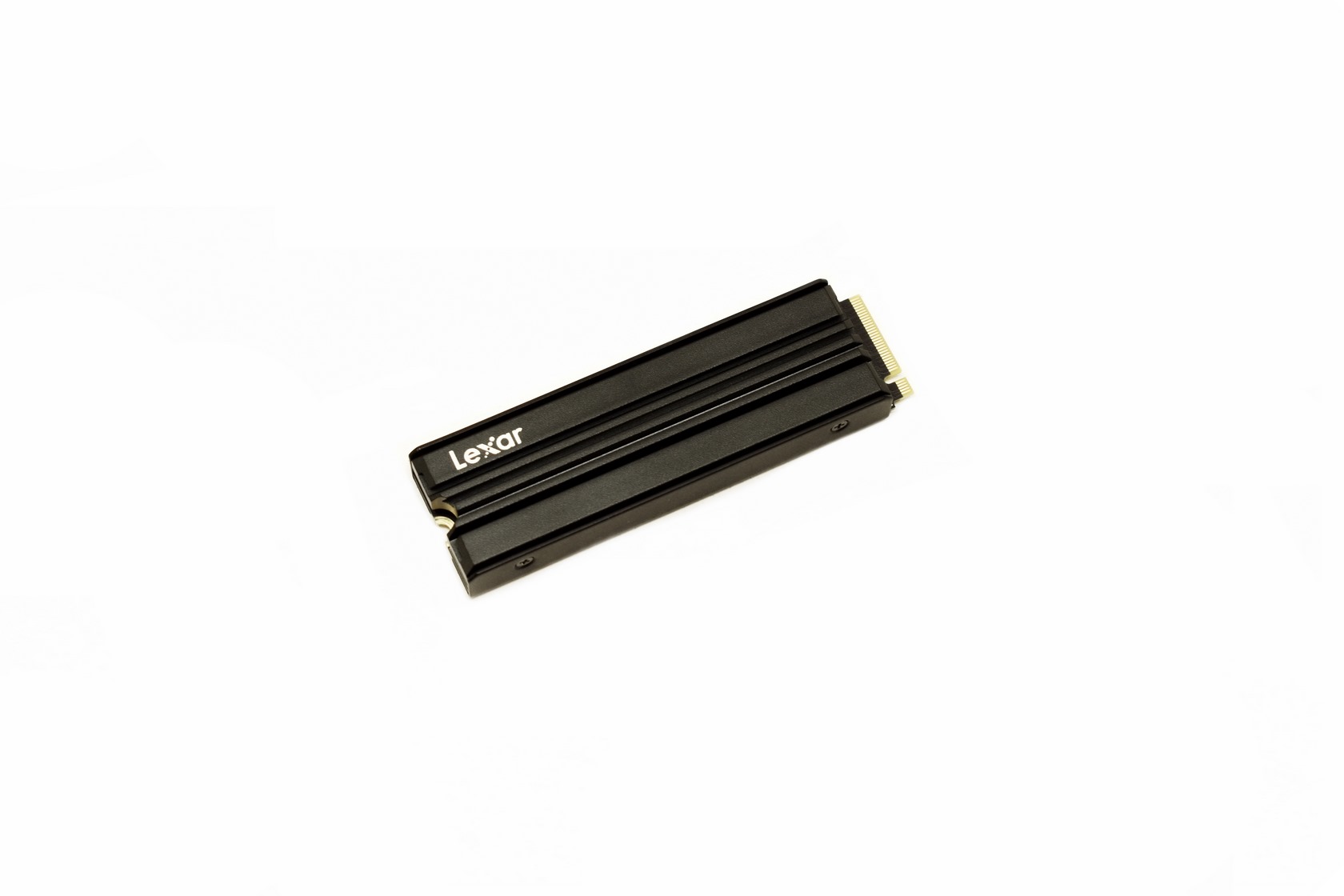

With the black heatsink mounted the NM790 4TB is almost 1cm thick (9.7mm to be precise).

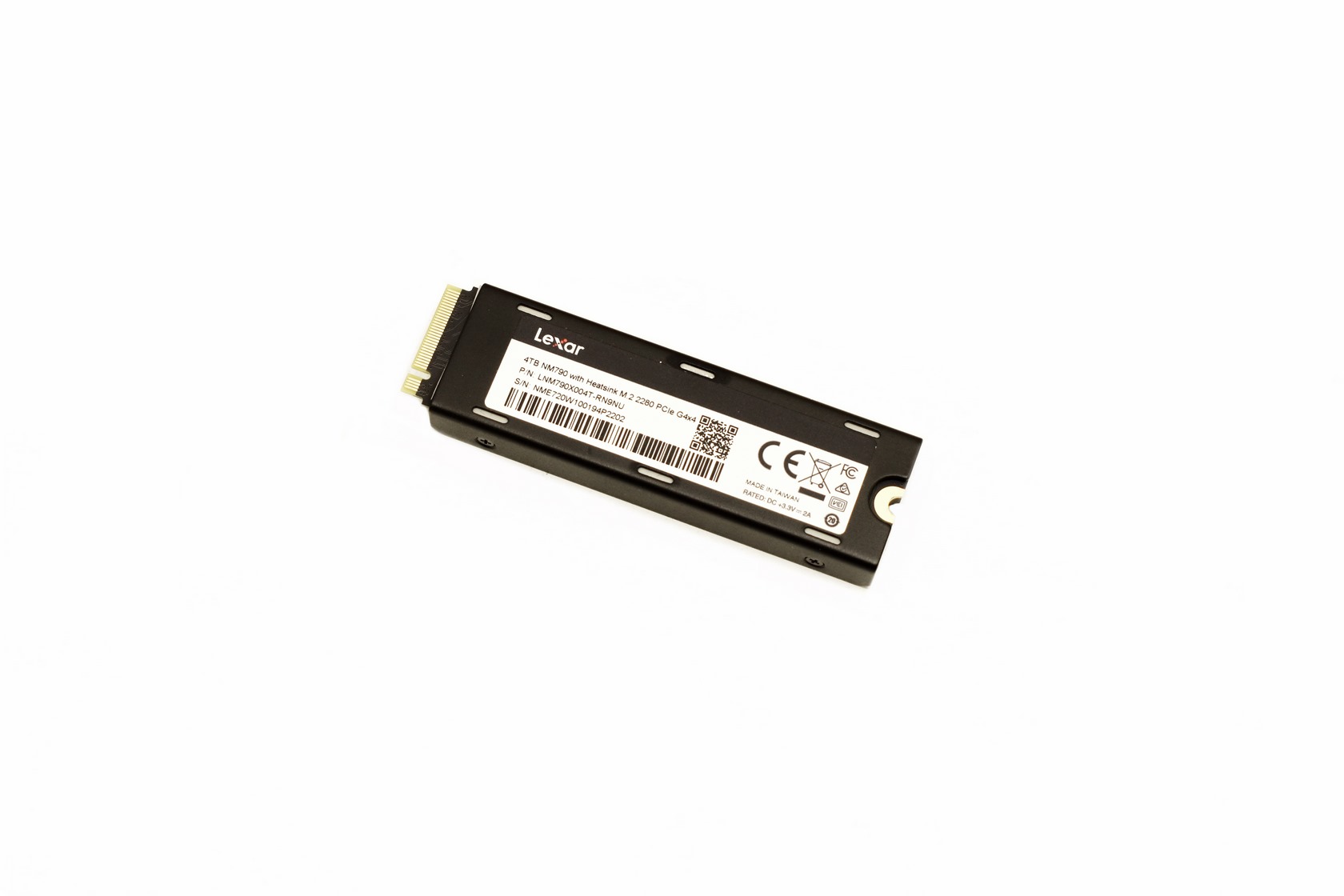

On the other side of the heatsink we find a sticker with the drive serial and part numbers and barcodes.

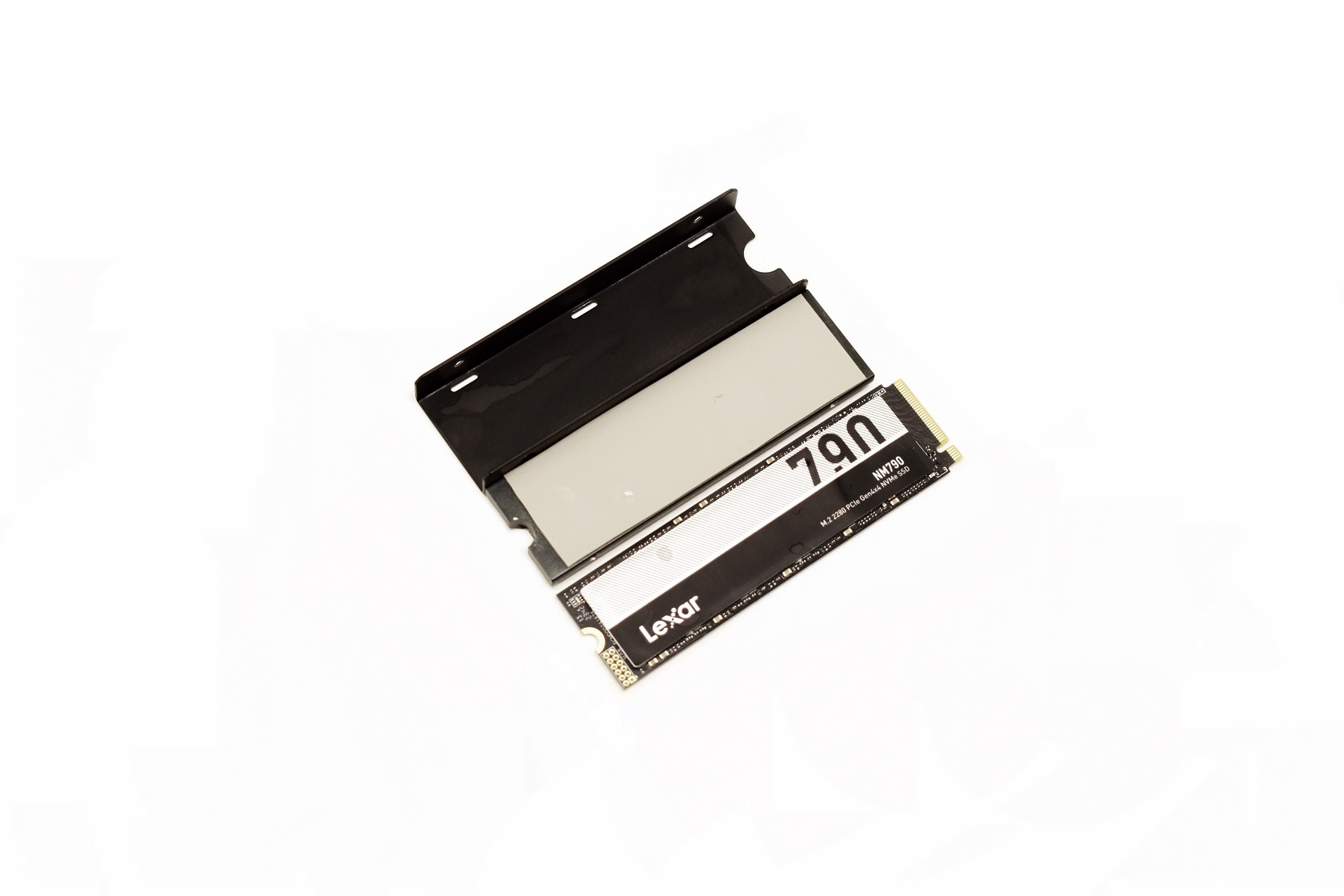

Removing the heatsink is very easy although I wouldn’t recommend it.

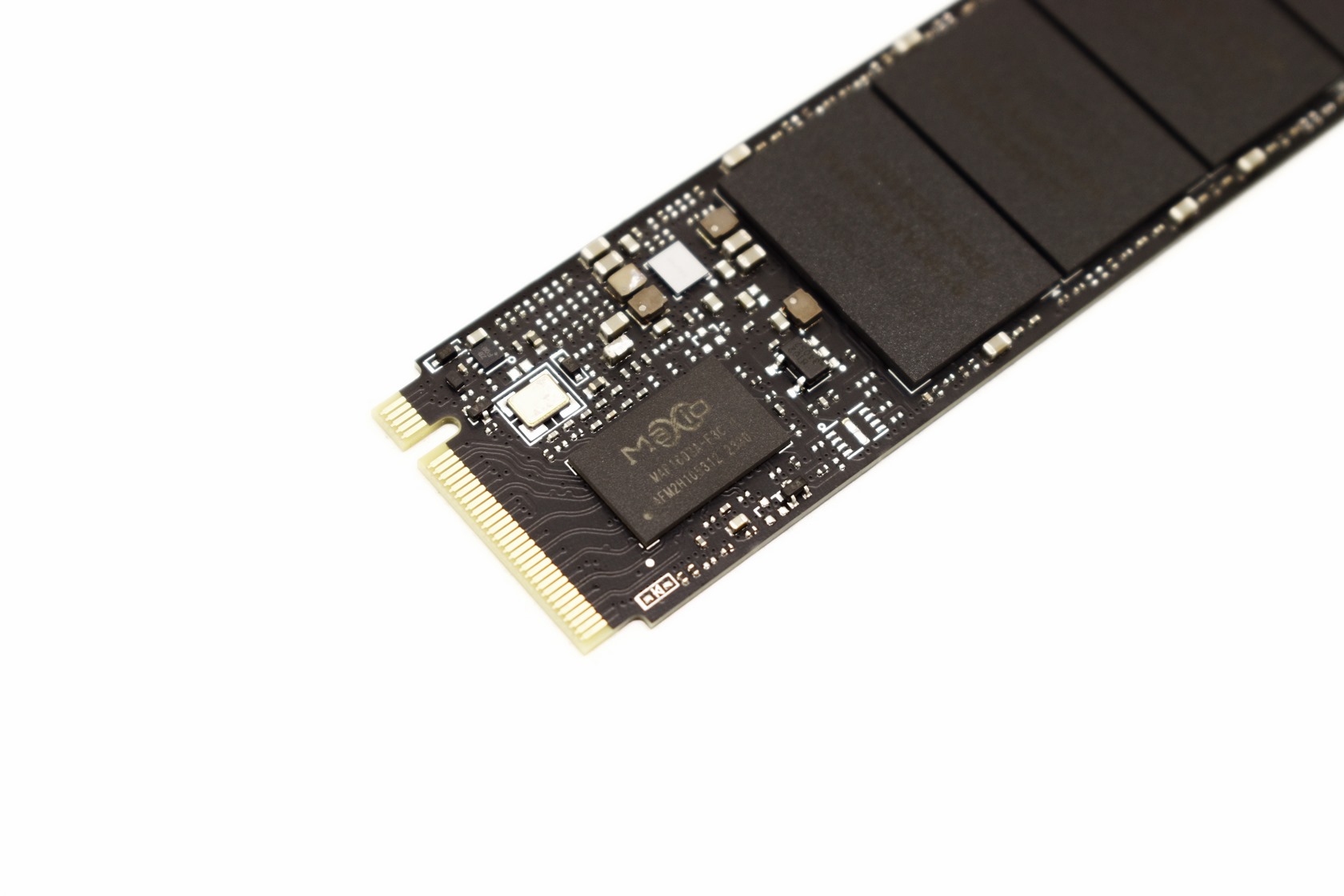

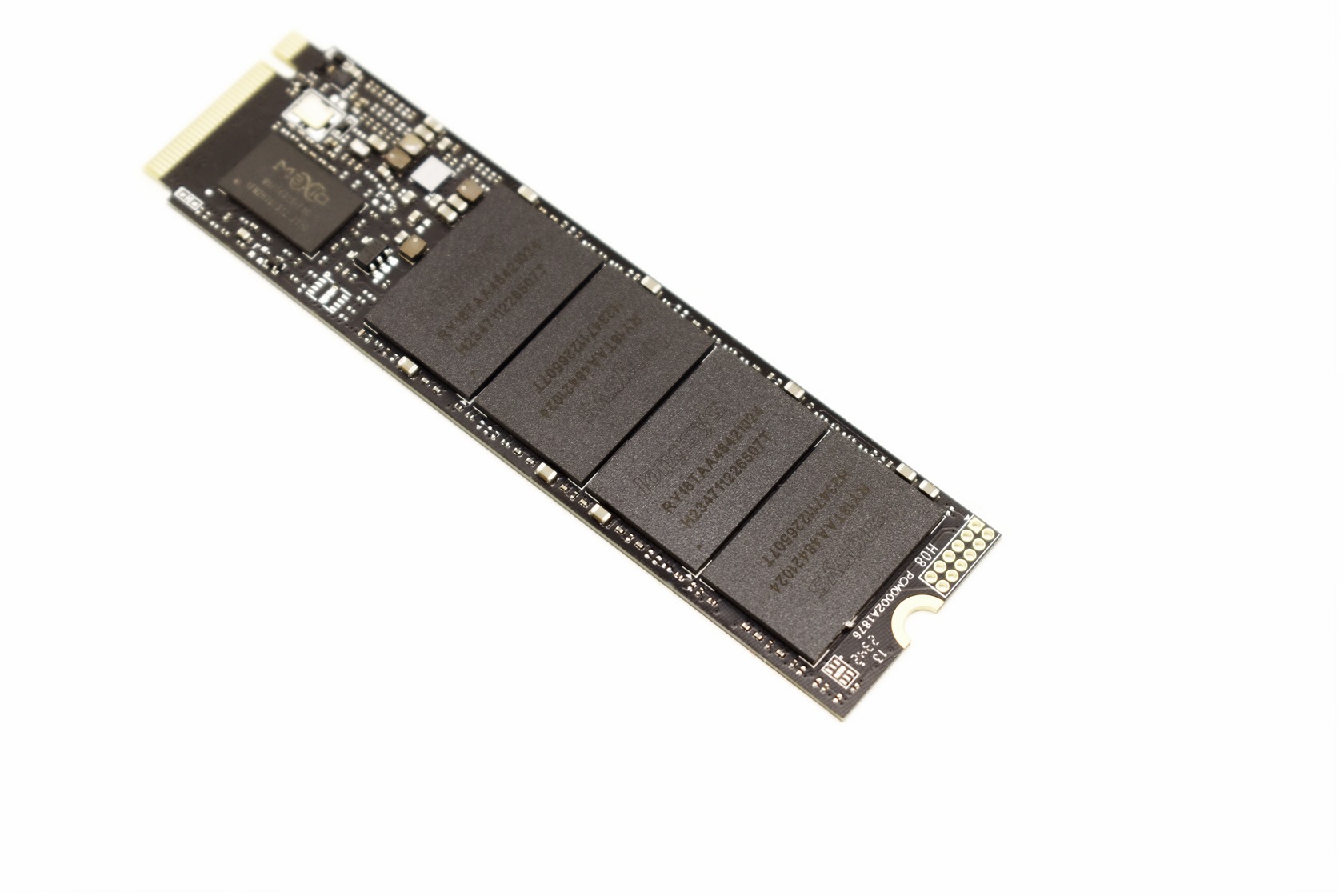

At the top of the drive, we find the MaXio MAP1602 NAND flash controller and four 232-layer 3D TLC NAND flash modules.

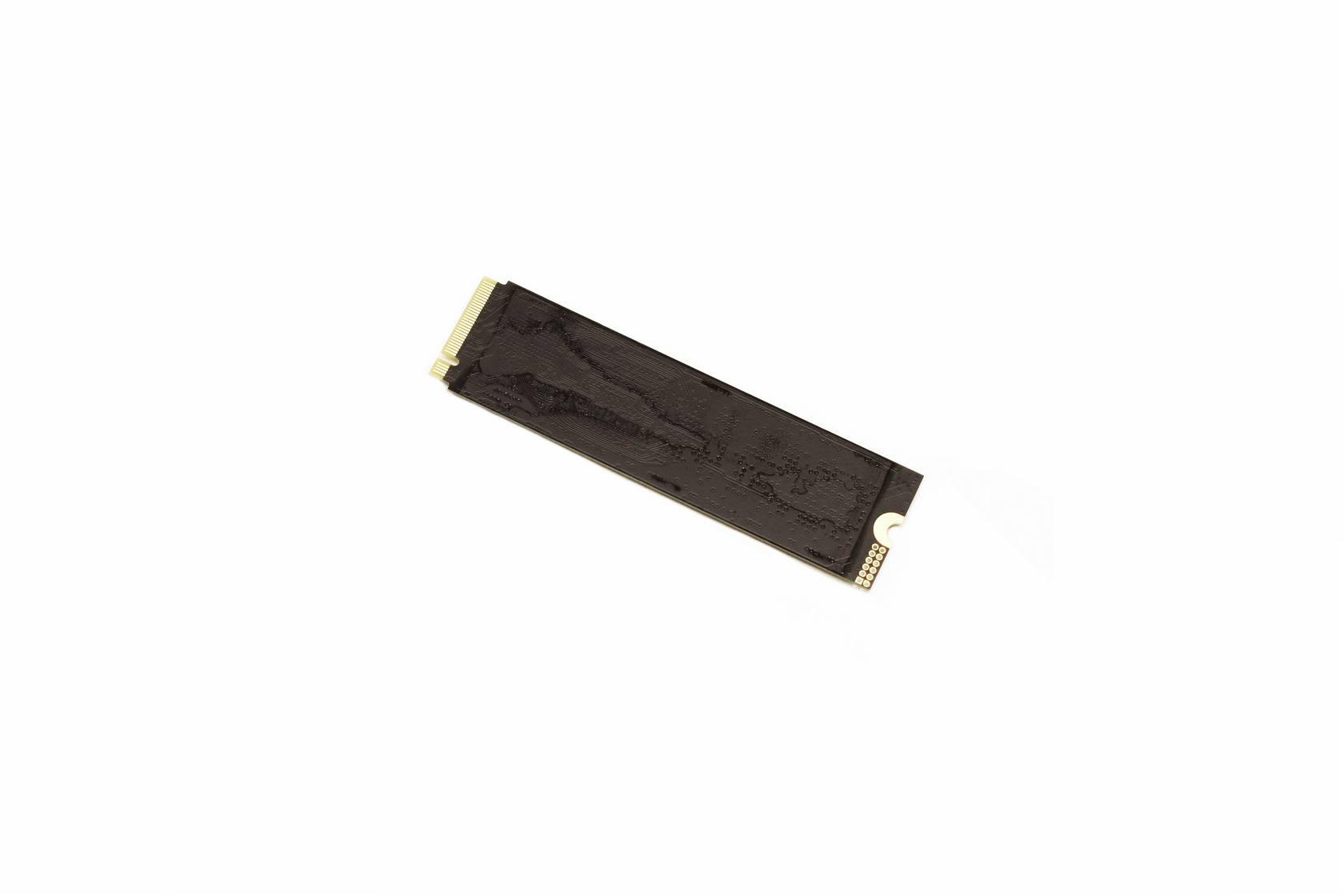

The opposite side is empty (as expected since the 2TB variant had two empty NAND flash spots at the top).
