THE UD90 2TB M.2 2230

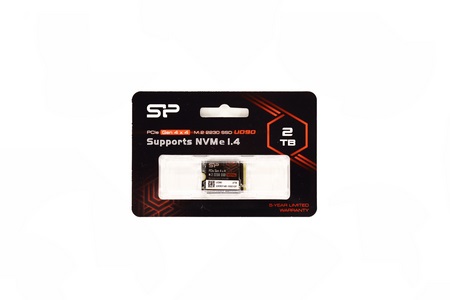

Silicon Power uses the same black and red blister package to ship the UD90 M.2 2230 in which allows you to see the drive.

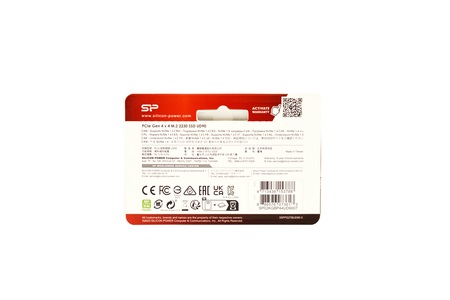

The NVMe version along with contact information for Silicon Power, 2D barcode and numerous certifications are printed at the rear.

Unlike the sticker used with the M.2 2280 models of the UD90 line which was made of thin graphene the one used with the M.2 2230 models is just a plain sticker (probably because handhelds will be using this in Gen3 mode instead of Gen4).

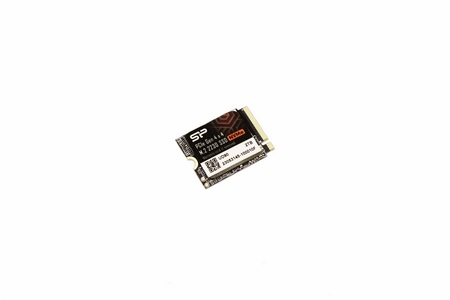

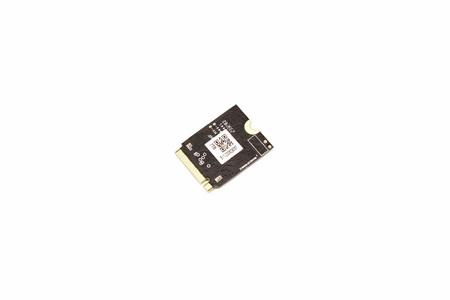

A sticker with the product capacity and a 2D barcode is located on the other side.

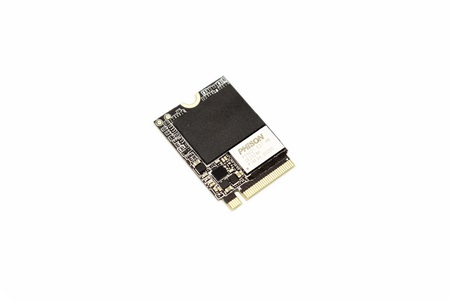

Underneath the sticker we find the PS5021-E21 NAND flash controller together with a single 176-layer 3D QLC NAND flash module by Micron.
