THE NV7000-Q 1TB

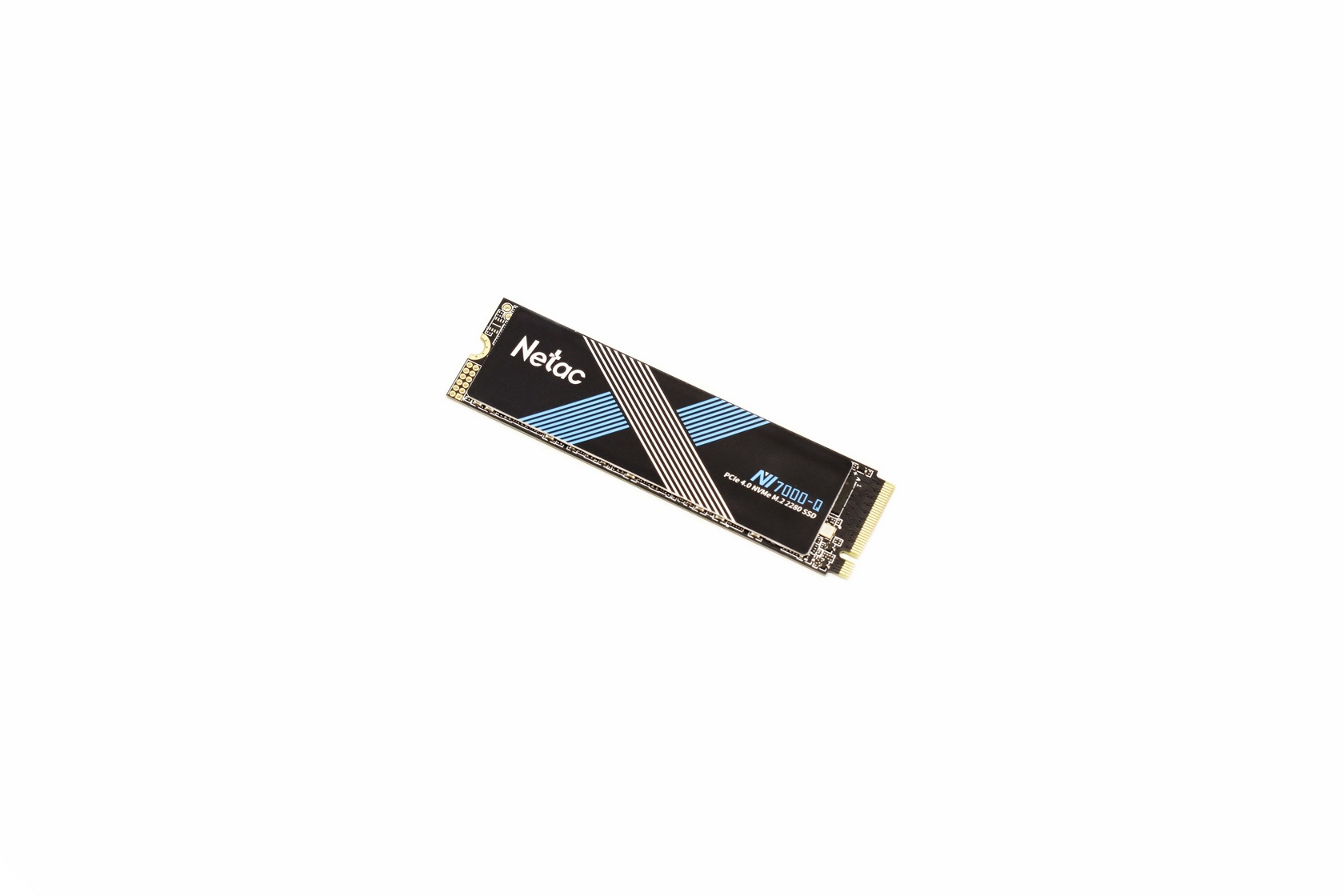

The NV7000-Q 1TB is a single side M.2 NVMe SSD so all components are placed at the top right beneath a graphene laced sticker.

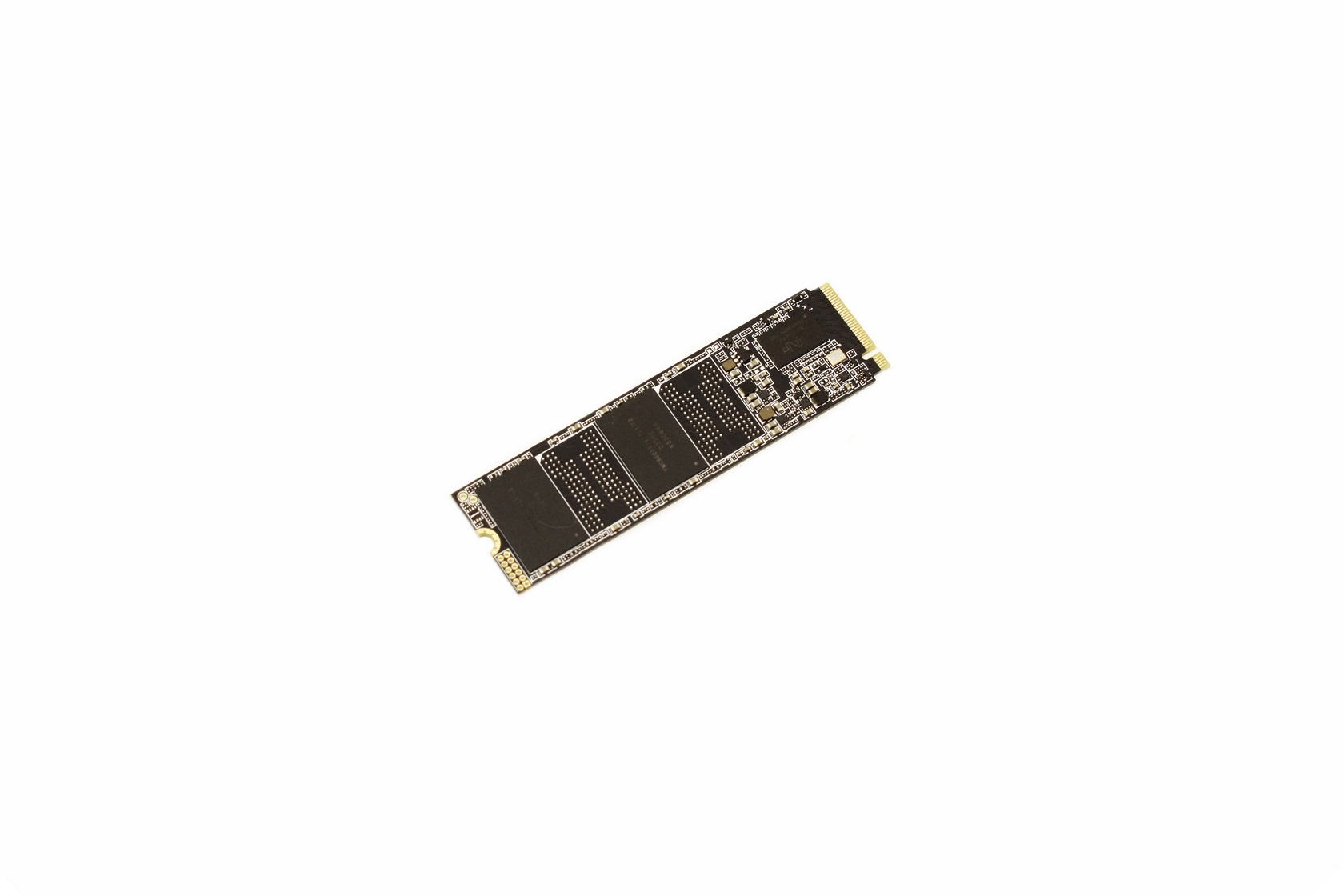

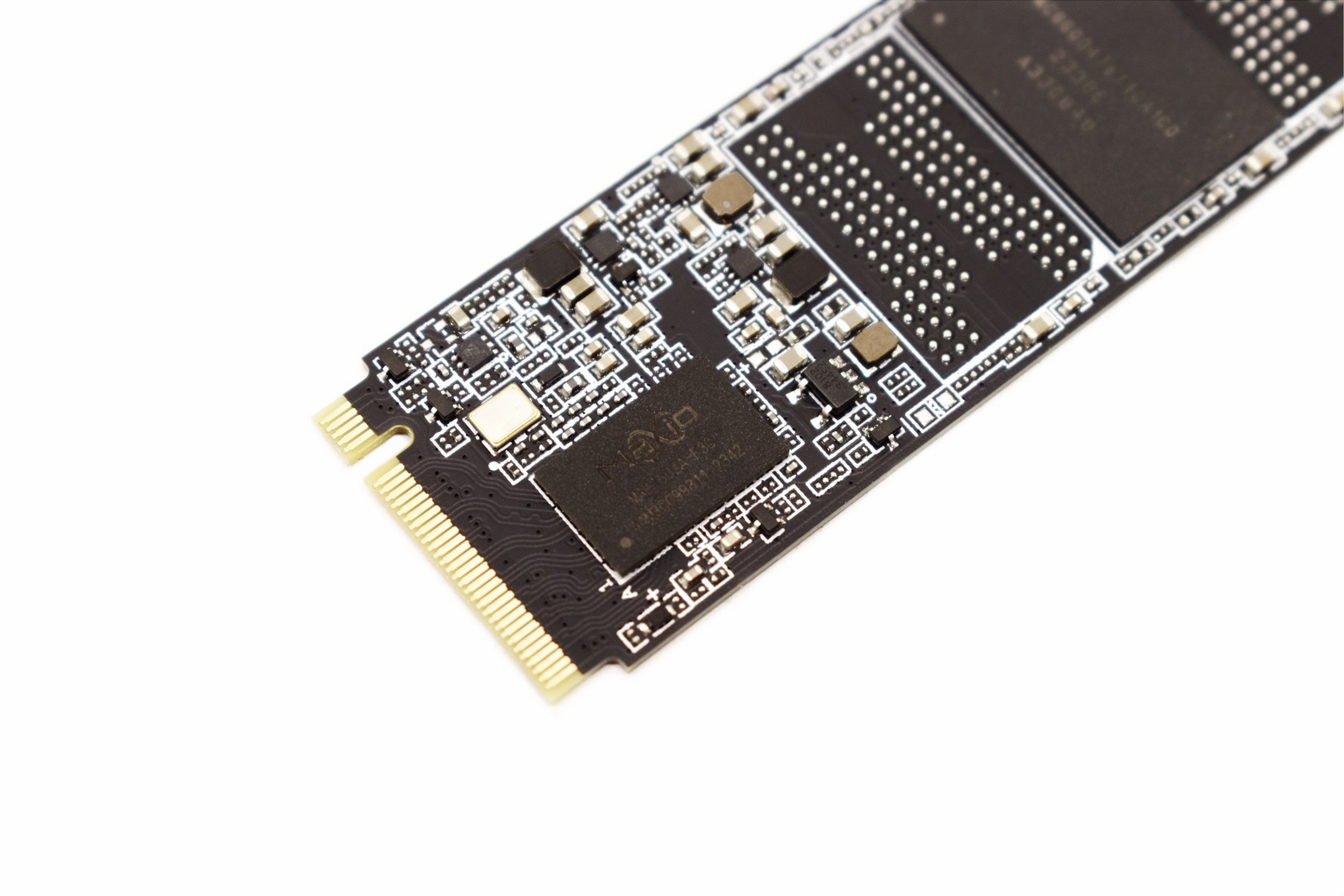

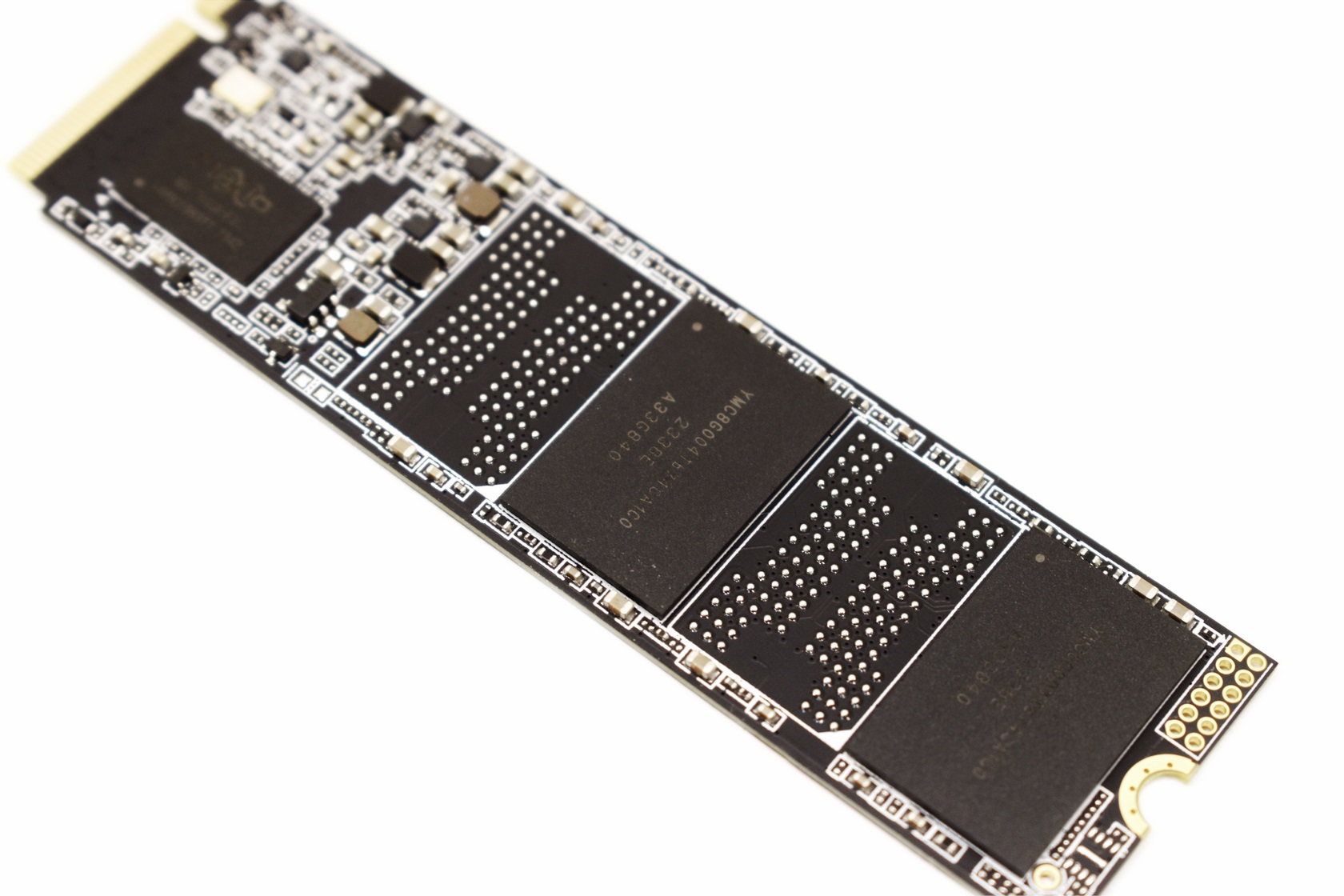

Under the sticker we find the MAP1602-F3C NAND flash controller by MaXio and two 232-layer 3D QLC NAND flash modules by YMTC (there are two empty spots here which are obviously populated in the 2TB model).

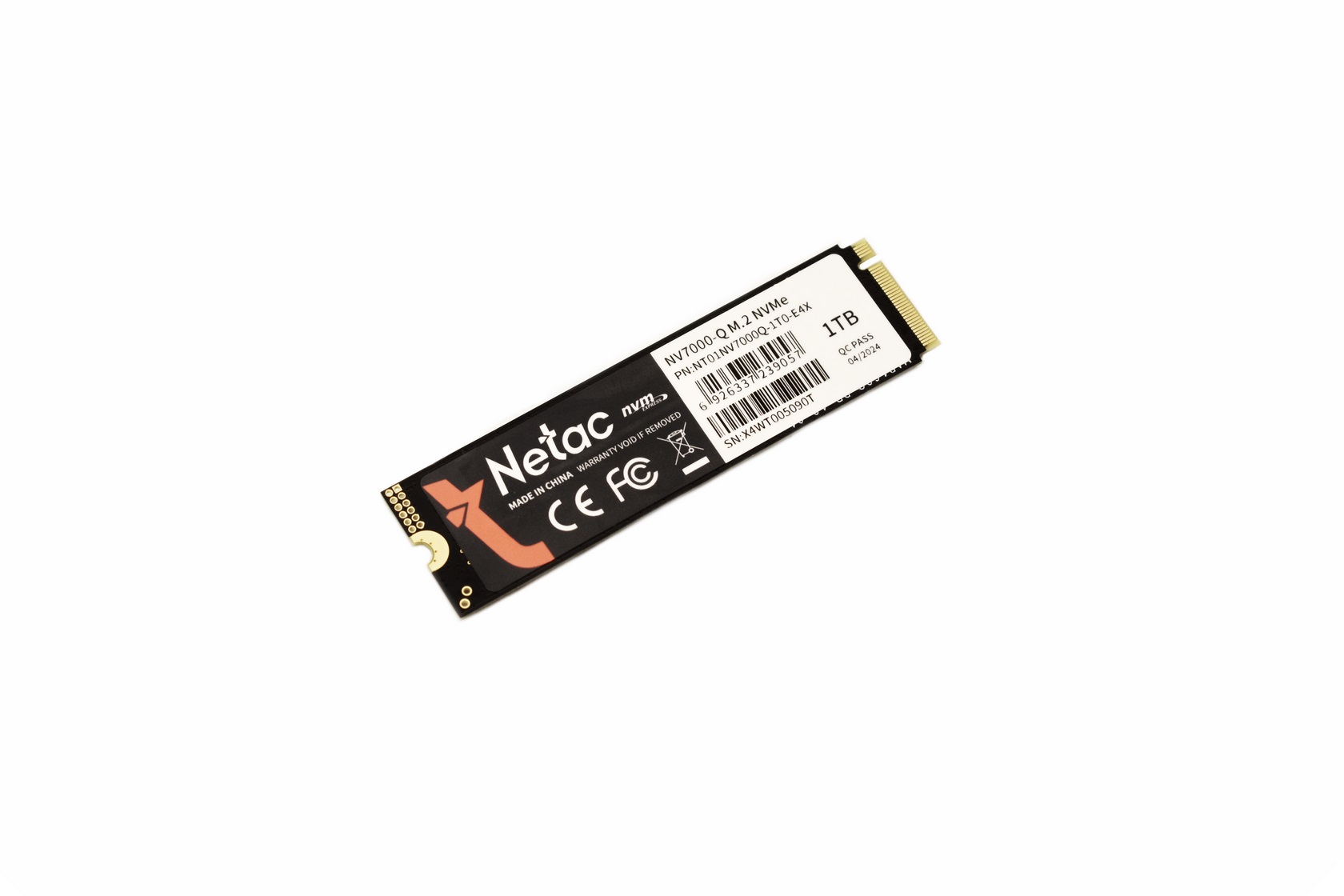

On the other side of the PCB, we find a sticker with the company logo, capacity, serial number, barcode and factory roll-out date.
