THE PLAY 2280 4TB

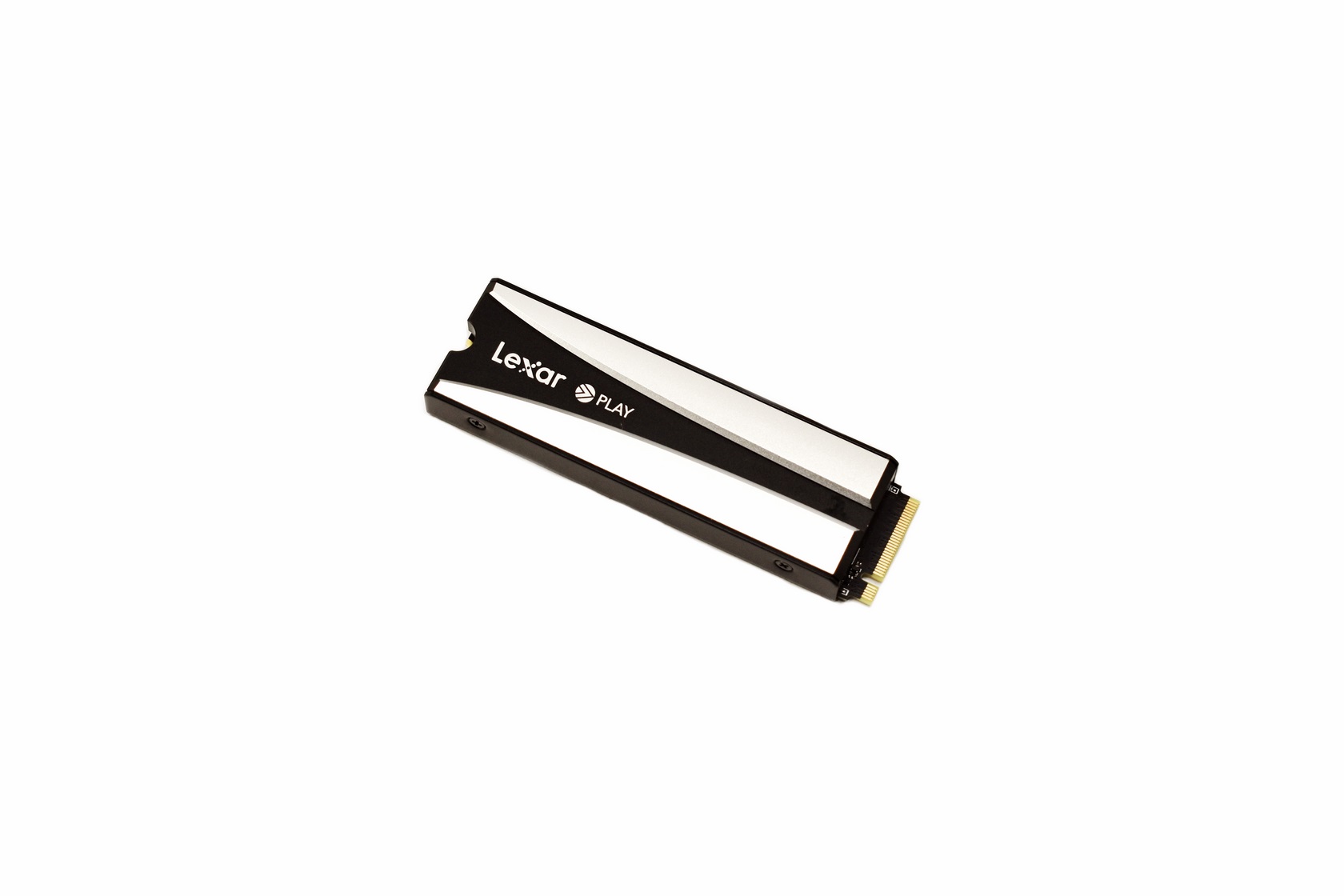

The aluminum heatspreader Lexar has placed on this SSD is 10mm in thickness and thus fits well even in the PS5.

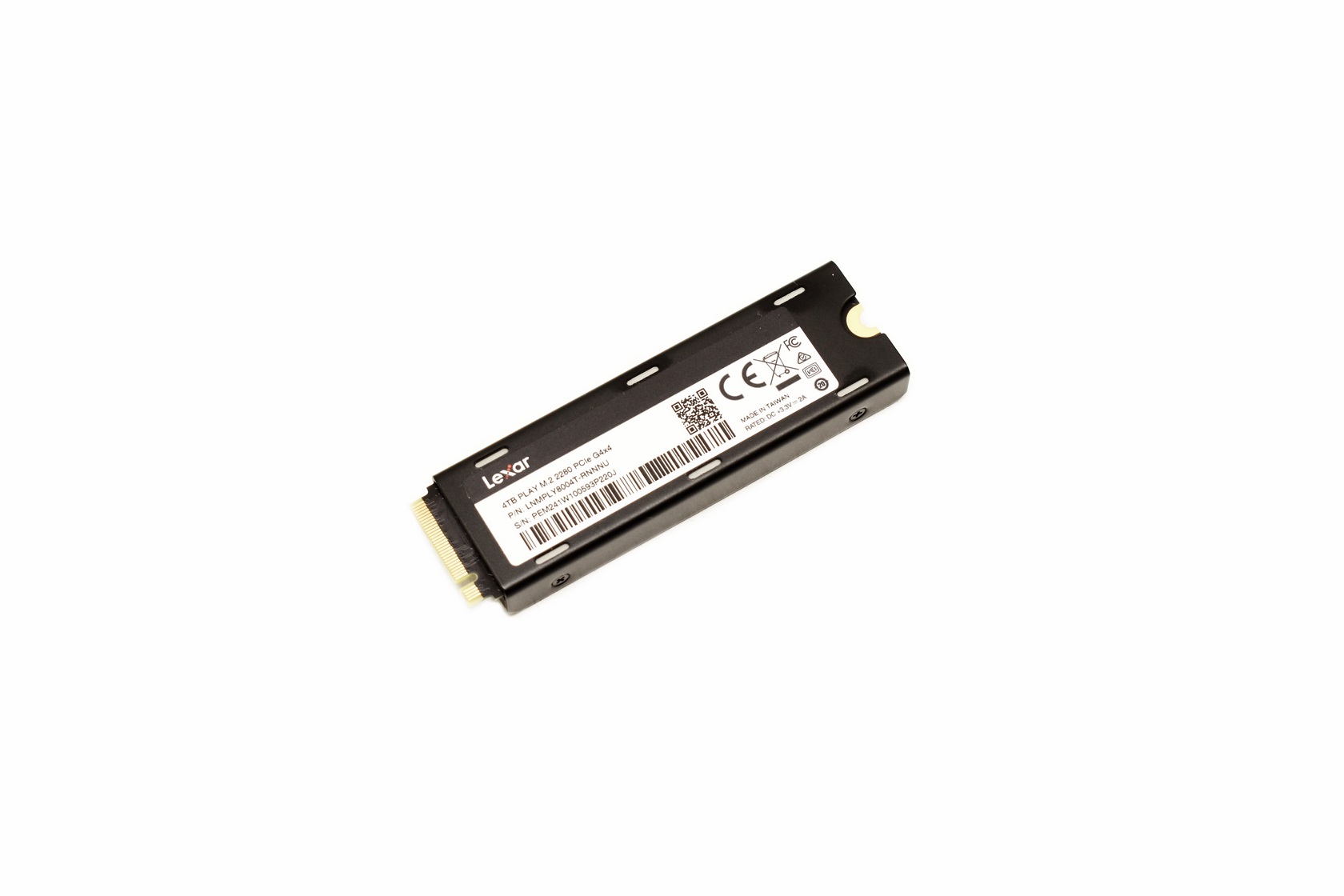

Typically, at the base of the heatspreader we find a sticker with the capacity, serial number, barcode and several warnings and certifications.

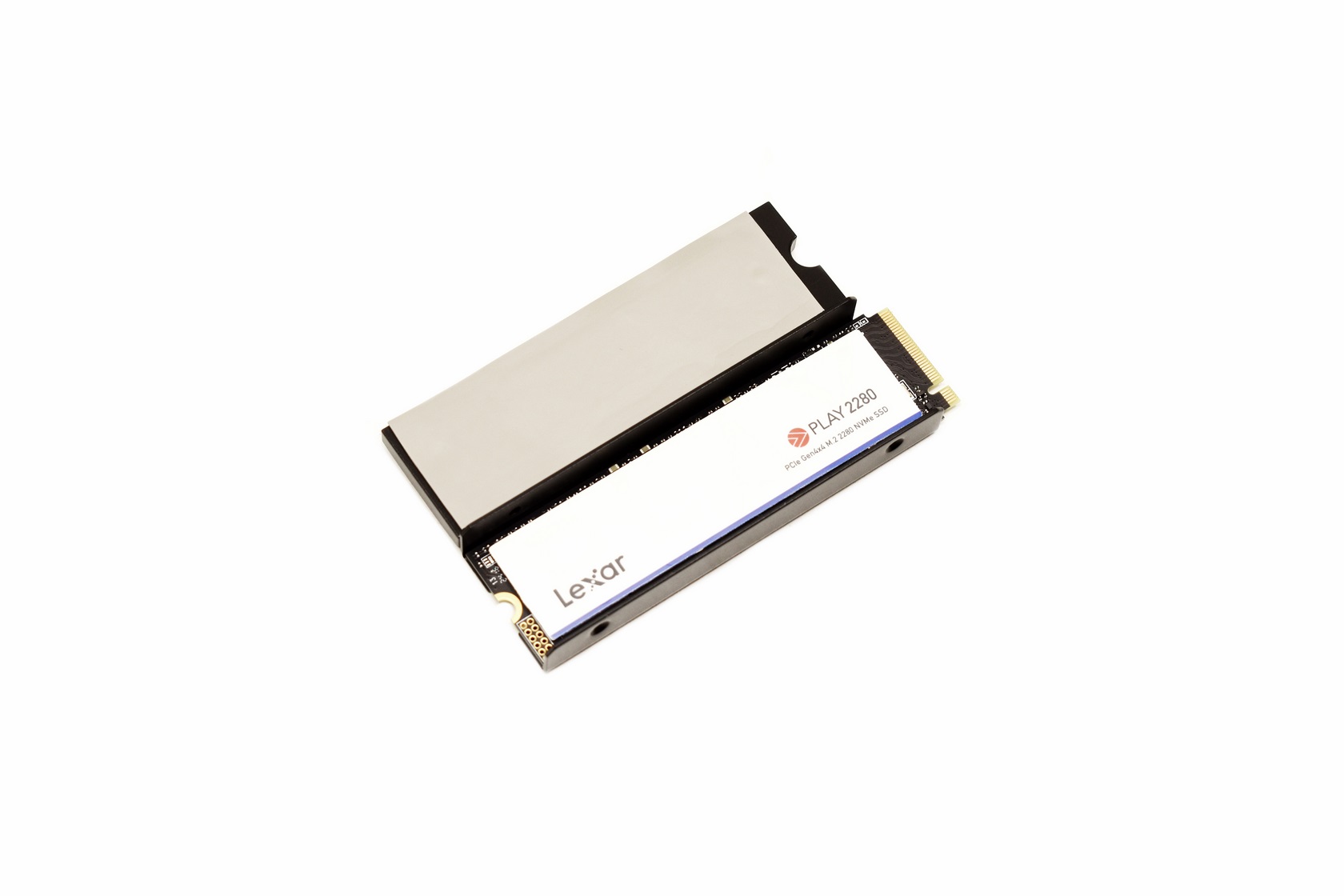

This heatspreader is held in place with 4 screws so removing it is easy.

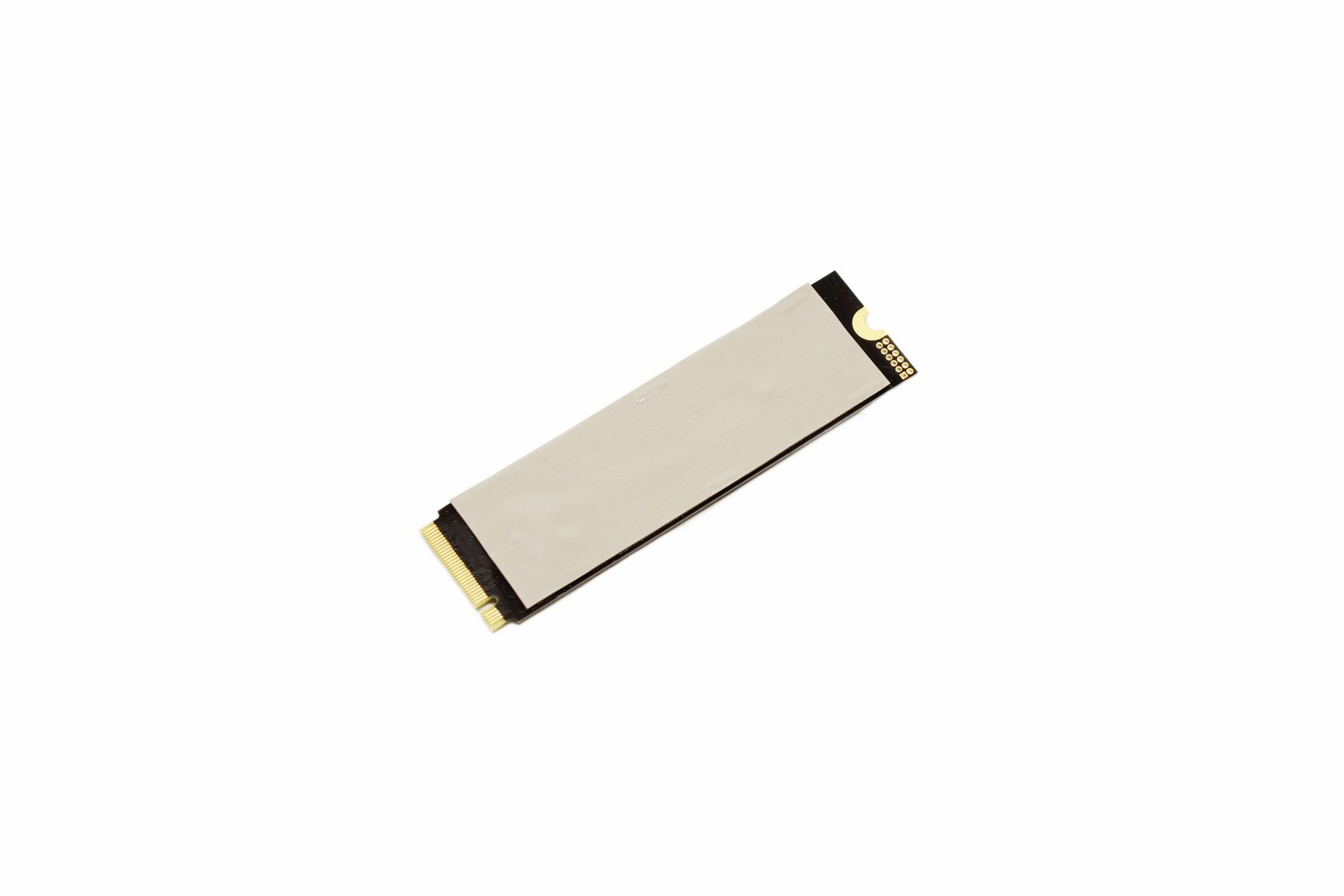

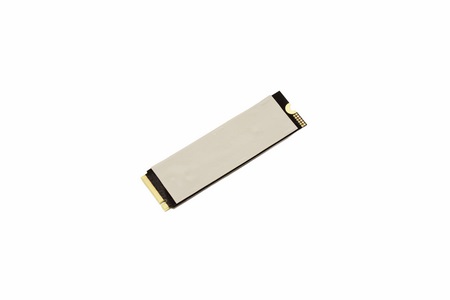

One side of the SSD has a thermal pad and a sticker on it whereas the other just has a thermal pad.

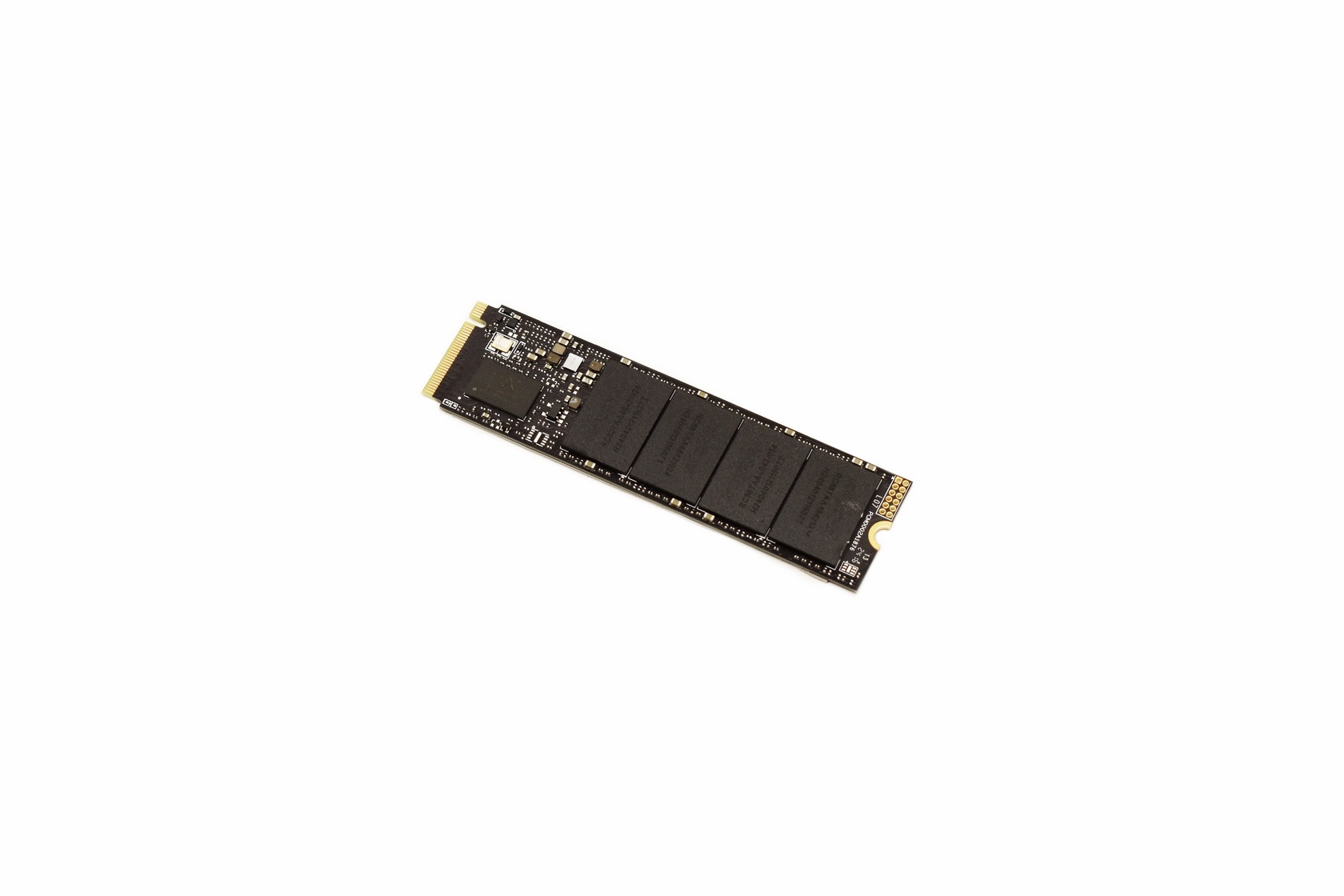

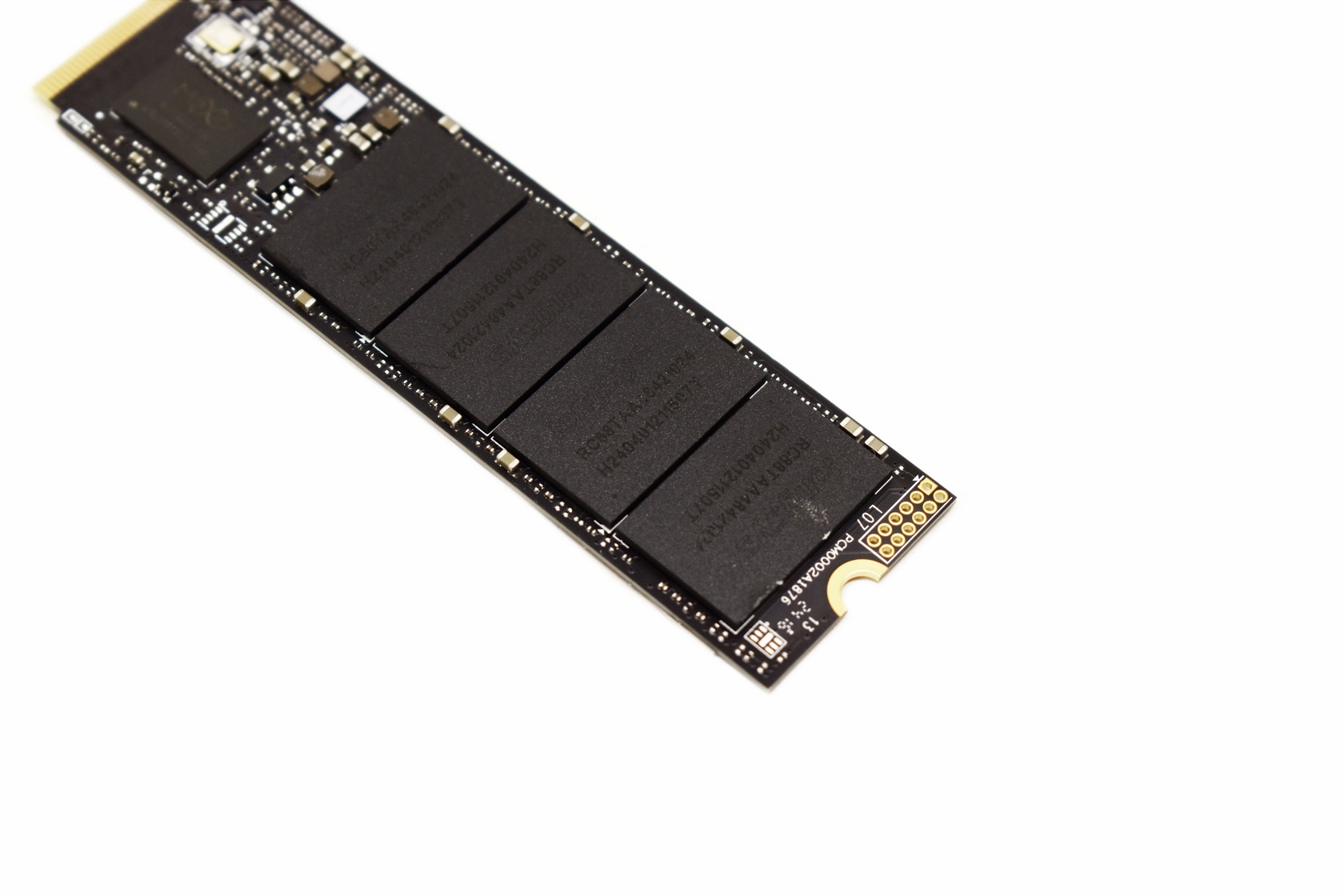

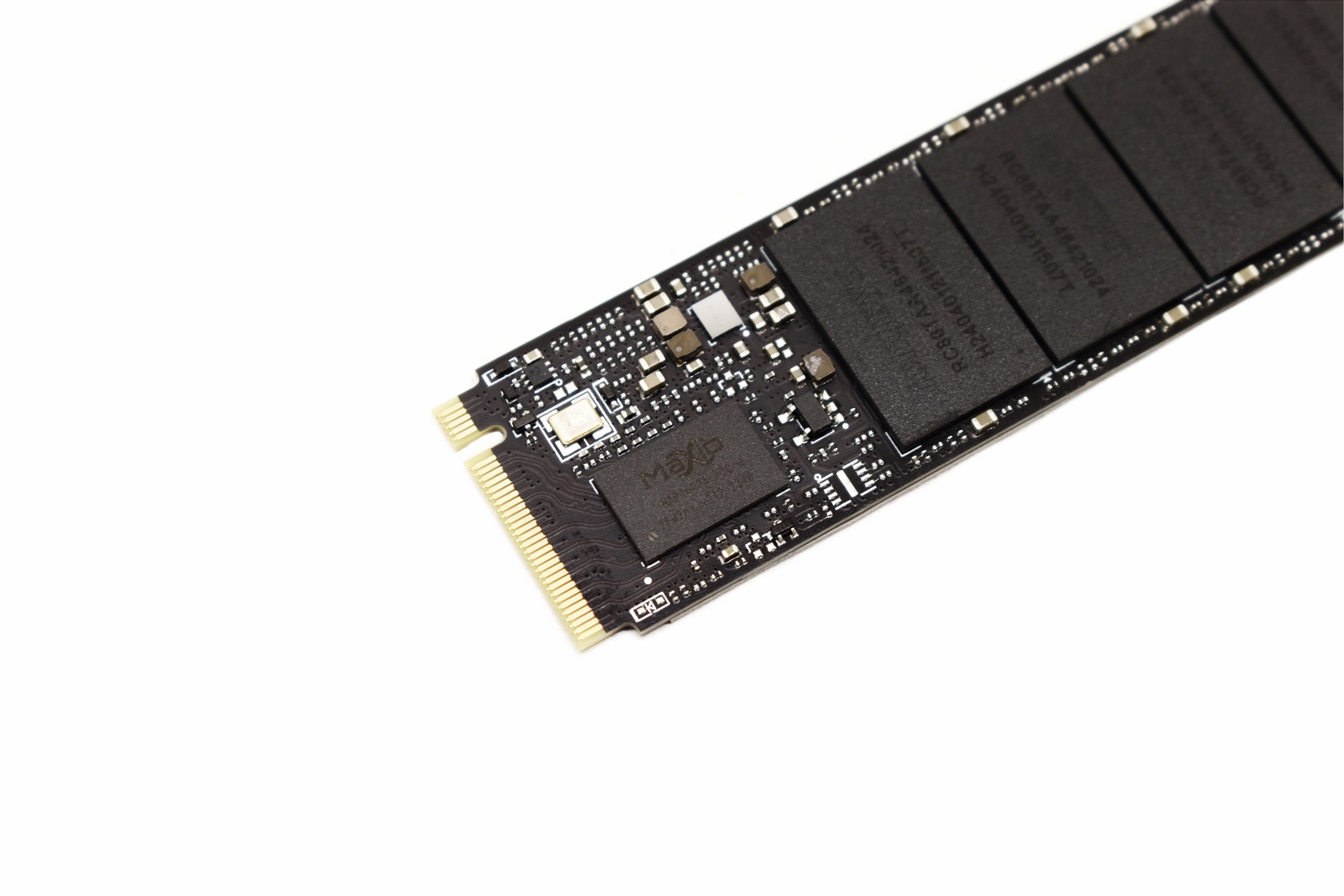

Under the sticker we find the DRAM-less MAP1602-F3C 12nm quad-channel (R5) NAND flash controller by MaXio and four YMTC's 232-Layer 3D TLC NAND flash modules.
