THE MA200 1TB

The MA200 is a 2230 size drive aimed towards use with handhelds (22mm in width and 30mm in length).

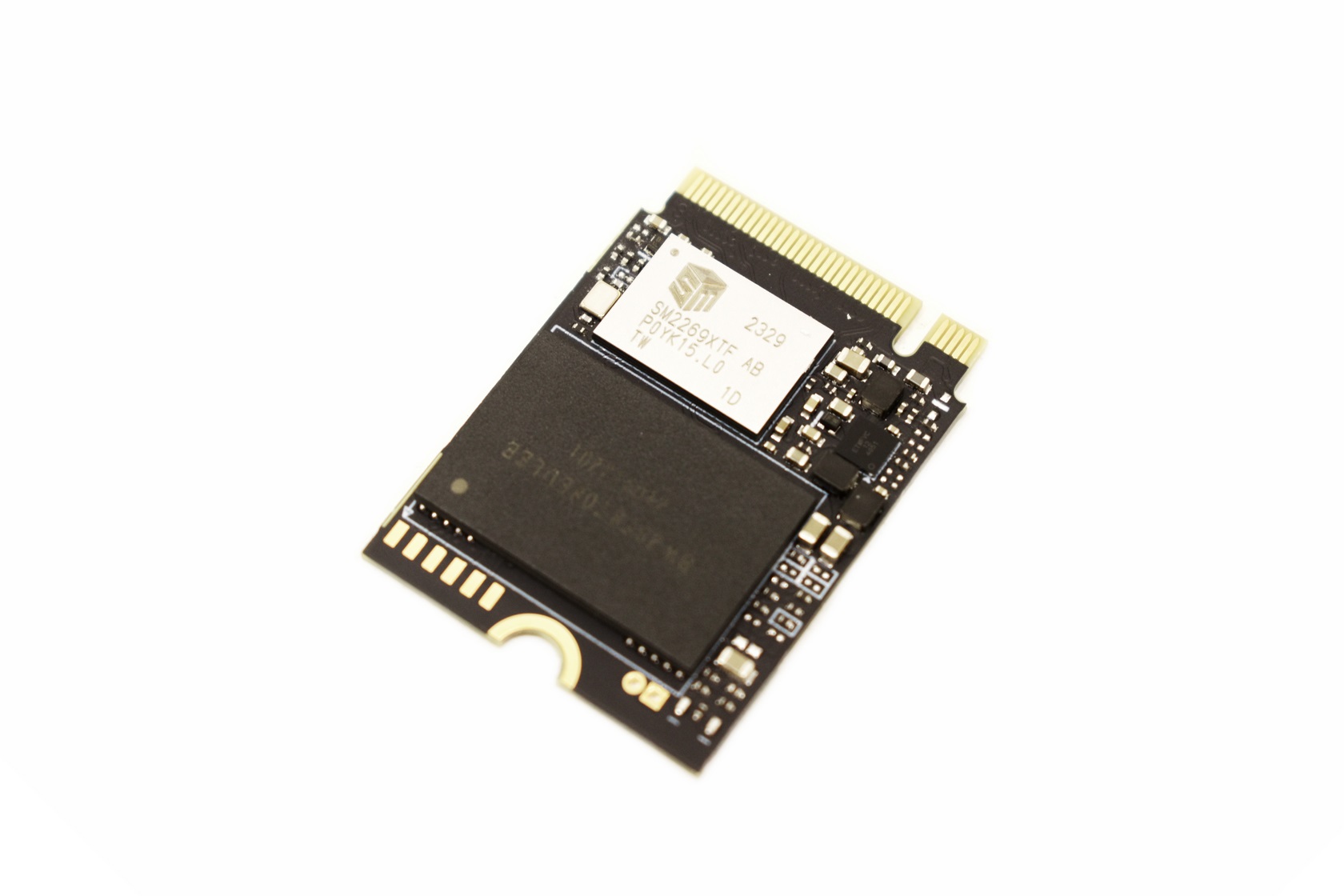

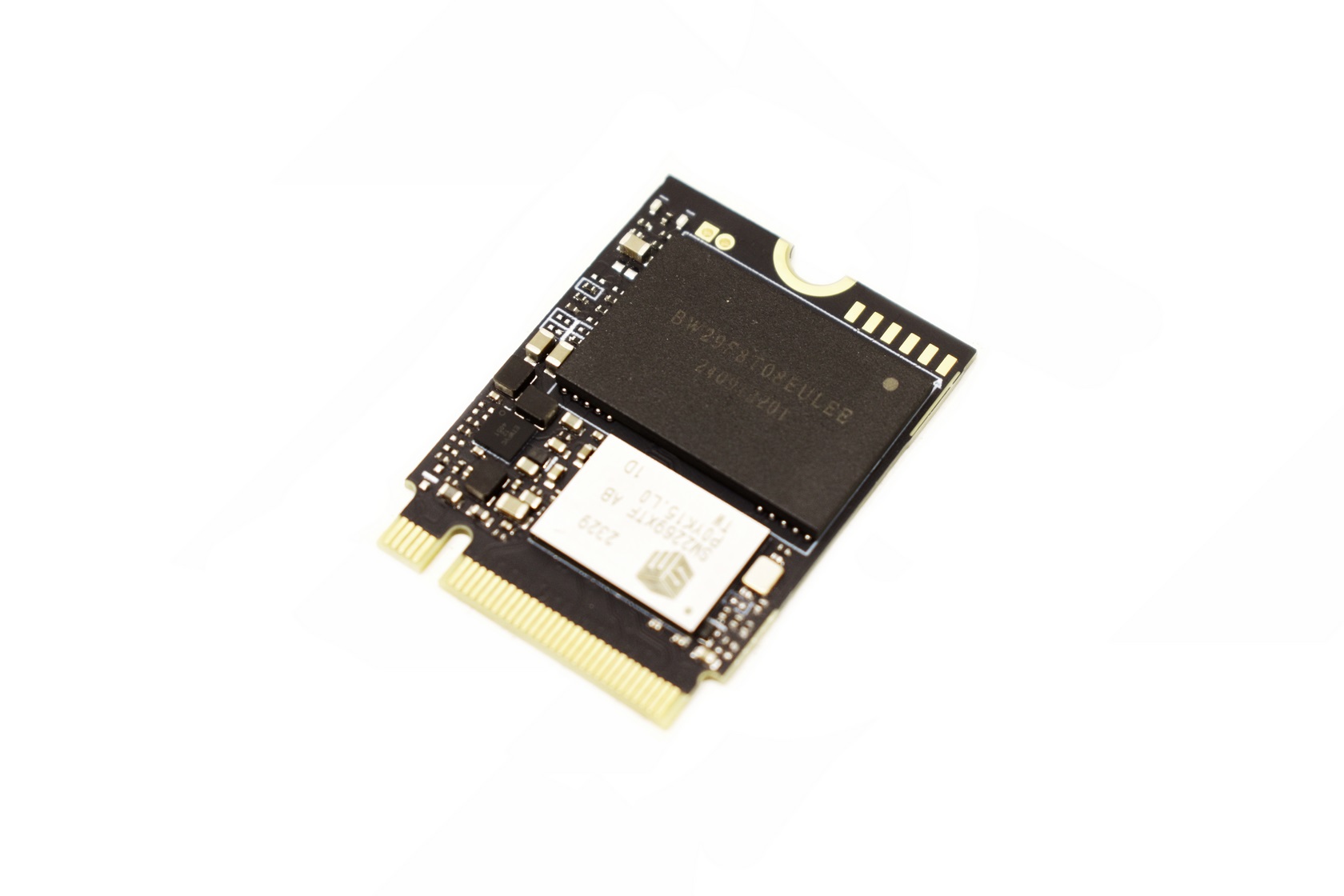

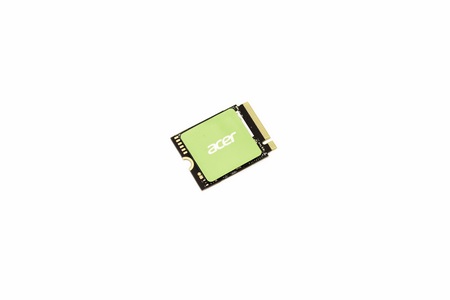

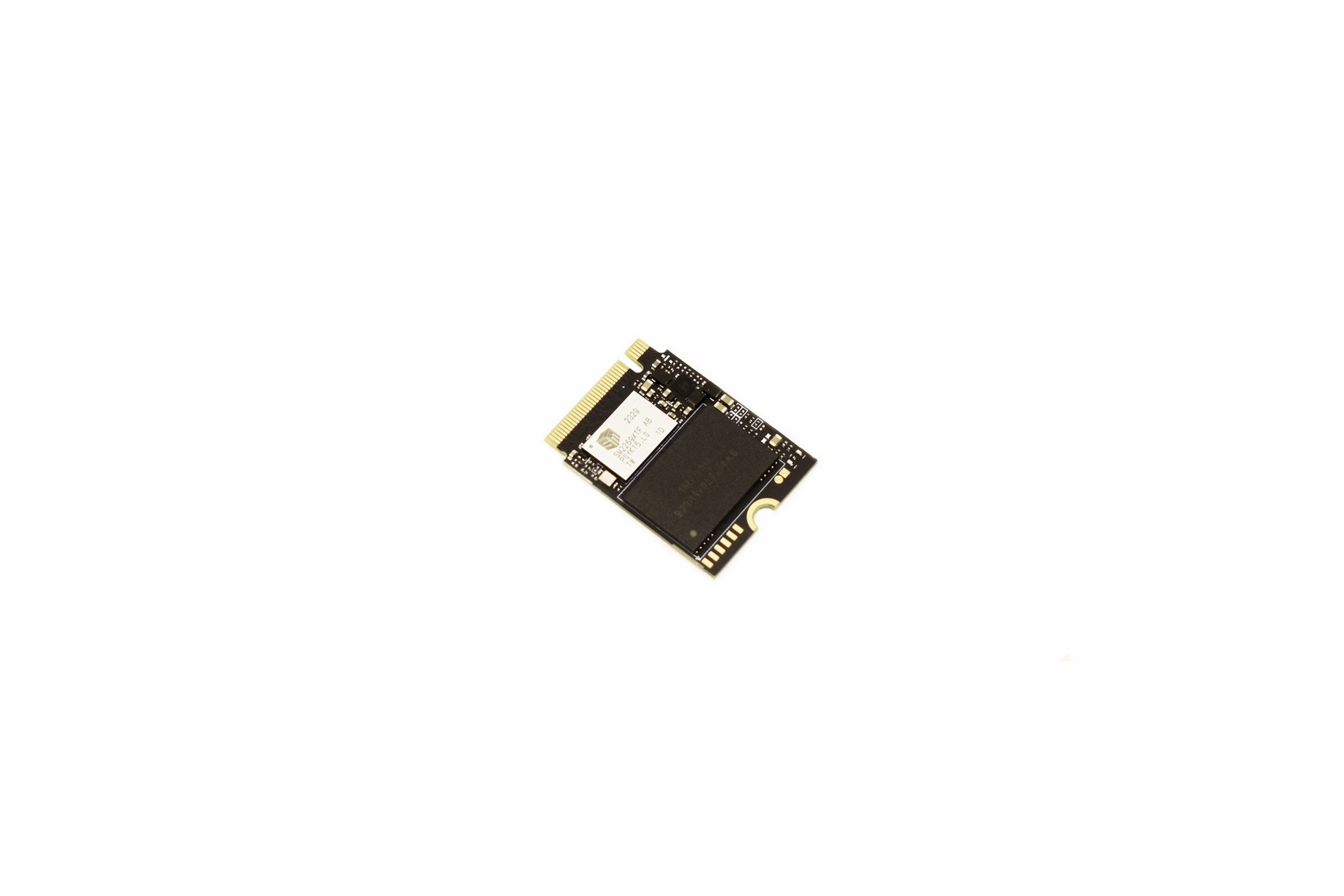

This is a single side drive so at the top BIWIN has placed a very thin sticker (graphene) under which we find the SM2269XTF PCIe 4.0 Gen 4 (NVMe v1.4) DRAM-less NAND flash controller and a single 1TB 176-Layer 3D TLC (B47R) NAND flash module.

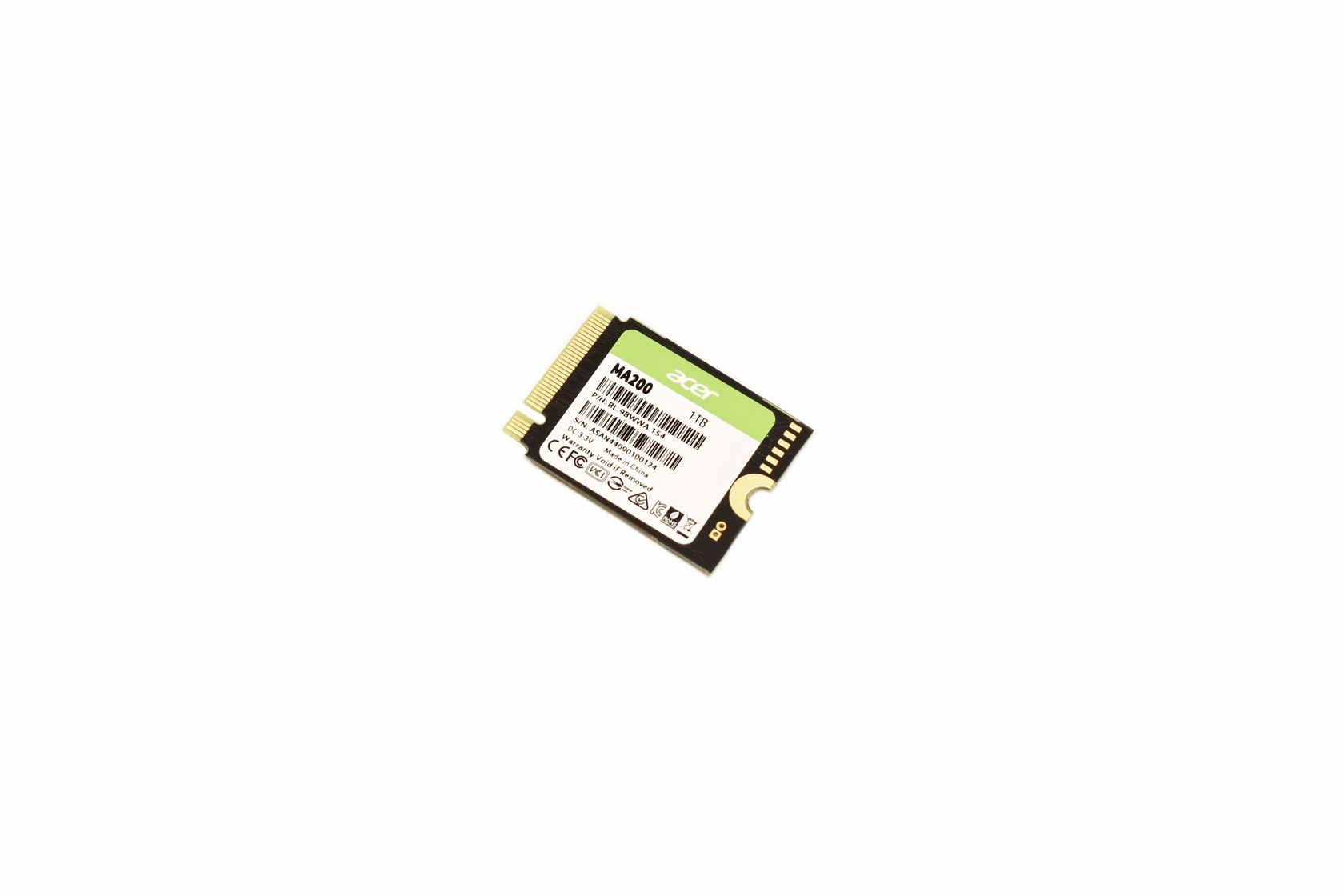

On the opposite side we just find the sticker with the drive information (the one visible from the rear of the box).
