THE N7000 1TB

The N7000 will be shipped inside a box that has a product picture at the front along with the company logo and warranty.

Some of the product specifications will be printed at the rear right over a cut out from where you can actually see the drive.

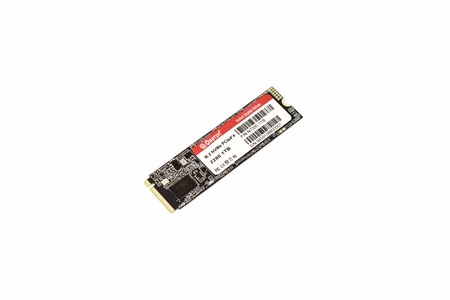

The drive follows the typical 2280 form factor so nothing new to see here.

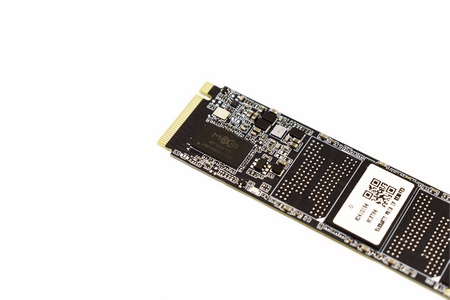

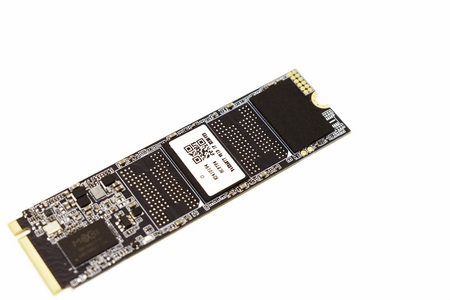

At the top we find the DRAM-less MAP1602-F3C 12nm quad-channel (R5) NVMe 2.0 NAND flash controller by MaXio and two 128-layer 3D TLC NAND flash modules by YMTC (under the sticker).

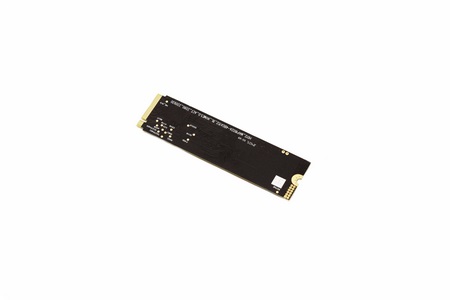

Since the N7000 is a single side model the other side of the PCB is empty.
