THE NM1090 PRO 2TB

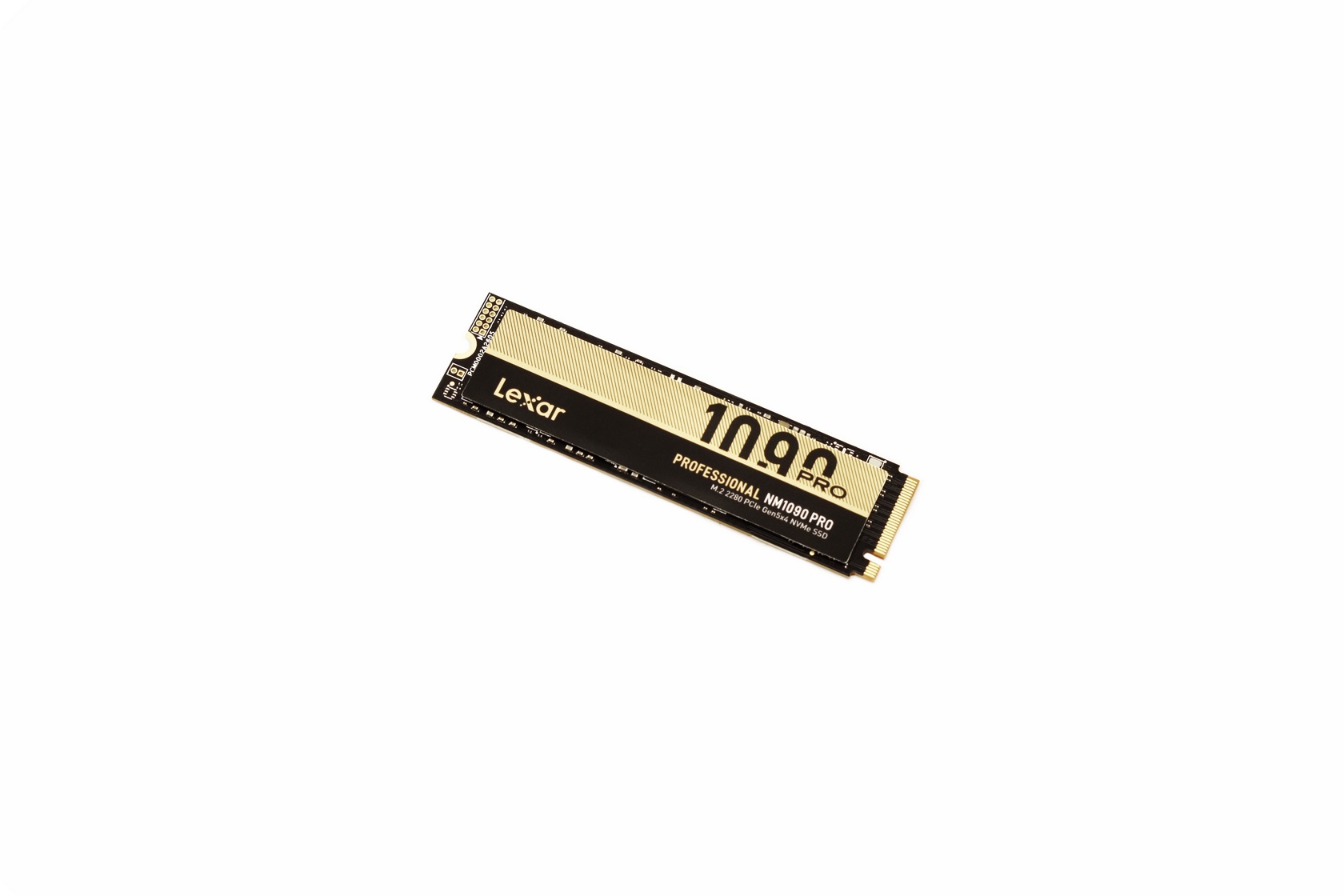

The NM1090 Pro 2TB follows the typical M.2 form factor (2280) and features a graphene sticker on top for improved heat dissipation.

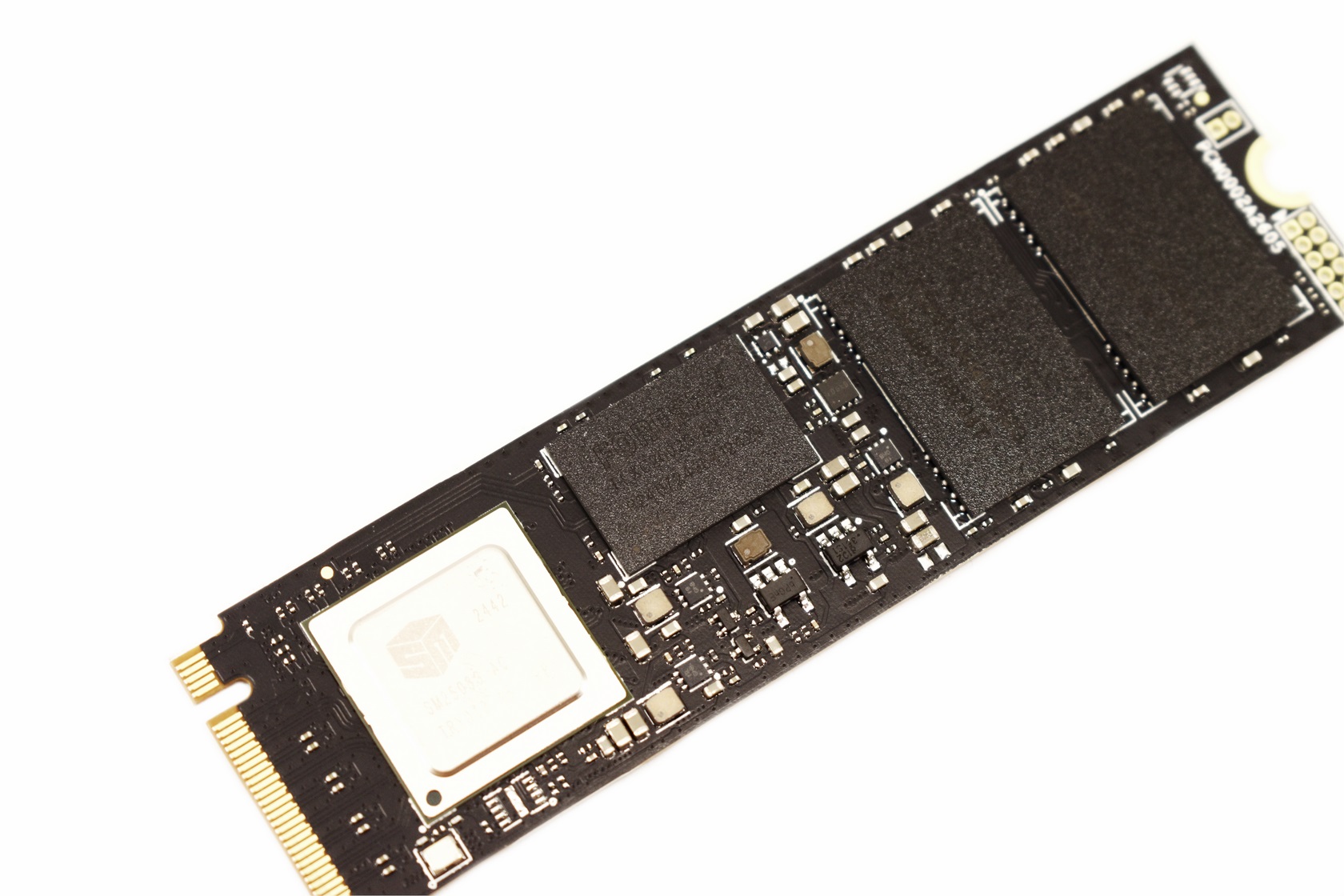

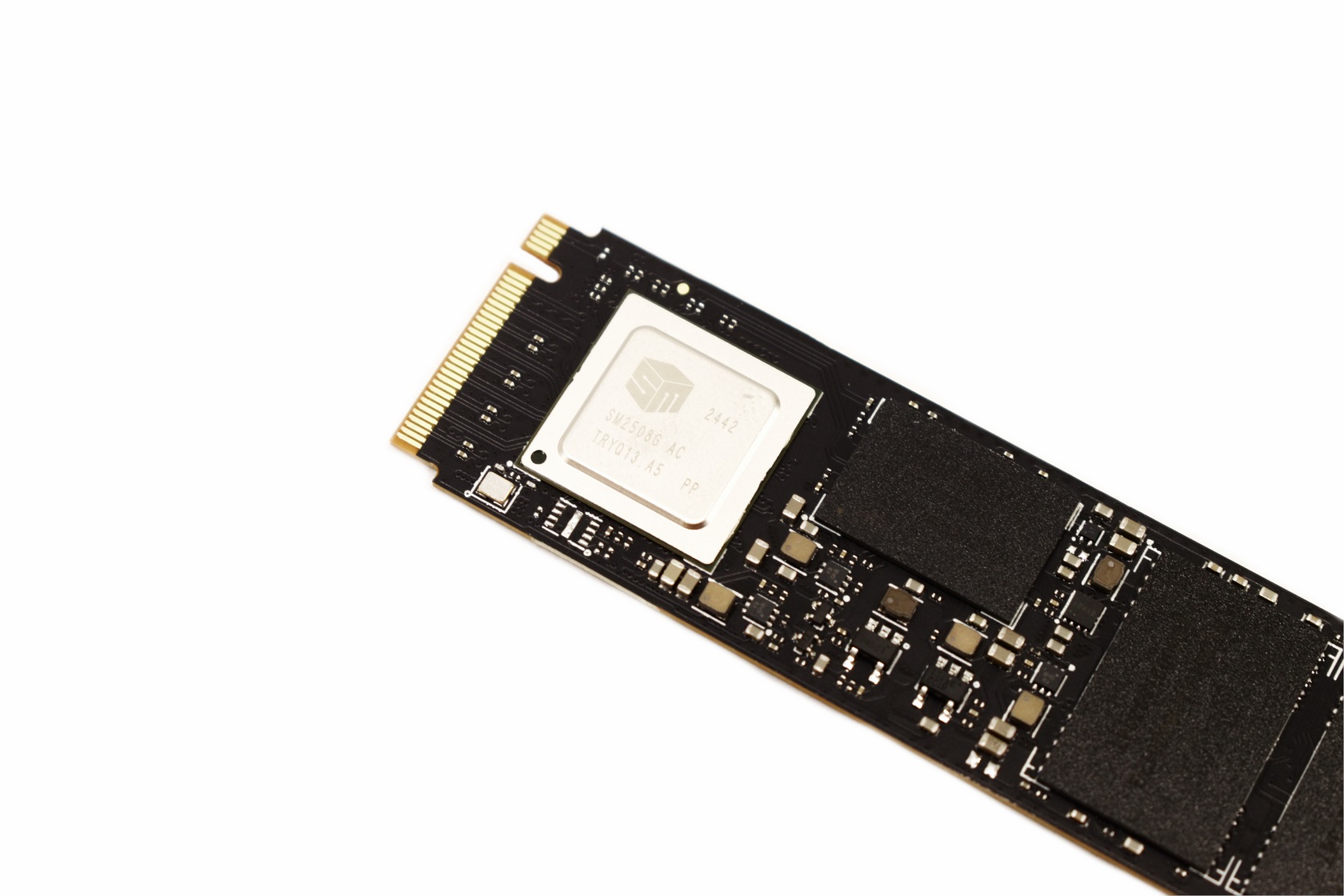

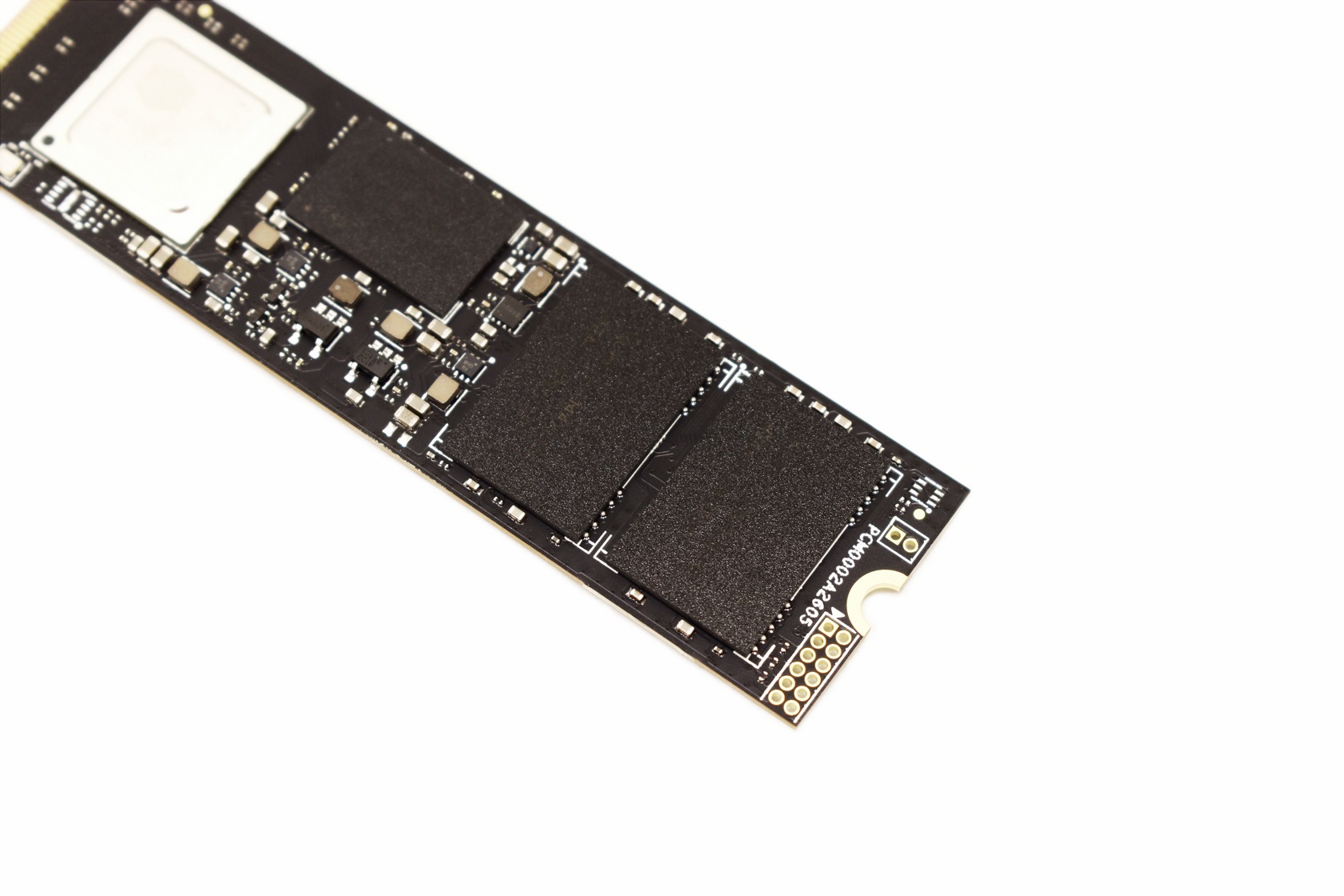

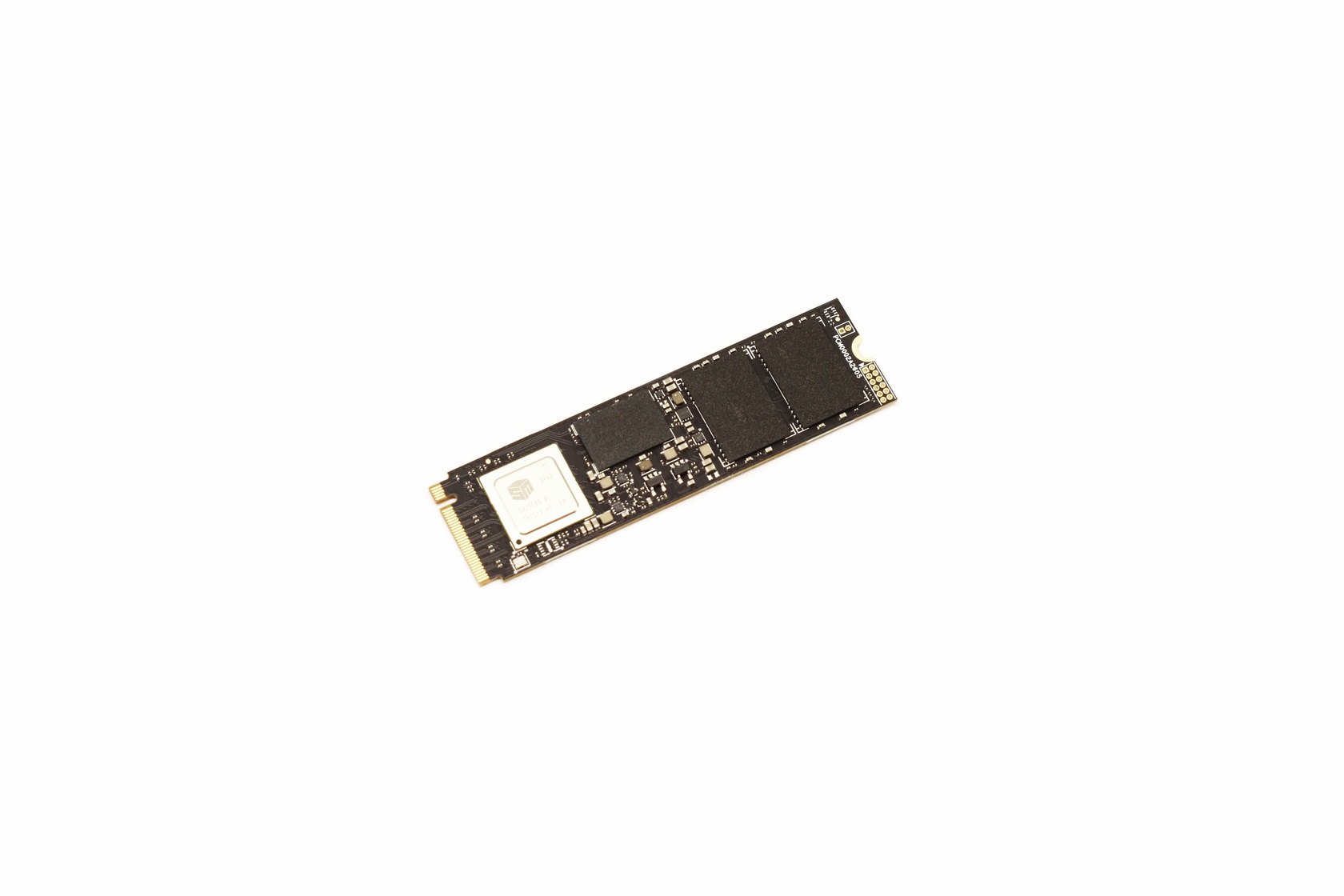

Removing the sticker reveals the SM2508G NVMe 2.0 NAND controller by Silicon Motion, single 2GB LPDDR4 DRAM module by FORESEE and two Micron 232-layer 3D TLC NAND flash modules (Longsys rebranded).

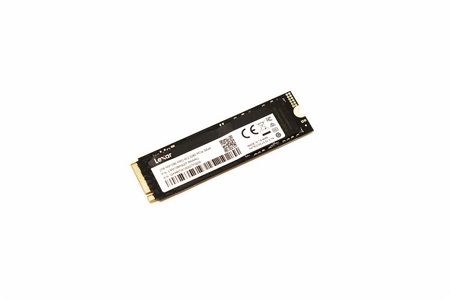

On the other side of the drive, we find a sticker with the serial number and barcode.

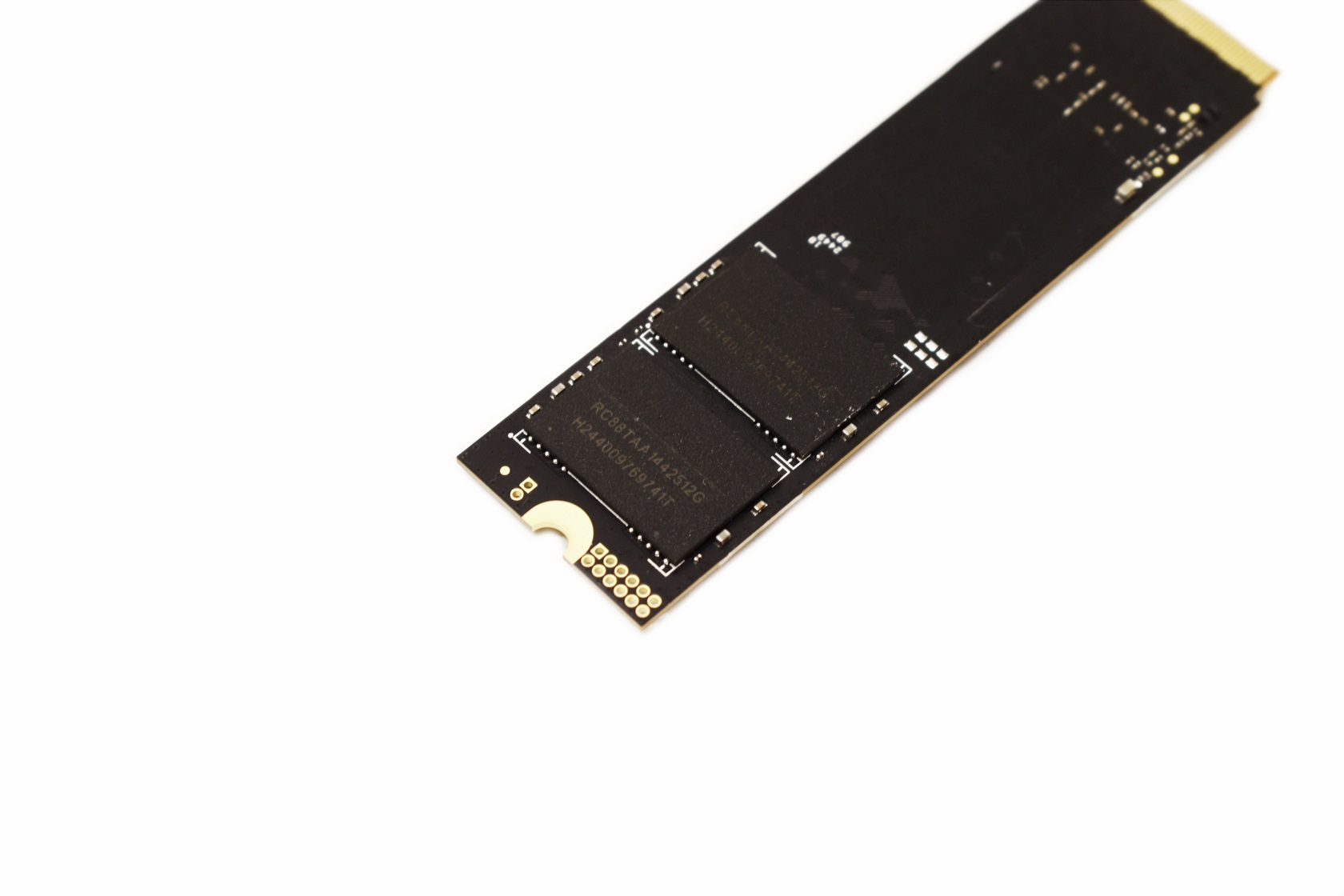

Beneath the drive we find two more Micron 232-layer 3D TLC NAND flash modules so unfortunately the NM1090 Pro 2TB is not a single side model.
