THE BLACK OPAL X570 2TB

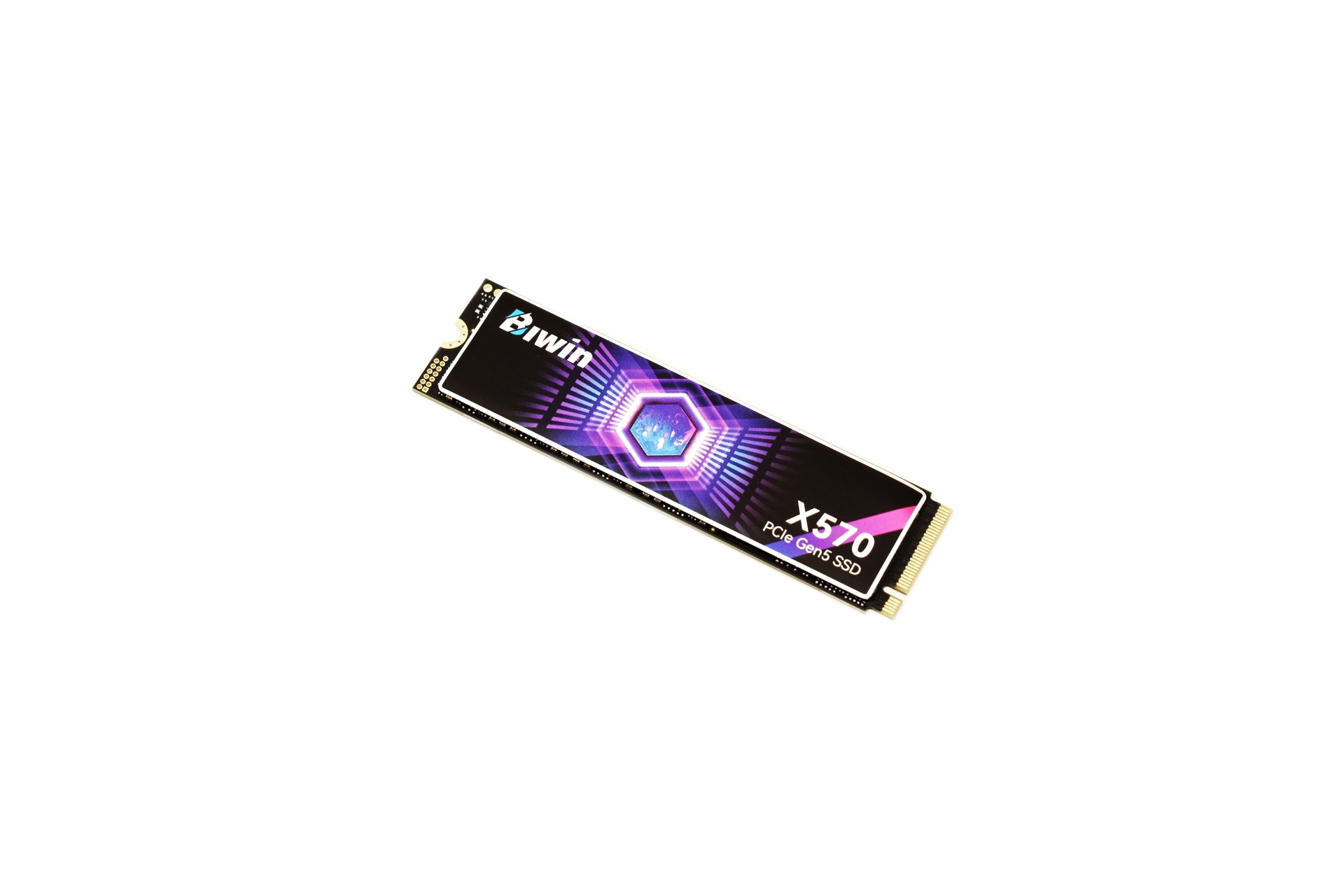

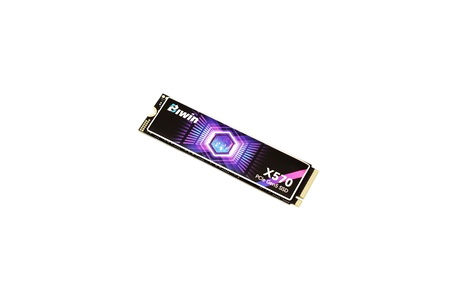

The Black Opal X570 2TB Gen5 SSD follows the typical 2280 form factor and has a graphene sticker on top with the company and product names.

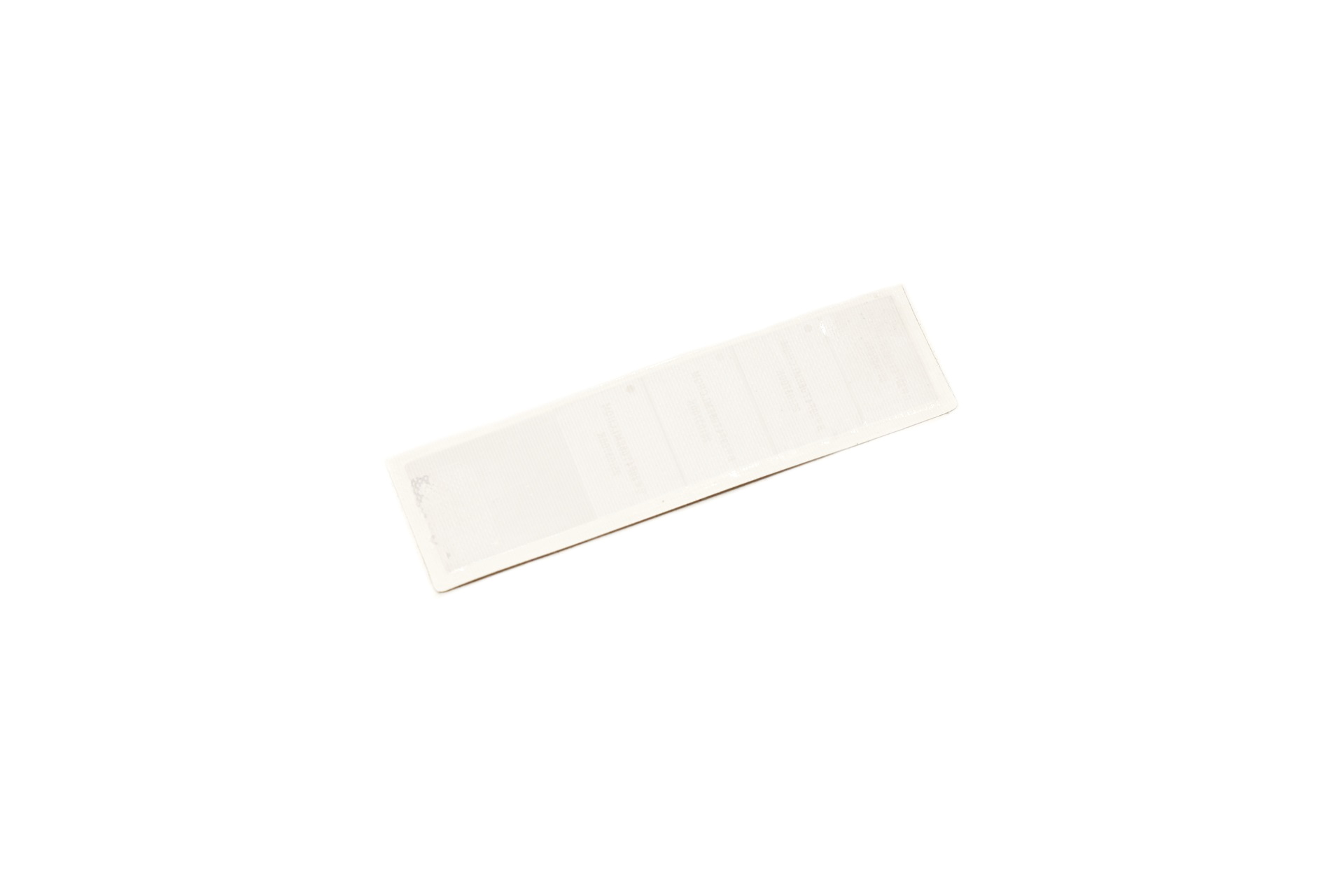

This graphene pad is quite thick and should work well on a 2nd generation Gen5 SSD controller.

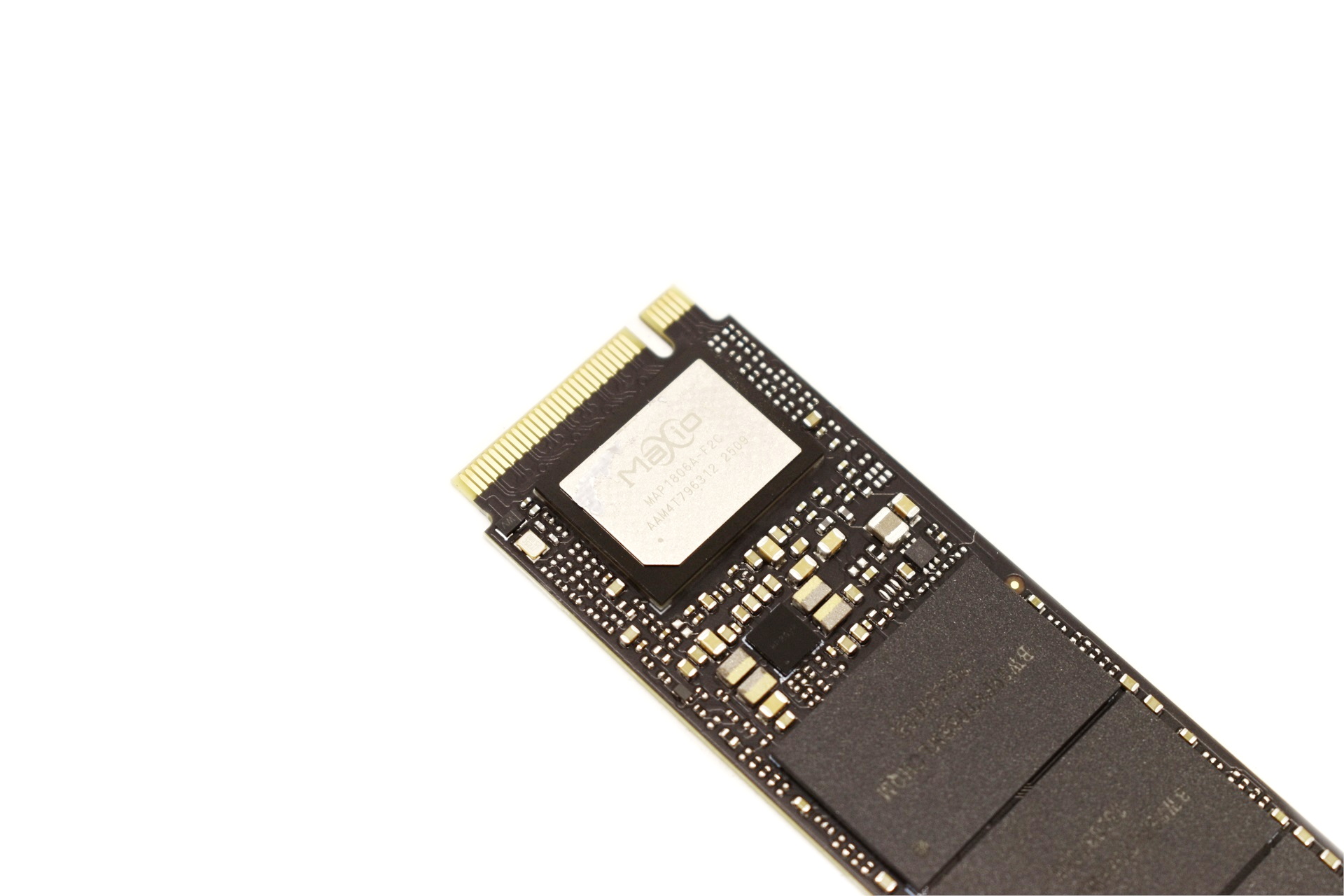

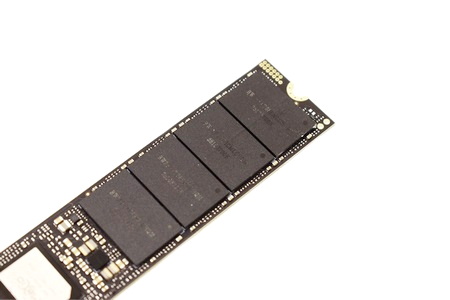

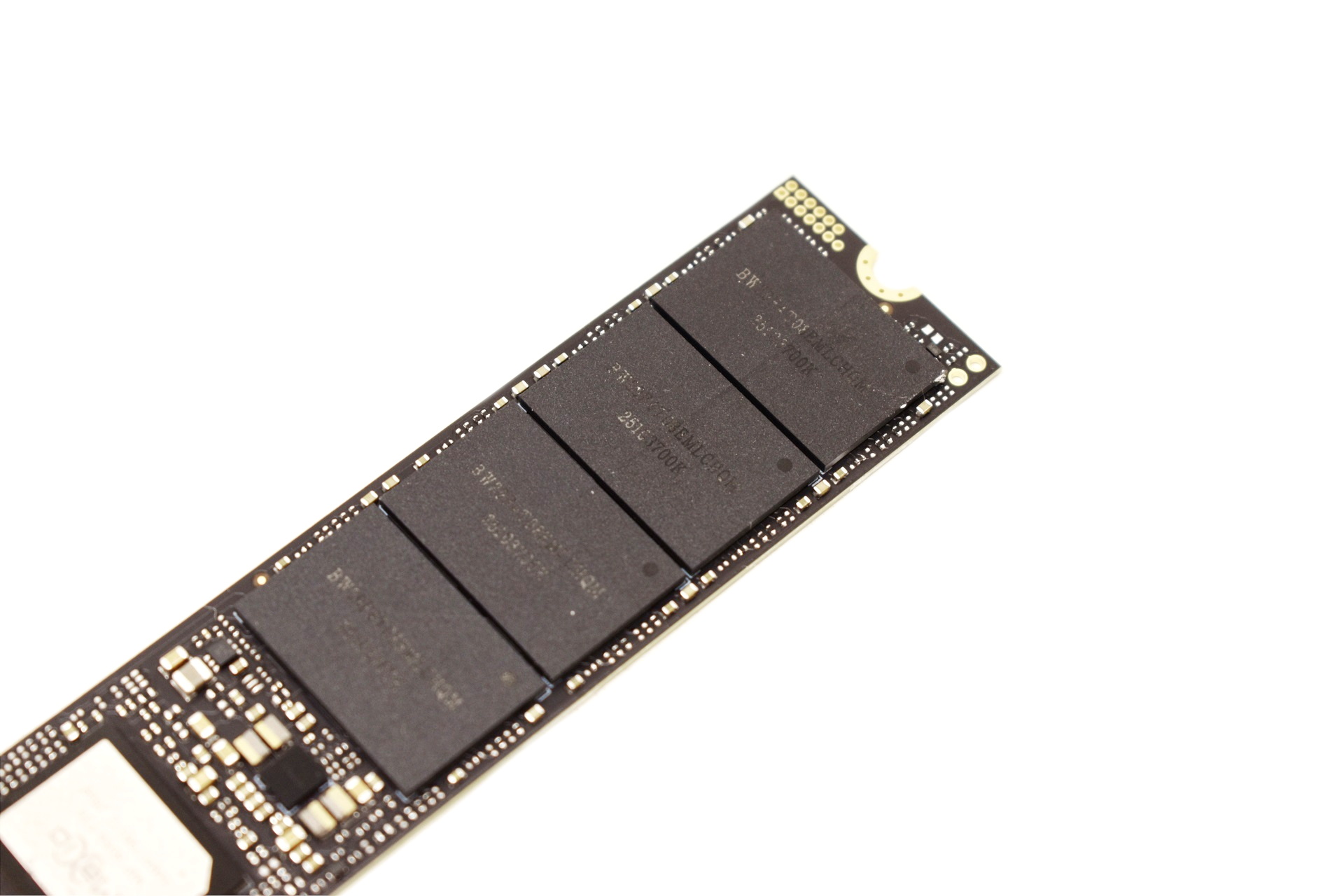

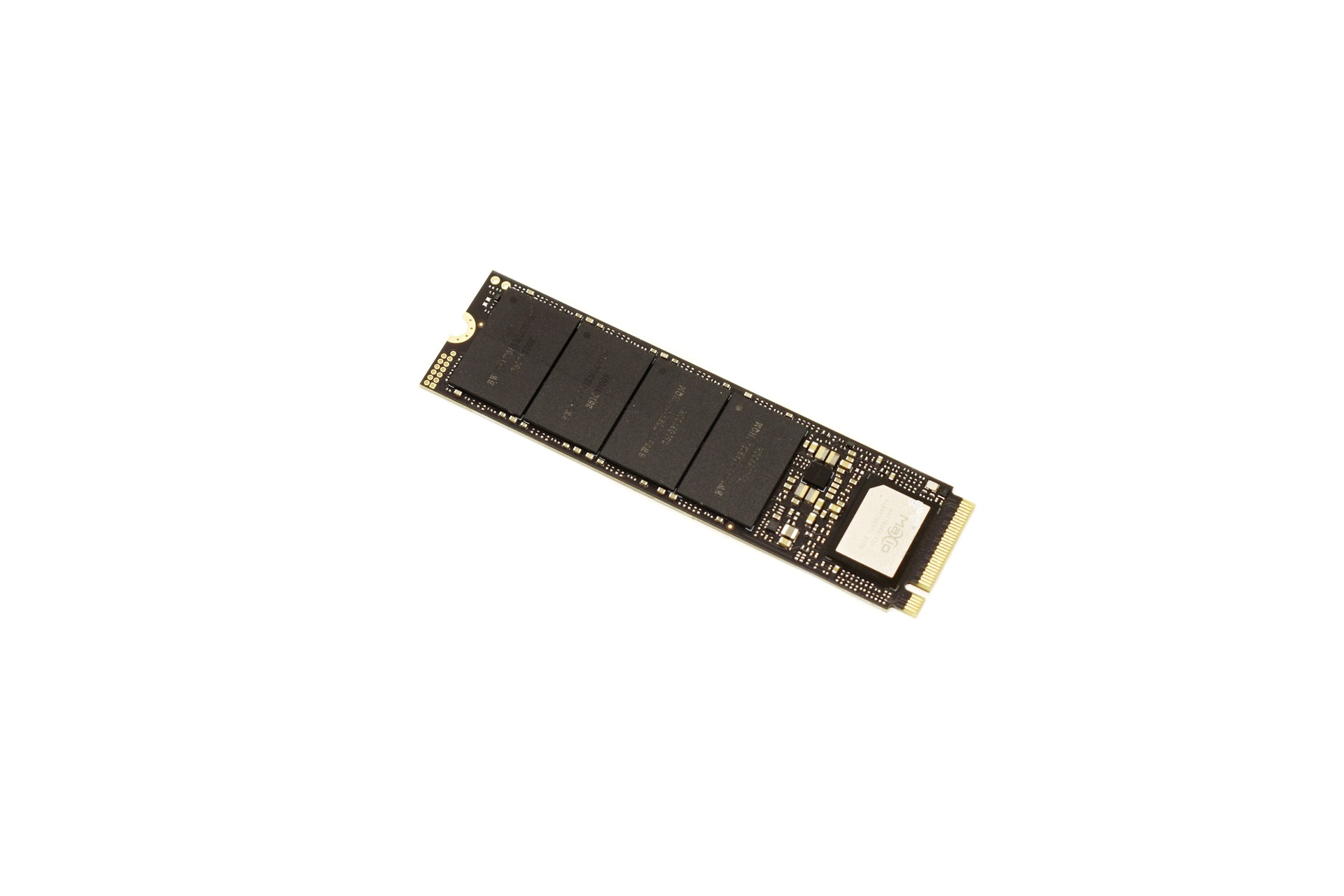

Under the graphene sticker we find the MaXio MAP1806A 6nm quad-channel NVMe 2.0 NAND flash controller and four 232-Layer 3D TLC NAND flash modules by Micron.

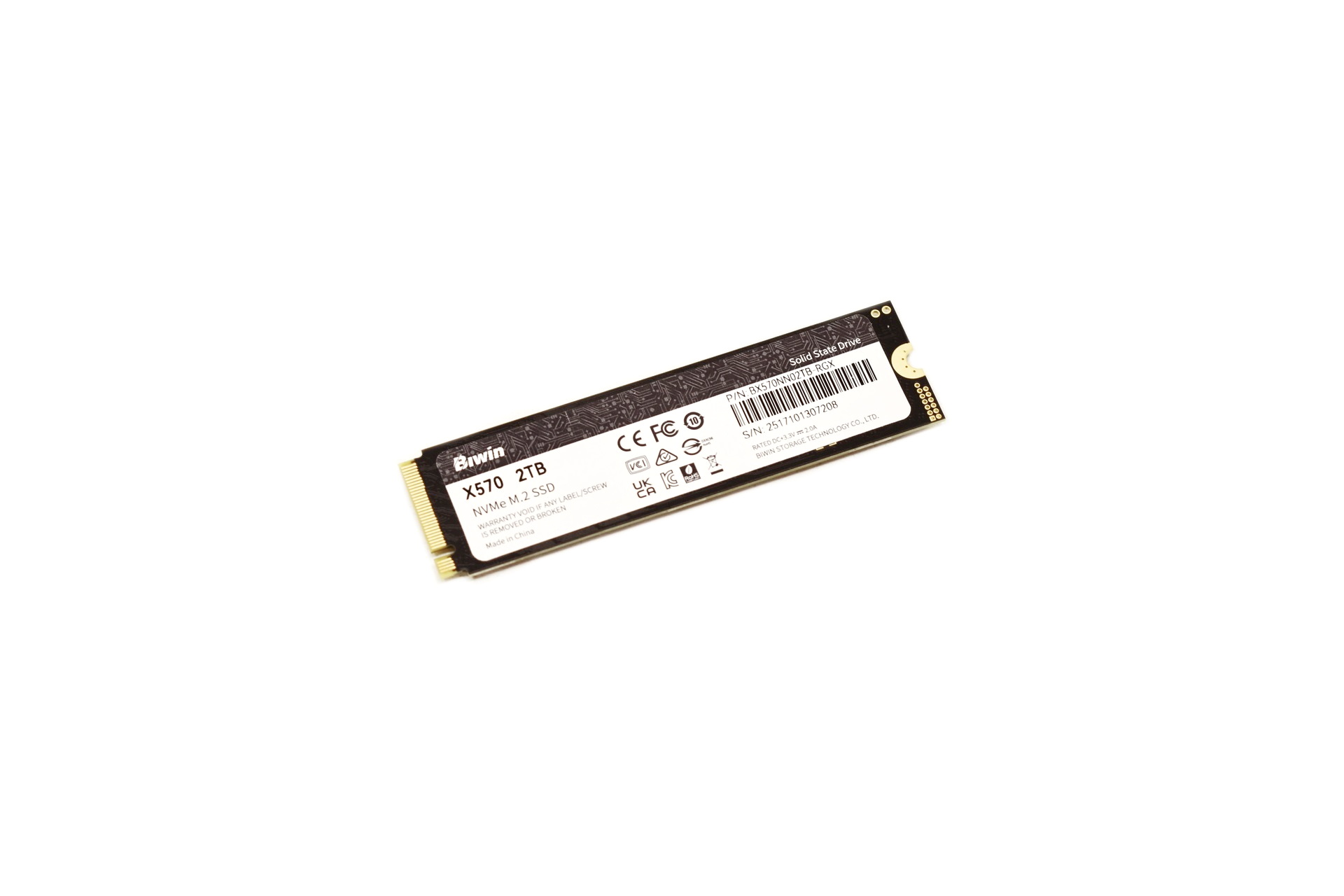

On the opposite side there's a sticker on which BIWIN has printed the model name, capacity, serial number and barcode and several certifications.
