THE HYPERX SAVAGE 240GB

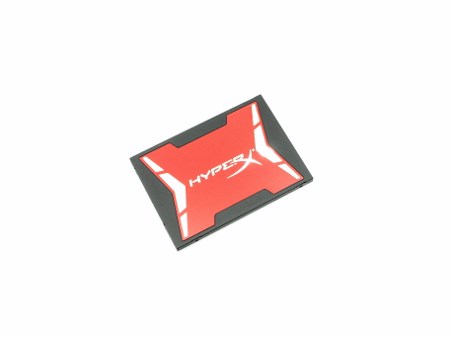

The HyperX Savage SSD may be yet another 7mm model but thanks to the red and black color combination it looks quite unique.

A small sticker at the rear indicates the drive capacity, part number, serial number, installed firmware version electrical specifications and several warning and certification logos.

At the end of the drive we find the usual SATA data and power connectors.

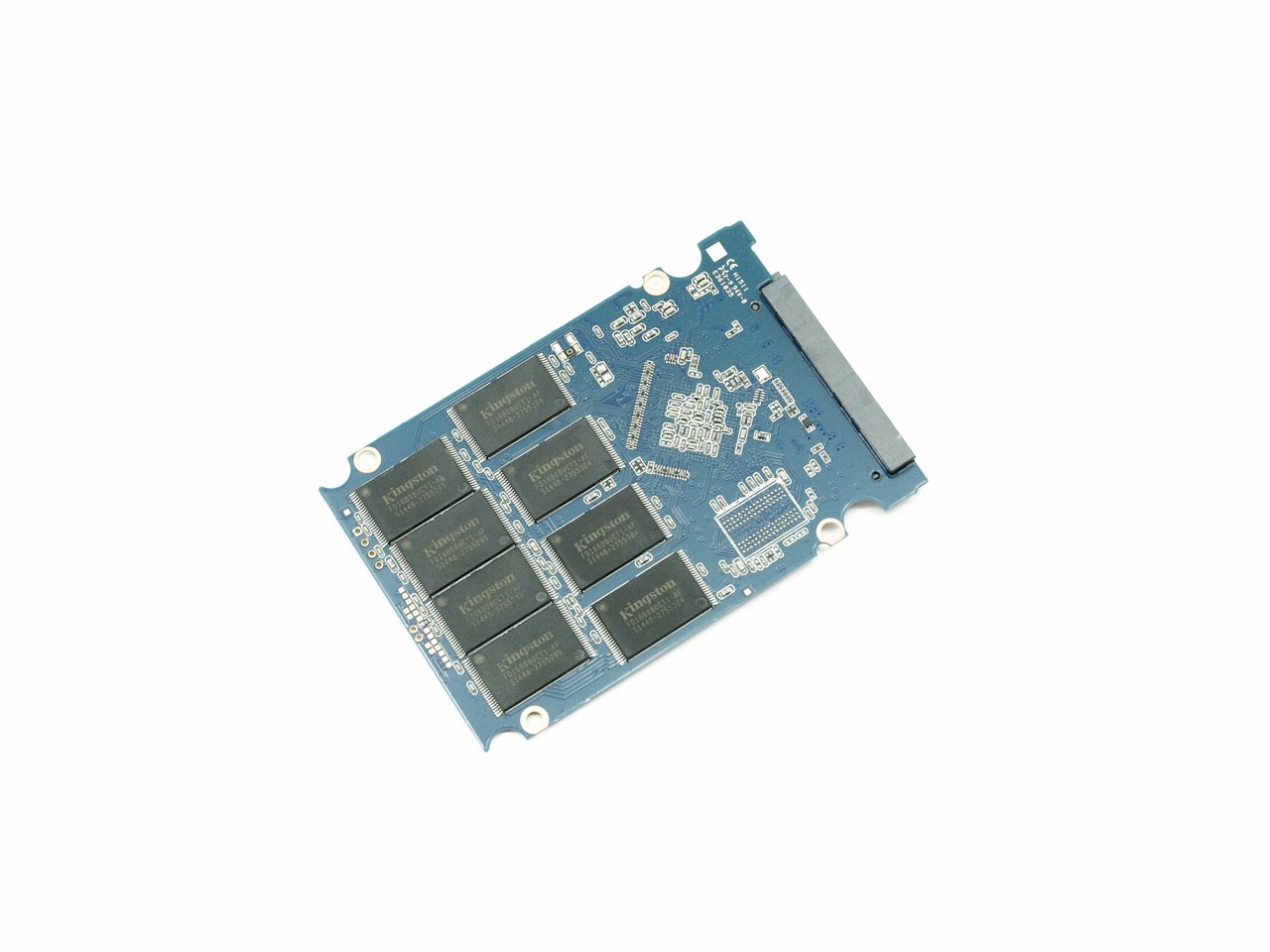

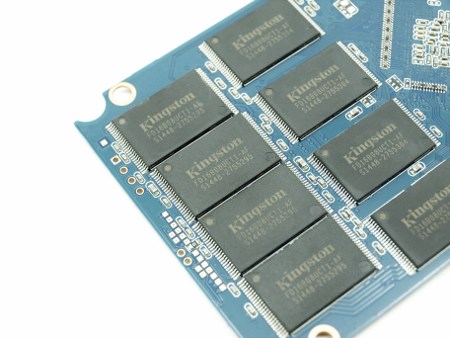

One side of the PCB has eight A19 64Gbit MLC NAND flash modules by Toshiba with the Kingston logo on them (16GB each).

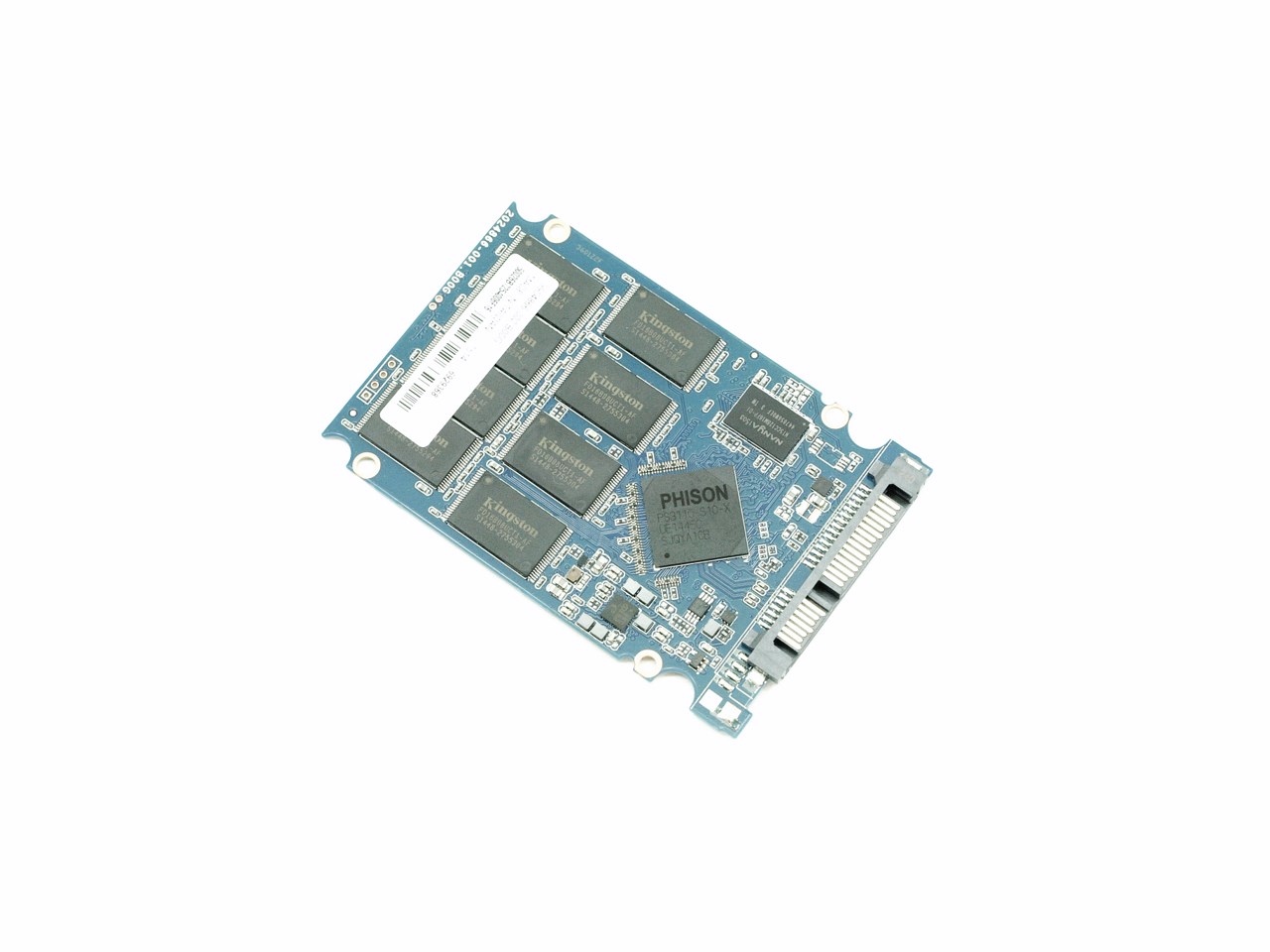

Another four NAND flash modules are placed on the opposite side (again 16GB each).

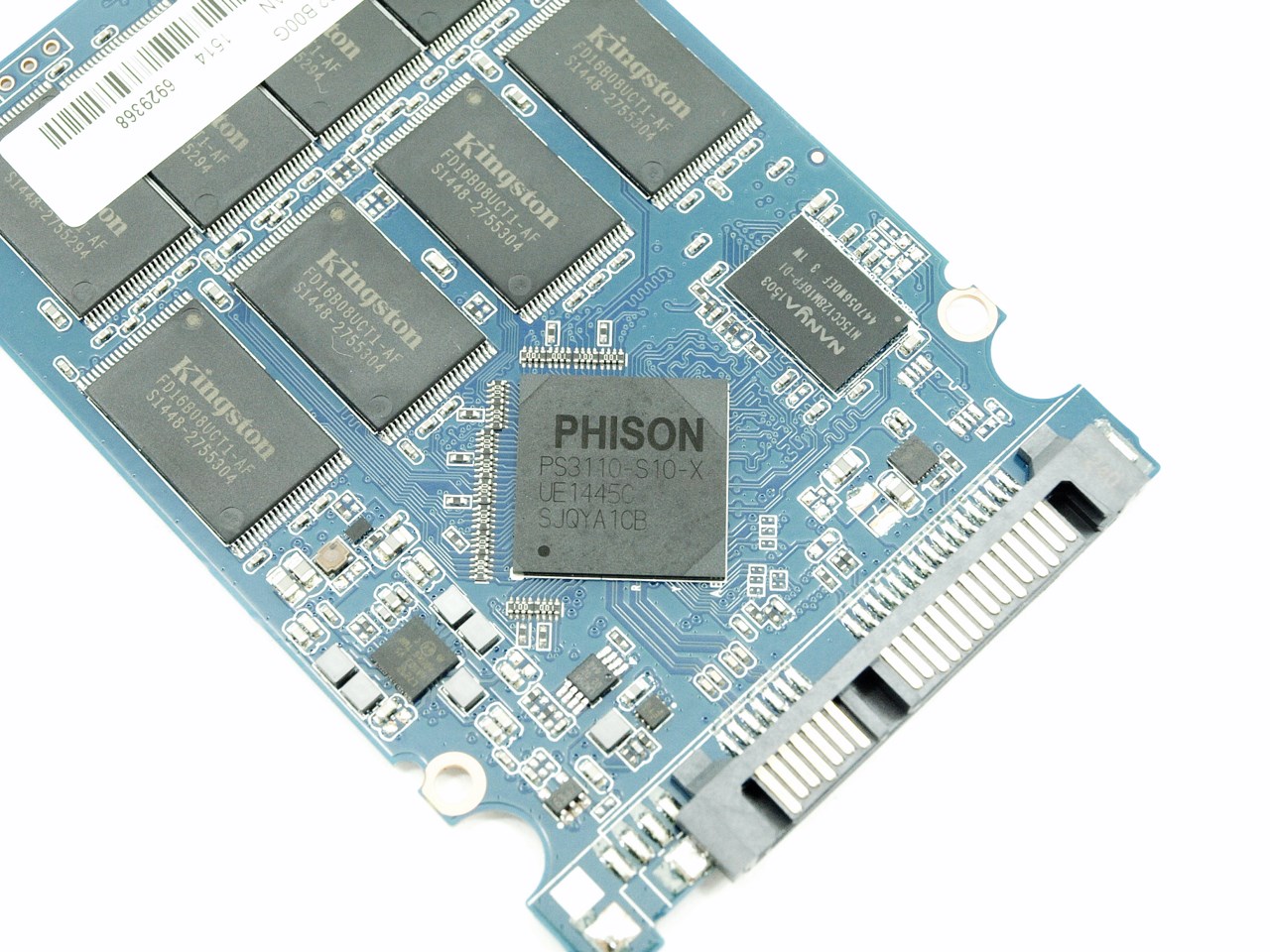

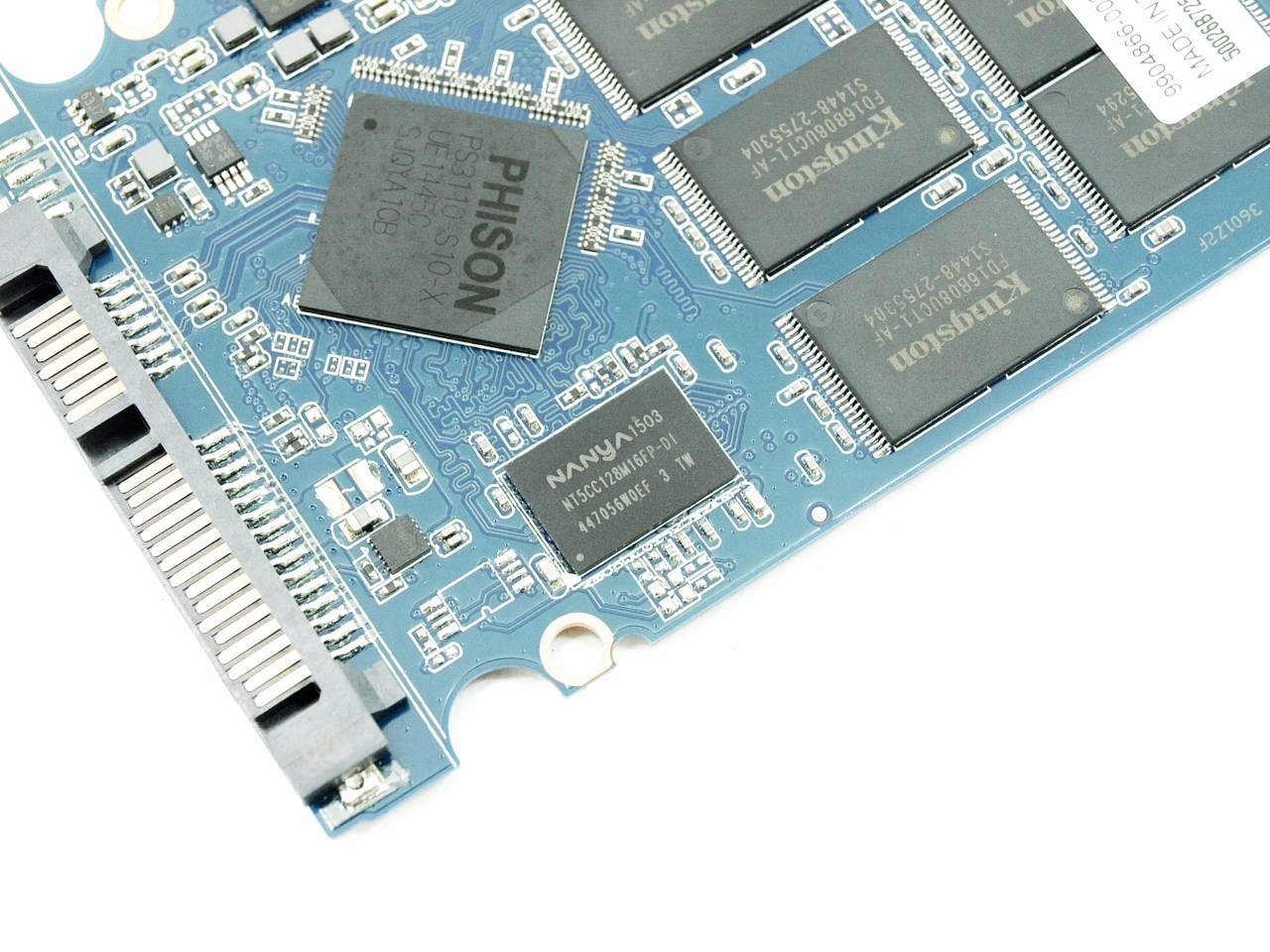

Here we also see a 256MB Nanya DDR3L 1600 module and the Phison S10 controller.
