THE HELLFIRE 480GB

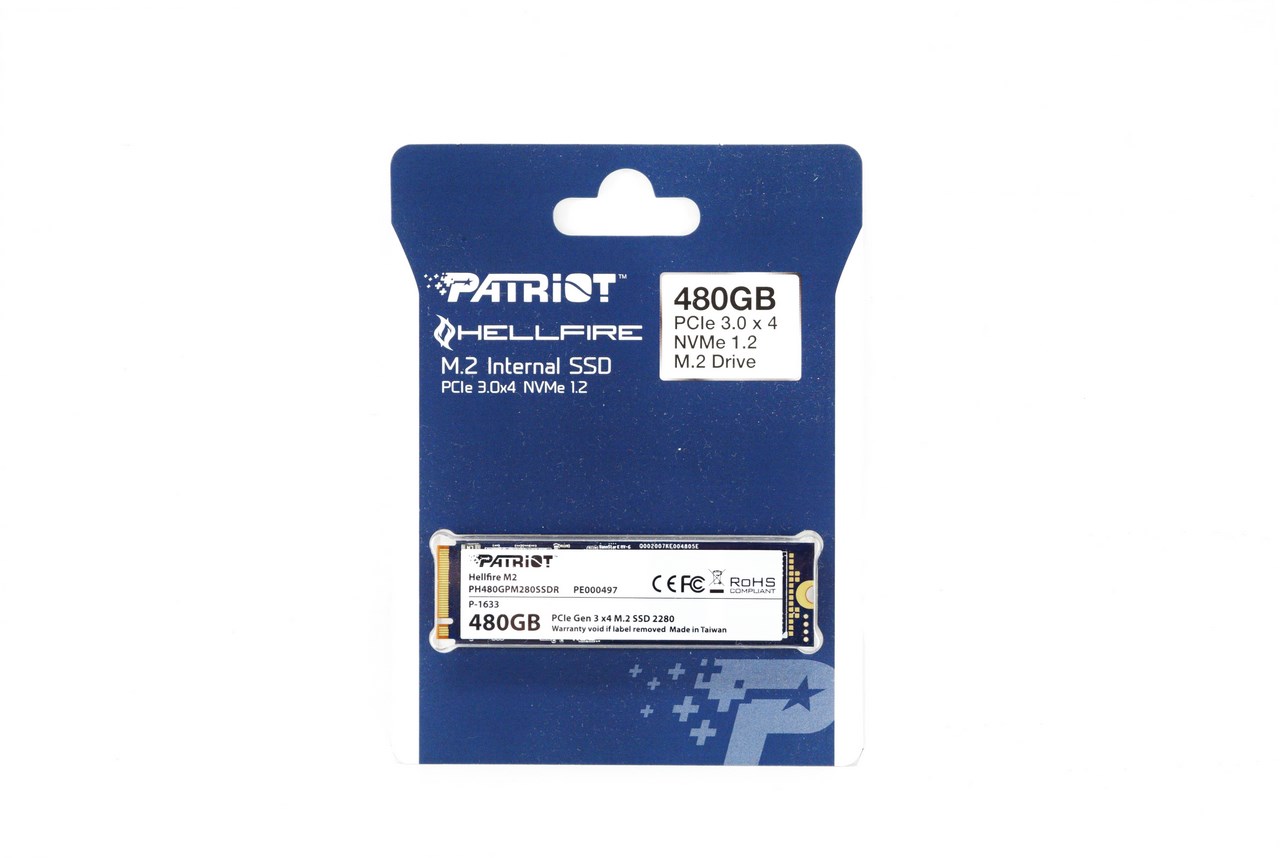

Again just like most similar M.2 models the Hellfire arrived inside a blister pack which allows the consumer to check the drive prior to purchasing it.

The product features are listed at the rear of the box in 9 languages.

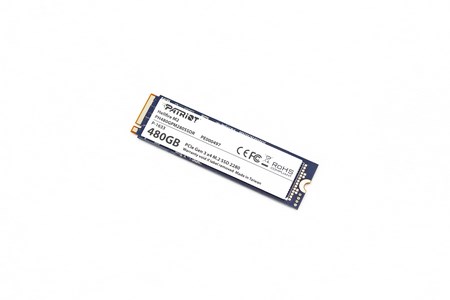

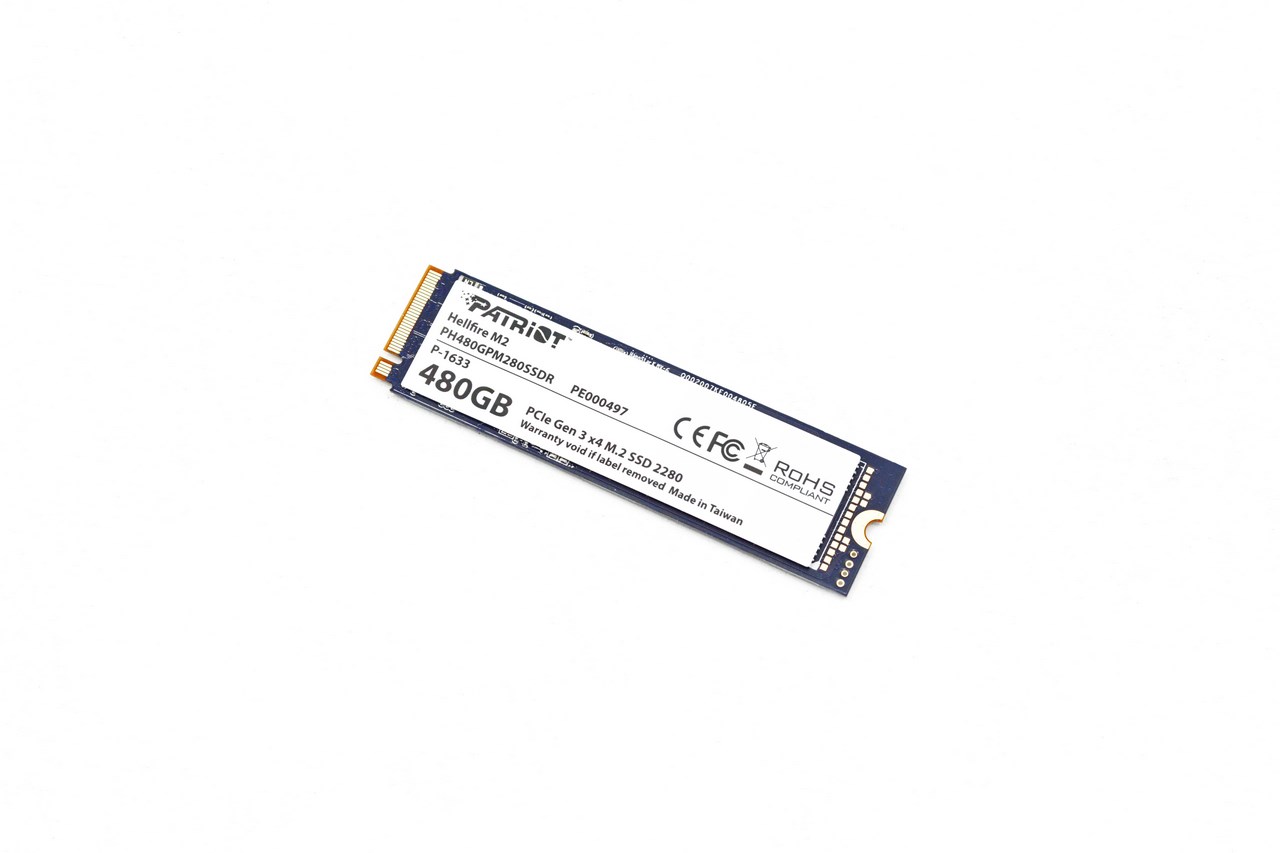

The Hellfire M.2 NVMe drive is based on the 2280 type (22mm wide and 80mm long) and has a large sticker at the top.

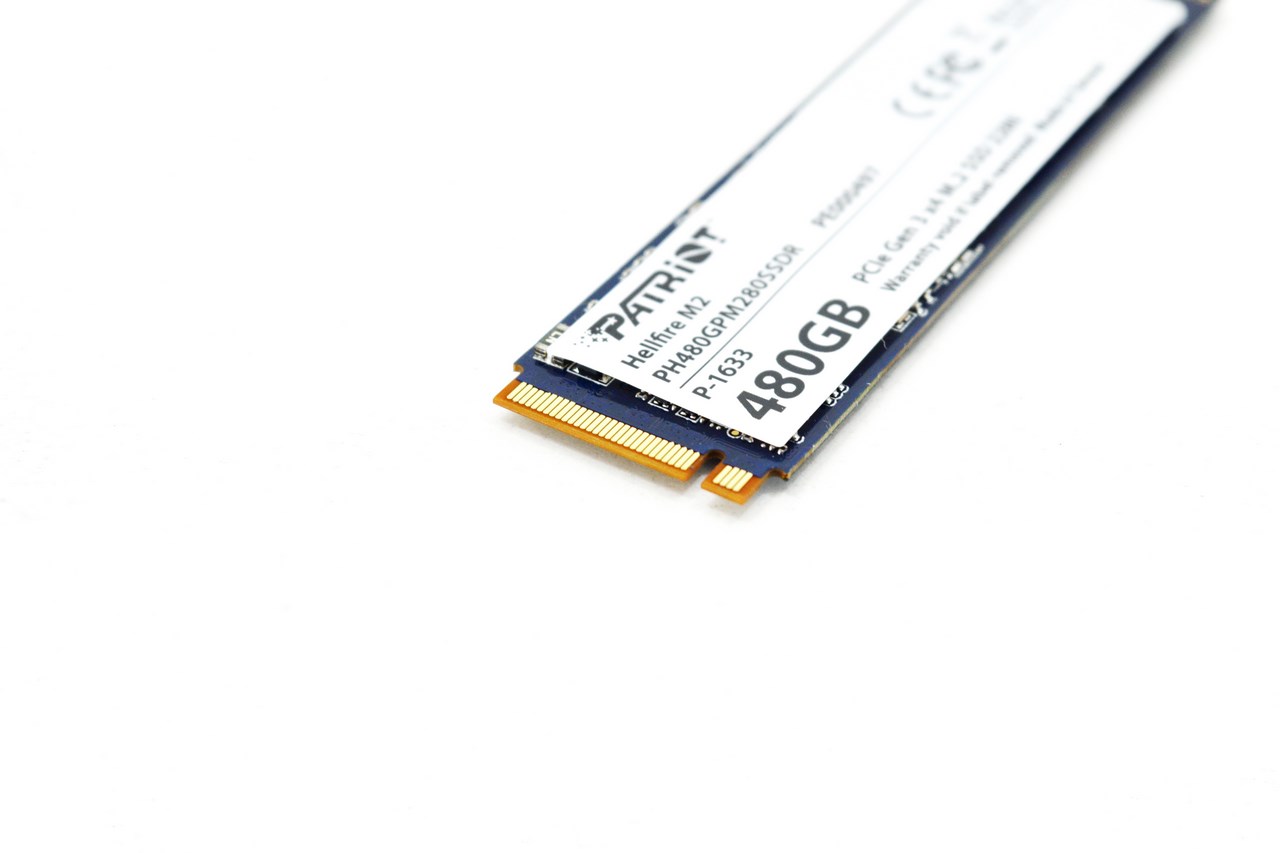

Typically on one end we find the data/power connector.

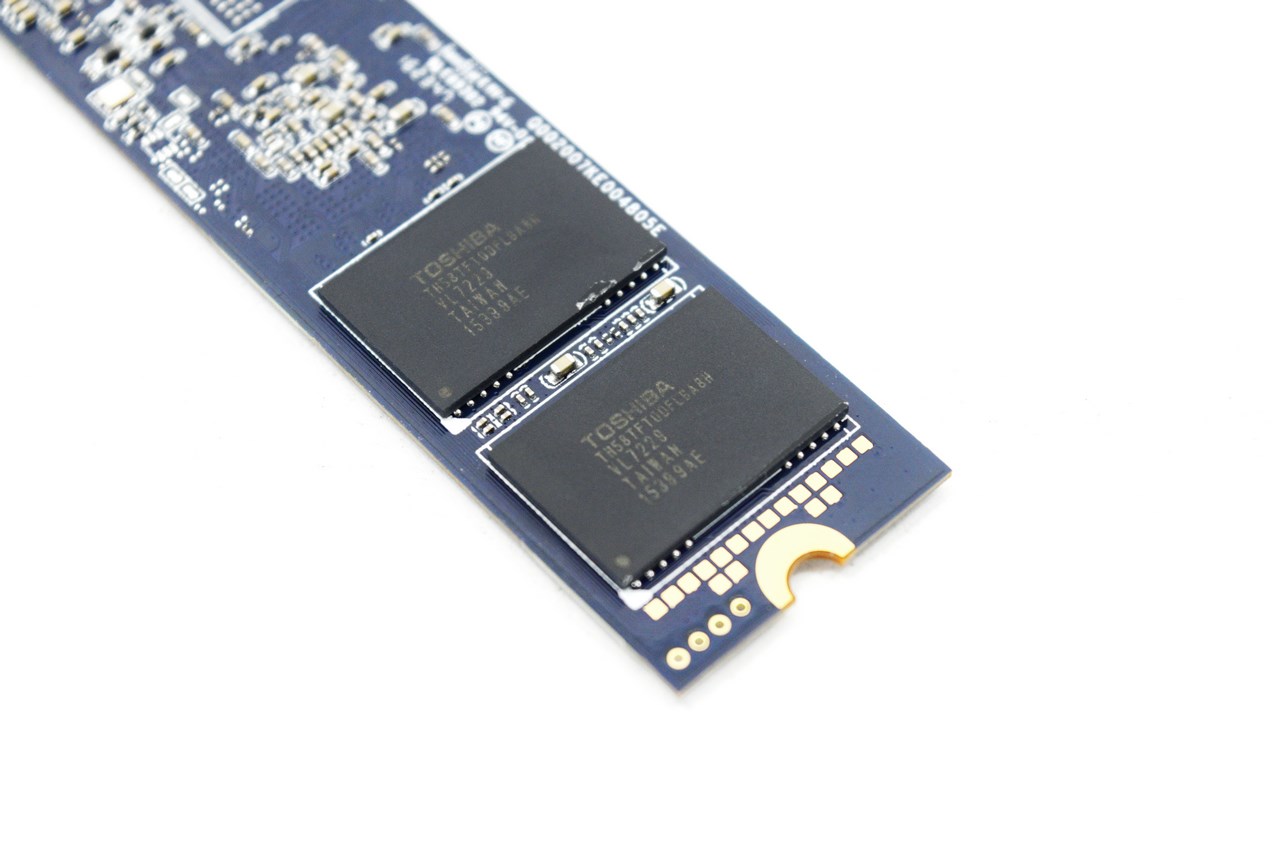

Placed under the long sticker are two 128GB 15nm NAND flash MLC modules by Toshiba.

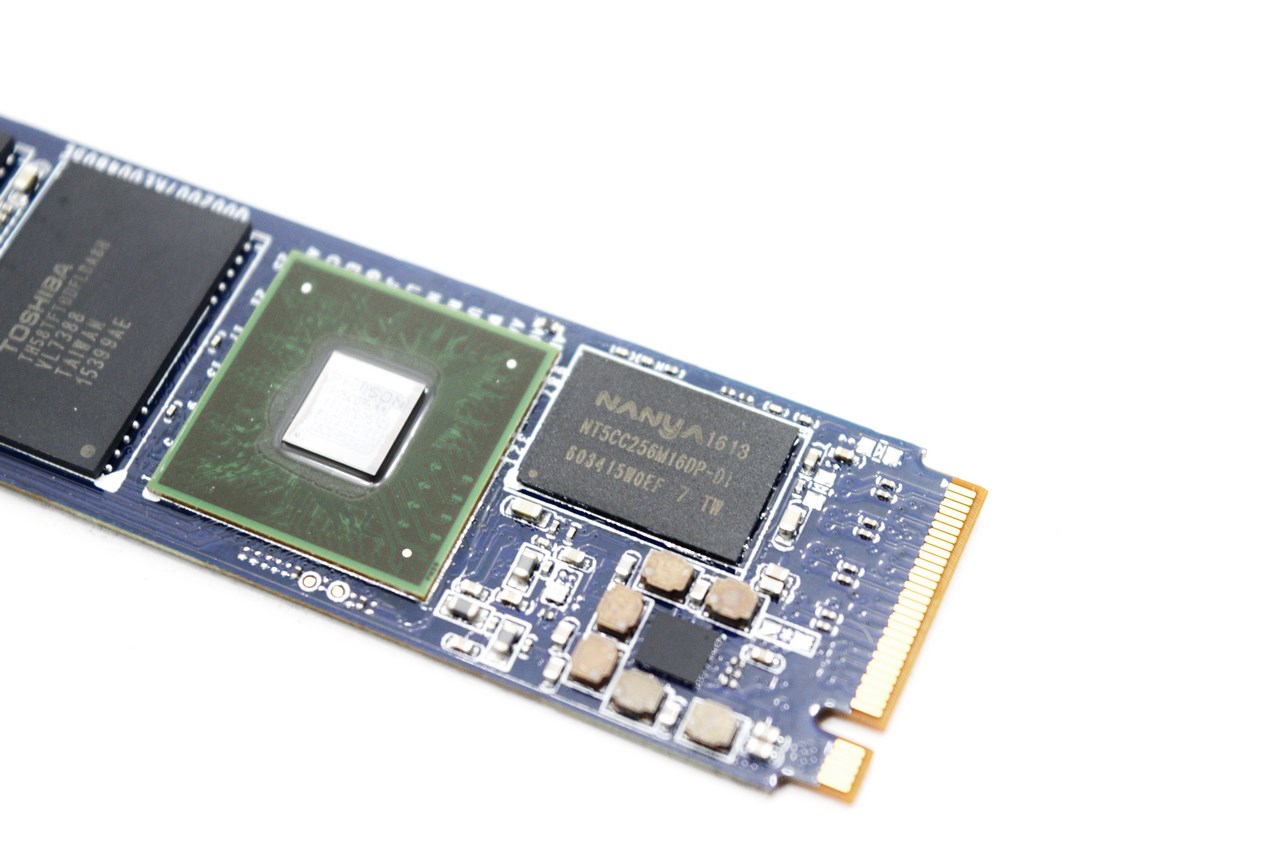

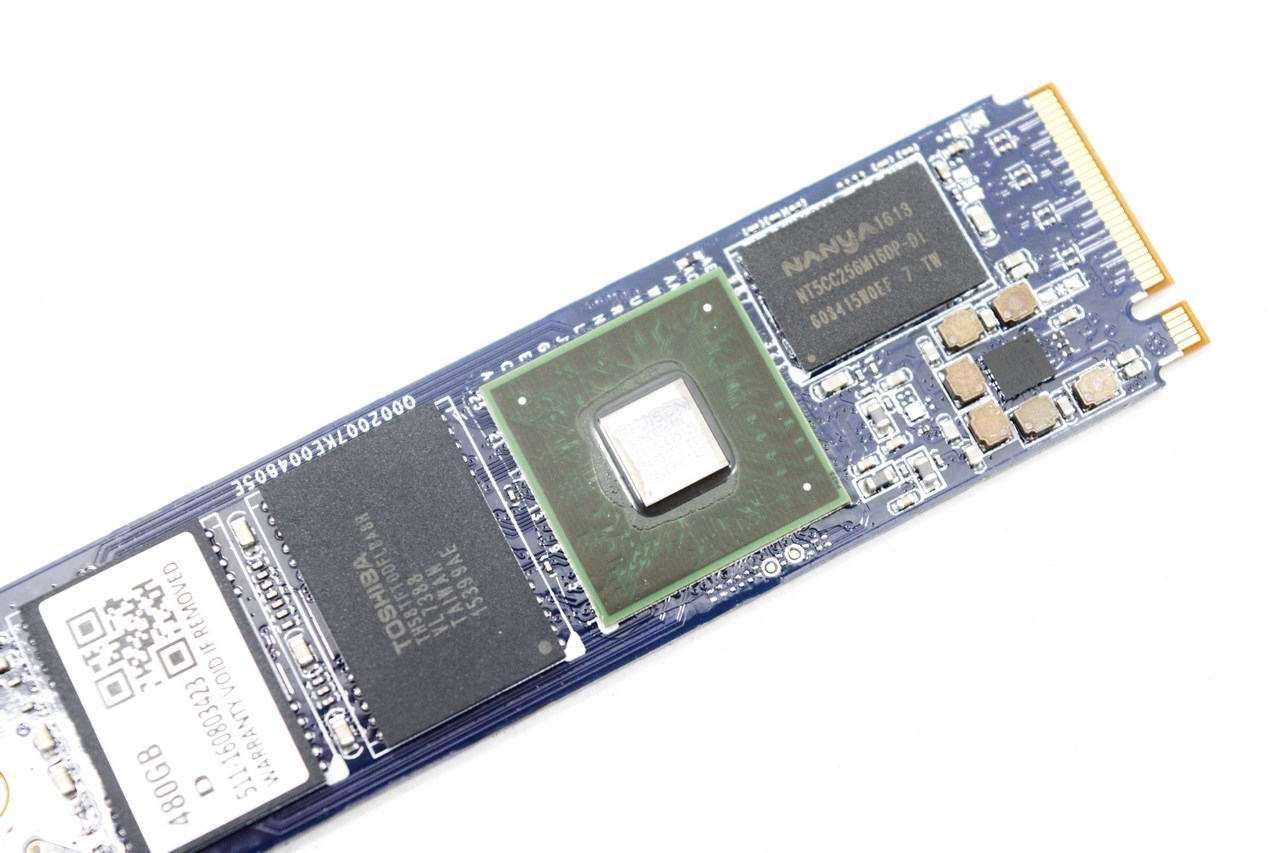

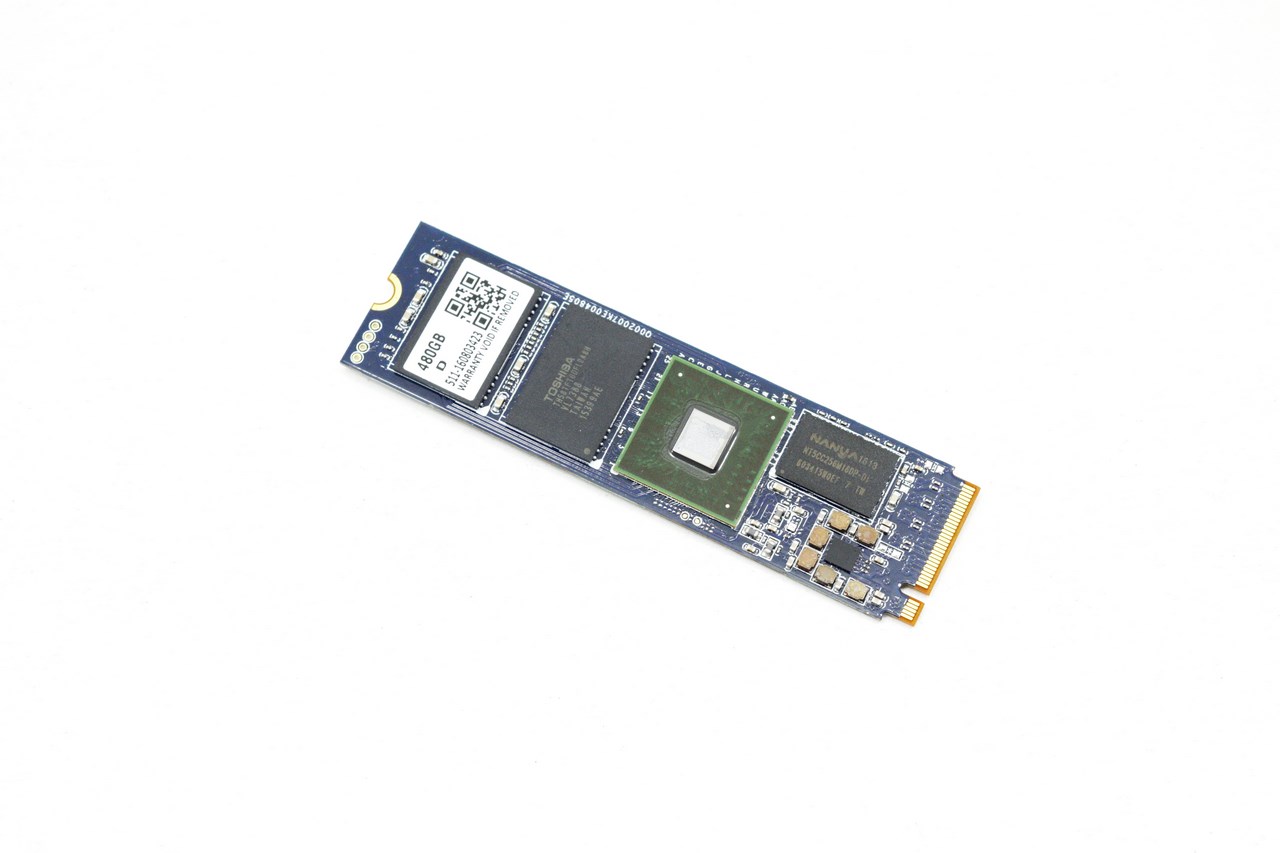

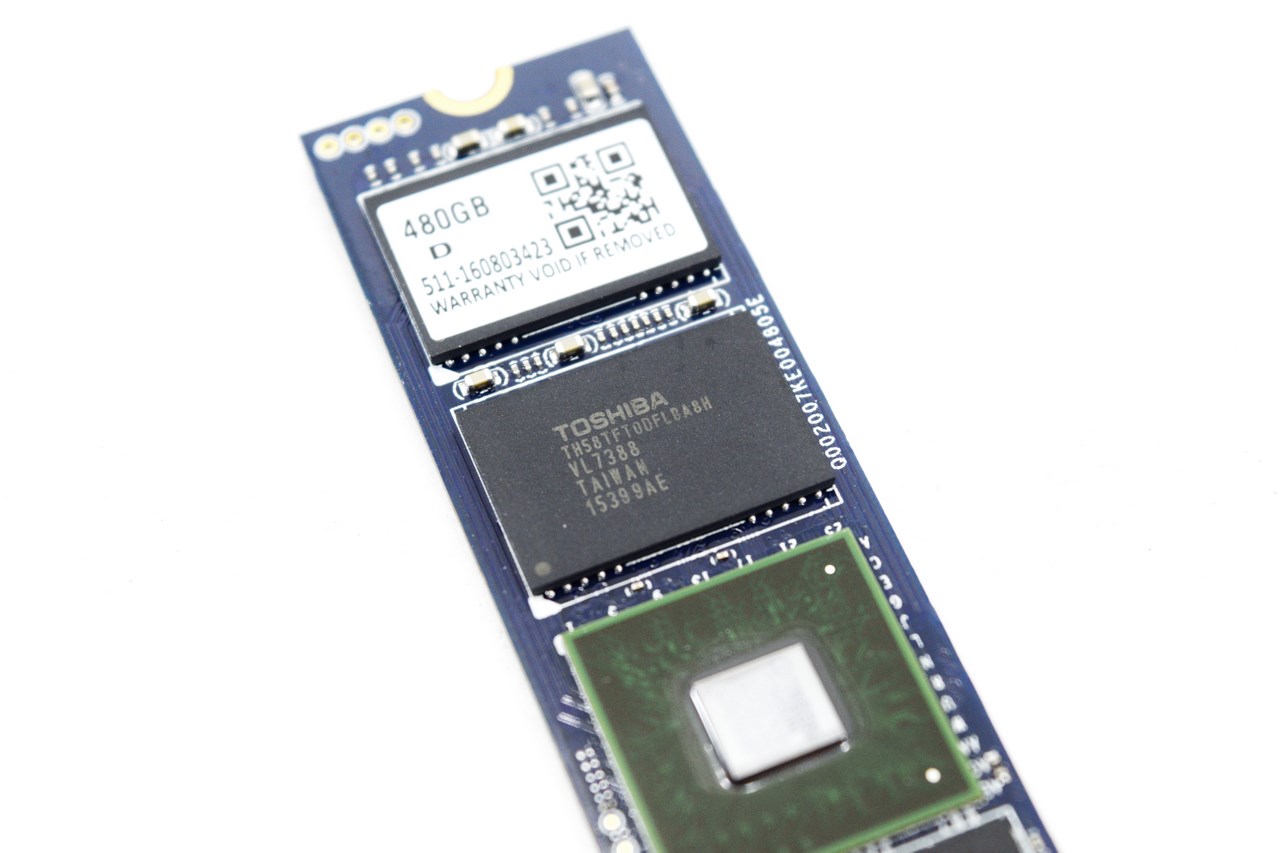

On the other side of the PCB we see two more 128GB 15nm Toshiba NAND flash MLC modules, a 512MB DRAM cache module by Nanya and the Phison E7 eight-channel quad-core controller.
