THE A1000 480GB

The A1000 is a single side NVMe M.2 SSD model.

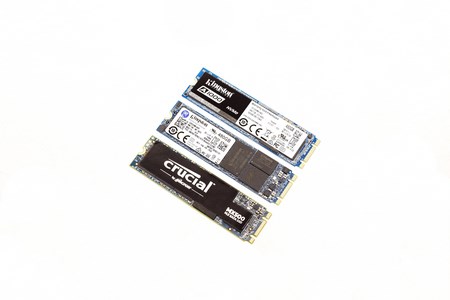

Just like every other M.2 model to pass from our lab the A1000 follows the standard 2280 form factor.

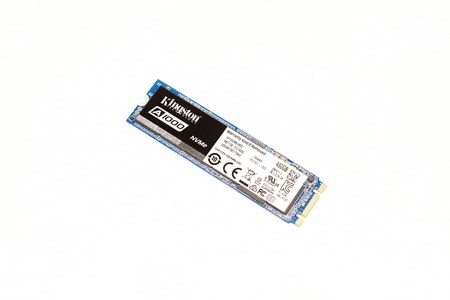

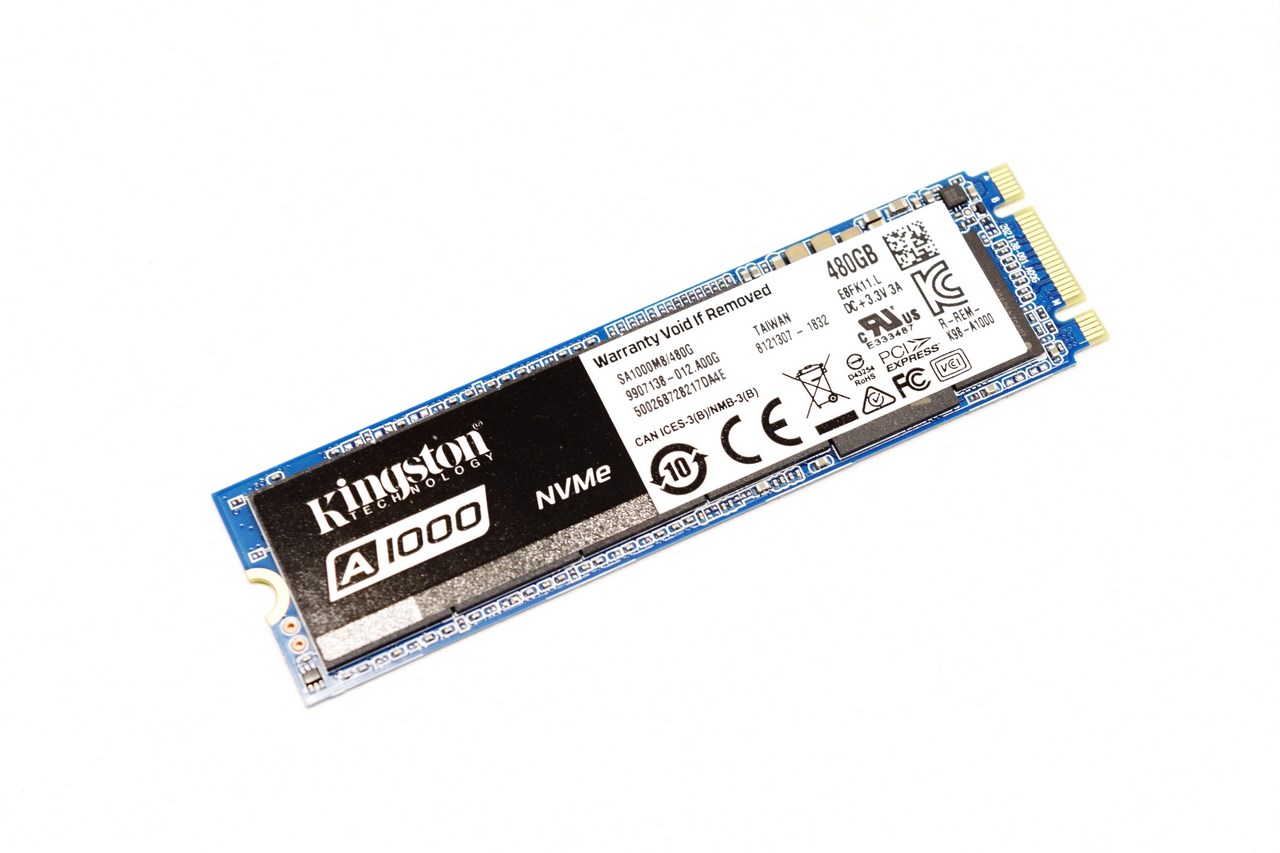

As usual a large sticker (not a copper one) placed at the top contains information like the drive capacity, serial and part numbers, barcodes, electrical requirements and several certification logos.

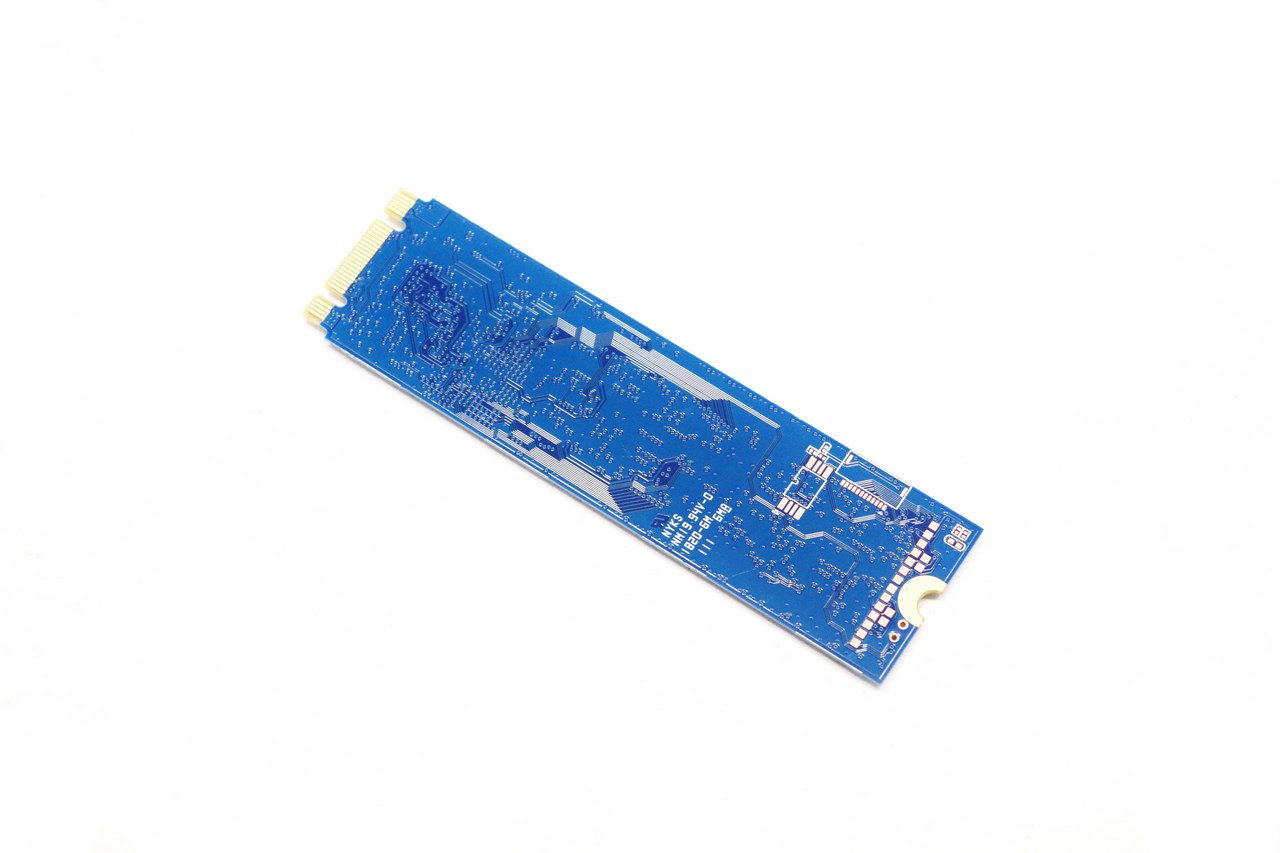

Since this is a single side model no modules are placed on the opposite side.

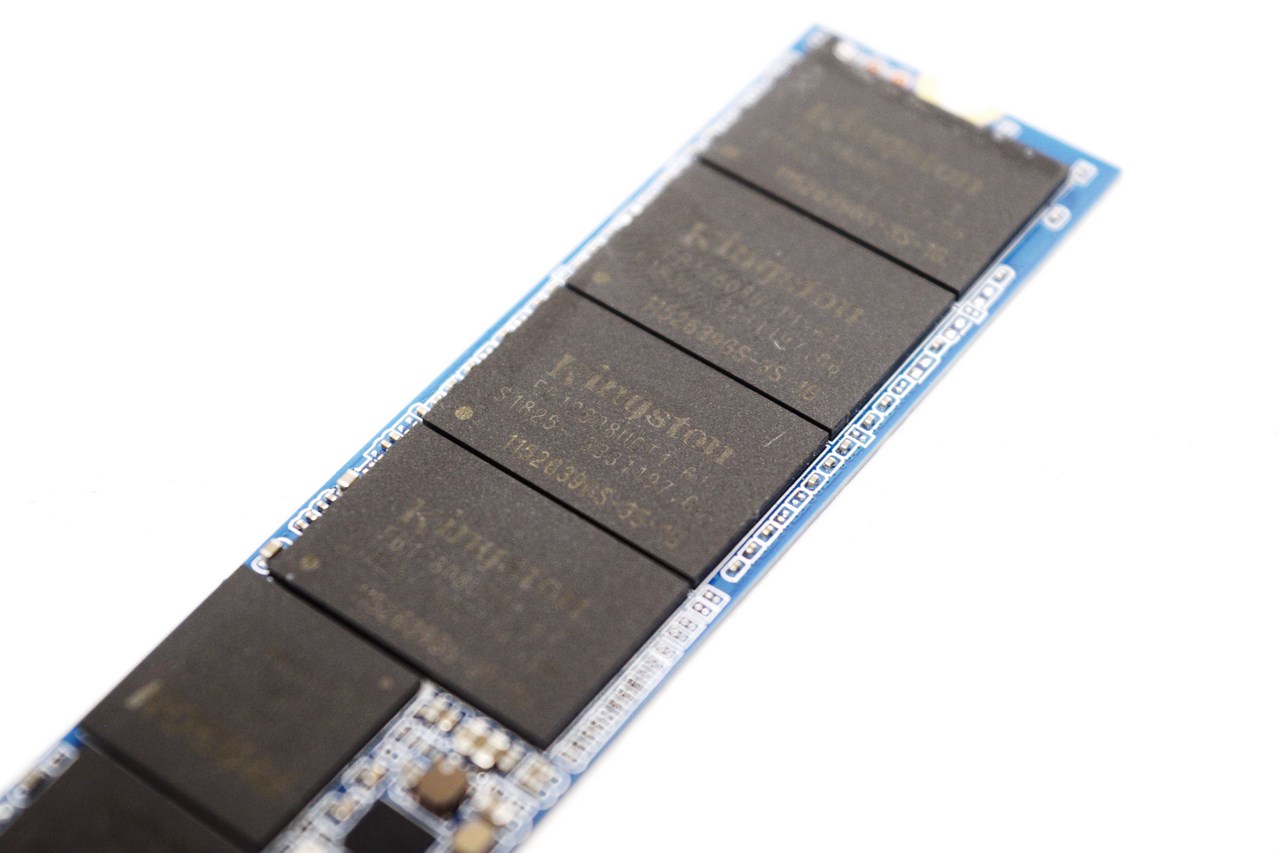

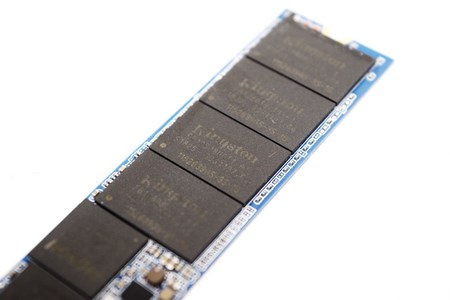

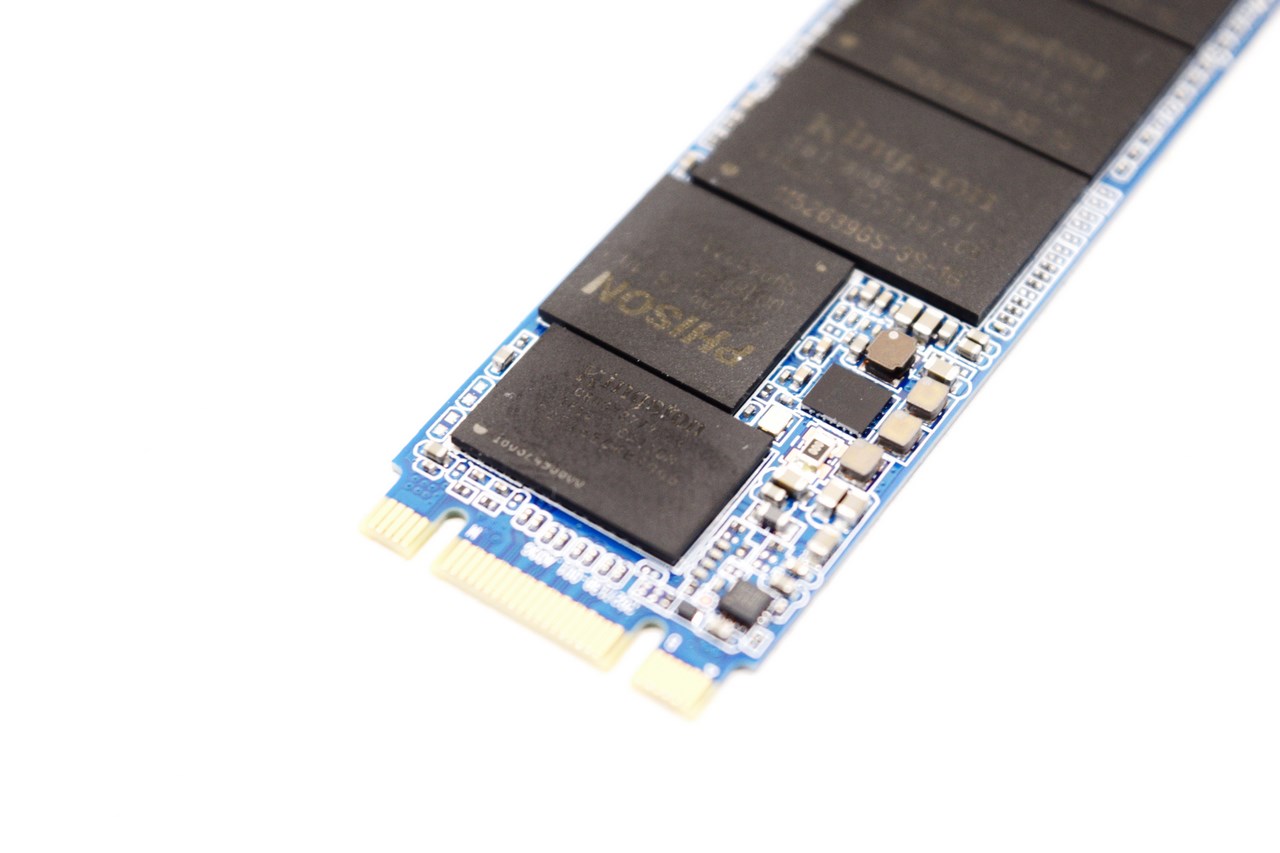

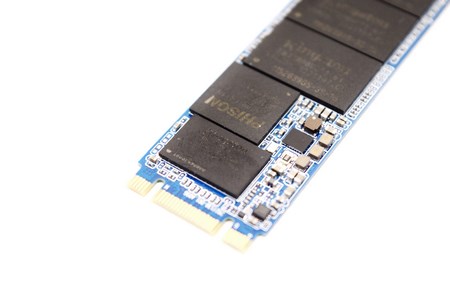

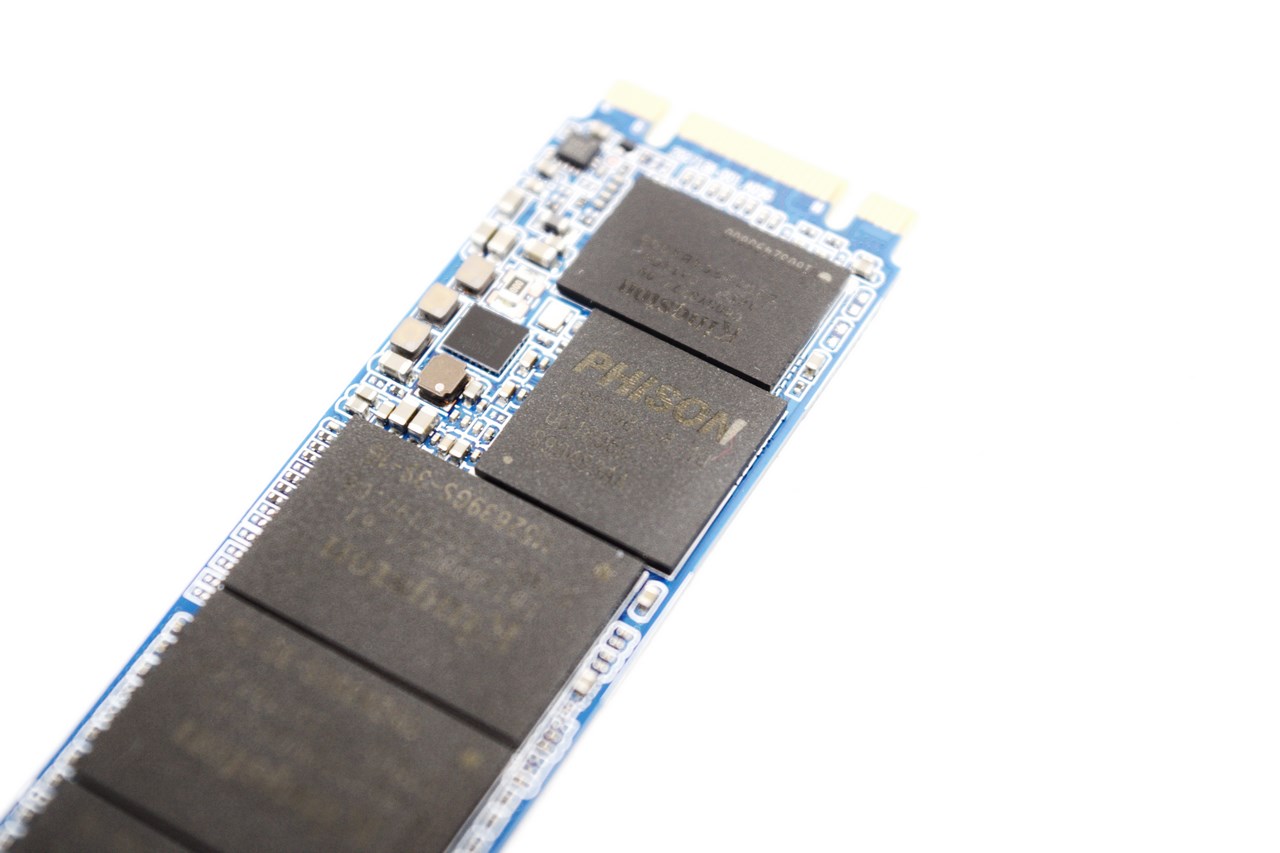

Removing the sticker reveals 4 Toshiba 3D TLC NAND flash modules (each 128GB in capacity), the Phison PS5008-E8 quad-channel controller and a 512MB LPDDR3 RAM module.
